Caju

Download PDF data sheet

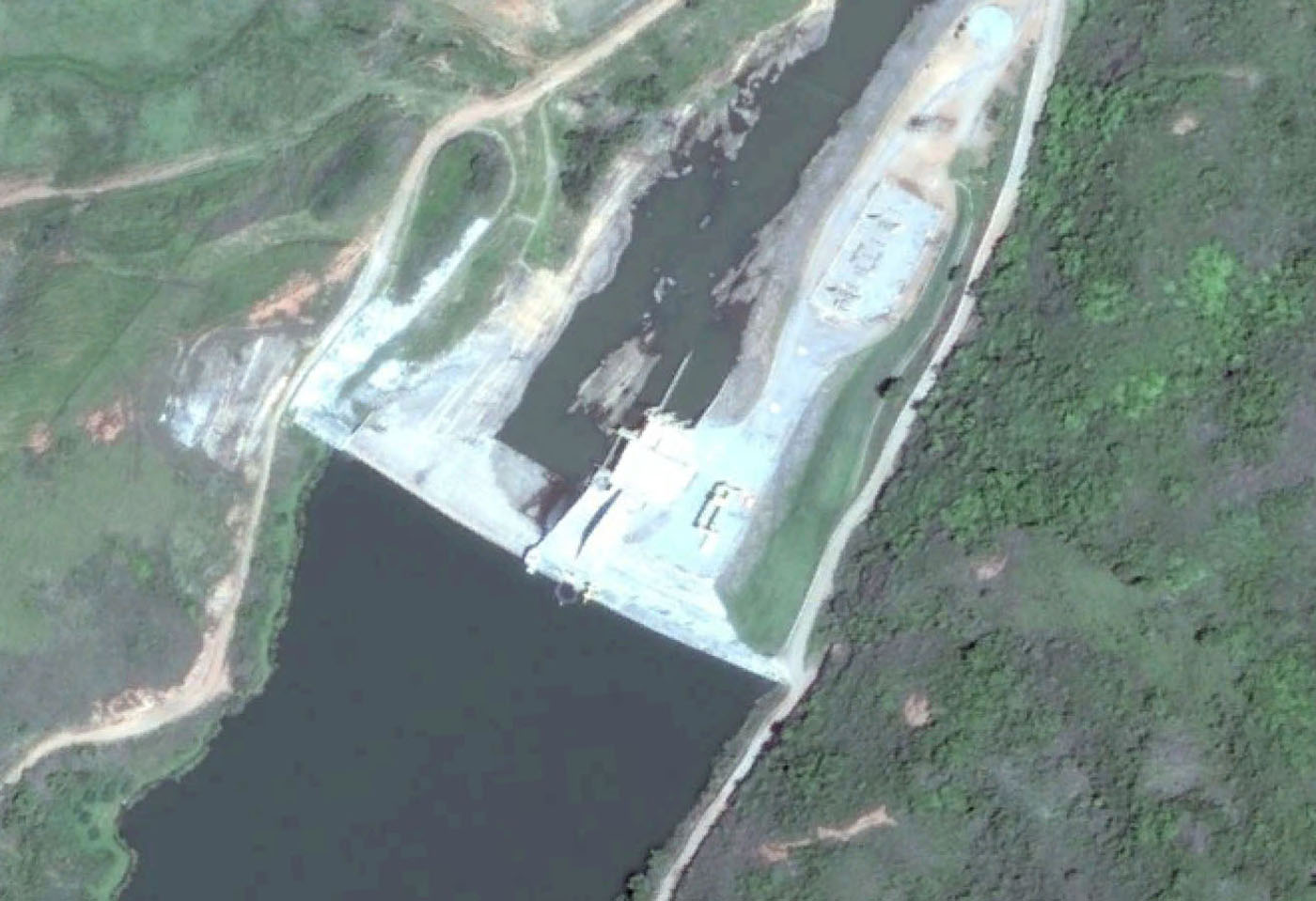

Caju under construction

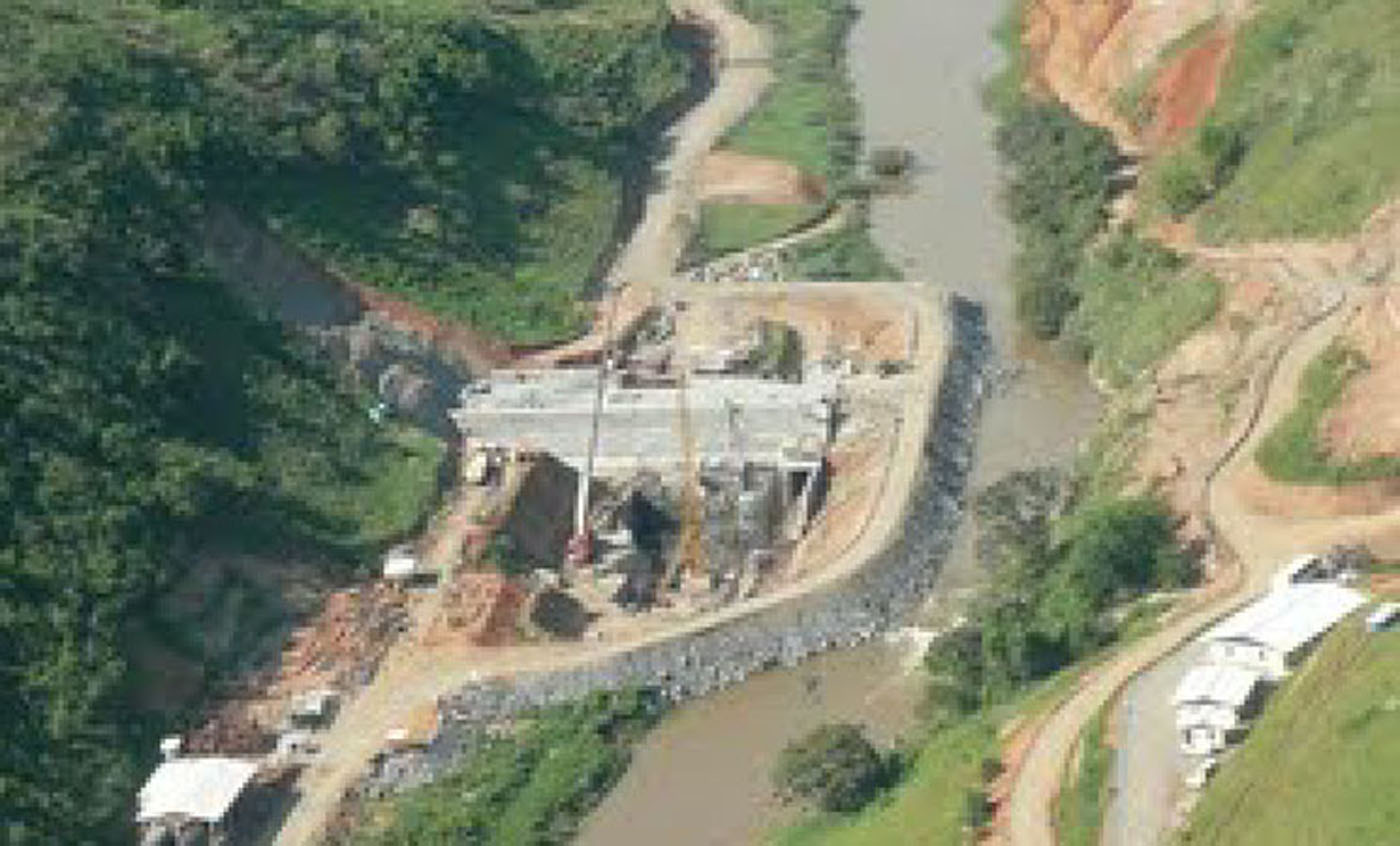

Caju under construction

Particulars

Owner: Energisa Geracao Rio Grande S/A

Designer: Hacker Industrial Ltda.

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 10 m3x106

Height: 38 metres

Length: 220 metres

Volume of RCC: 66 m3x103

Total volume: 82 m3x103

Construction Dates

Start of Project: /09 ( 2009)

Start of RCC: /09 ( 2009)

End of RCC: /10 ( 2010)

End of Project: 03/11 (March 2011)

Country: Brazil

River: Rio Grande

DMS Co-ordinates: 21˚56'14.01"S, 42 ˚05'23.94"W

DD Co-ordinates: -21.937225, -42.089985

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
