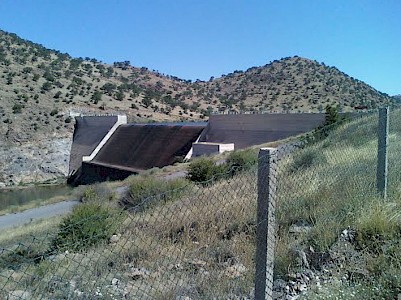

Ahl Souss (Ait M’Zal)

Download PDF data sheet
Ahl Souss (Ait M’Zal) completed
Ahl Souss (Ait M’Zal) completed

Particulars

Owner: Direction des Aménagements Hydrauliques

Designer: Al Khiba

Contractor: Somagec

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 5 m3x106

Height: 49 metres

Length: 222 metres

Volume of RCC: 50 m3x103

Total volume: 27 m3x103

Construction Dates

Start of Project: 11/01 (November 2001)

Start of RCC: 01/03 (January 2003)

End of RCC: 05/03 (May 2003)

End of Project: 01/04 (January 2004)

Country: Morocco

River: Izig

DMS Co-ordinates: 30˚3'13.62"N, 9˚7'42.08"W

DD Co-ordinates: 30.053783, -9.128356

Facings

Upstream

SlopeType
0.20Traditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.85Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
100
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
0
