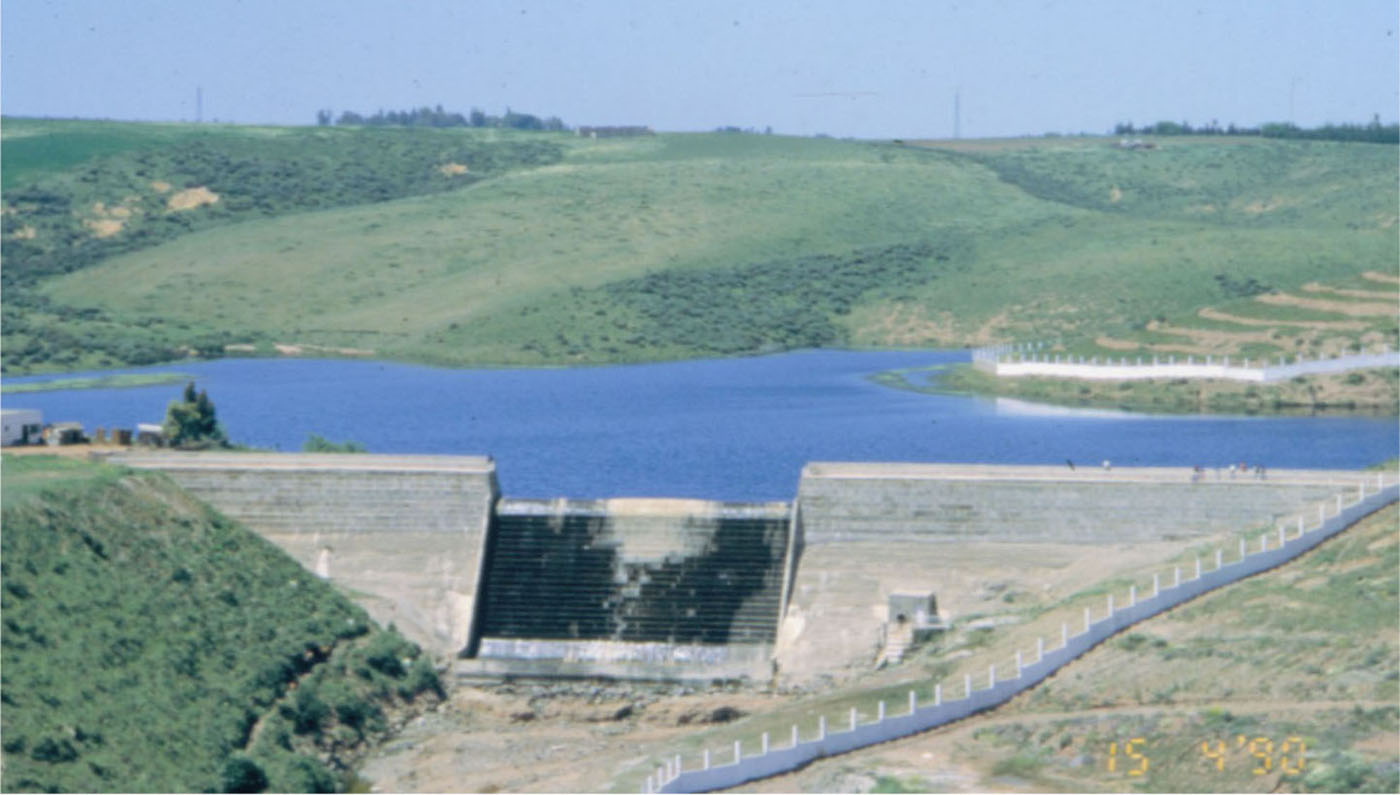

Ain al Koreima

Download PDF data sheet
Ain al Koreima completed
Ain al Koreima completed

Particulars

Owner: Direction des Aménagements Hydrauliques

Designer: Direction des Aménagements Hydrauliques

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation

Reservoir capacity: 1 m3x106

Height: 26 metres

Length: 124 metres

Volume of RCC: 17 m3x103

Total volume: 20 m3x103

Construction Dates

Start of Project: 06/87 (June 1987)

Start of RCC: 09/87 (September 1987)

End of RCC: 02/88 (February 1988)

End of Project: 03/88 (March 1988)

Country: Morocco

River: Akreuch

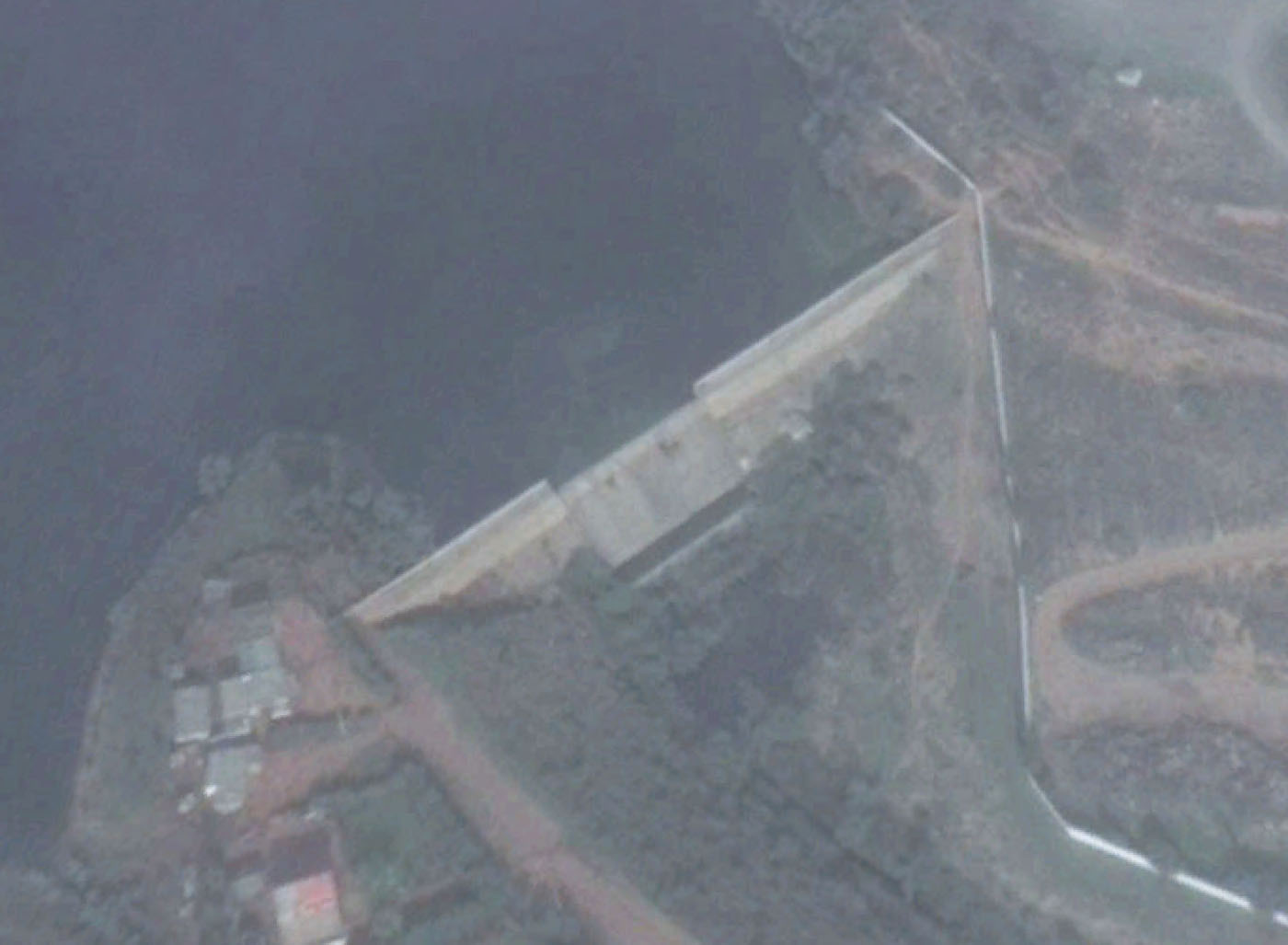

DMS Co-ordinates: 33˚49'16.32"N, 6˚49'24.78"W

DD Co-ordinates: 33.821201, -6.823550

Facings

Upstream

SlopeType
0.20Traditional concrete against precast concrete panels  [stepped face]

Downstream

SlopeType
0.20Traditional concrete against precast concrete panels
0.75Unformed face of RCC

Spillway

SlopeType
0.60Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
350350

Cementitious material

Cement (kg/m3)
70
140
Pozzolan (kg/m3)Pozzolan Type
30Ground-granulated blast-furnace slag
60
