Ait Moulay Ahmed

Download PDF data sheet

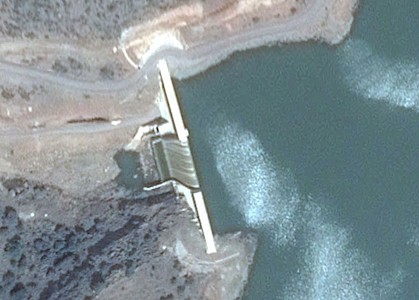

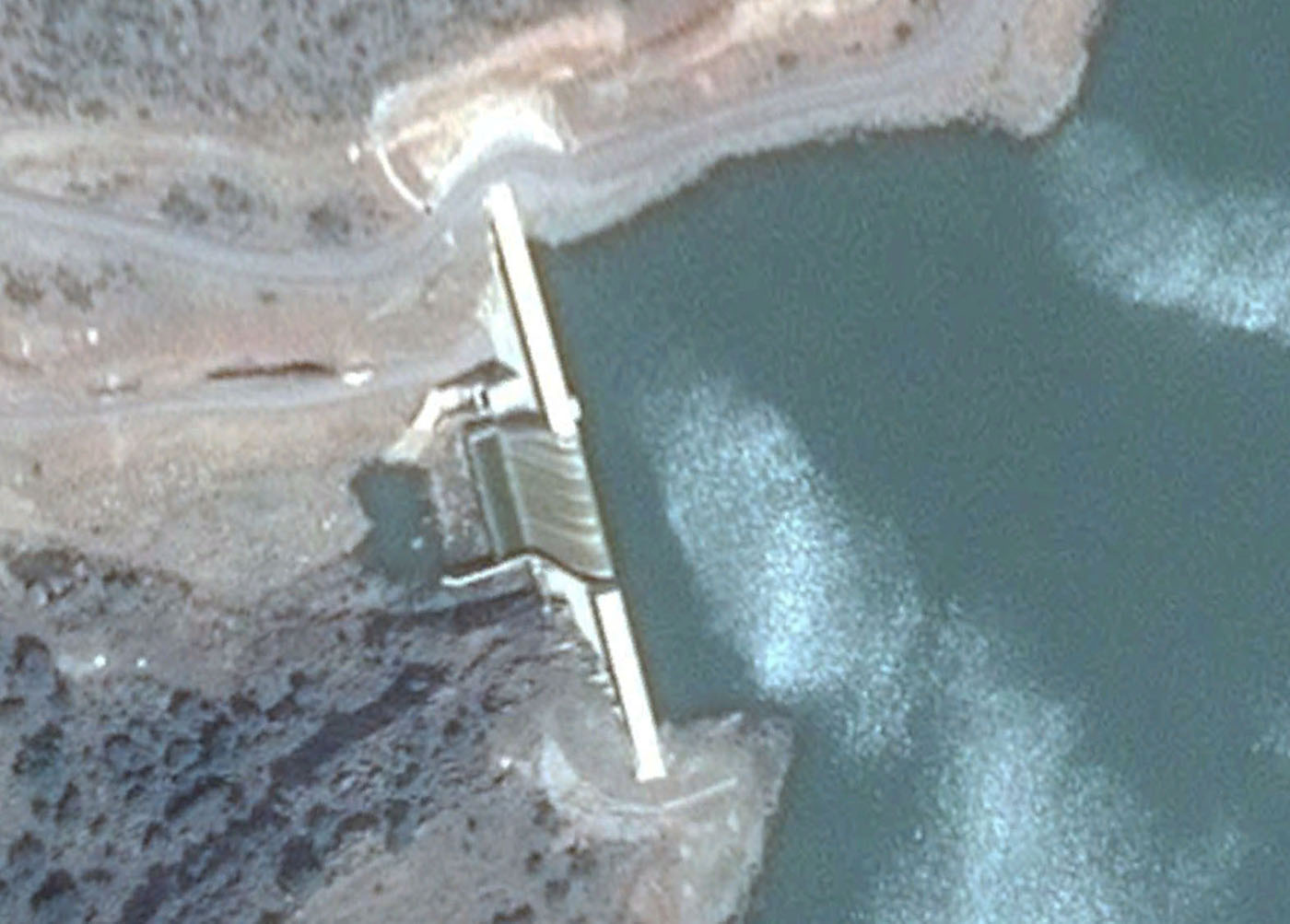

Ait Moulay Ahmed on Google Earth
Ait Moulay Ahmed on Google Earth

Particulars

Owner: Direction des Aménagements Hydrauliques

Designer: Novec (Ingema)

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 2 m3x106

Height: 29 metres

Length: 136 metres

Volume of RCC: 18 m3x103

Total volume: 20 m3x103

Construction Dates

Start of Project: 10/09 (October 2009)

Start of RCC: /10 ( 2010)

End of RCC: 01/11 (January 2011)

End of Project: 10/11 (October 2011)

Country: Morocco

River: Ain Leuh

DMS Co-ordinates: 33˚20'58.49"N, 05˚29'39.96"W

DD Co-ordinates: 33.349583, -5.494433

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels

Downstream

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
70
Pozzolan (kg/m3)Pozzolan Type
30Natural pozzolan (ASTM Class N)
