Bab Louta

< Back to search results

Download PDF data sheet

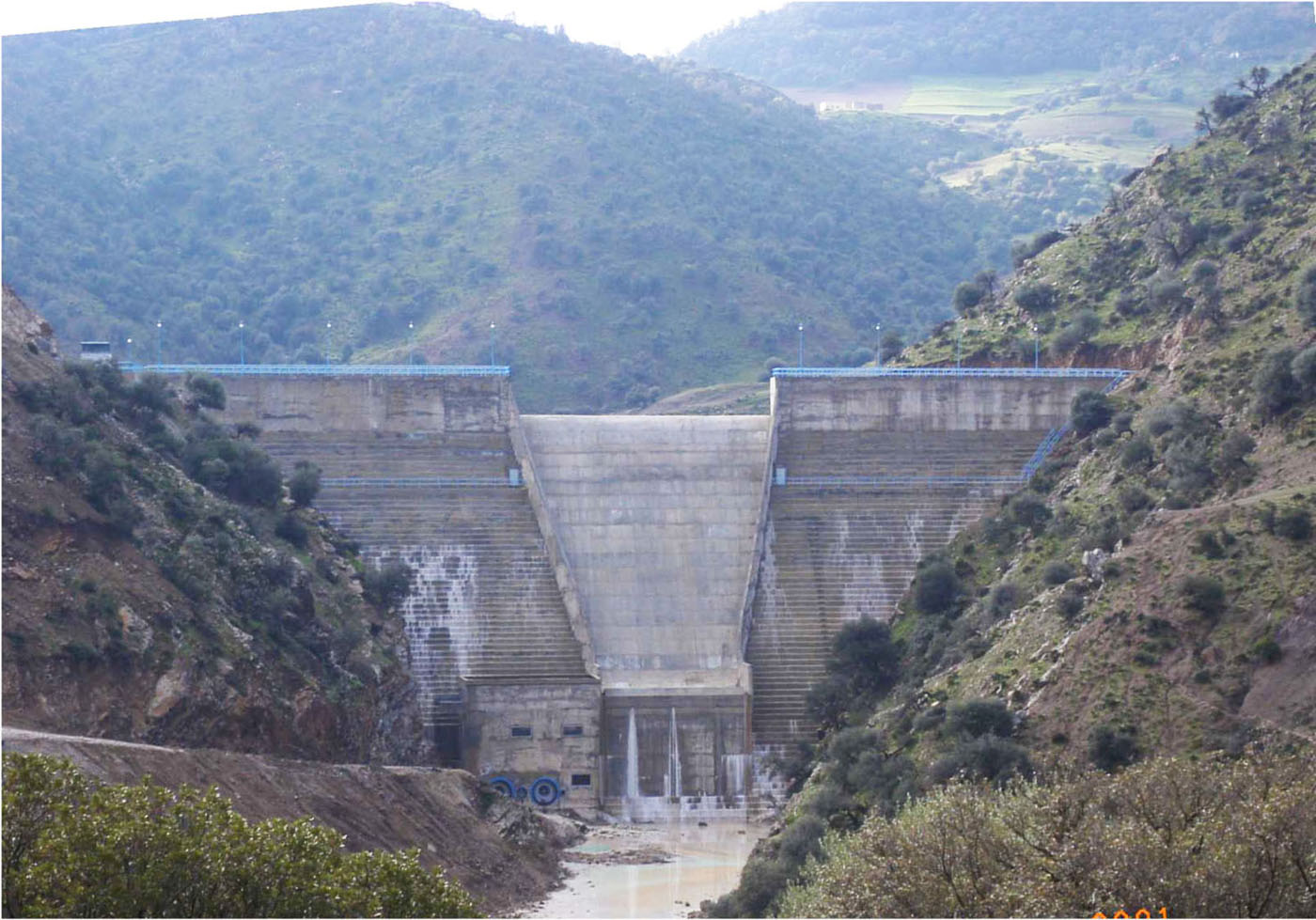

Bab Louta completed
Bab Louta completed

Particulars

Owner: Direction des Arrenagements Hydrauliques

Designer: Ingema

Contractor: Direction des Aménagements Hydrauliques

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 37 m3x106

Height: 54 metres

Length: 110 metres

Volume of RCC: 63 m3x103

Total volume: 77 m3x103

Construction Dates

Start of Project: 01/97 (January 1997)

Start of RCC: 02/98 (February 1998)

End of RCC: 02/99 (February 1999)

End of Project: 03/99 (March 1999)

Country: Morocco

River: Bous Sbaa

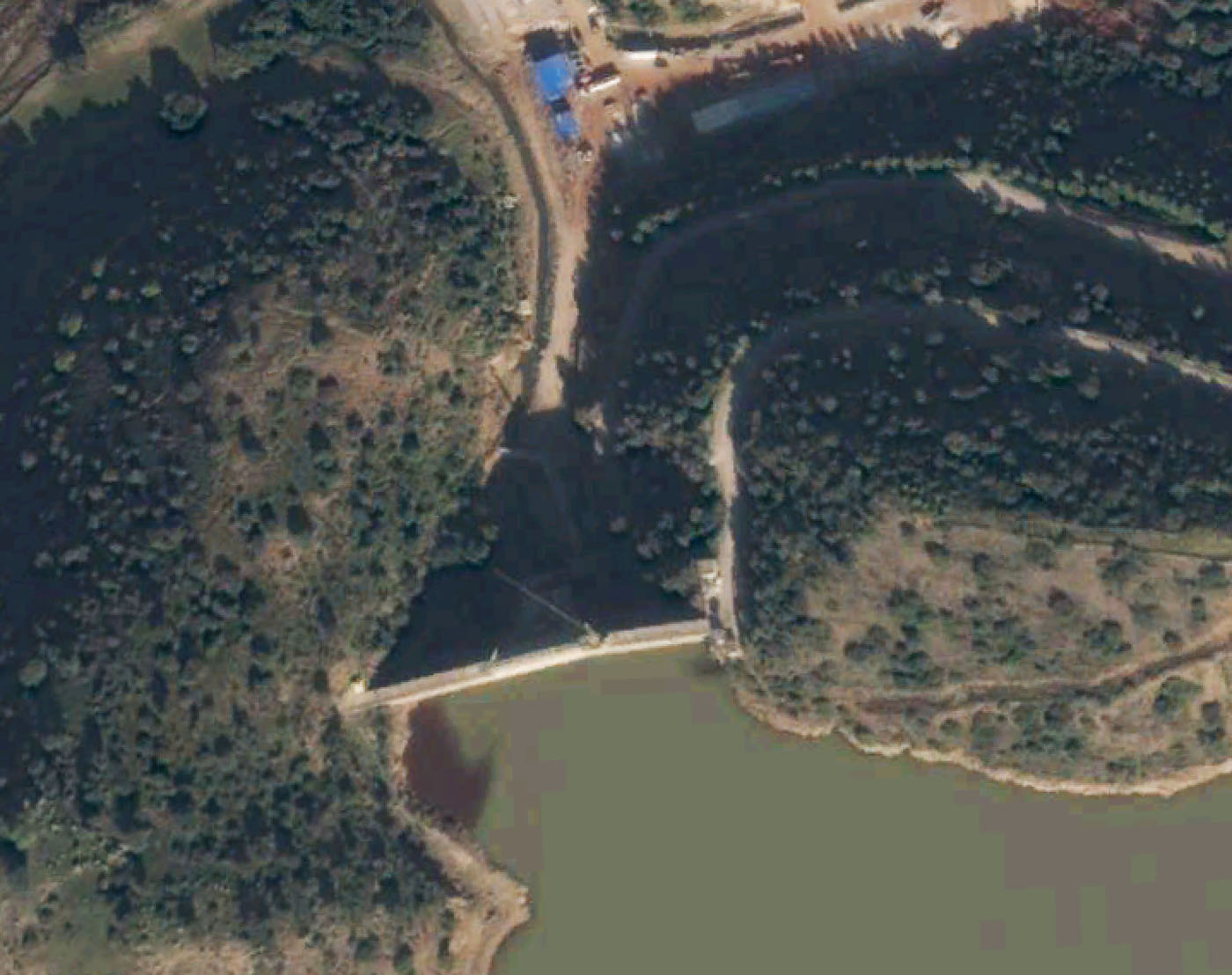

DMS Co-ordinates: 34˚0'54.24"N, 4˚20'0.80"W

DD Co-ordinates: 34.015068, -4.333556

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels

Downstream

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.75Reinforced concrete cast against precast units or slip-formed facing elements

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
65
80
Pozzolan (kg/m3)Pozzolan Type
15Natural pozzolan (ASTM Class N)
20
