Bandeira de Melo

Download PDF data sheet

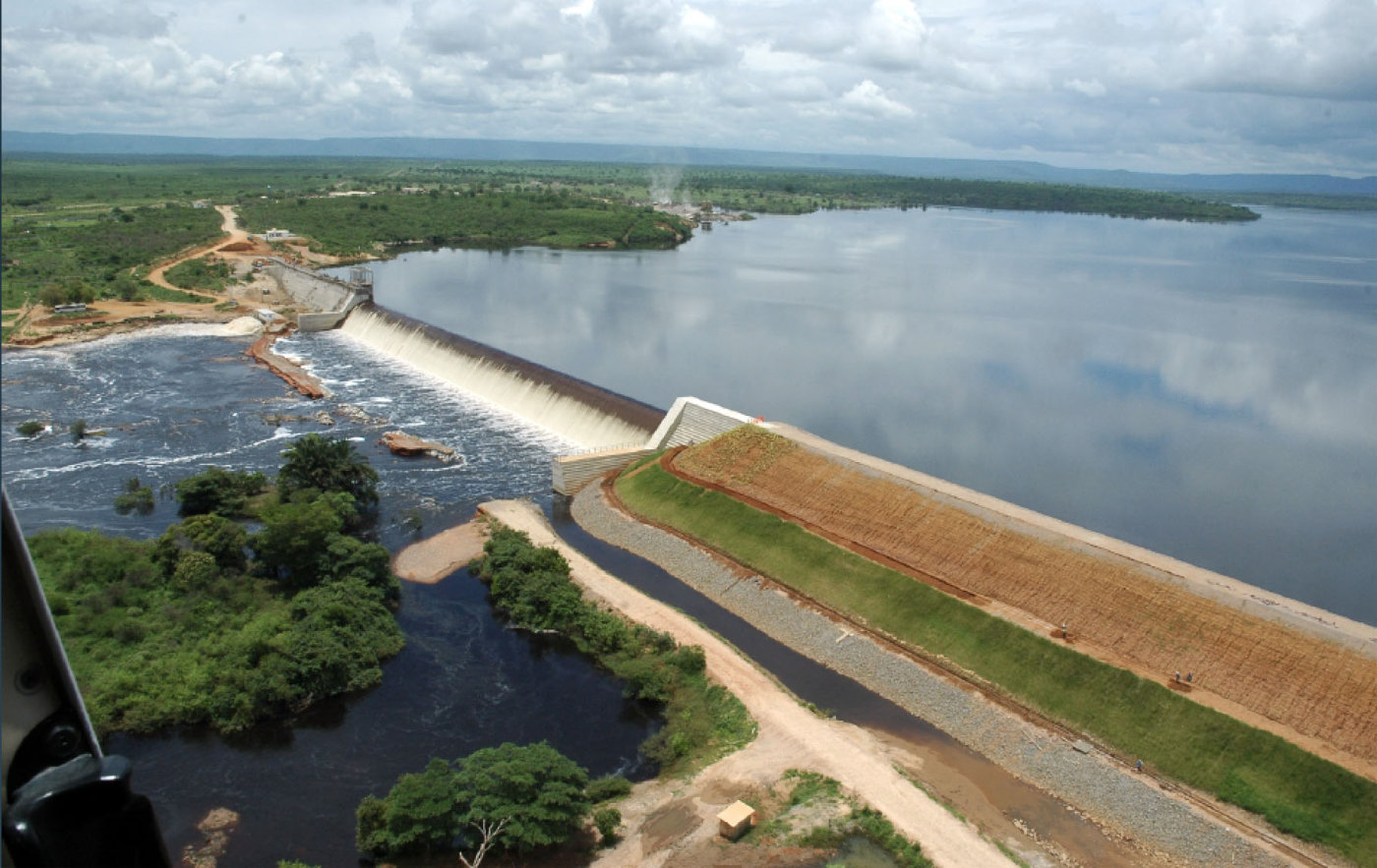

Bandeira de Melo completed
Bandeira de Melo completed

Particulars

Owner: CERB (Companhia de Engenharia Ambiental e Recursos Hidricos da Bahia)

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 122 m3x106

Height: 20 metres

Length: 320 metres

Volume of RCC: 75 m3x103

Total volume: 87 m3x103

Construction Dates

Start of Project: /01 ( 2001)

Start of RCC: 09/03 (September 2003)

End of RCC: /04 ( 2004)

End of Project: /05 ( 2005)

Country: Brazil

River: Paraguaçu

DMS Co-ordinates: 13˚1'45.5"S, 40˚48'56.0"W

DD Co-ordinates: -13.029306, -40.815556

Facings

Upstream

SlopeType
 Traditional concrete against formwork

Downstream

SlopeType
 Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
 Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
56
Pozzolan (kg/m3)Pozzolan Type
14Natural pozzolan (ASTM Class N)
