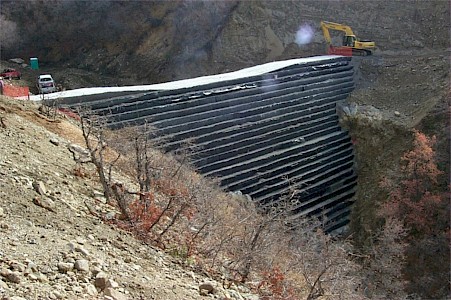

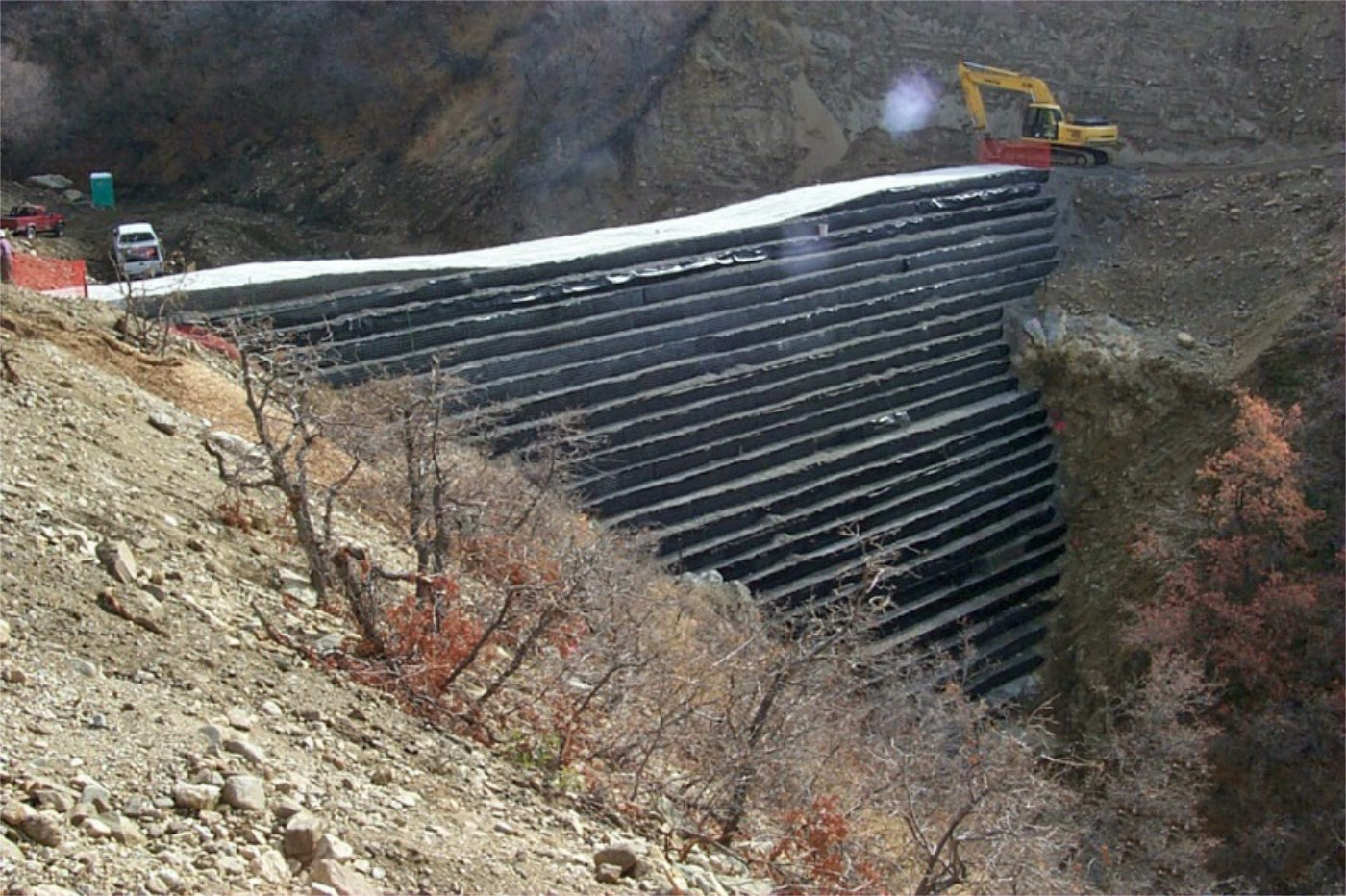

Barnard Creek Canyon Debris Dam

Download PDF data sheet

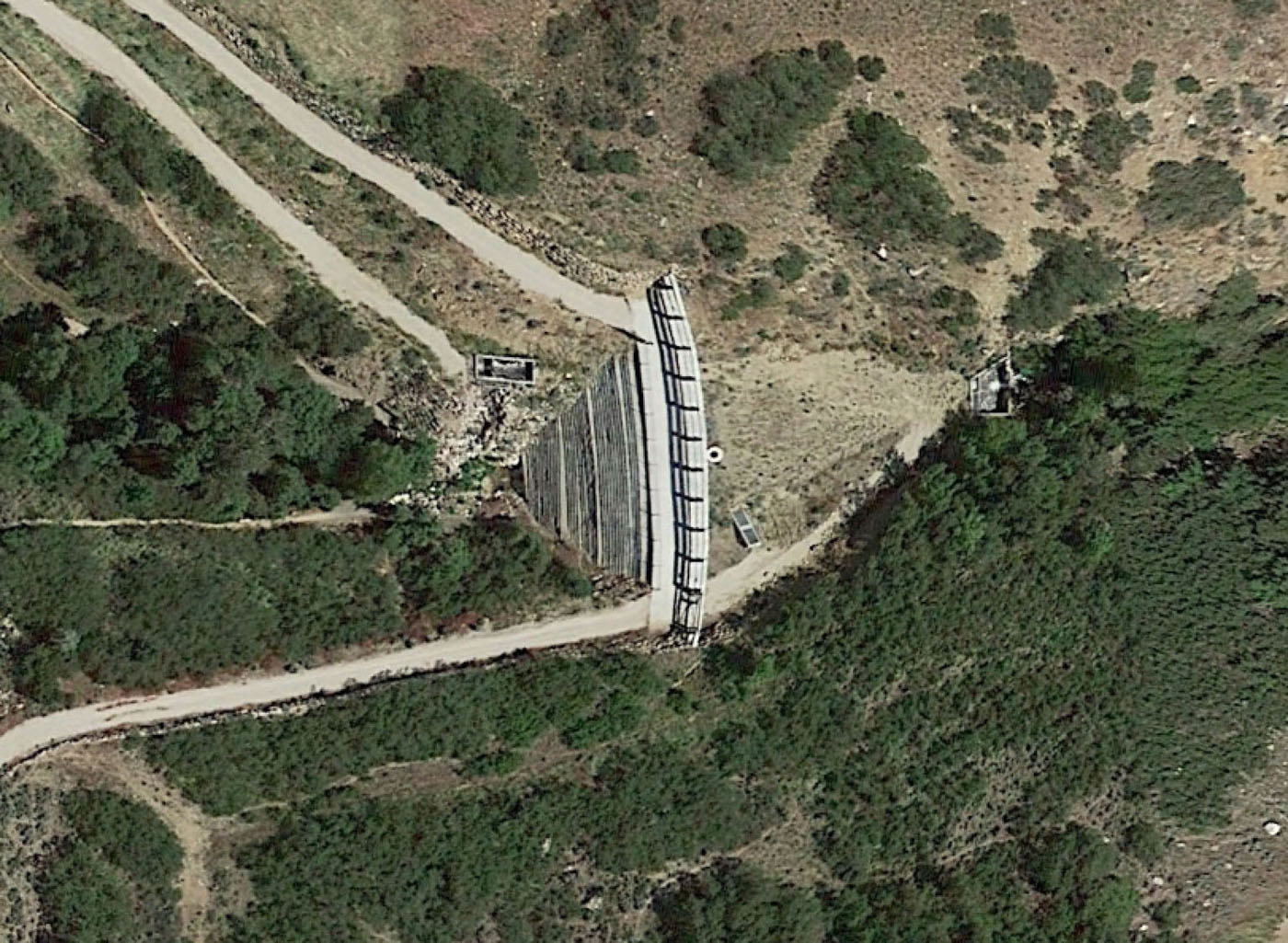

Barnard Creek Canyon Debris Dam on Google Earth
Barnard Creek Canyon Debris Dam on Google Earth

Particulars

Owner: City of Centerville

Designer: ESI Consultants

Contractor: Nordic Industries

Statistics

Type: Gravity

Purpose(s): Flood Control

Reservoir capacity: unknown

Height: 18 metres

Length: 46 metres

Volume of RCC: 3 m3x103

Total volume: 3 m3x103

Construction Dates

Start of Project: 08/99 (August 1999)

Start of RCC: 11/99 (November 1999)

End of RCC: 11/99 (November 1999)

End of Project: 01/00 (January 2000)

Country: USA

River: Barnard Creek

DMS Co-ordinates: 40˚54'58.74"N, 111˚51'45.25"W

DD Co-ordinates: 40.916317, -111.862572

Facings

Upstream

SlopeType
Vertical

Downstream

SlopeType
0.75  [stepped face]

Spillway

SlopeType
0.75  [stepped face]

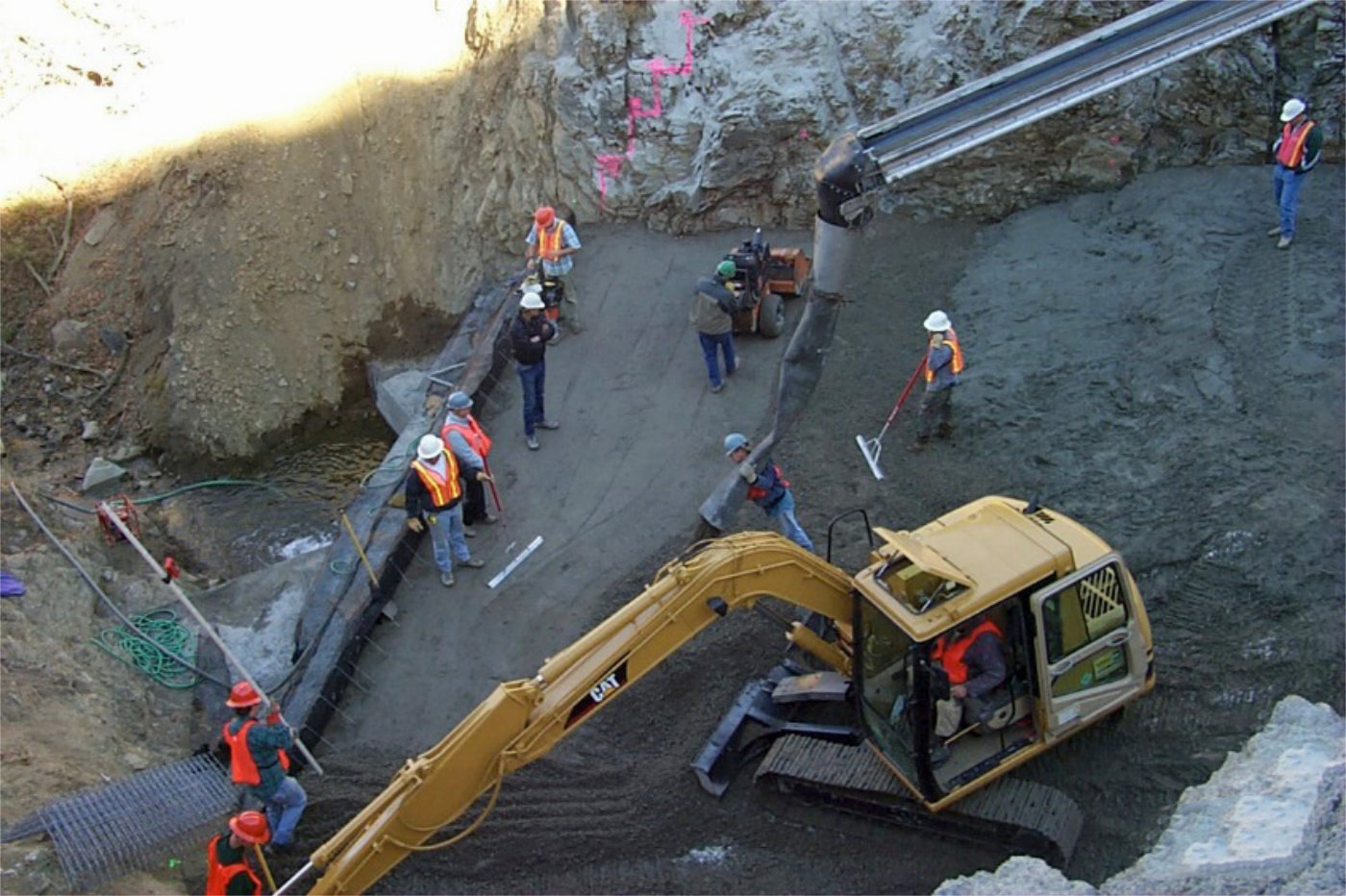

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
108
Pozzolan (kg/m3)Pozzolan Type
84Low-lime flyash (ASTM Class F)
