Belén-Cagüela

Download PDF data sheet

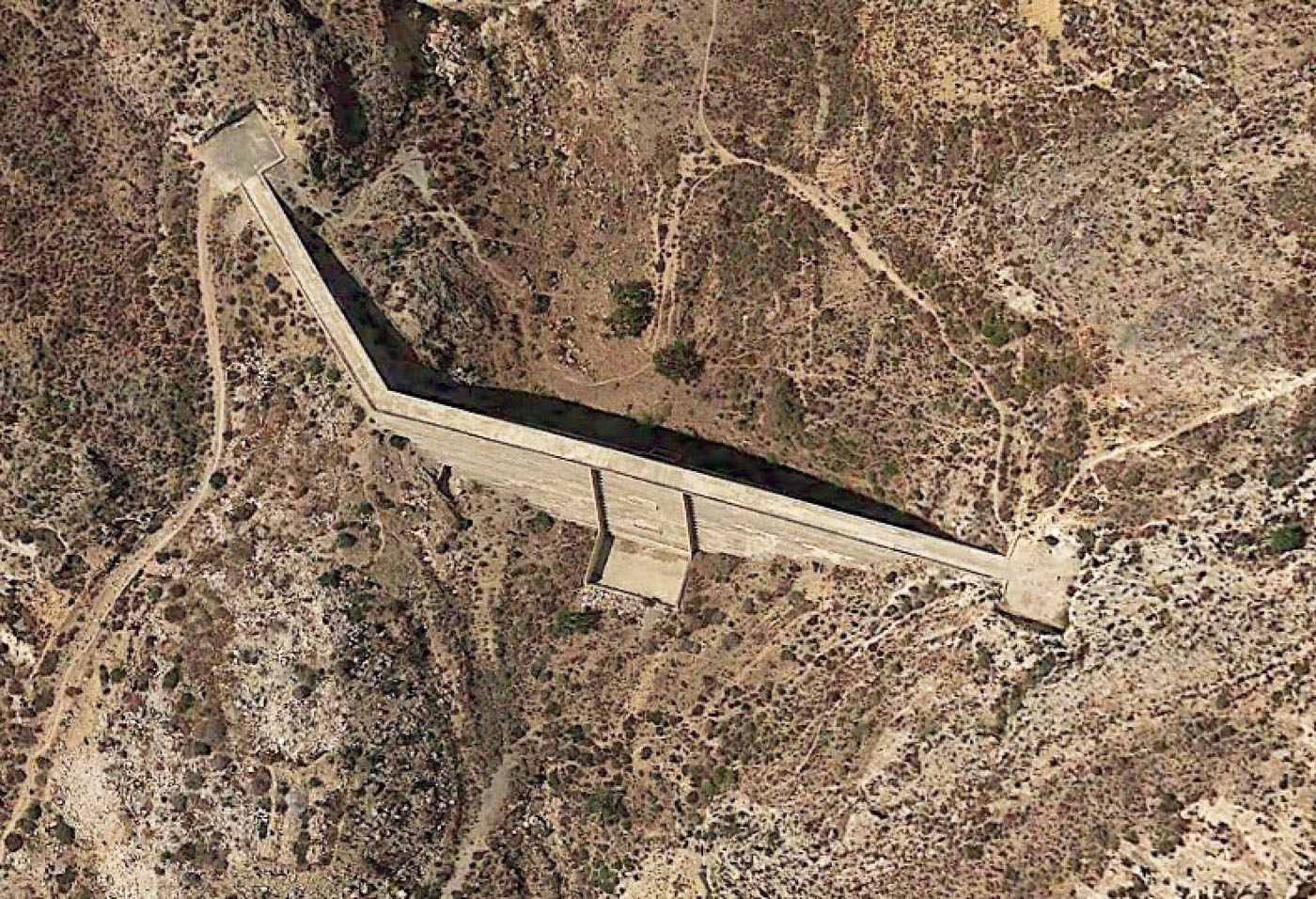

Belén-Cagüela completed

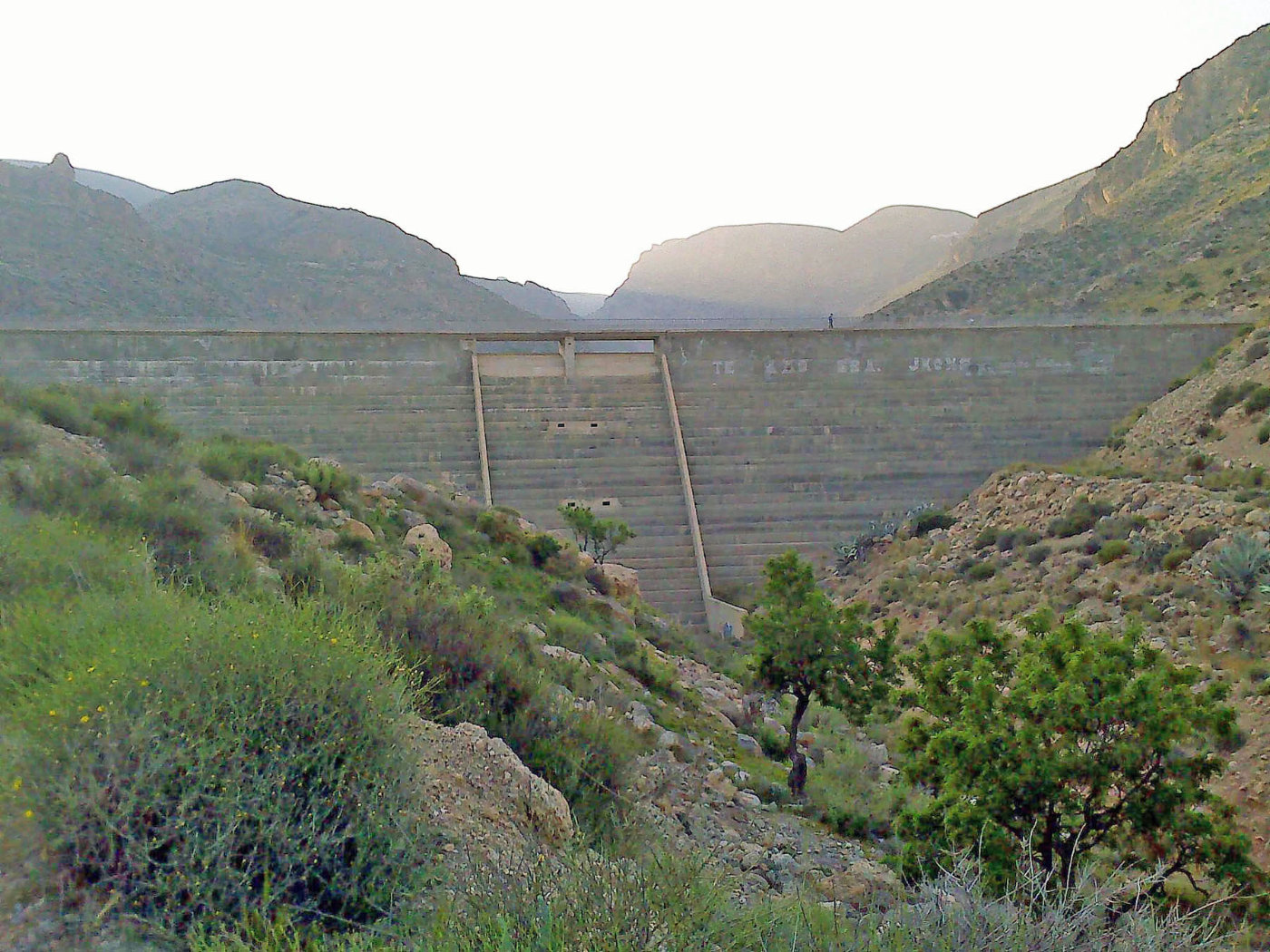

Belén-Cagüela completed

Particulars

Owner: Junta de Andalucia

Designer: Confederacion Hidrografica del Sur

Contractor: SACYR

Statistics

Type: Gravity

Purpose(s): Flood Control

Reservoir capacity: 1 m3x106

Height: 31 metres

Length: 160 metres

Volume of RCC: 24 m3x103

Total volume: 29 m3x103

Construction Dates

Start of Project: 03/91 (March 1991)

Start of RCC: 06/91 (June 1991)

End of RCC: 10/91 (October 1991)

End of Project: 10/91 (October 1991)

Country: Spain

River: Belén

DMS Co-ordinates: 36˚51'31.53"N, 2˚28'32.38"W

DD Co-ordinates: 36.858757, -2.475661

Facings

Upstream

SlopeType
0.05RCC against formwork

Downstream

SlopeType
0.75RCC against formwork  [stepped face]

Spillway

SlopeType
0.75RCC against formwork  [stepped face]

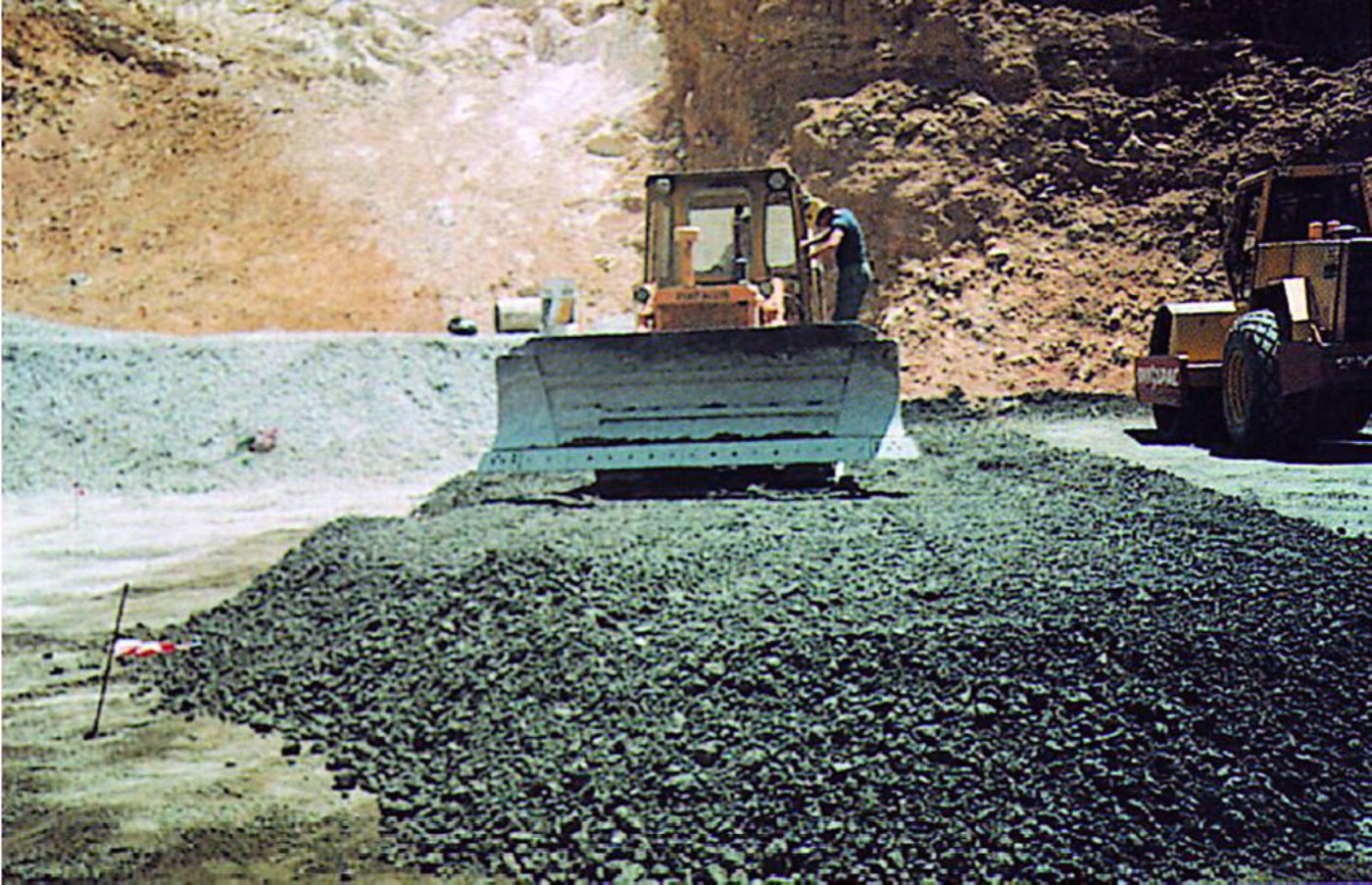

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
73
Pozzolan (kg/m3)Pozzolan Type
109Low-lime flyash (ASTM Class F)
