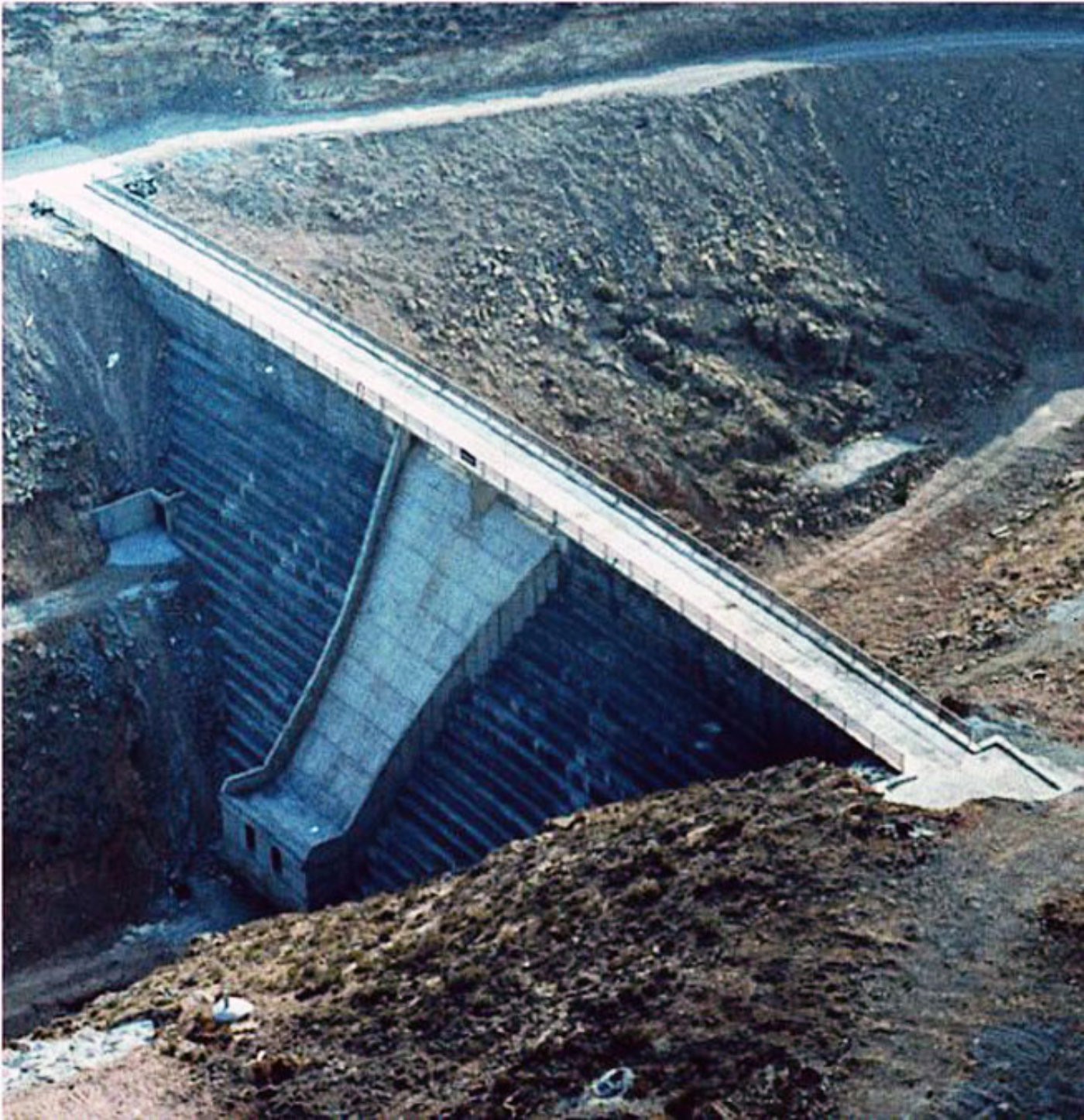

Belén-Flores

Download PDF data sheet

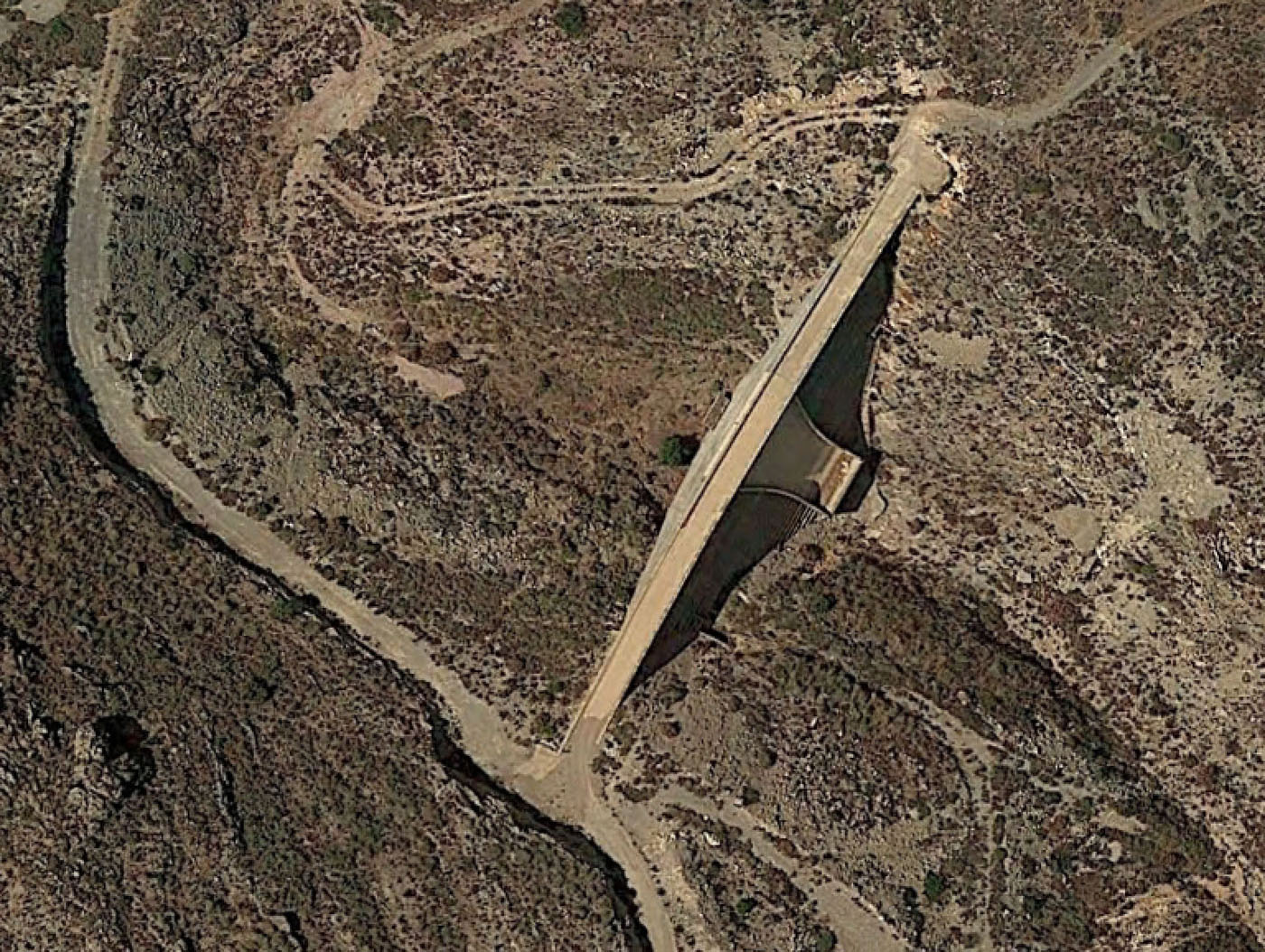

Belén-Flores on Google Earth
Belén-Flores on Google Earth

Particulars

Owner: Junta de Andalucia

Designer: Confederacion Hidrografica del Sur

Contractor: SACYR

Statistics

Type: Gravity

Purpose(s): Flood Control

Reservoir capacity: 1 m3x106

Height: 28 metres

Length: 87 metres

Volume of RCC: 10 m3x103

Total volume: 12 m3x103

Construction Dates

Start of Project: 09/91 (September 1991)

Start of RCC: 11/91 (November 1991)

End of RCC: 01/92 (January 1992)

End of Project: 01/92 (January 1992)

Country: Spain

River: Belén

DMS Co-ordinates: 36˚52'21.98"N, 02˚30'23.85"W

DD Co-ordinates: 36.872772, -2.506625

Facings

Upstream

SlopeType
0.05RCC against formwork

Downstream

SlopeType
0.75RCC against formwork  [stepped face]

Spillway

SlopeType
0.75RCC against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
73
Pozzolan (kg/m3)Pozzolan Type
109Low-lime flyash (ASTM Class F)
