Belén-Gato

Download PDF data sheet

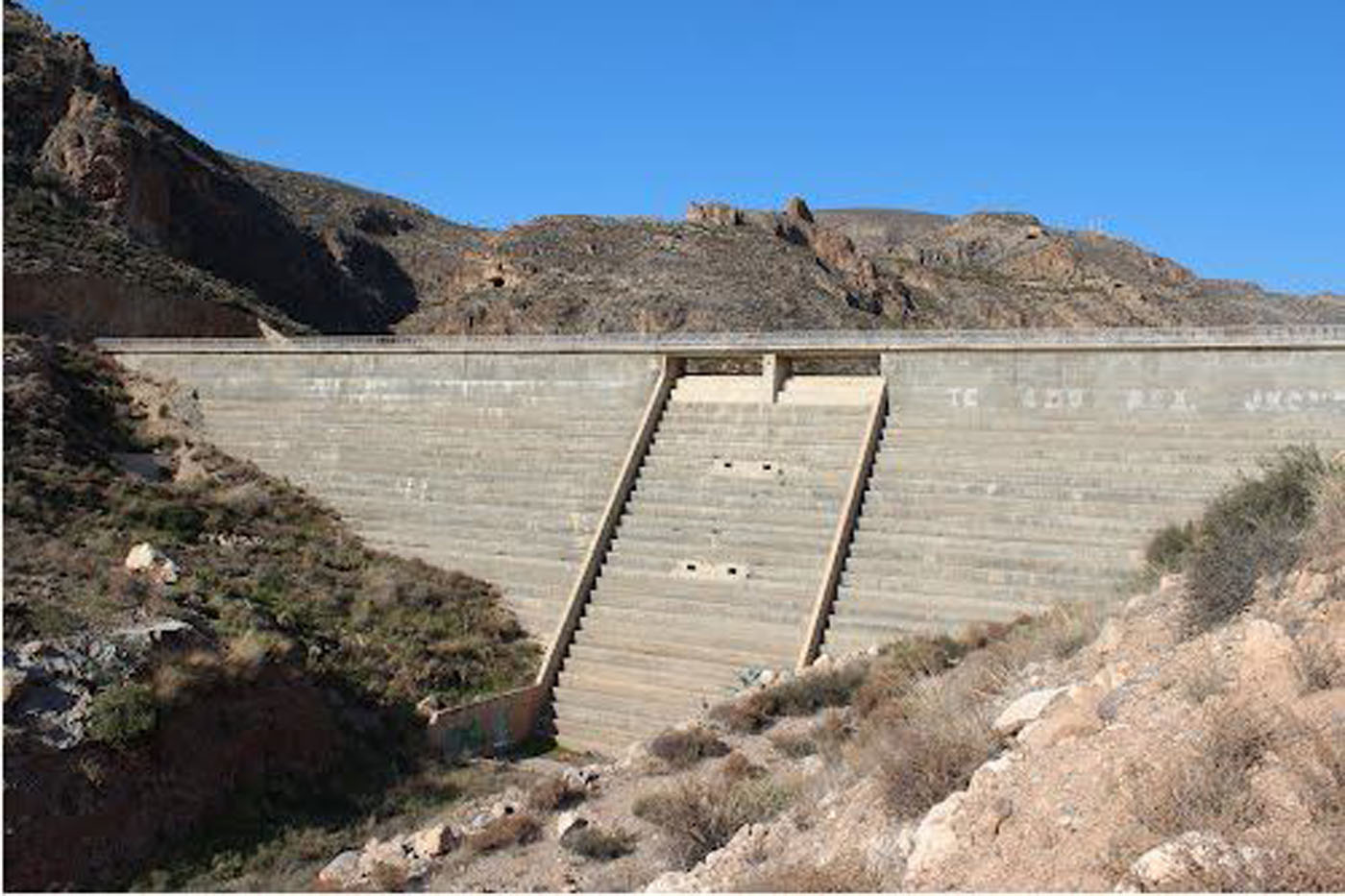

Belén-Gato completed

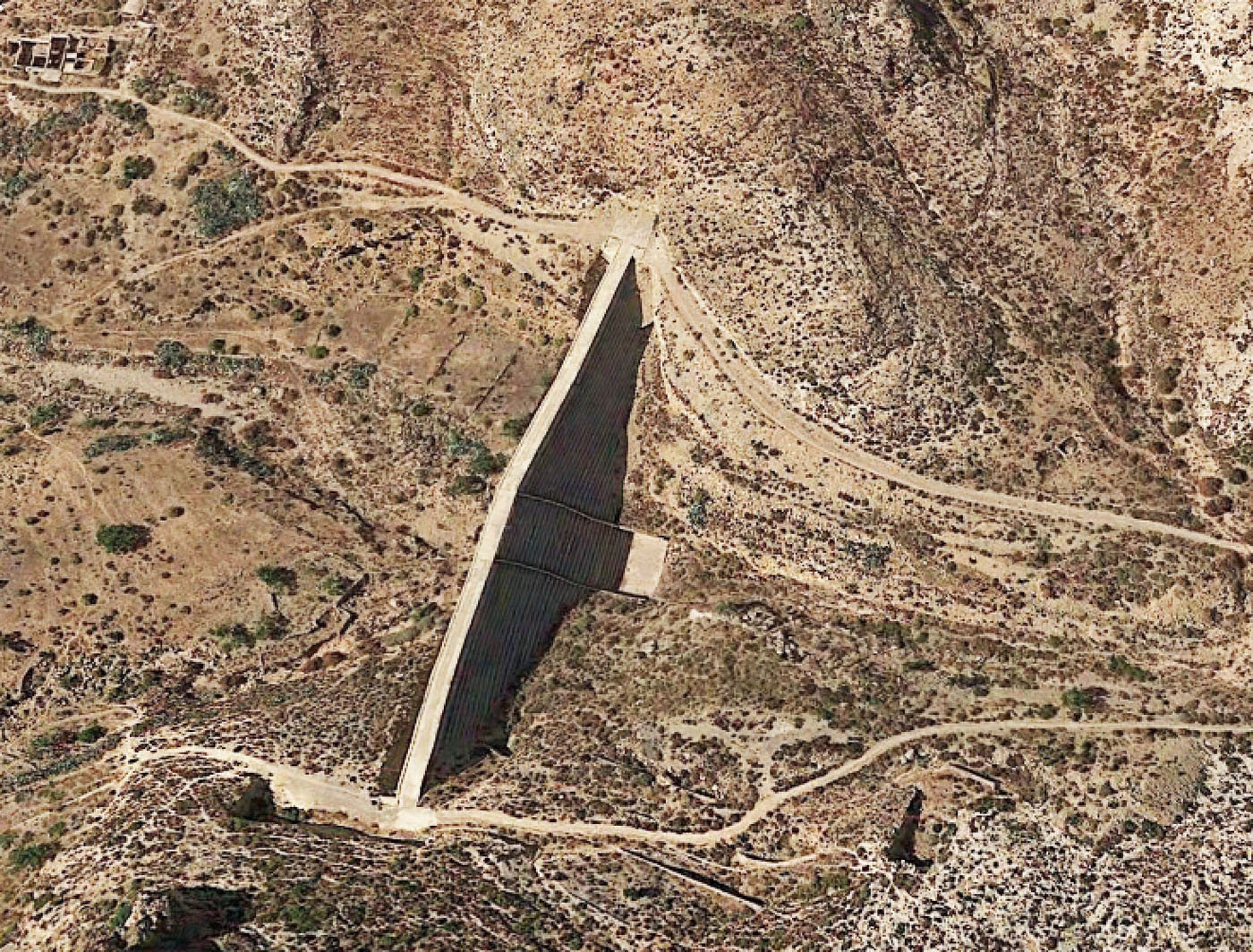

Belén-Gato completed

Particulars

Owner: Junta de Andalucia

Designer: Confederacion Hidrografica del Sur

Contractor: SACYR

Statistics

Type: Gravity

Purpose(s): Flood Control

Reservoir capacity: 1 m3x106

Height: 34 metres

Length: 158 metres

Volume of RCC: 36 m3x103

Total volume: 41 m3x103

Construction Dates

Start of Project: 07/91 (July 1991)

Start of RCC: 09/91 (September 1991)

End of RCC: 11/91 (November 1991)

End of Project: 11/91 (November 1991)

Country: Spain

River: Belén

DMS Co-ordinates: 36˚51'30.52"N, 2˚28'48.98"W

DD Co-ordinates: 36.858479, -2.480272

Facings

Upstream

SlopeType
0.05RCC against formwork

Downstream

SlopeType
0.75RCC against formwork  [stepped face]

Spillway

SlopeType
0.75RCC against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
73
Pozzolan (kg/m3)Pozzolan Type
109Low-lime flyash (ASTM Class F)
