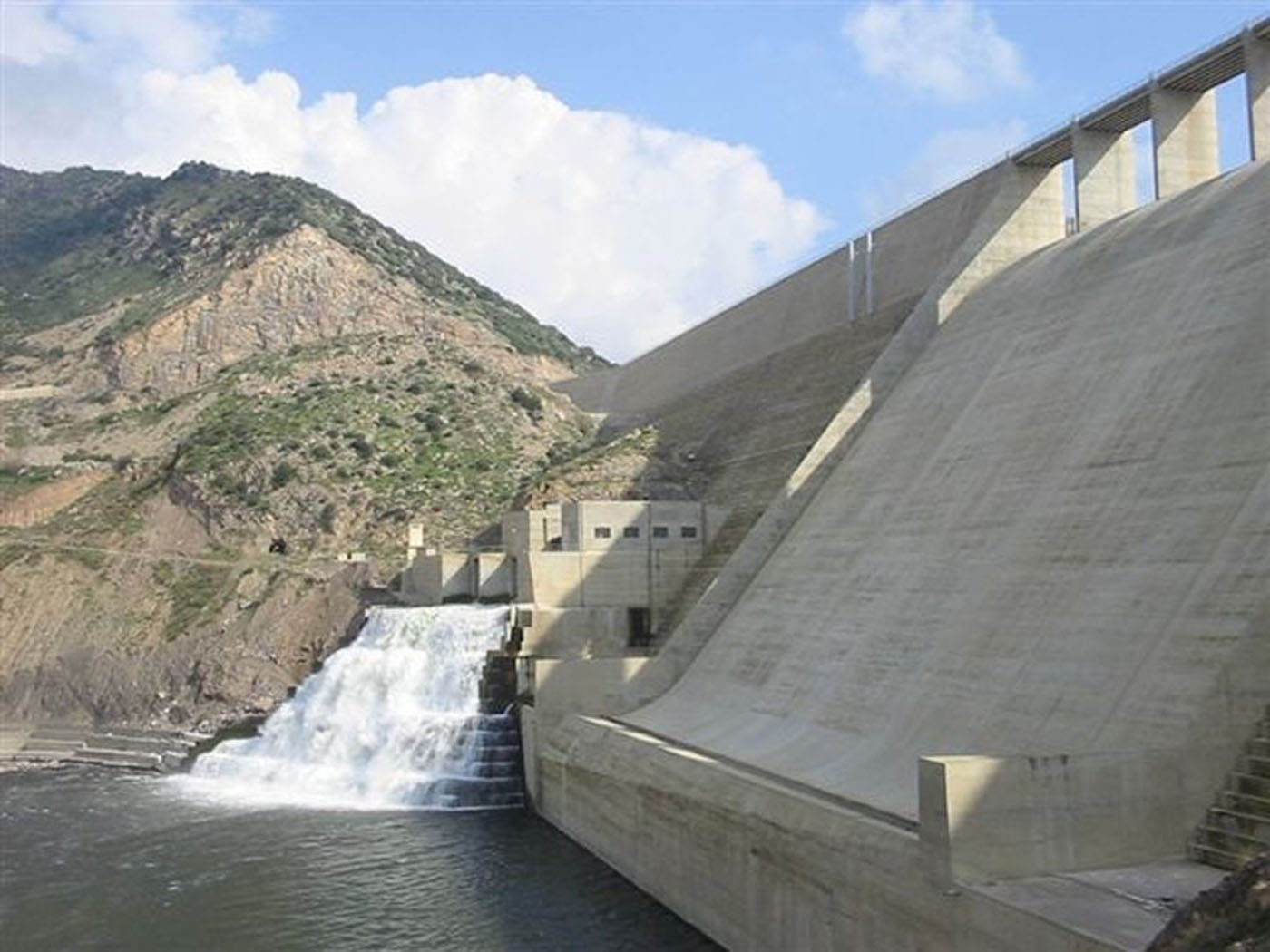

Beni Haroun
Download PDF data sheet
Beni Haroun completed
Particulars
Owner: unknown
Designer: Tractebel
Contractor: Dragados y Construcciones S.A.
Statistics
Type: Gravity
Purpose(s): Irrigation / Water Supply
Reservoir capacity: 963 m3x106
Height: 118 metres
Length: 714 metres
Volume of RCC: 1690 m3x103
Total volume: 1900 m3x103

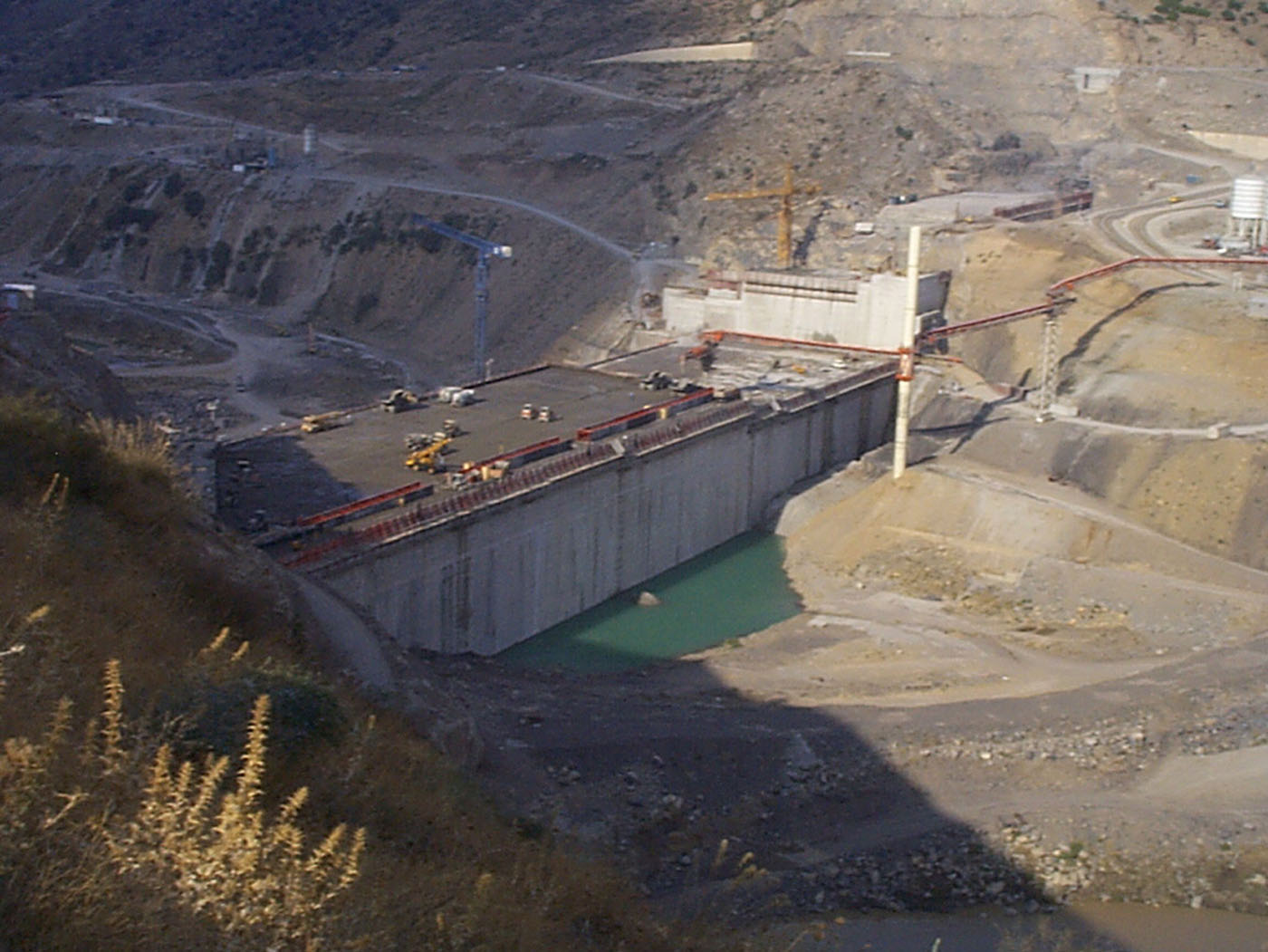

Construction Dates
Start of Project: 01/93 (January 1993)
Start of RCC: 10/98 (October 1998)
End of RCC: 07/00 (July 2000)
End of Project: 12/00 (December 2000)
Country: Algeria
River: El Kebir

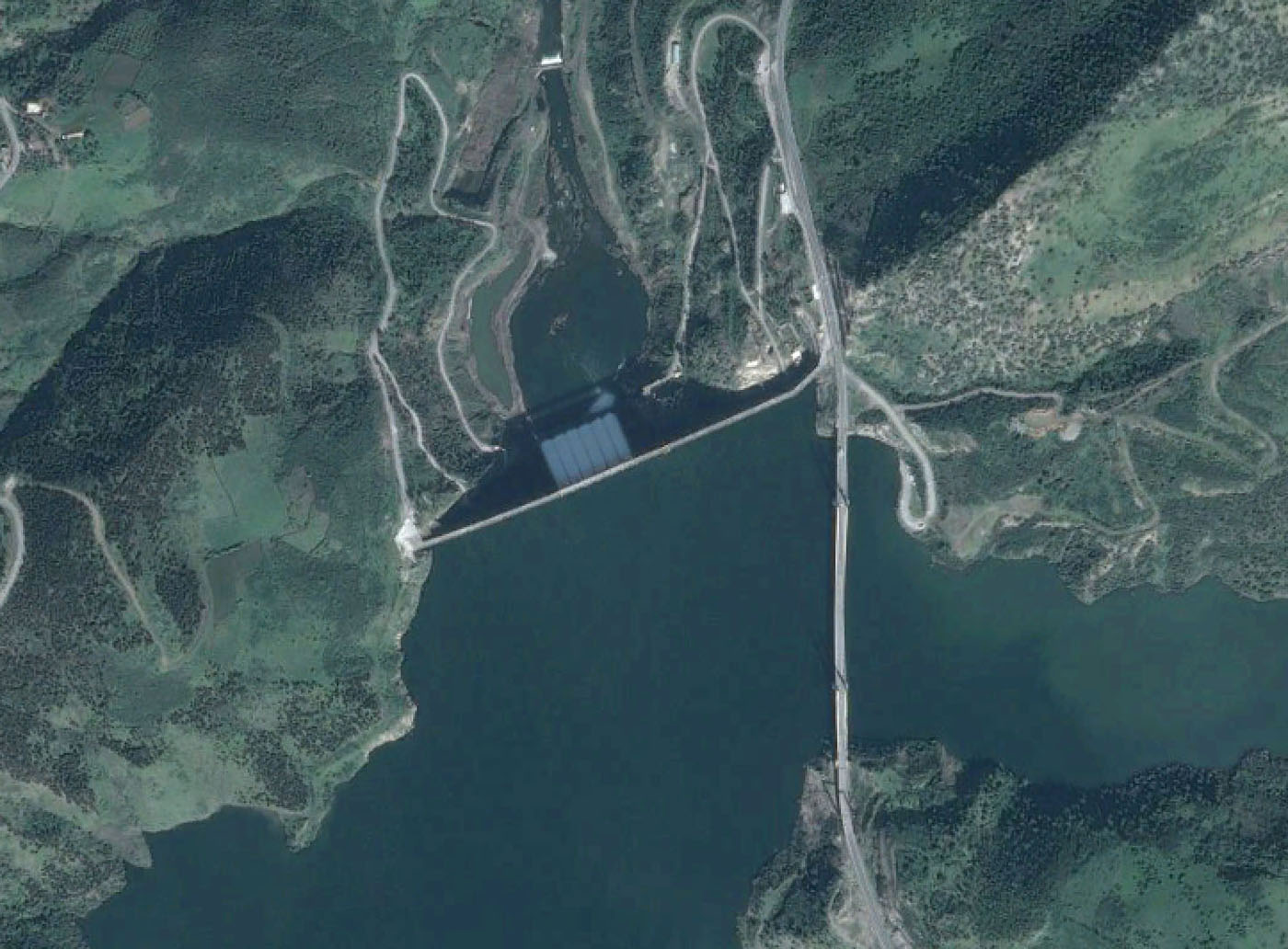

DMS Co-ordinates: 36˚33'58.76"N, 6˚16'30.14"E
DD Co-ordinates: 36.566322, 6.275039
Facings
Upstream
| Slope | Type |
|---|---|
| Vertical | Traditional concrete against formwork |
Downstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork [stepped face] |
Spillway
| Slope | Type |
|---|---|
| 0.80 | Reinforced concrete cast against precast units or slip-formed facing elements |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 300 | 300 |
Cementitious material
| Cement (kg/m3) |
|---|
| 82 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 143 | Low-lime flyash (ASTM Class F) |
