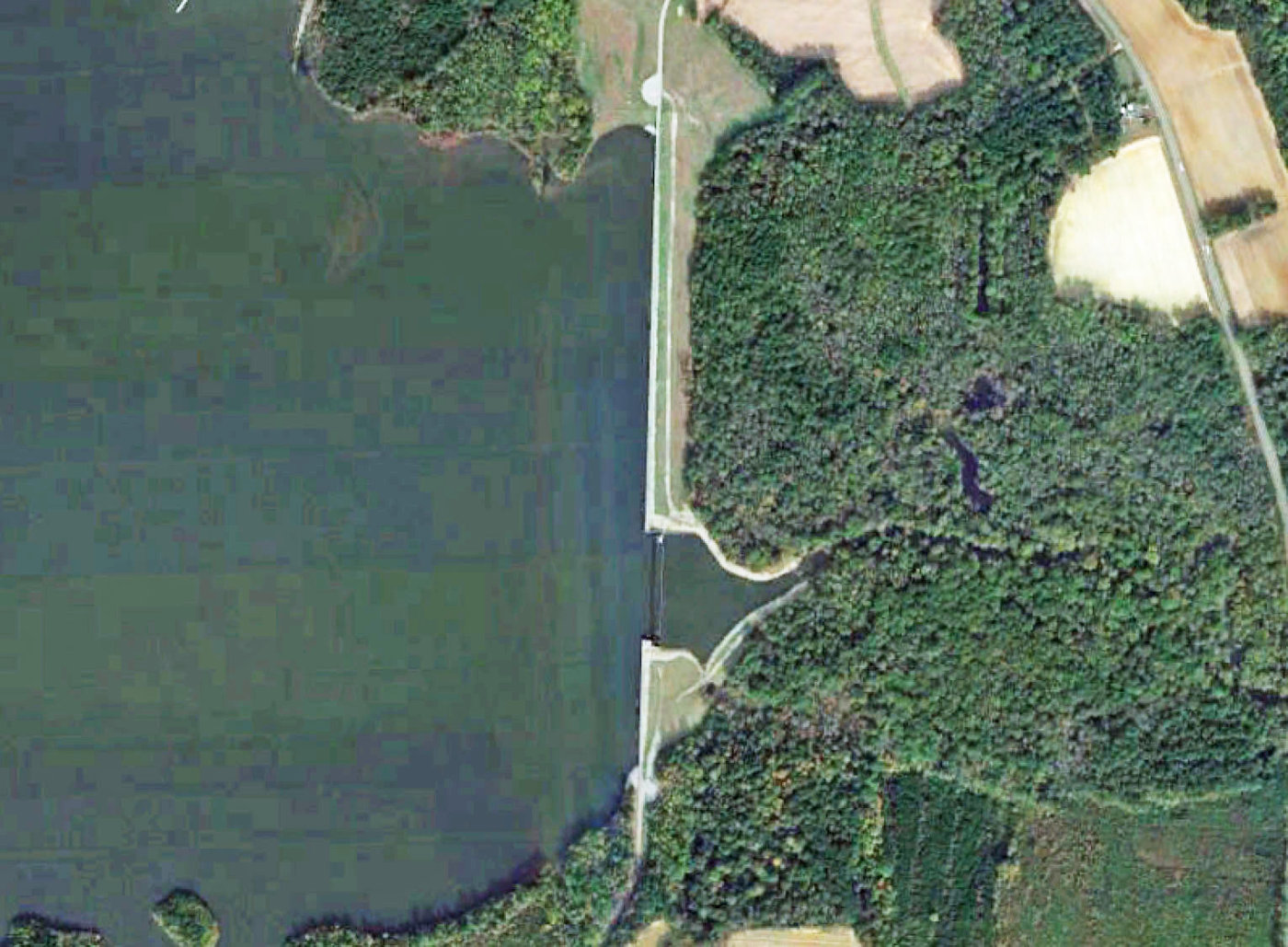

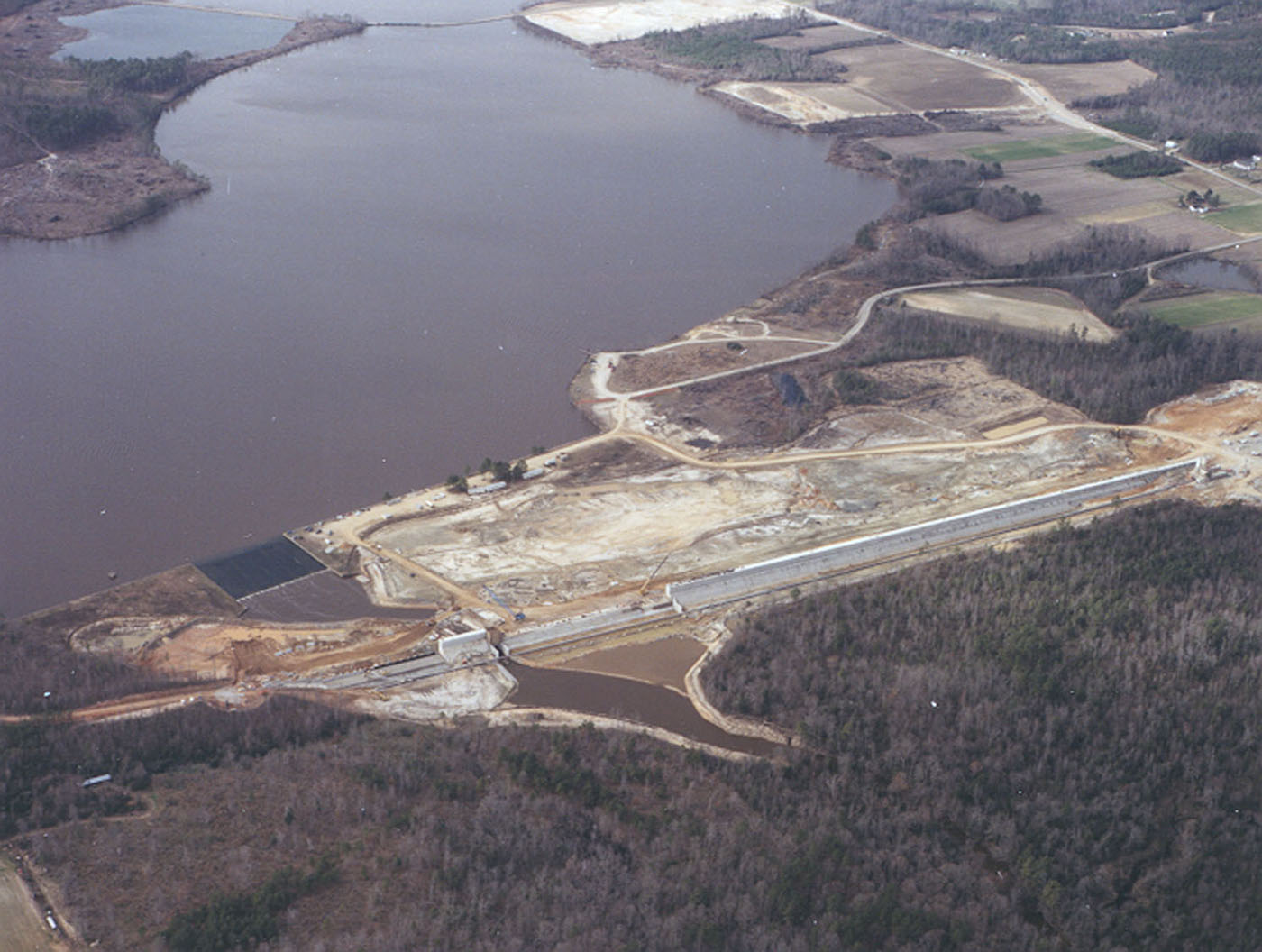

Buckhorn

Download PDF data sheet
Buckhorn completed
Buckhorn completed

Particulars

Owner: Town of Wilson

Designer: Hazen & Sawyer

Contractor: ASI RCC Inc.

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: unknown

Height: 16 metres

Length: 781 metres

Volume of RCC: 64 m3x103

Total volume: 69 m3x103

Construction Dates

Start of Project: 03/98 (March 1998)

Start of RCC: /98 ( 1998)

End of RCC: 04/99 (April 1999)

End of Project: 06/09 (June 2009)

Country: USA

River: Contentea Creek

DMS Co-ordinates: 35˚41'34.84"N, 78˚07'04.19"W

DD Co-ordinates: 35.693012, -78.117828

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels with geomembrane

Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
89
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
