Cadiangullong

Download PDF data sheet

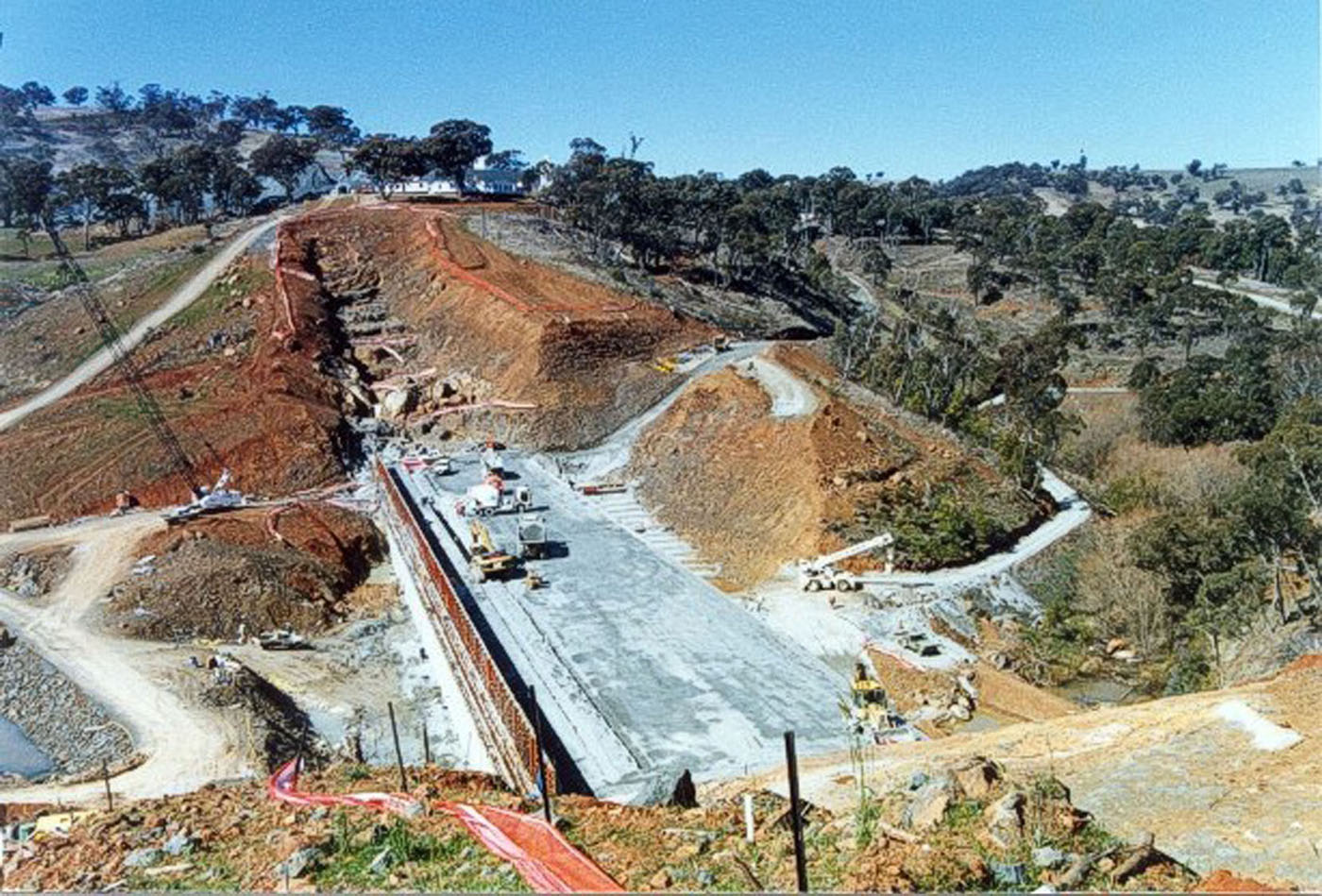

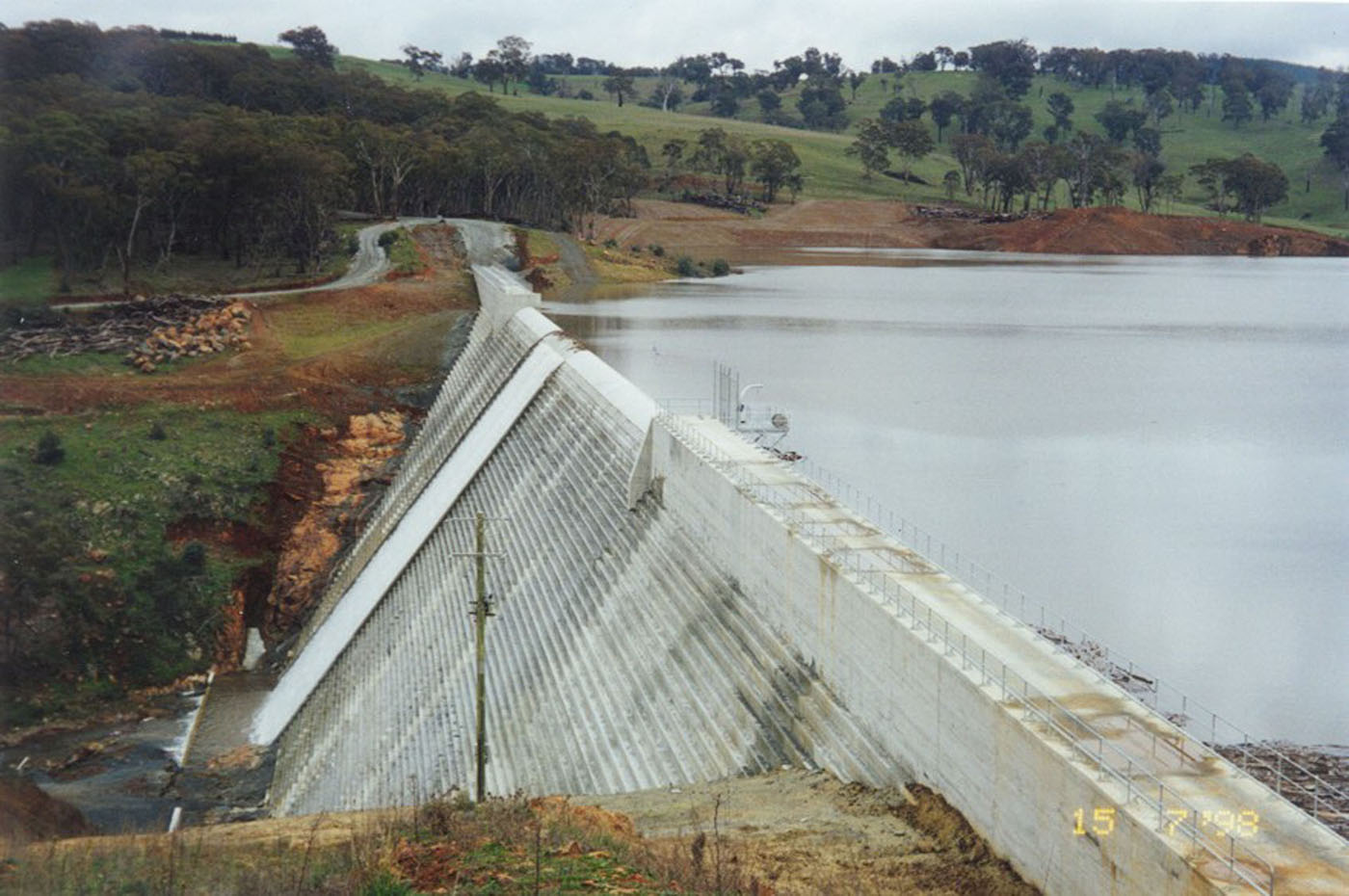

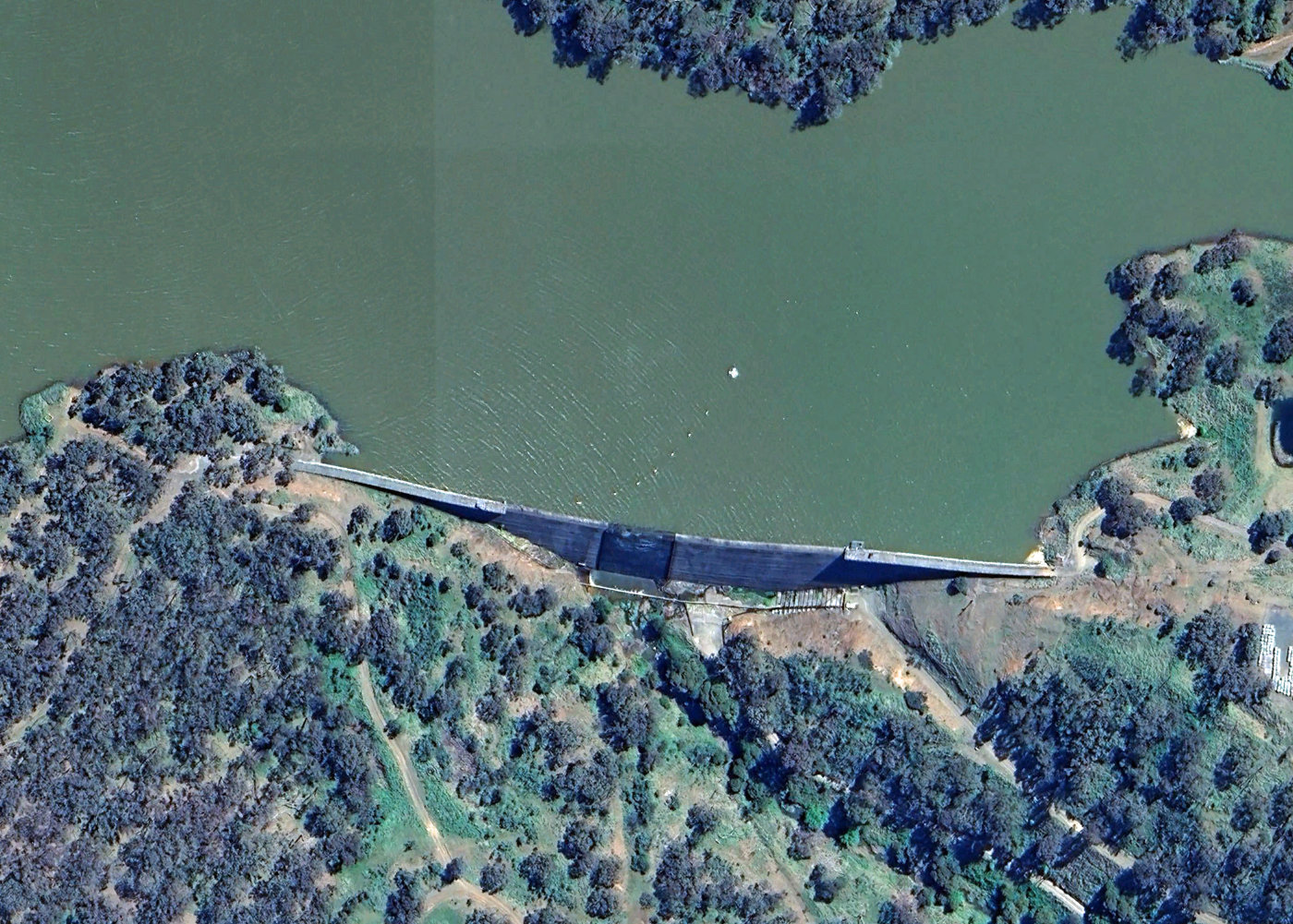

Cadiangullong completed
Cadiangullong completed

Particulars

Owner: Cadia Holdings Pty. Lty.

Designer: Gutteridge Haskins & Davey Pty Ltd.

Contractor: Barclay-Mowlem Construction Ltd.

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 4 m3x106

Height: 43 metres

Length: 356 metres

Volume of RCC: 114 m3x103

Total volume: 123 m3x103

Construction Dates

Start of Project: 11/96 (November 1996)

Start of RCC: 05/97 (May 1997)

End of RCC: 12/97 (December 1997)

End of Project: 03/98 (March 1998)

Country: Australia

River: Cadiangullong Creek

DMS Co-ordinates: 33˚25'58.39"S, 148˚59'33.41"E

DD Co-ordinates: -33.432884, 148.992615

Facings

Upstream

SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)

Downstream

SlopeType
0.75Traditional concrete against formwork  [stepped face]
 RCC against formwork (GEVR/GE-RCC)  [stepped face]

Spillway

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
90
Pozzolan (kg/m3)Pozzolan Type
90Low-lime flyash (ASTM Class F)
