Can Asujan
Download PDF data sheet

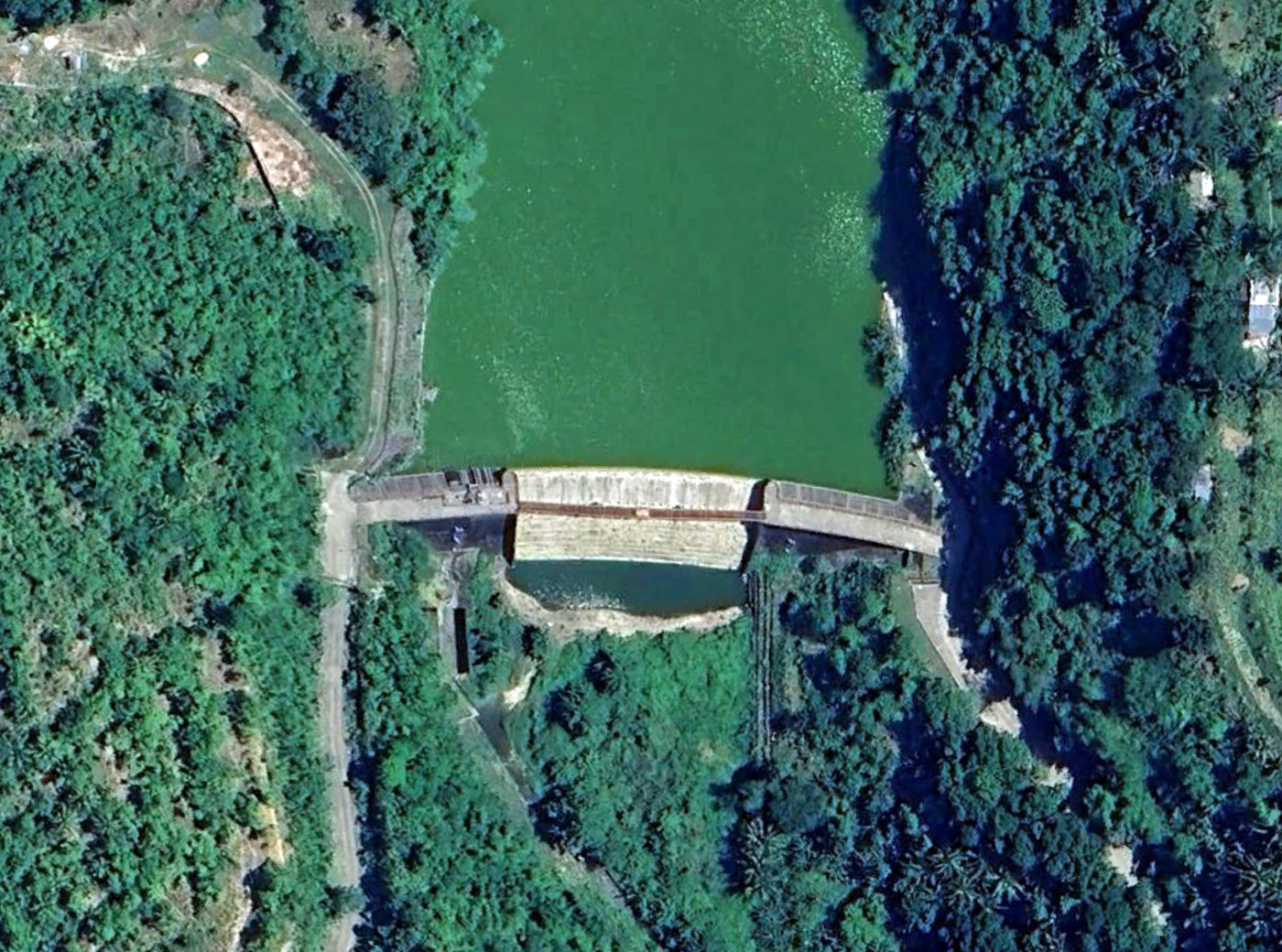

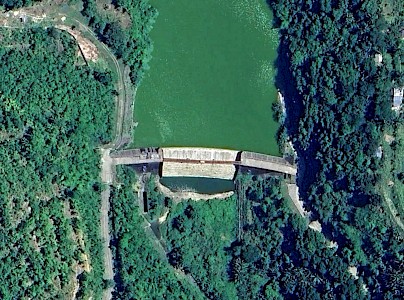

Can Asujan on Google Earth
Particulars
Owner: National Irrigation Administration
Designer: Binnie Black and Veatch International and Hassall & Associates International
Contractor: CETIC of China
Statistics
Type: Hardfill
Purpose(s): Irrigation
Reservoir capacity: 2 m3x106
Height: 42 metres
Length: 135 metres
Volume of RCC: 75 m3x103
Total volume: 85 m3x103
Construction Dates
Start of Project: 10/03 (October 2003)
Start of RCC: —/04 (— 2004)
End of RCC: —/05 (— 2005)
End of Project: —/05 (— 2005)
Country: Philippines
River: Can Asujan
DMS Co-ordinates: 10˚9'3.52"N, 123˚39'12.74"E
DD Co-ordinates: 10.150978, 123.653542
Facings
Upstream
| Slope | Type |
|---|---|
| 0.60 | RCC against precast concrete panels with geomembrane |
Downstream
| Slope | Type |
|---|---|
| 0.60 | RCC against precast concrete panels |
Spillway
| Slope | Type |
|---|---|
| 0.60 | Traditional concrete against formwork |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 170 | 170 |
Cementitious material
| Cement (kg/m3) |
|---|
| 100 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 0 | No pozzolan used |
