Cristalandia

Download PDF data sheet

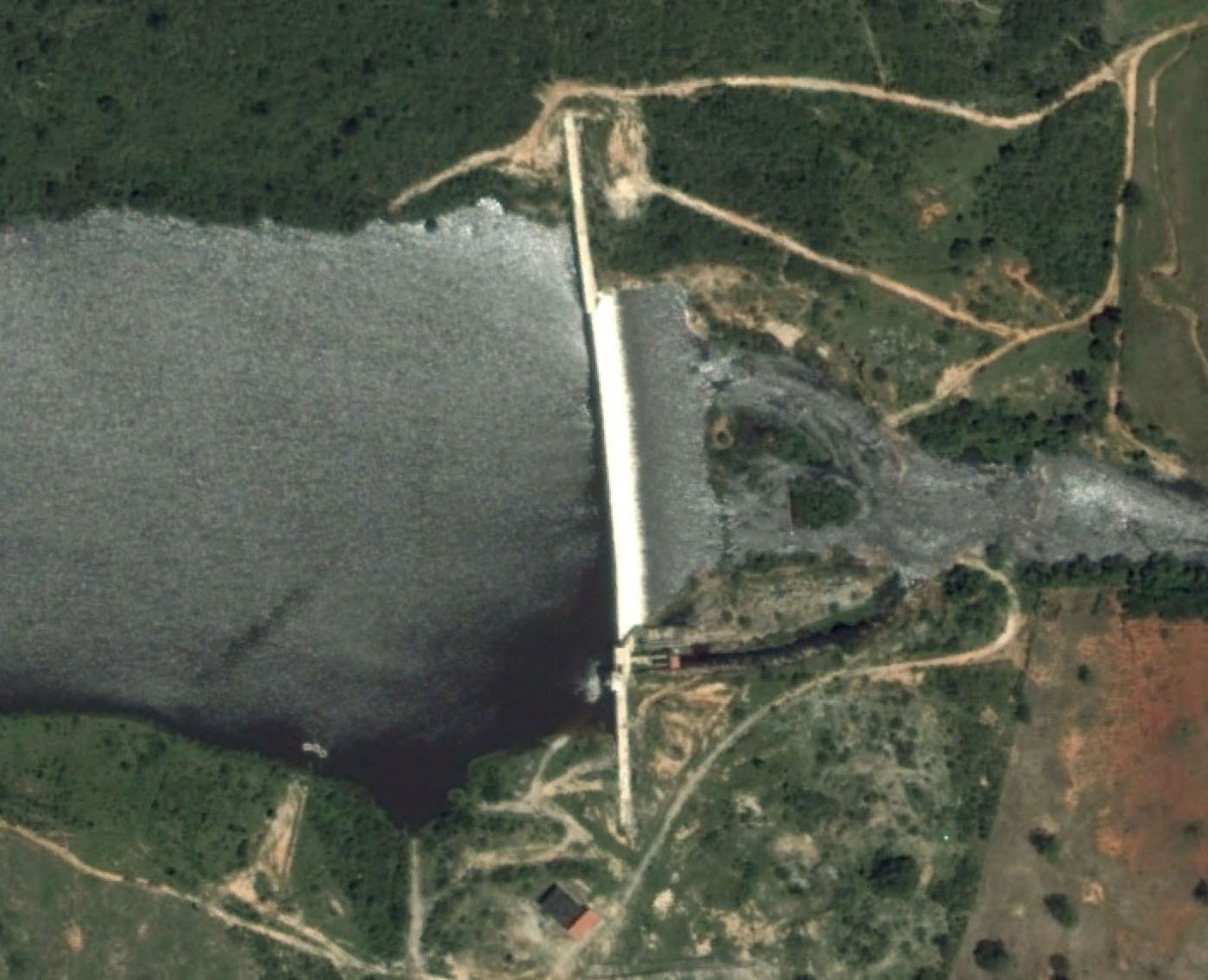

Cristalandia completed

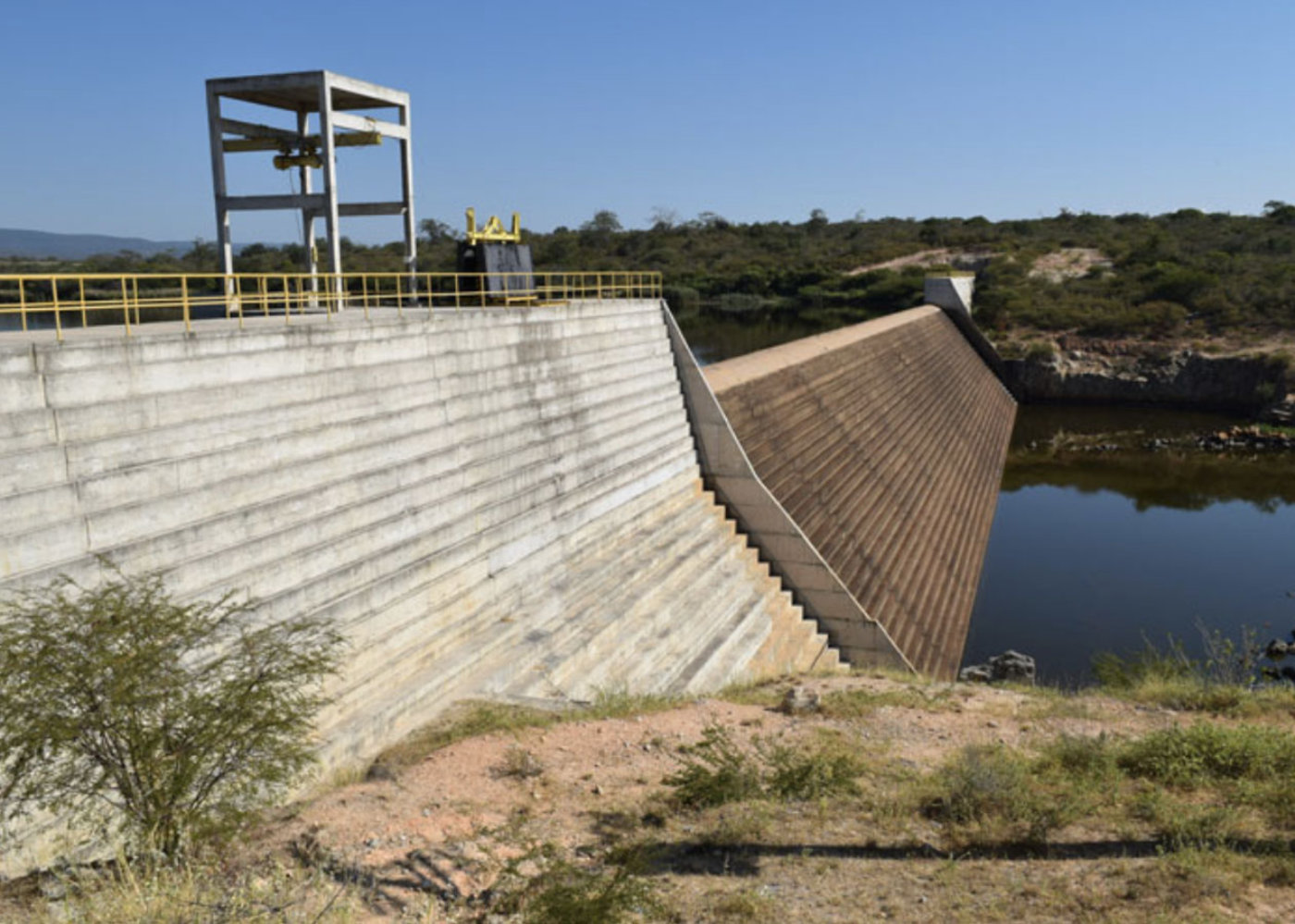

Cristalandia completed

Particulars

Owner: EMBASA (Empresa Baiana de Aguas e Saneamento S/A)

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 17 m3x106

Height: 18 metres

Length: 337 metres

Volume of RCC: unknown

Total volume: unknown

Construction Dates

Start of Project: /05 ( 2005)

Start of RCC: /07 ( 2007)

End of RCC: /09 ( 2009)

End of Project: /10 ( 2010)

Country: Brazil

River: de Contas

DMS Co-ordinates: 13˚57'37.56"S, 41˚28'23.6"W

DD Co-ordinates: -13.960433, -41.473221

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
