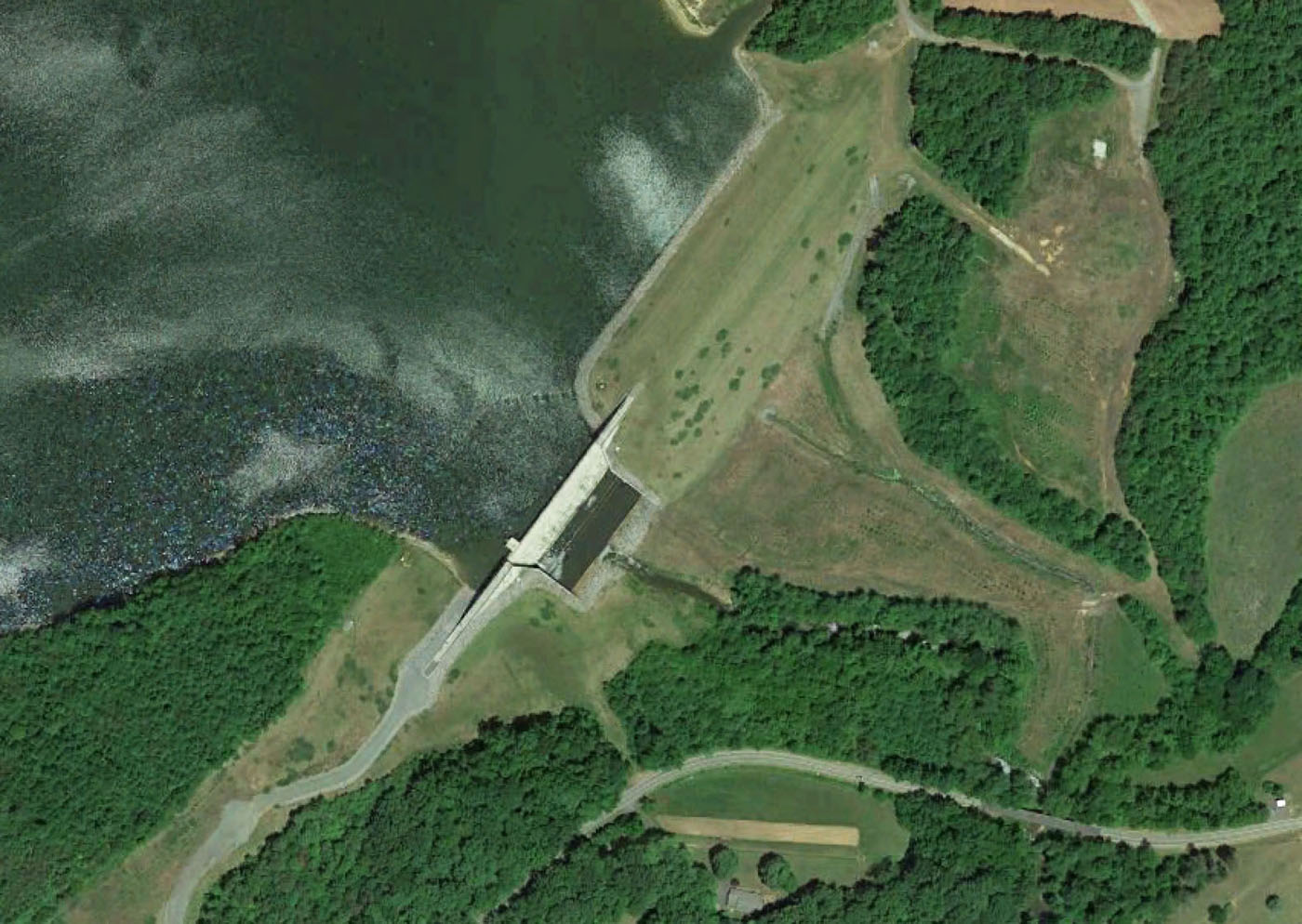

Deep Creek Nº5D

Download PDF data sheet

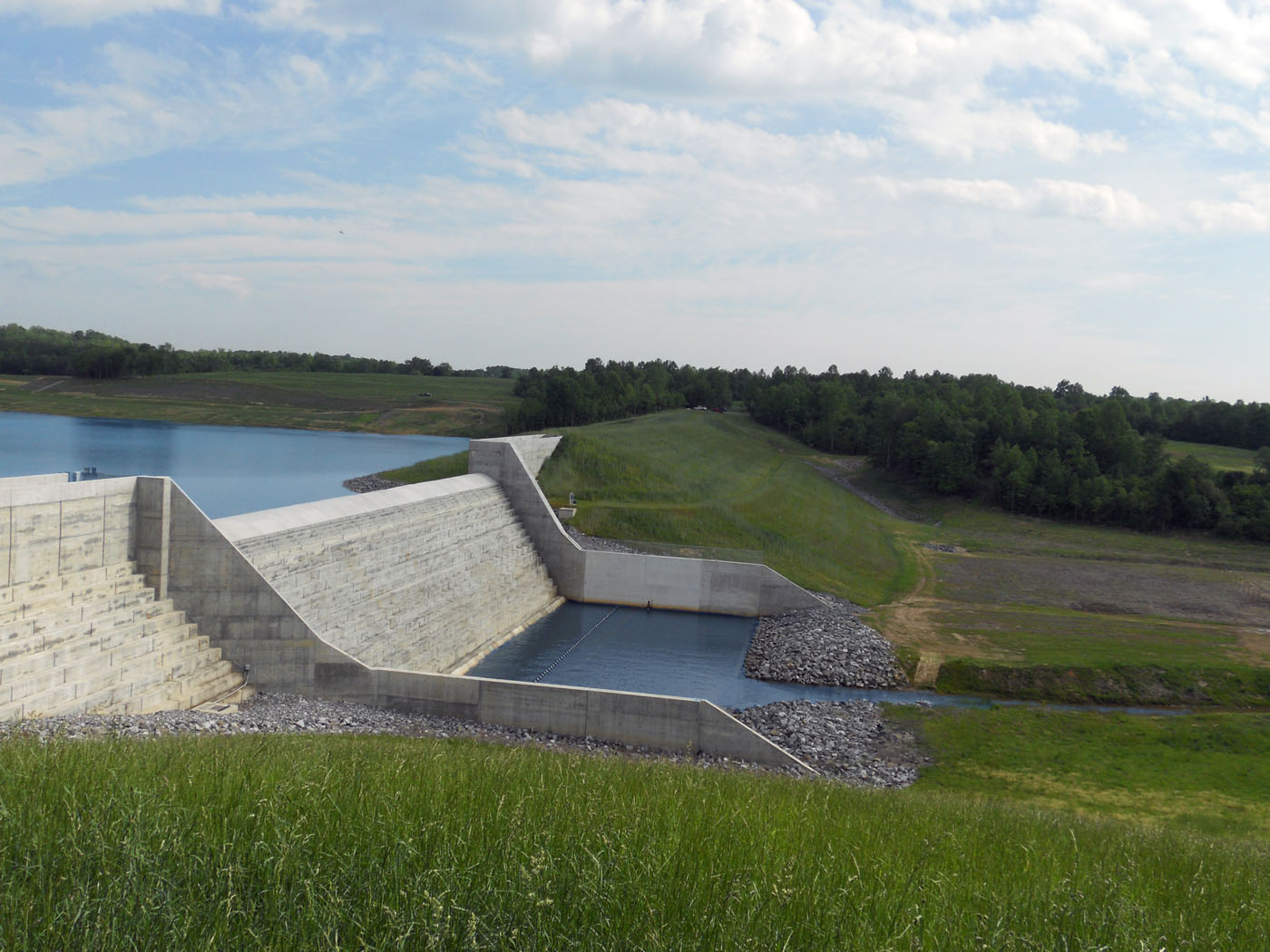

Deep Creek Nº5D completed

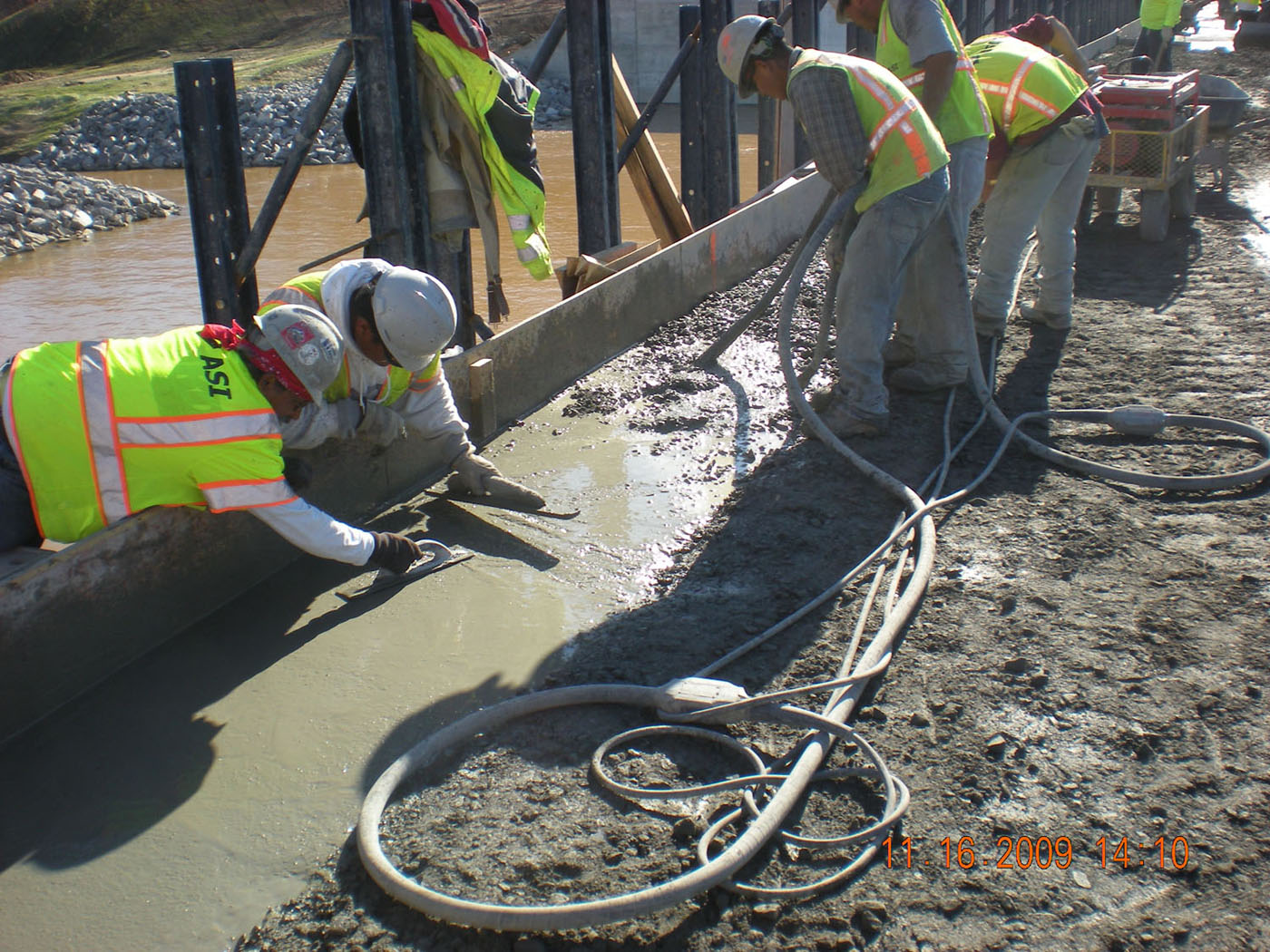

Deep Creek Nº5D completed

Particulars

Owner: Yadkin County and NRCS

Designer: Schnabel Engineering

Contractor: Haymes Bros

Statistics

Type: Gravity

Purpose(s): Flood Control / Water Supply

Reservoir capacity: 15 m3x106

Height: 22 metres

Length: 226 metres

Volume of RCC: 39 m3x103

Total volume: 45 m3x103

Construction Dates

Start of Project: 12/08 (December 2008)

Start of RCC: 04/09 (April 2009)

End of RCC: 12/09 (December 2009)

End of Project: 07/10 (July 2010)

Country: USA

River: Deep Creek

DMS Co-ordinates: 36˚07'36.37"N, 80˚43'50.25"W

DD Co-ordinates: 36.126770, -80.730621

Facings

Upstream

SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)

Downstream

SlopeType
0.80RCC against formwork (GEVR/GE-RCC)  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
89
Pozzolan (kg/m3)Pozzolan Type
89Low-lime flyash (ASTM Class F)
