Do Prata

Download PDF data sheet
Do Prata completed
Do Prata completed

Particulars

Owner: Companhia Pernambucana de Saceamento

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 42 m3x106

Height: 26 metres

Length: 405 metres

Volume of RCC: 61 m3x103

Total volume: 75 m3x103

Construction Dates

Start of Project: /92 ( 1992)

Start of RCC: 09/93 (September 1993)

End of RCC: 12/94 (December 1994)

End of Project: /95 ( 1995)

Country: Brazil

River: Do Prata

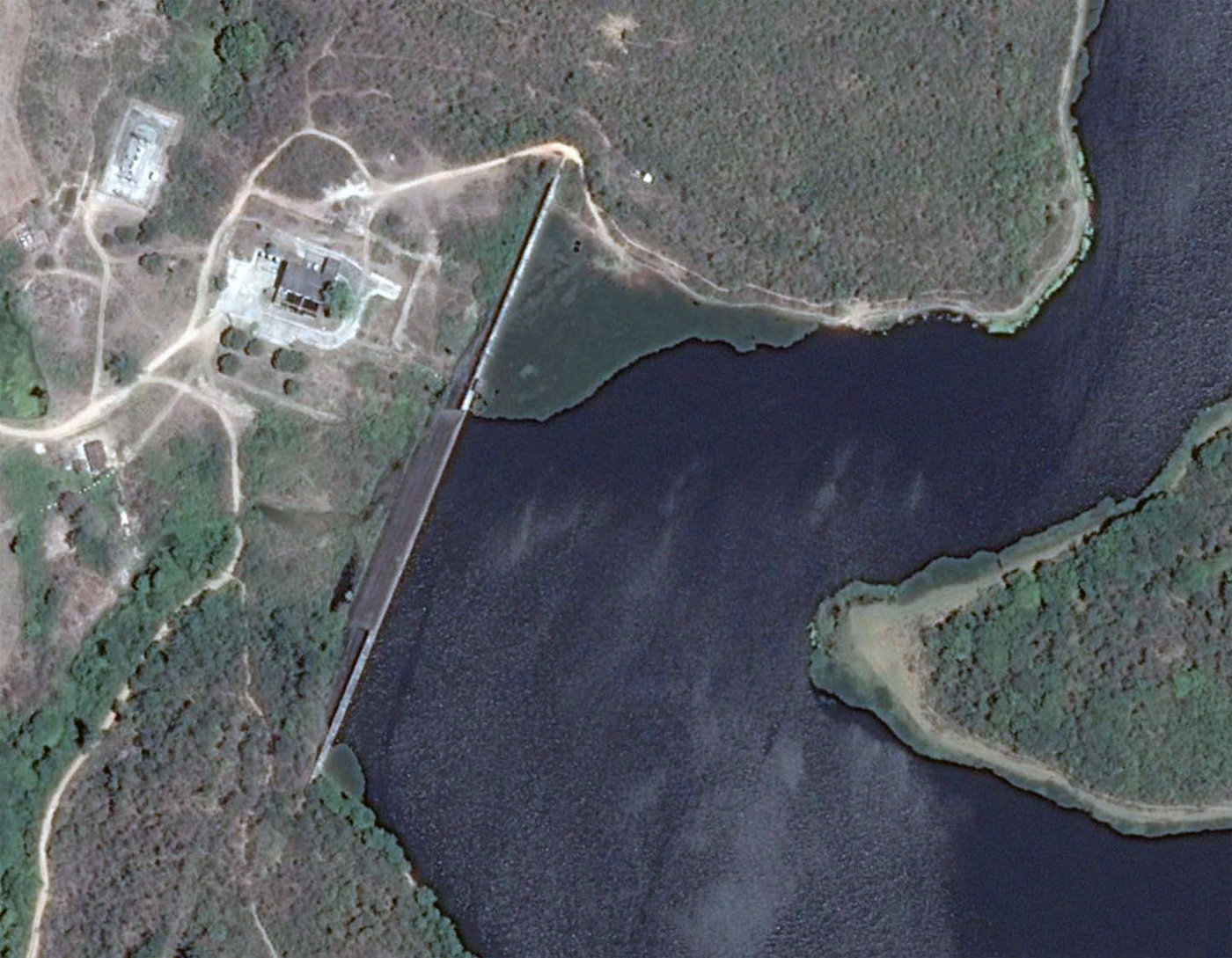

DMS Co-ordinates: 08˚31'31.48"S, 35˚50'13.62"W

DD Co-ordinates: -8.525411, -35.837116

Facings

Upstream

SlopeType


Downstream

SlopeType

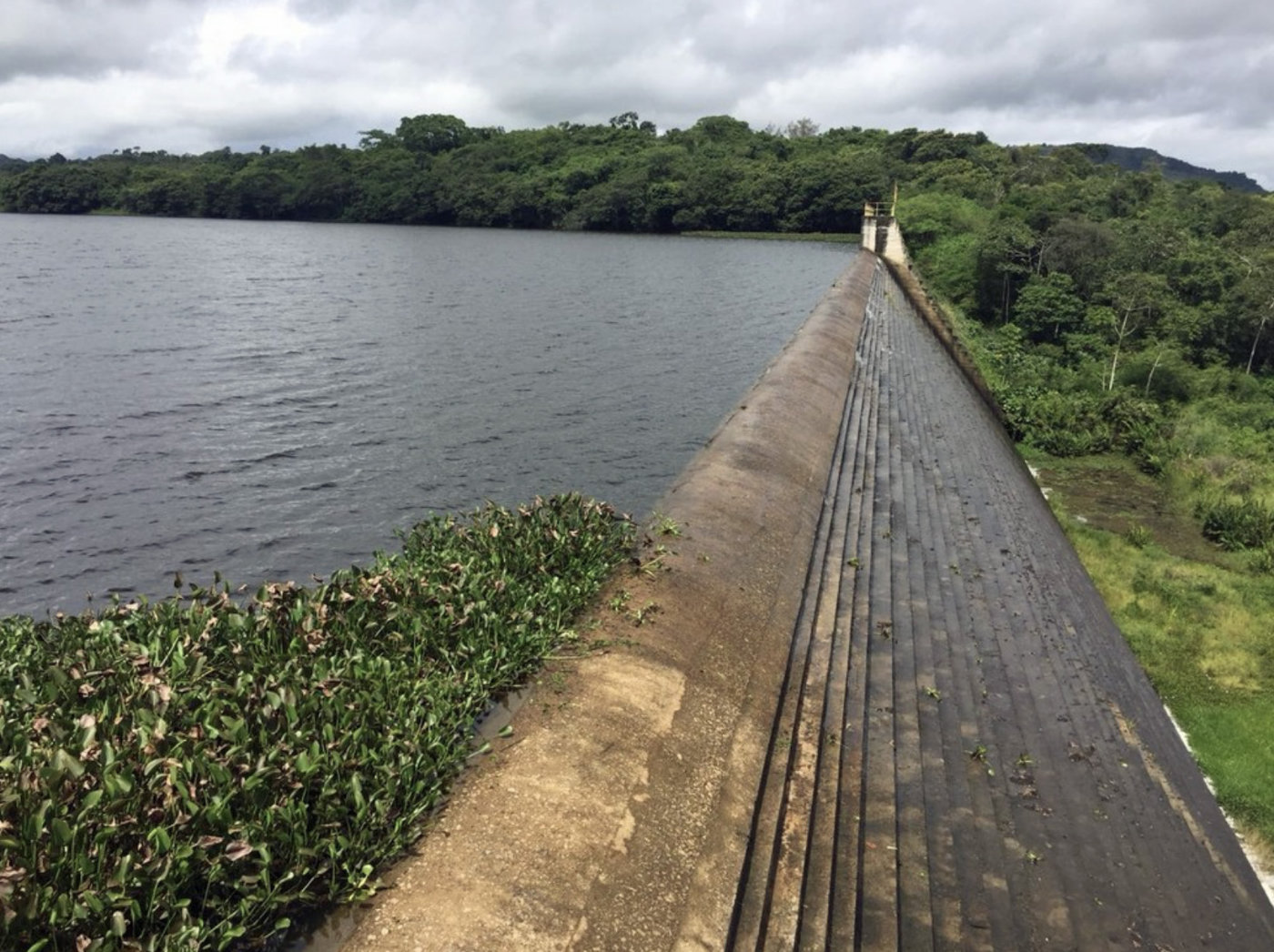

    [stepped face]

Spillway

SlopeType
    [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
