Duck River

Download PDF data sheet

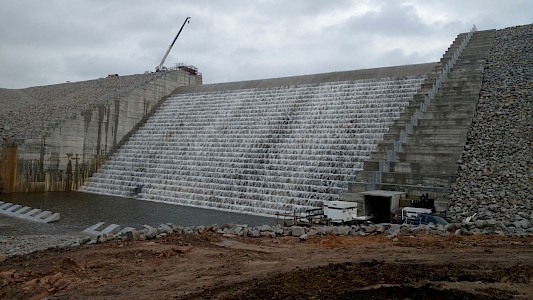

Duck River completed

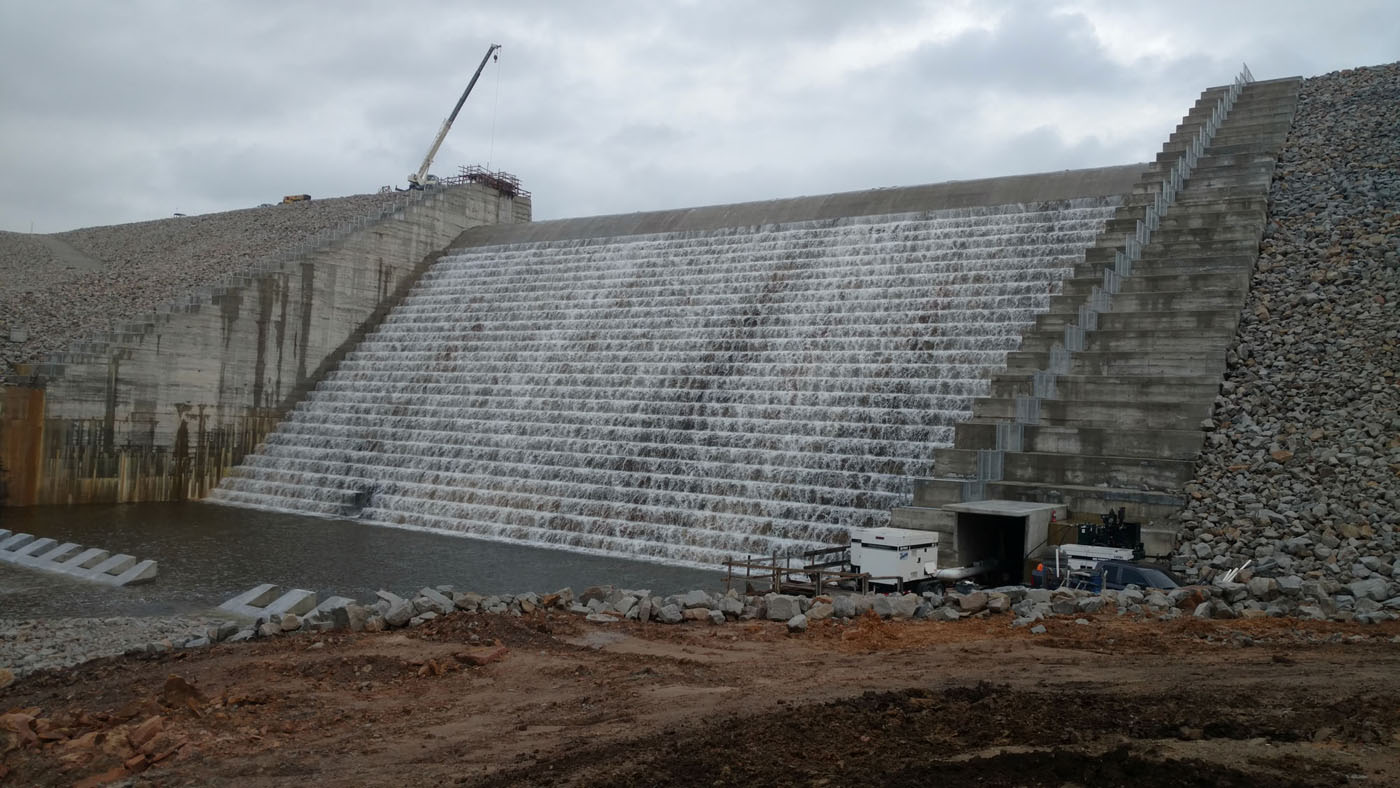

Duck River completed

Particulars

Owner: Cullman Utilities Board

Designer: CH2M Hill

Contractor: ASI Constructors, Inc.

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 1 m3x106

Height: 41 metres

Length: 90 metres

Volume of RCC: 121 m3x103

Total volume: 128 m3x103

Construction Dates

Start of Project: 01/14 (January 2014)

Start of RCC: /15 ( 2015)

End of RCC: 09/15 (September 2015)

End of Project: /16 ( 2016)

Country: USA

River: Duck

DMS Co-ordinates: 34˚10'37.13"N, 86˚41'26.41"W

DD Co-ordinates: 34.176983, -86.690666

Facings

Upstream

SlopeType
0.10

Downstream

SlopeType
1.00

Spillway

SlopeType
1.00

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
107
Pozzolan (kg/m3)Pozzolan Type
55Low-lime flyash (ASTM Class F)
