El Puente de Santolea

Download PDF data sheet

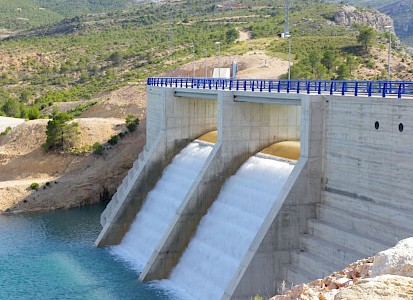

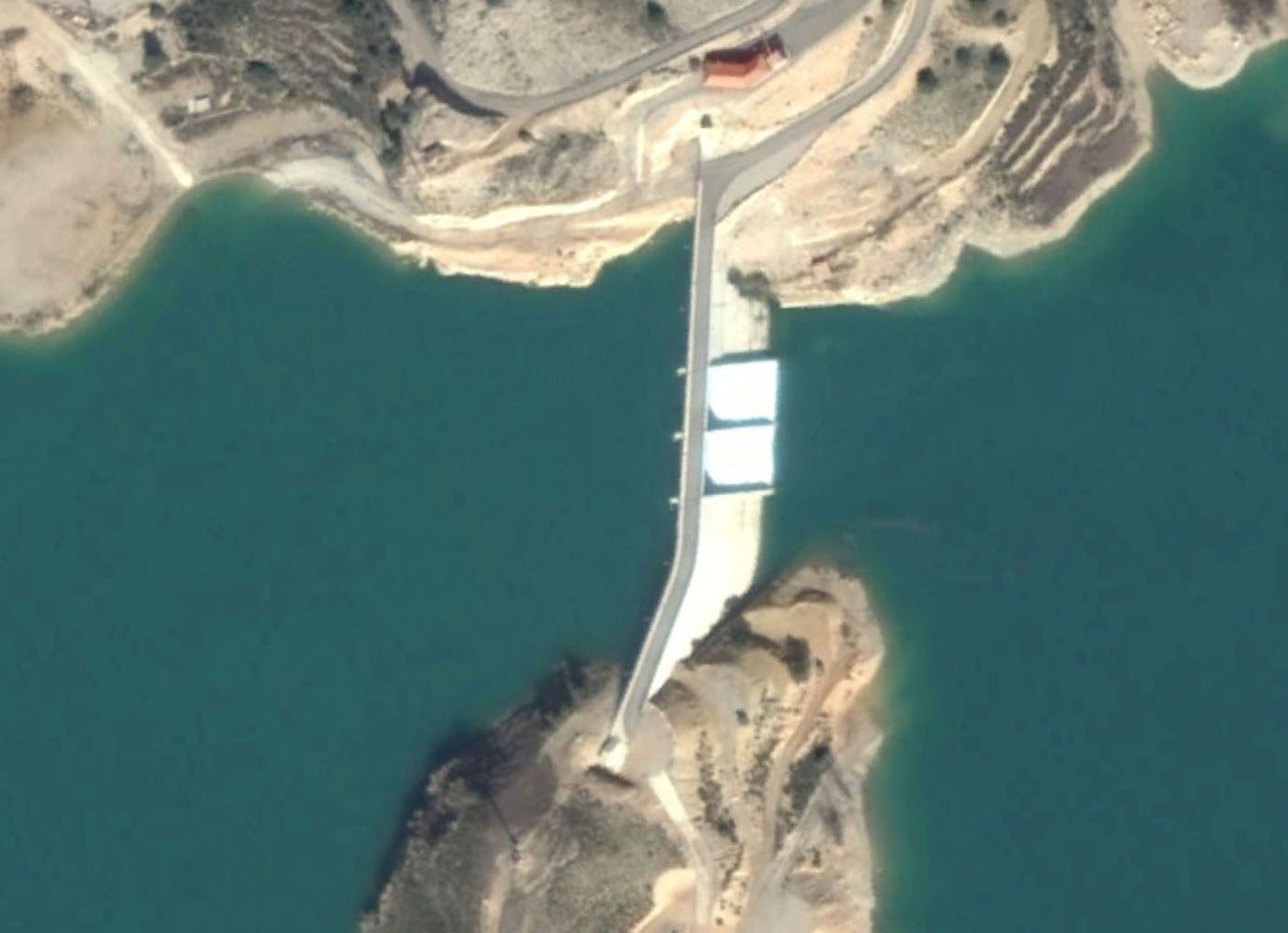

El Puente de Santolea completed

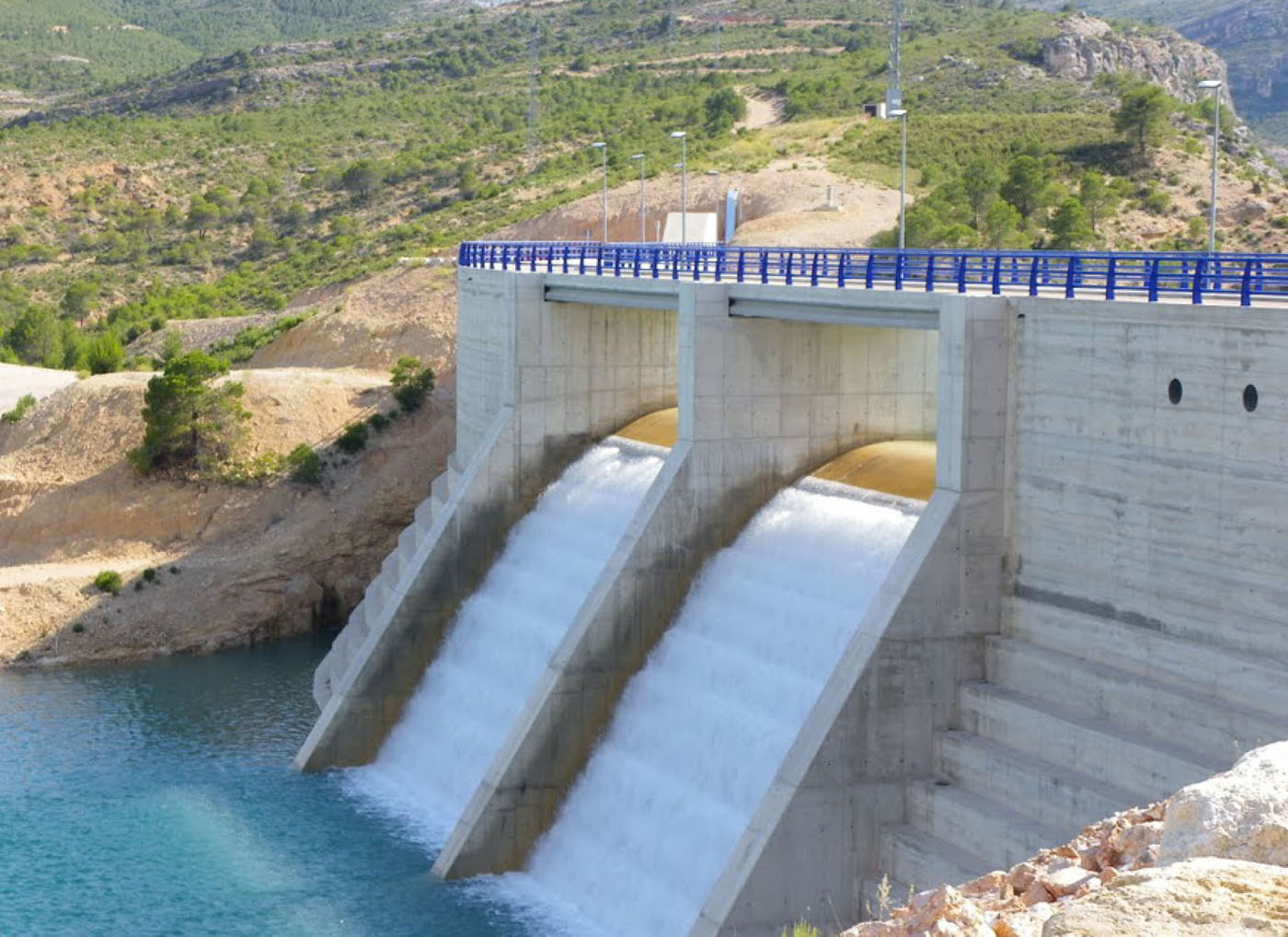

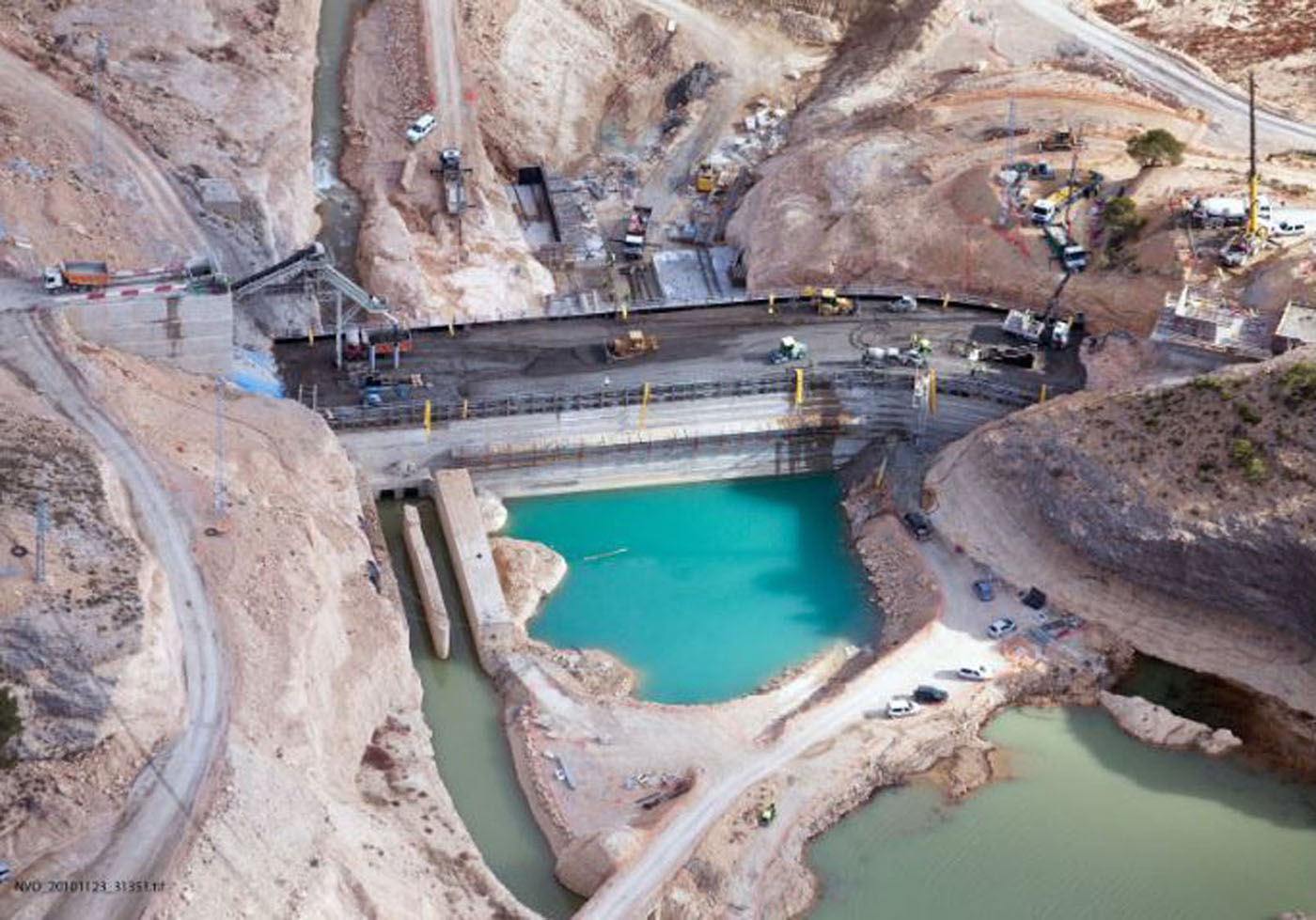

El Puente de Santolea completed

Particulars

Owner: Acua Ebro

Designer: Cygsa

Contractor: UTE, Isolux-Corvian-Corsan, Copisa

Statistics

Type: Gravity

Purpose(s): Irrigation

Reservoir capacity: 18 m3x106

Height: 35 metres

Length: 203 metres

Volume of RCC: 65 m3x103

Total volume: 70 m3x103

Construction Dates

Start of Project: /09 ( 2009)

Start of RCC: 04/10 (April 2010)

End of RCC: 02/11 (February 2011)

End of Project: 03/11 (March 2011)

Country: Spain

River: Guadalope

DMS Co-ordinates: 40˚44'49.69"N, 00˚20'34.88"W

DD Co-ordinates: 40.747135, -0.343022

Facings

Upstream

SlopeType
0.20RCC against formwork (GEVR/GE-RCC)  [stepped face]

Downstream

SlopeType
0.60RCC against formwork (GEVR/GE-RCC)  [stepped face]

Spillway

SlopeType
0.60RCC against formwork (GEVR/GE-RCC)  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
65
Pozzolan (kg/m3)Pozzolan Type
153Low-lime flyash (ASTM Class F)
