Elmer Thomas - replacement

Download PDF data sheet

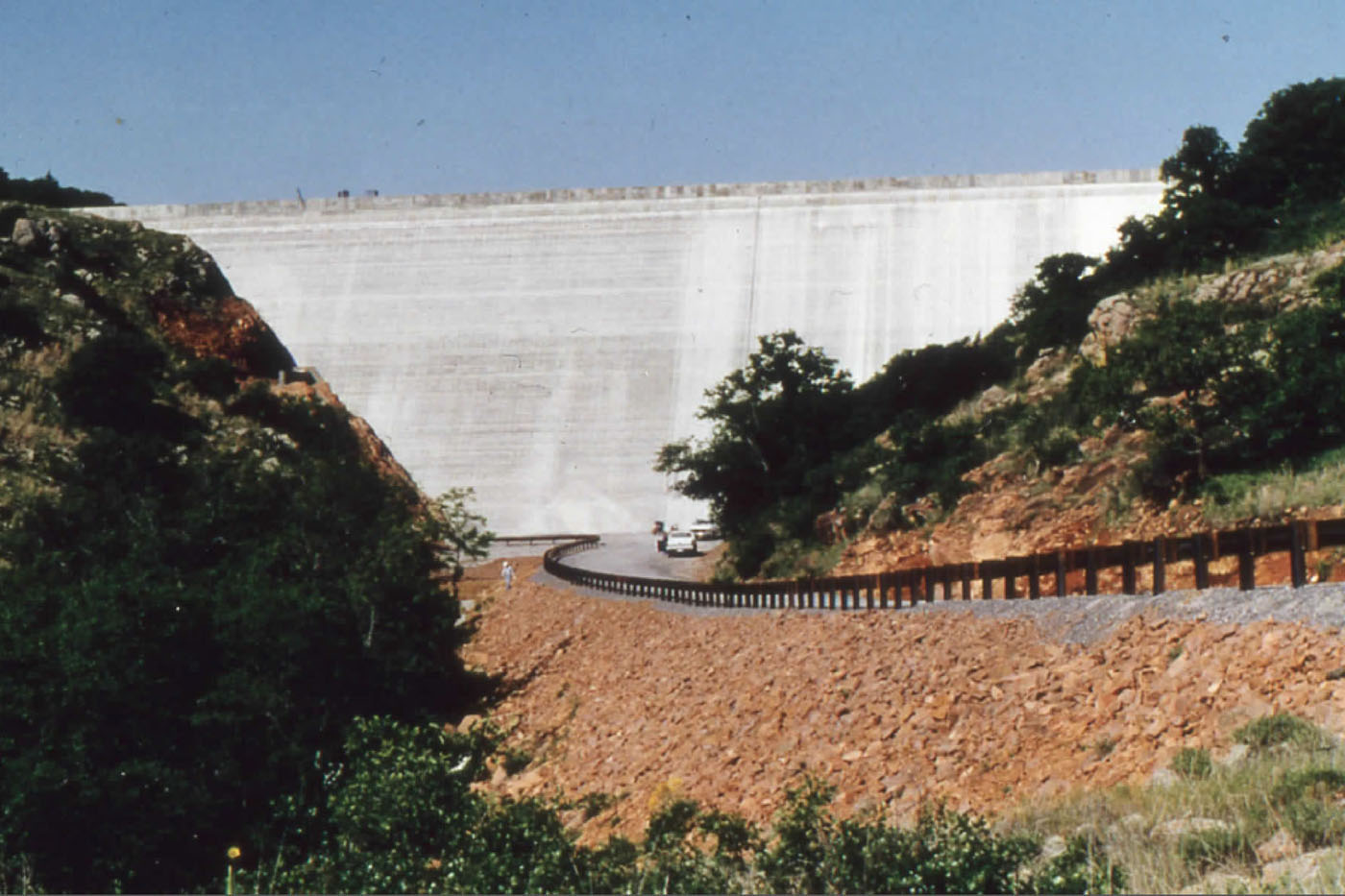

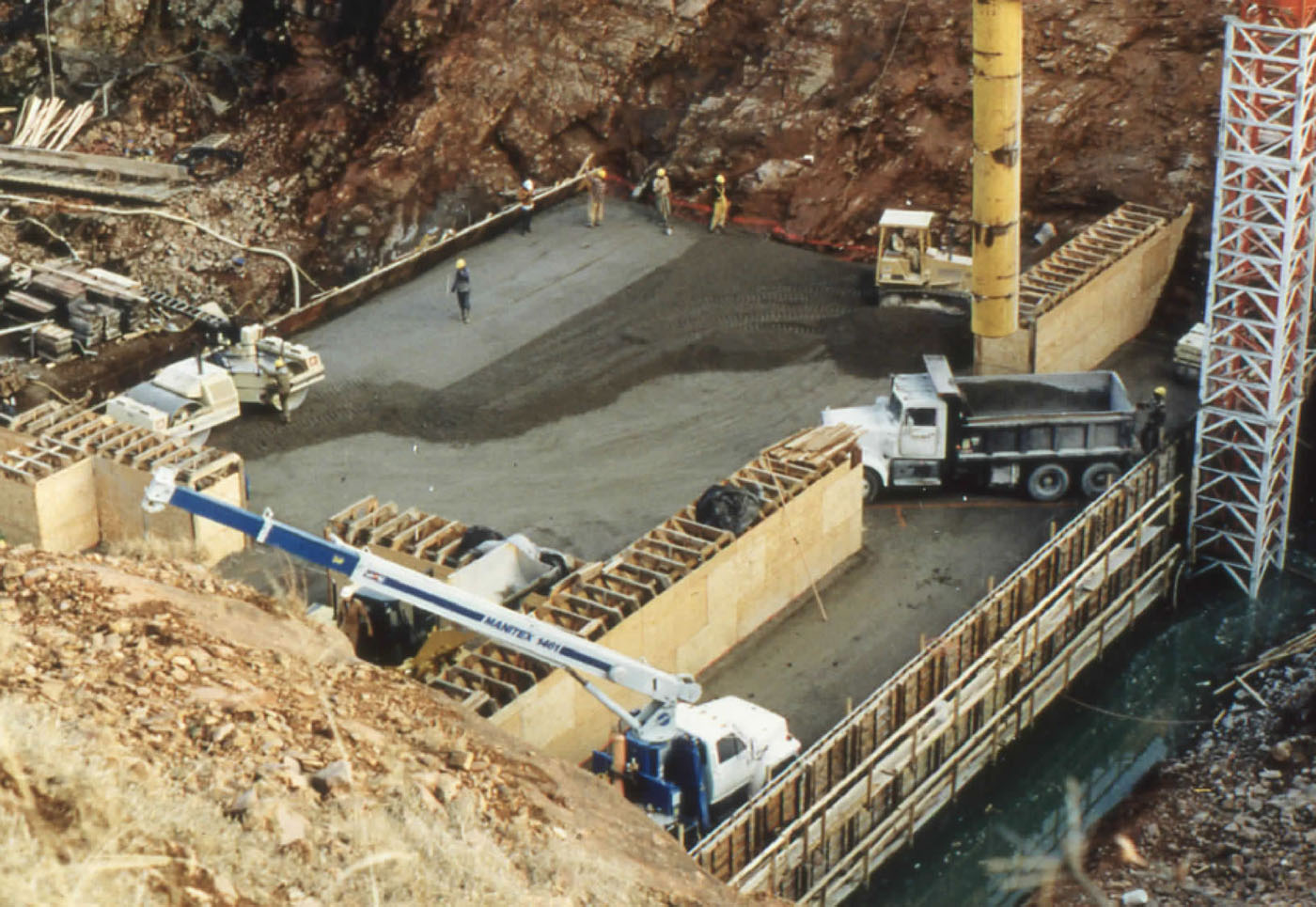

Elmer Thomas - replacement completed
Elmer Thomas - replacement completed

Particulars

Owner: US Fish and Wildlife Service, Department of the Interior

Designer: GEI Consultants Inc., Englewood, Colorado

Contractor: ASI-RCC Inc

Statistics

Type: Gravity

Purpose(s): Recreation

Reservoir capacity: 10 m3x106

Height: 34 metres

Length: 128 metres

Volume of RCC: 29 m3x103

Total volume: 34 m3x103

Construction Dates

Start of Project: 02/92 (February 1992)

Start of RCC: 01/93 (January 1993)

End of RCC: 02/93 (February 1993)

End of Project: 05/93 (May 1993)

Country: USA

River: Little Medicine Creek

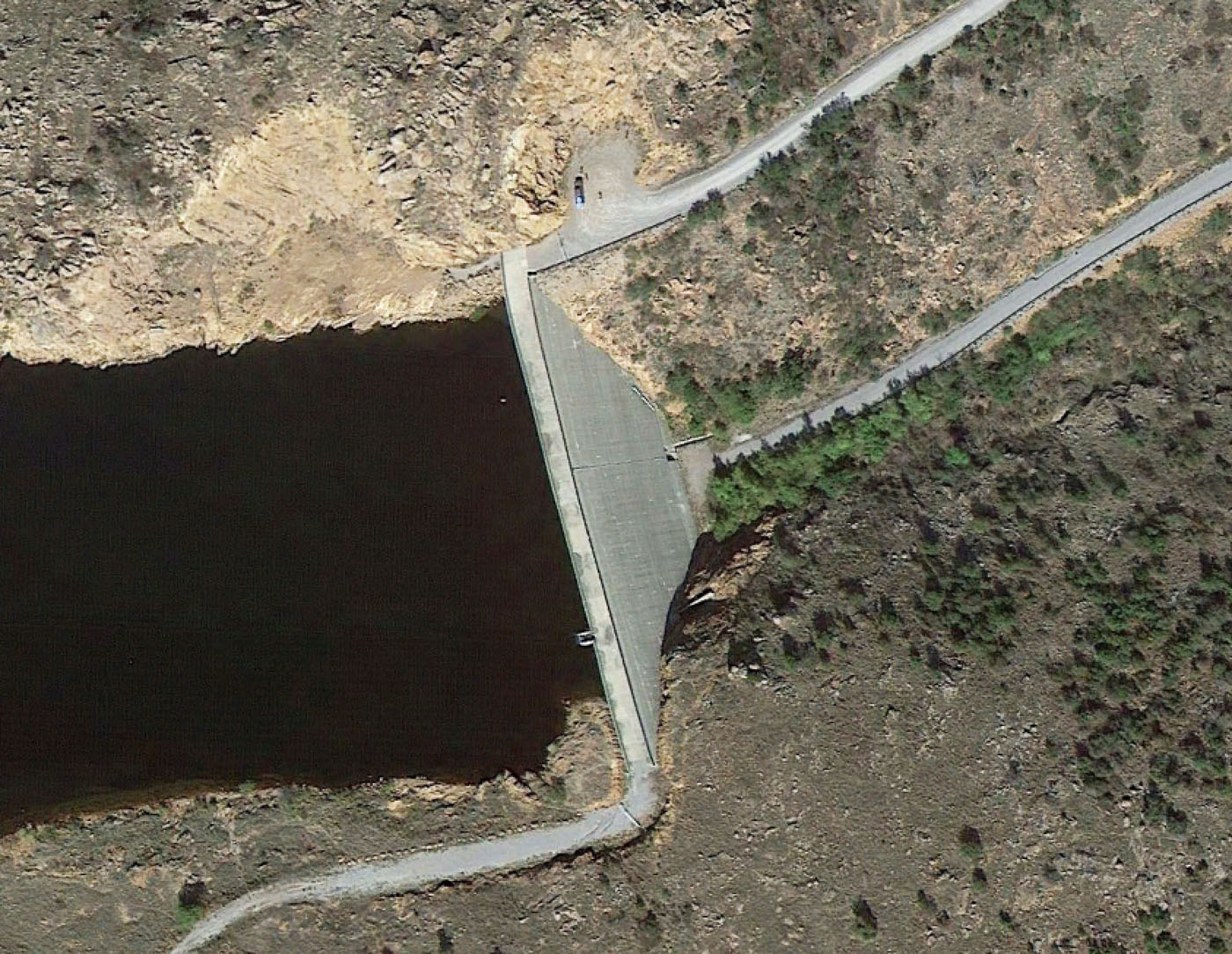

DMS Co-ordinates: 34˚43'41.03"N, 98˚30'47.12"W

DD Co-ordinates: 34.728065, -98.513092

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.64Traditional concrete against formwork

Spillway

SlopeType
none

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
89
Pozzolan (kg/m3)Pozzolan Type
89Low-lime flyash (ASTM Class F)
