Filiatrinos
Download PDF data sheet

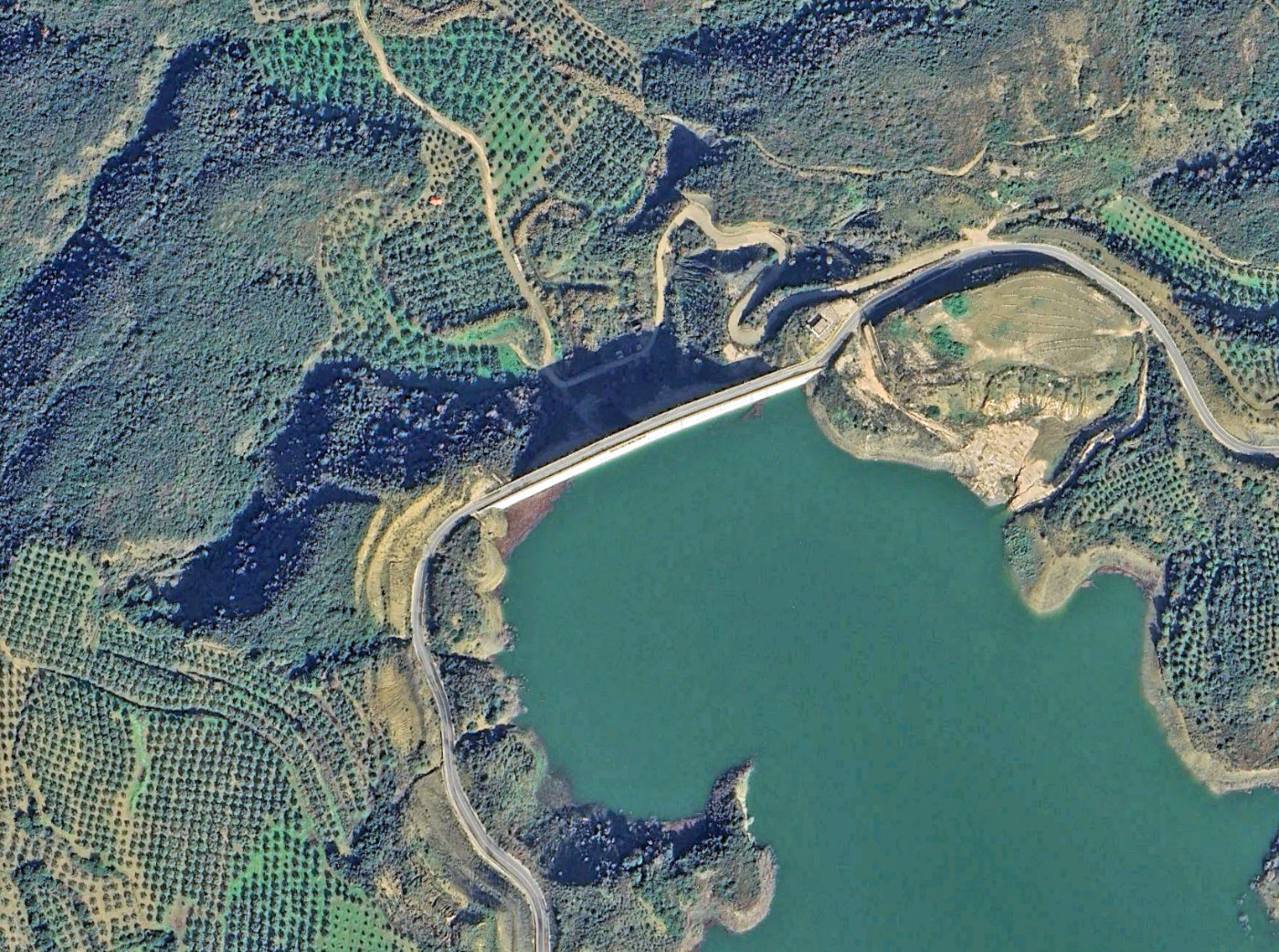

Filiatrinos on Google Earth
Statistics
Type: Hardfill
Purpose(s): Irrigation
Reservoir capacity: 8 m3x106
Height: 55 metres
Length: 246 metres
Volume of RCC: 370 m3x103
Total volume: 430 m3x103
Construction Dates
Start of Project: —/10 (— 2010)
Start of RCC: —/11 (— 2011)
End of RCC: —/14 (— 2014)
End of Project: —/16 (— 2016)
Country: Greece
River: Filiatrinos
DMS Co-ordinates: 37˚08'26.11"N, 21˚38'33.13"E
DD Co-ordinates: 37.140587, 21.642536
Facings
Upstream
| Slope | Type |
|---|---|
| 0.80 | Traditional concrete against formwork with external geomembrane |
Downstream
| Slope | Type |
|---|---|
| 0.80 | RCC against precast concrete blocks |
Spillway
| Slope | Type |
|---|---|
| 0.80 | RCC against precast concrete blocks |
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
| 350 | 350 |
Cementitious material
| Cement (kg/m3) |
|---|
| 51 |
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
| 24 | Low-lime flyash (ASTM Class F) |
