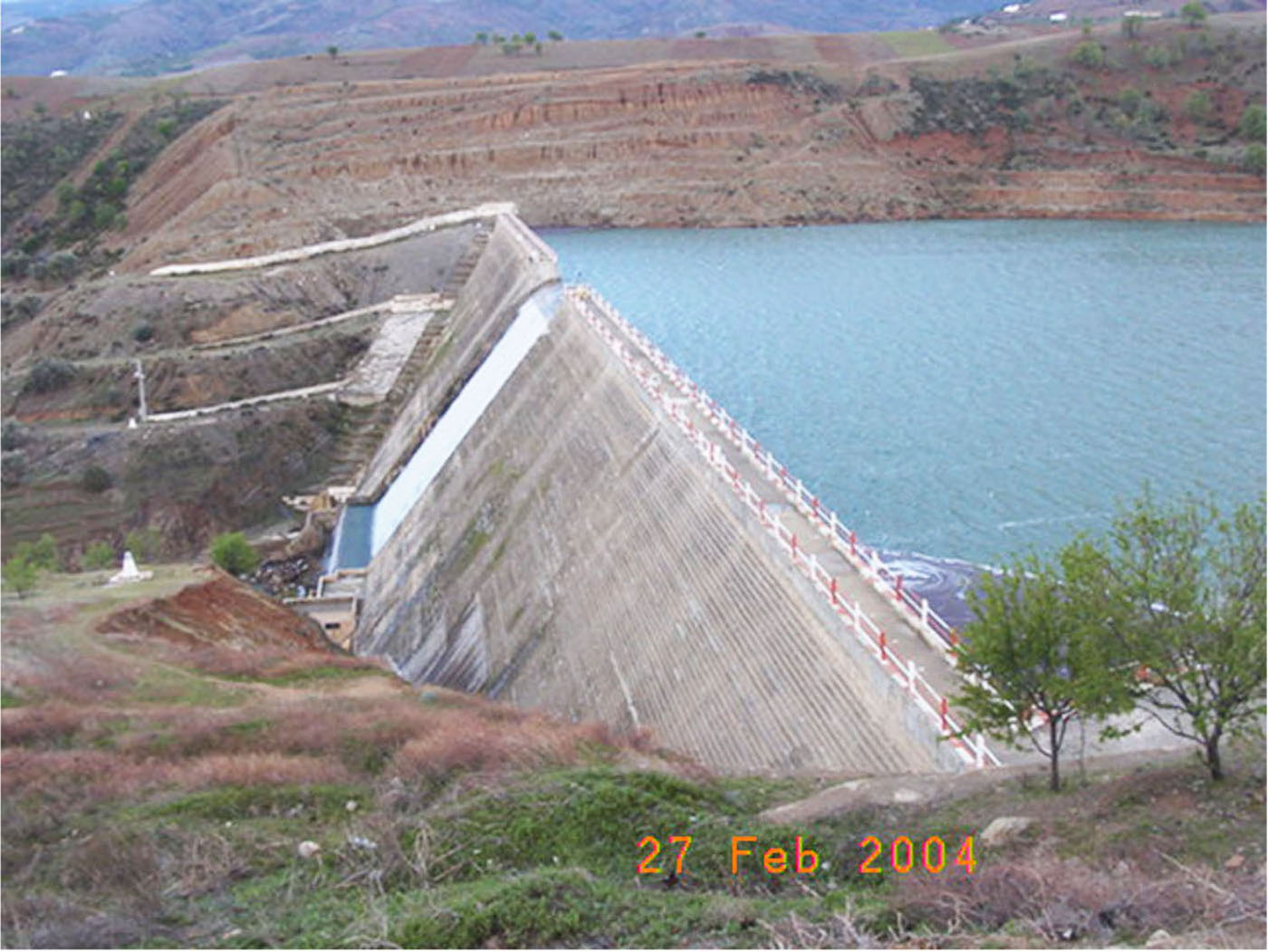

Joumoua

Download PDF data sheet
Joumoua completed
Joumoua completed

Particulars

Owner: Direction des Aménagements Hydrauliques

Designer: SCET - EQUITER

Contractor: Direction des Aménagements Hydrauliques

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 7 m3x106

Height: 57 metres

Length: 250 metres

Volume of RCC: 150 m3x103

Total volume: 200 m3x103

Construction Dates

Start of Project: 07/89 (July 1989)

Start of RCC: 06/90 (June 1990)

End of RCC: 11/92 (November 1992)

End of Project: 12/92 (December 1992)

Country: Morocco

River: Joumoua

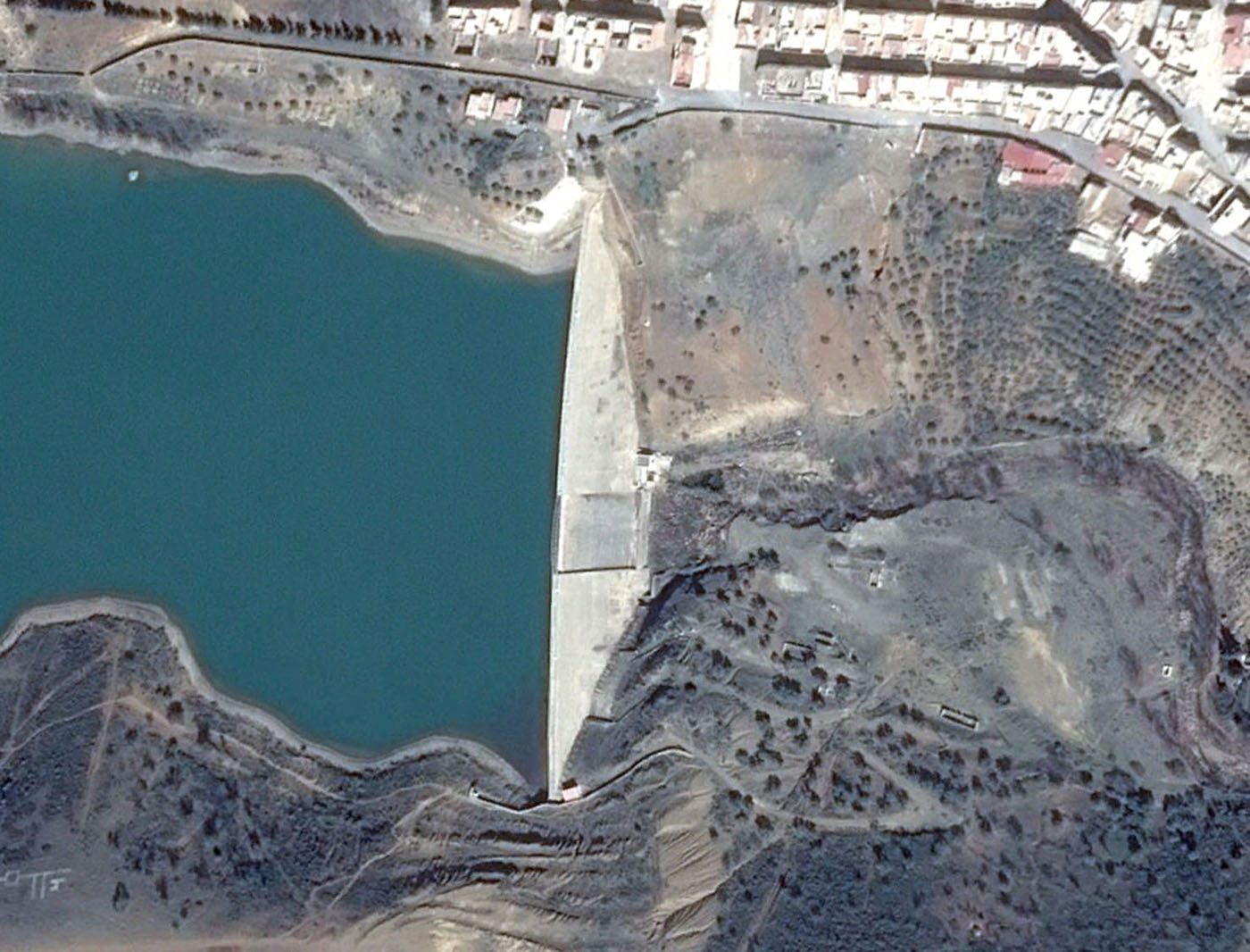

DMS Co-ordinates: 34˚55'54.99"N, 04˚19'02.76"W

DD Co-ordinates: 34.931942, -4.317433

Facings

Upstream

SlopeType
0.20Traditional concrete against precast concrete panels

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
350350

Cementitious material

Cement (kg/m3)
105
180
Pozzolan (kg/m3)Pozzolan Type
45No pozzolan used  -
0
