Kahir

Download PDF data sheet

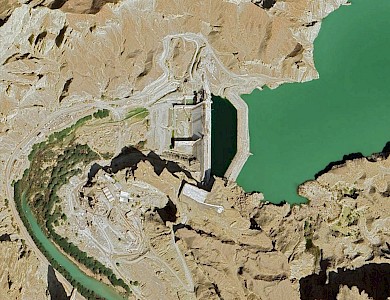

Kahir on Google Earth

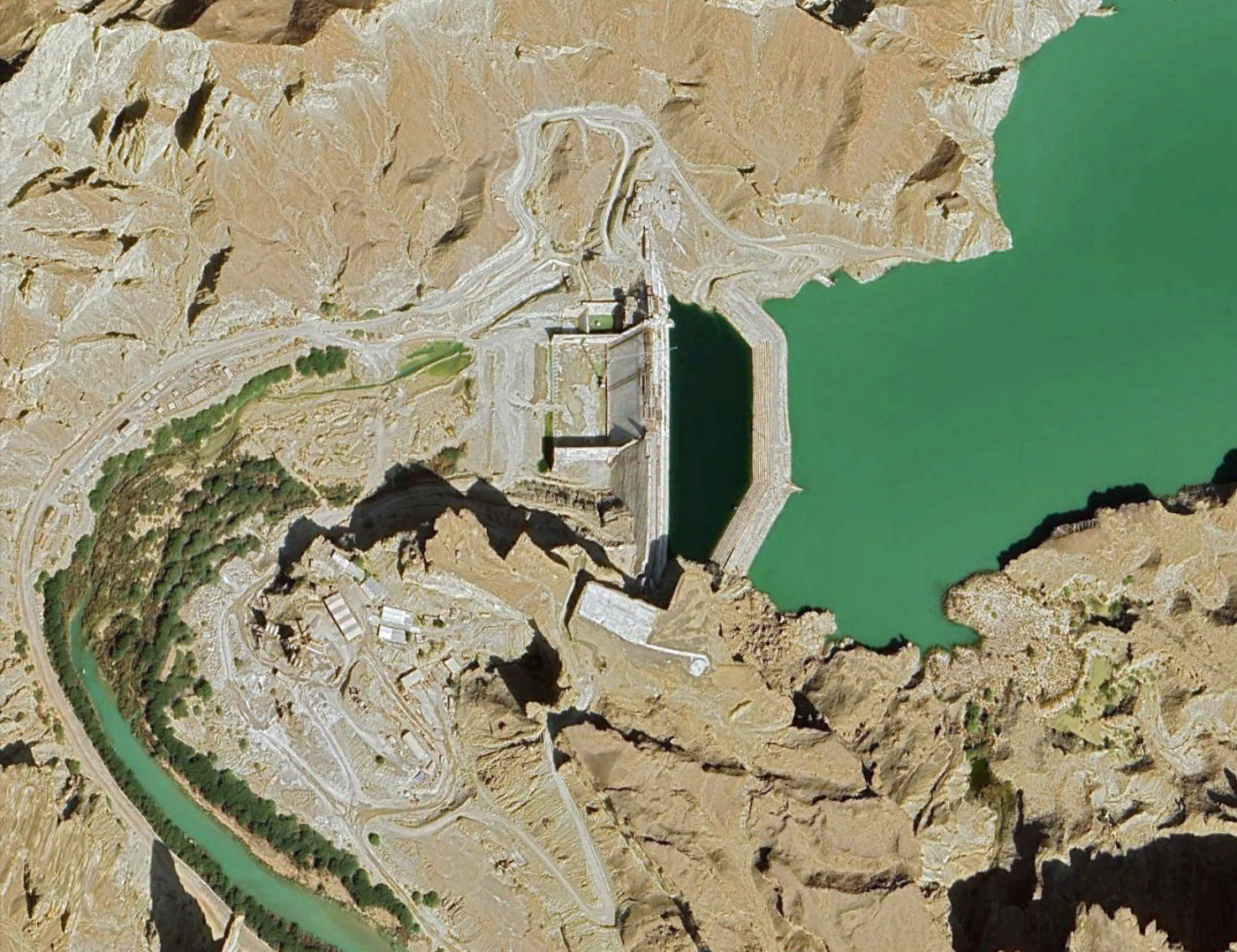

Kahir on Google Earth

Particulars

Owner: Sistan & Balouchestan Ministry of Water

Designer: Abfan-Pajoohab

Contractor: unknown

Statistics

Type: Hardfill

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 314 m3x106

Height: 55 metres

Length: 380 metres

Volume of RCC: 485 m3x103

Total volume: 680 m3x103

Construction Dates

Start of Project: 11/10 (November 2010)

Start of RCC: /14 ( 2014)

End of RCC: 07/17 (July 2017)

End of Project: 08/18 (August 2018)

Country: Iran

River: Kahir

DMS Co-ordinates: 25˚37'49.11"N, 60˚08'34.21"E

DD Co-ordinates: 25.630308, 60.142838

Facings

Upstream

SlopeType
0.70

Downstream

SlopeType
0.70

Spillway

SlopeType
0.70

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
