Kinta

Download PDF data sheet

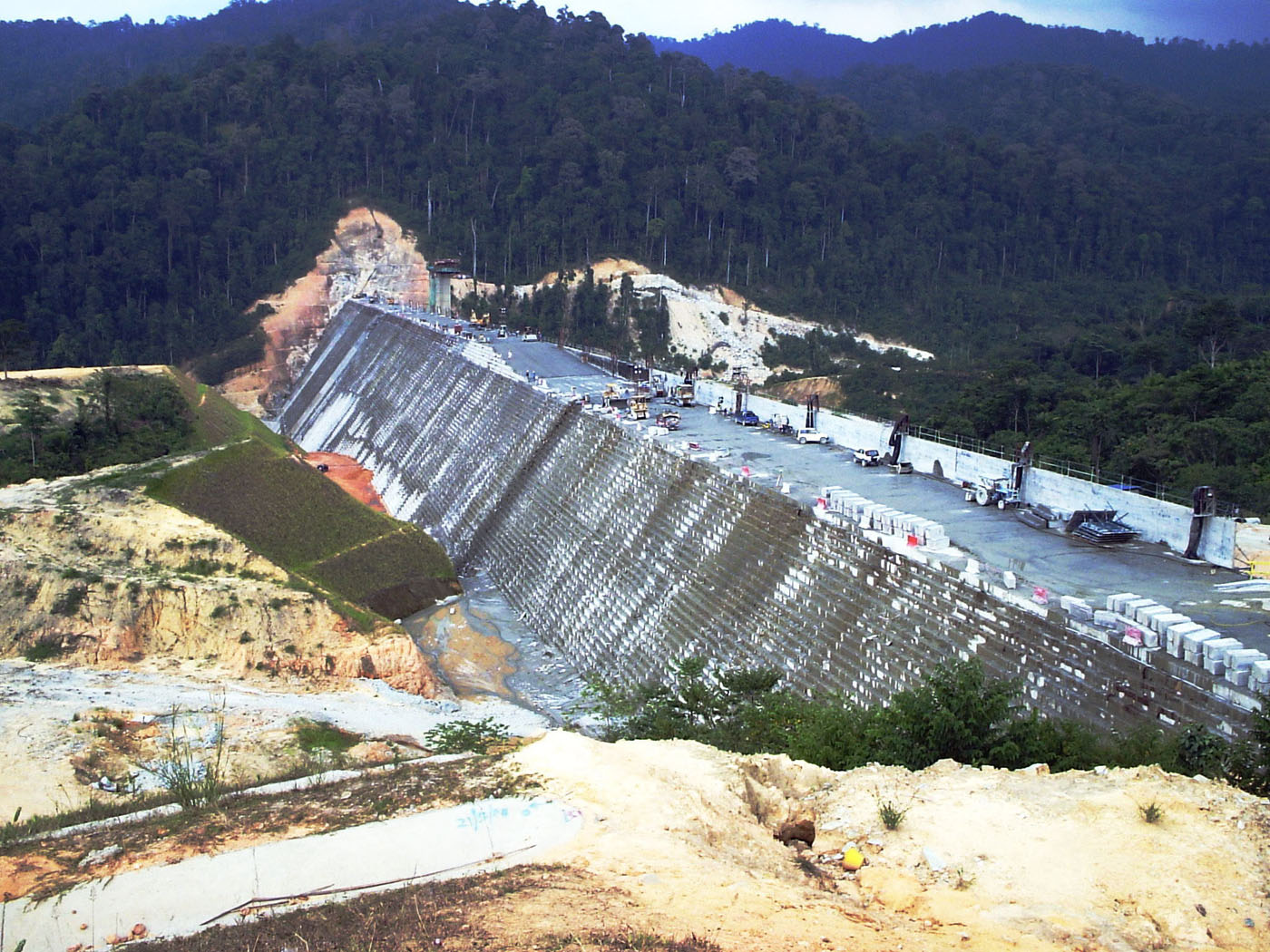

Kinta completed

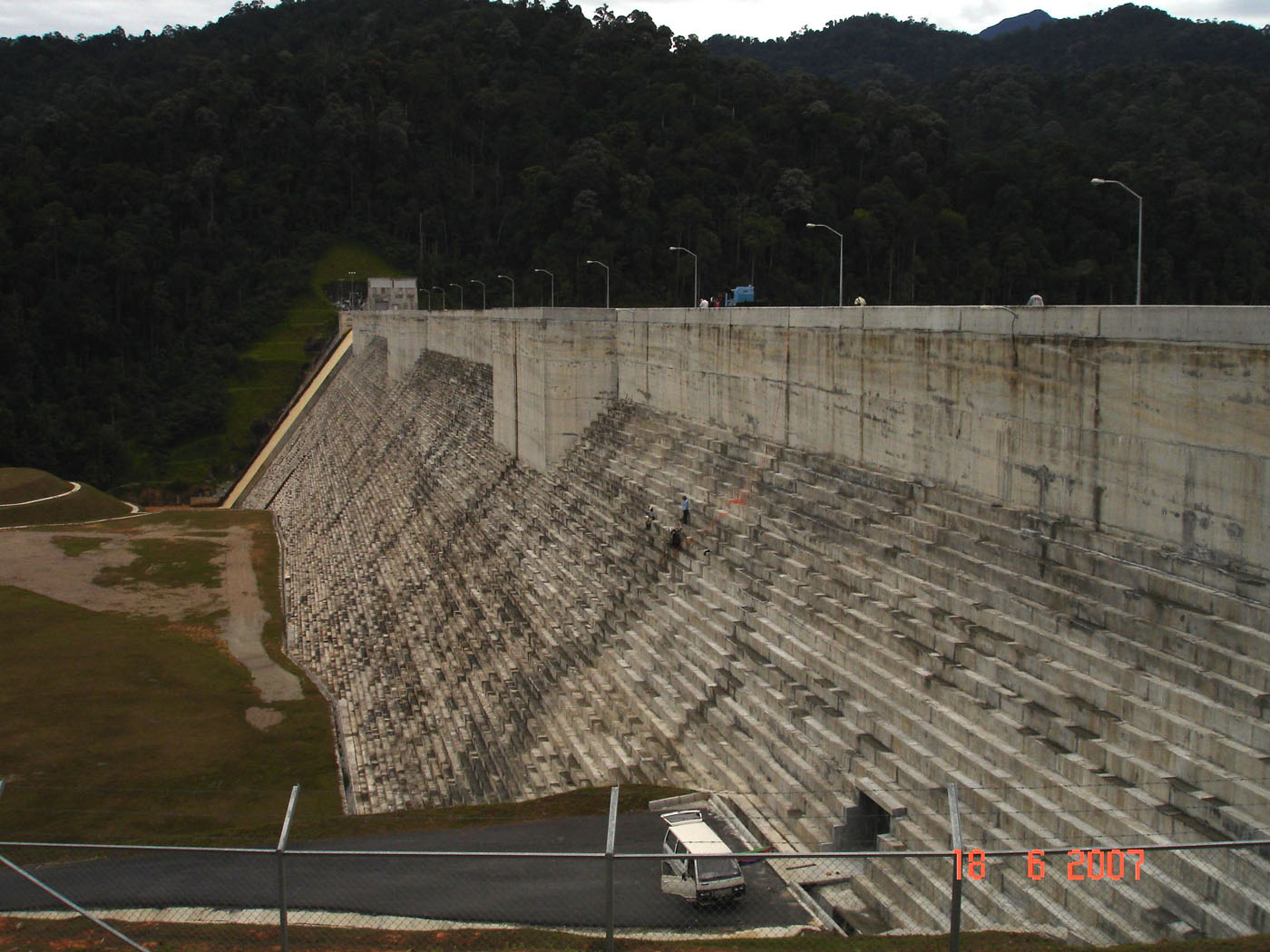

Kinta completed

Particulars

Owner: Lembaga Air Perak/Metropolitan Utilities Corporation

Designer: GHD & Angkasa Consulting

Contractor: SKH (Seribong-Konbina-Hazama) Consortium

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 30 m3x106

Height: 90 metres

Length: 792 metres

Volume of RCC: 952 m3x103

Total volume: 975 m3x103

Construction Dates

Start of Project: 01/03 (January 2003)

Start of RCC: 02/04 (February 2004)

End of RCC: 03/06 (March 2006)

End of Project: 07/06 (July 2006)

Country: Malaysia

River: Kinta

DMS Co-ordinates: 04˚40'6.77"N, 101˚13'9.7"E

DD Co-ordinates: 4.668547, 101.219360

Facings

Upstream

SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)

Downstream

SlopeType
0.80RCC against formwork (GEVR/GE-RCC)  [stepped face]

Spillway

SlopeType
0.80RCC against formwork (GEVR/GE-RCC)  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
100
Pozzolan (kg/m3)Pozzolan Type
100Low-lime flyash (ASTM Class F)
