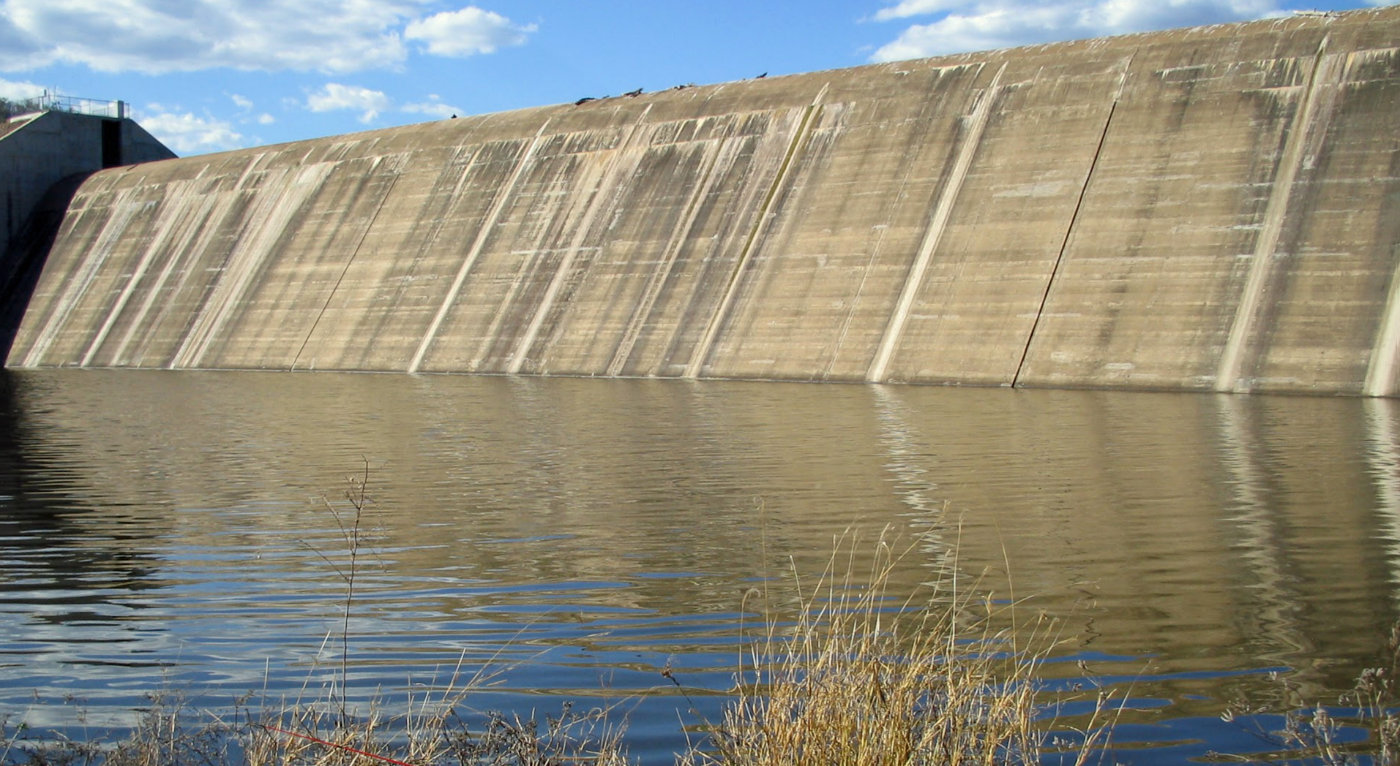

Kroombit

Download PDF data sheet
Kroombit completed
Kroombit completed

Particulars

Owner: Water Resources Commission, Queensland

Designer: Water Resources Commission, Queensland

Contractor: Leighton Contractors Pty. Ltd.

Statistics

Type: Gravity

Purpose(s): Groundwater Recharge / Irrigation

Reservoir capacity: 13 m3x106

Height: 26 metres

Length: 250 metres

Volume of RCC: 84 m3x103

Total volume: 110 m3x103

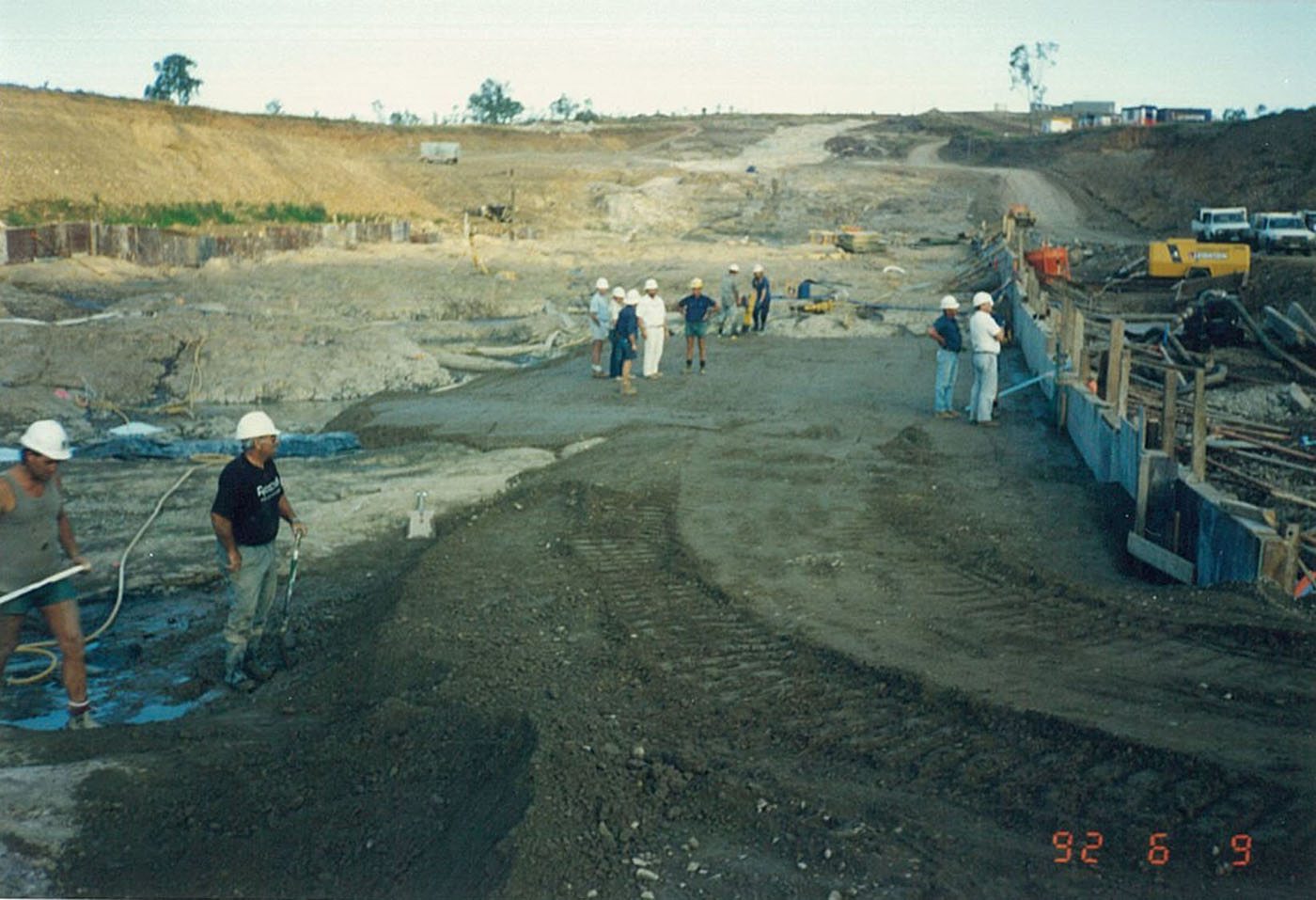

Construction Dates

Start of Project: 03/92 (March 1992)

Start of RCC: 06/92 (June 1992)

End of RCC: 10/92 (October 1992)

End of Project: 12/92 (December 1992)

Country: Australia

River: Kroombit Creek

DMS Co-ordinates: 24˚25'01.36"S, 150˚46'20.92"E

DD Co-ordinates: -24.417044, 150.772476

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.70Traditional concrete against formwork

Spillway

SlopeType
0.70Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
82
Pozzolan (kg/m3)Pozzolan Type
107Low-lime flyash (ASTM Class F)
