Lower Molonglo Bypass Storage

Download PDF data sheet

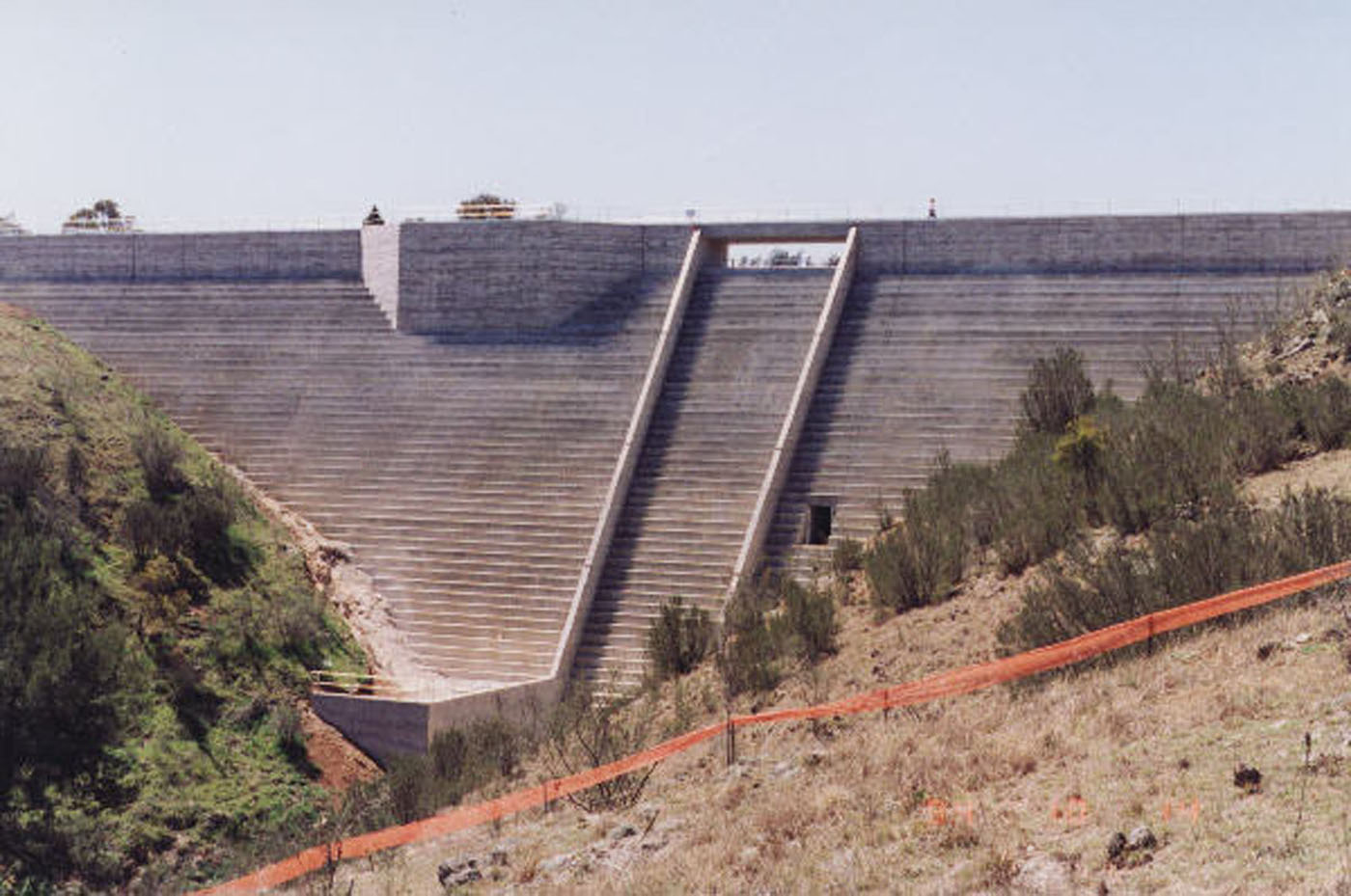

Lower Molonglo Bypass Storage completed
Lower Molonglo Bypass Storage completed

Particulars

Owner: ACT Electricity and Water

Designer: ACT Electricity and Water

Contractor: Fletcher White J.V.

Statistics

Type: Gravity

Purpose(s): Pollution Control

Reservoir capacity: 1 m3x106

Height: 32 metres

Length: 120 metres

Volume of RCC: 22 m3x103

Total volume: 27 m3x103

Construction Dates

Start of Project: 02/94 (February 1994)

Start of RCC: 06/94 (June 1994)

End of RCC: 08/94 (August 1994)

End of Project: 11/94 (November 1994)

Country: Australia

River: Unnamed creek

DMS Co-ordinates: 35˚14'30"S, 148˚58'04"E

DD Co-ordinates: -35.241669, 148.967773

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
96
Pozzolan (kg/m3)Pozzolan Type
64Low-lime flyash (ASTM Class F)
