Middle Vaitarna

Download PDF data sheet

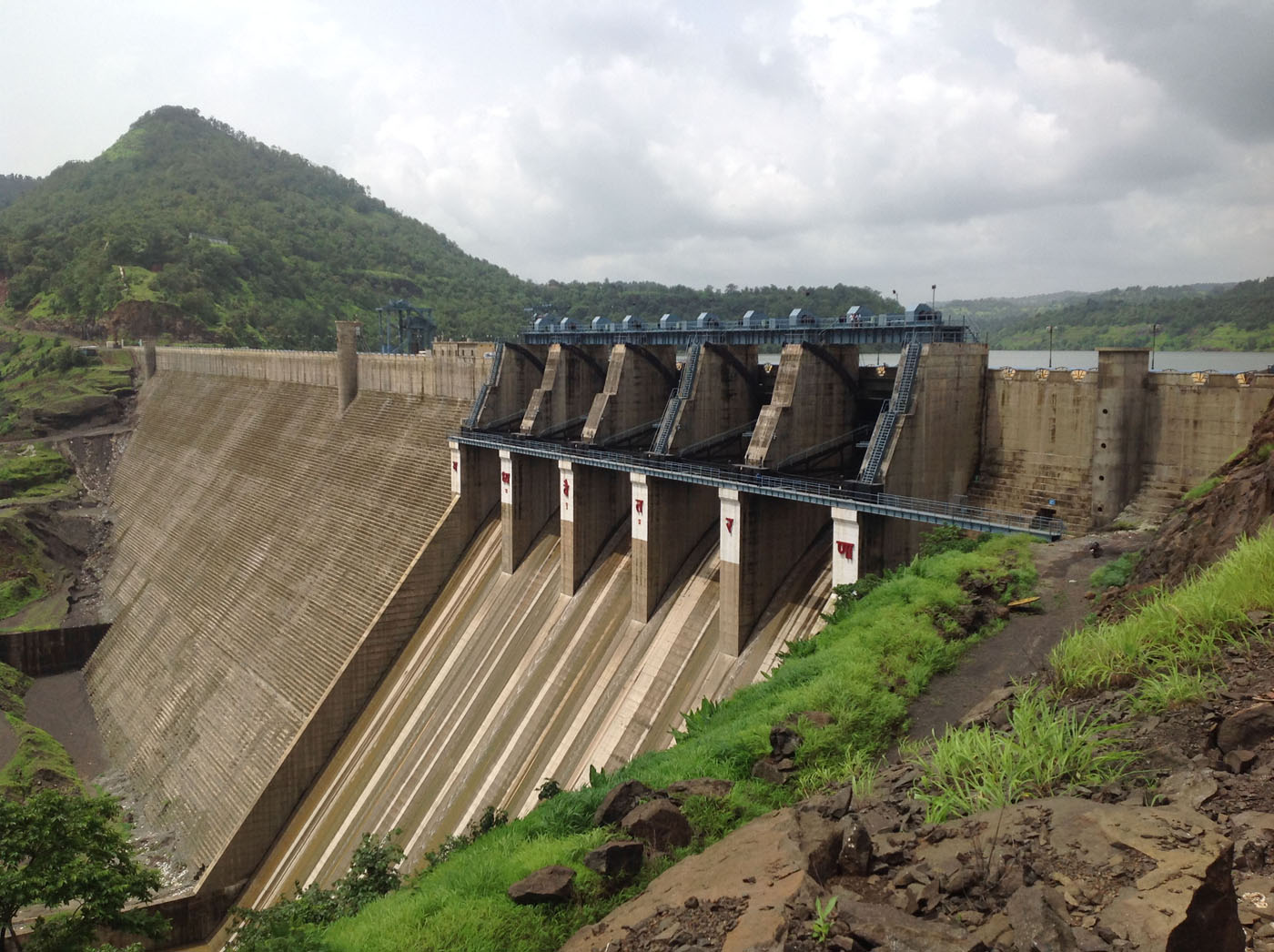

Middle Vaitarna completed

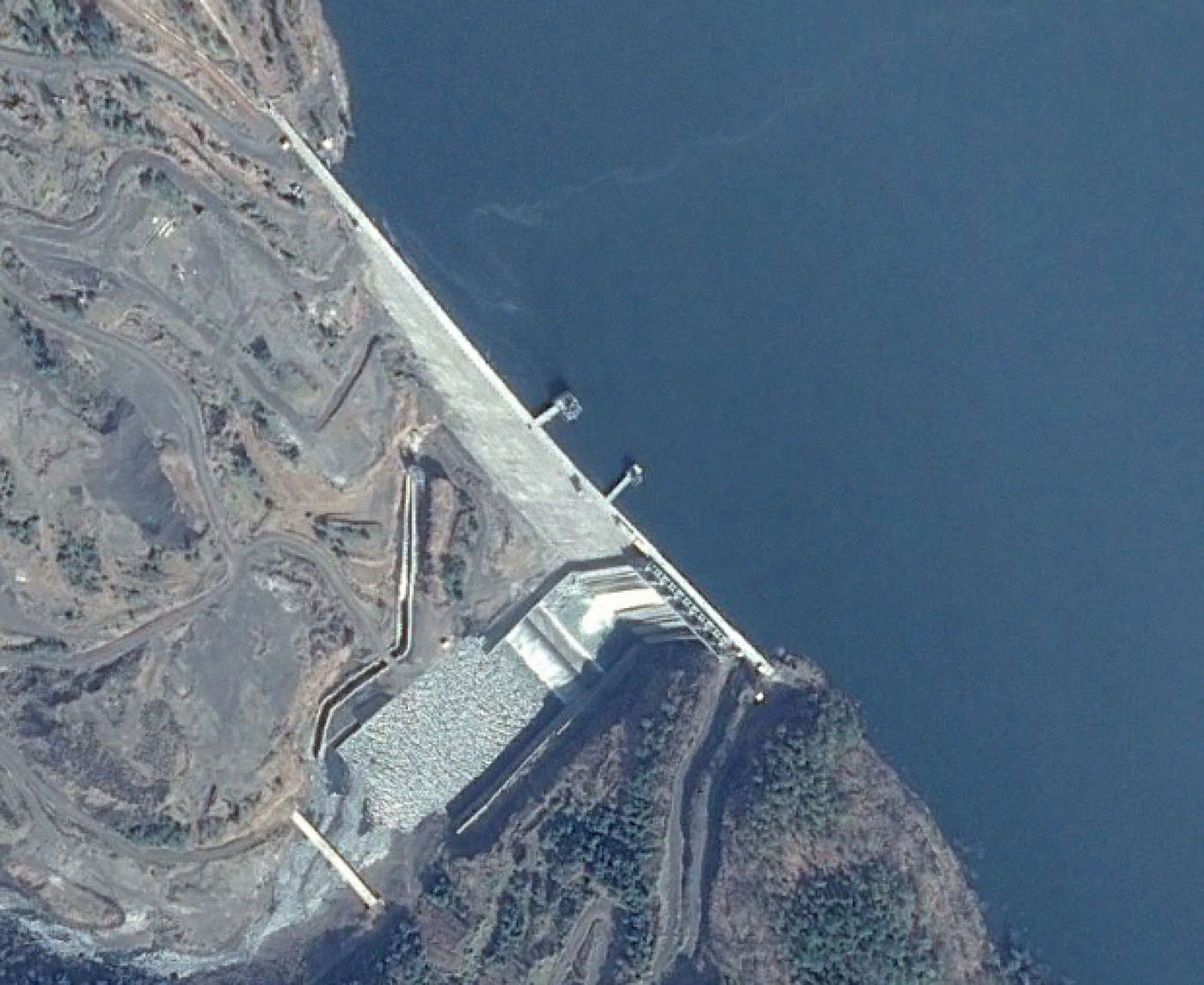

Middle Vaitarna completed

Particulars

Owner: Municipal Corporation of Greater Mumbai

Designer: Central Design Organisation, Water Resources Department, Government of Maharashtra

Contractor: CWE-Soma Consortium

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 202 m3x106

Height: 102 metres

Length: 565 metres

Volume of RCC: 1202 m3x103

Total volume: 1500 m3x103

Construction Dates

Start of Project: 10/08 (October 2008)

Start of RCC: 05/10 (May 2010)

End of RCC: 04/12 (April 2012)

End of Project: /12 ( 2012)

Country: India

River: Vaitarna

DMS Co-ordinates: 19˚42'17.65"N, 73˚26'2.71"E

DD Co-ordinates: 19.704903, 73.434090

Facings

Upstream

SlopeType
0.15RCC against formwork (GEVR/GE-RCC)  [stepped face]

Downstream

SlopeType
0.75RCC against formwork (GEVR/GE-RCC)  [stepped face]

Spillway

SlopeType
0.75Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
145Low-lime flyash (ASTM Class F)
