Monksville

Download PDF data sheet

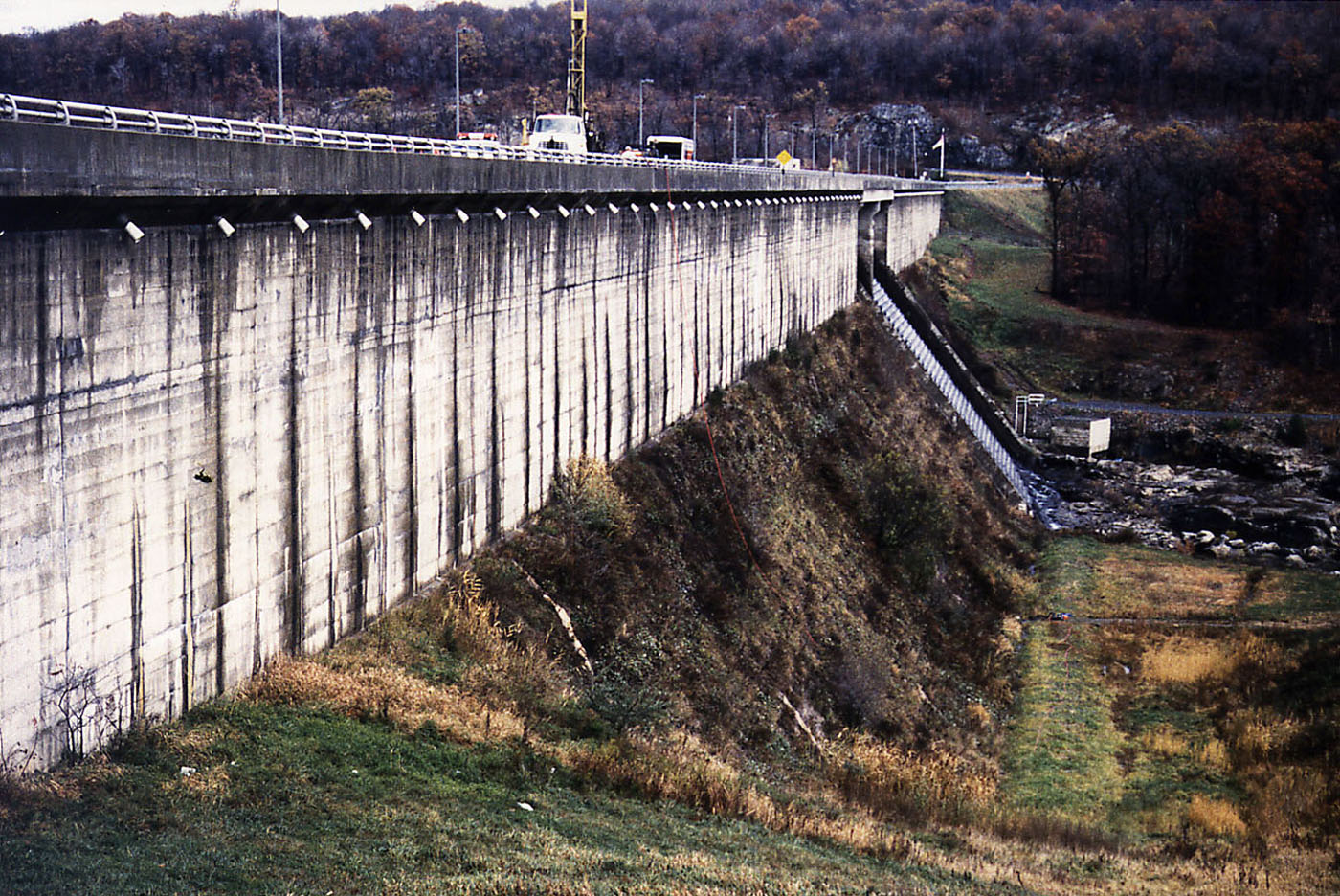

Monksville completed
Monksville completed

Particulars

Owner: North Jersey District Water Supply Commission and Hackensack Water Company

Designer: Kupper Associates/O’Brien & Gere

Contractor: S J Groves Construction Company

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 27 m3x106

Height: 48 metres

Length: 670 metres

Volume of RCC: 219 m3x103

Total volume: 232 m3x103

Construction Dates

Start of Project: 05/85 (May 1985)

Start of RCC: 03/86 (March 1986)

End of RCC: 08/86 (August 1986)

End of Project: 11/86 (November 1986)

Country: USA

River: Wanaque

DMS Co-ordinates: 41˚07'20.62"N, 74˚17'47.58"W

DD Co-ordinates: 41.122395, -74.296547

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
VerticalTraditional concrete against formwork
0.78Unformed face of RCC

Spillway

SlopeType
0.78Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
64
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
