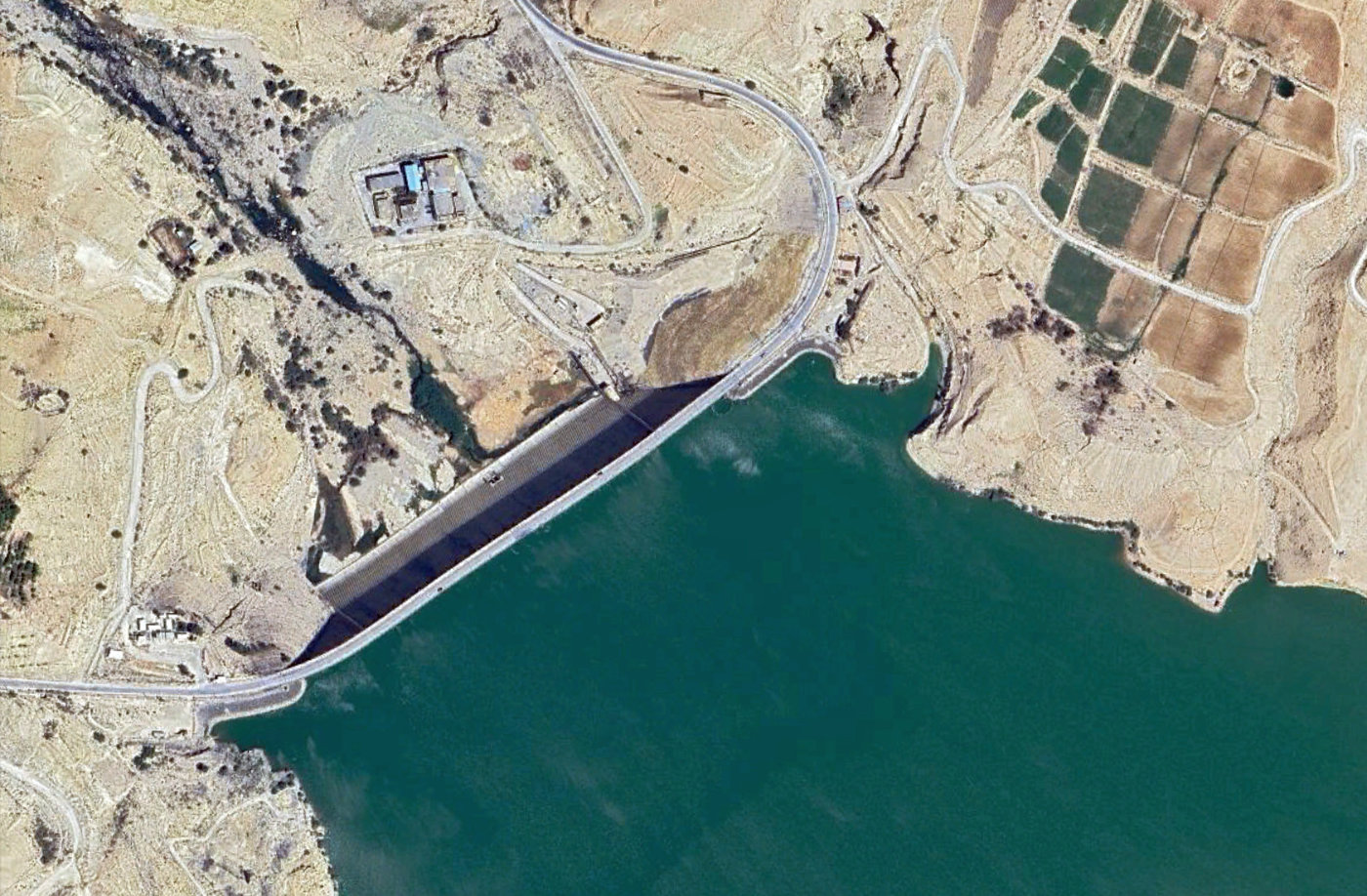

Mujib

Download PDF data sheet
Mujib completed
Mujib completed

Particulars

Owner: Jordan Valley Authority, Ministry of Water and Irrigation

Designer: Howard Humphreys

Contractor: AEGEK Hidrogradna JV

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 35 m3x106

Height: 67 metres

Length: 490 metres

Volume of RCC: 654 m3x103

Total volume: 694 m3x103

Construction Dates

Start of Project: 01/99 (January 1999)

Start of RCC: 01/01 (January 2001)

End of RCC: 02/03 (February 2003)

End of Project: 11/03 (November 2003)

Country: Jordan

River: Mujib

DMS Co-ordinates: 35˚26'41.28"N, 35˚49'4.73"E

DD Co-ordinates: 35.444801, 35.817982

Facings

Upstream

SlopeType
0.10Traditional concrete against formwork with external geomembrane

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
