Nam Ngum 5

Download PDF data sheet

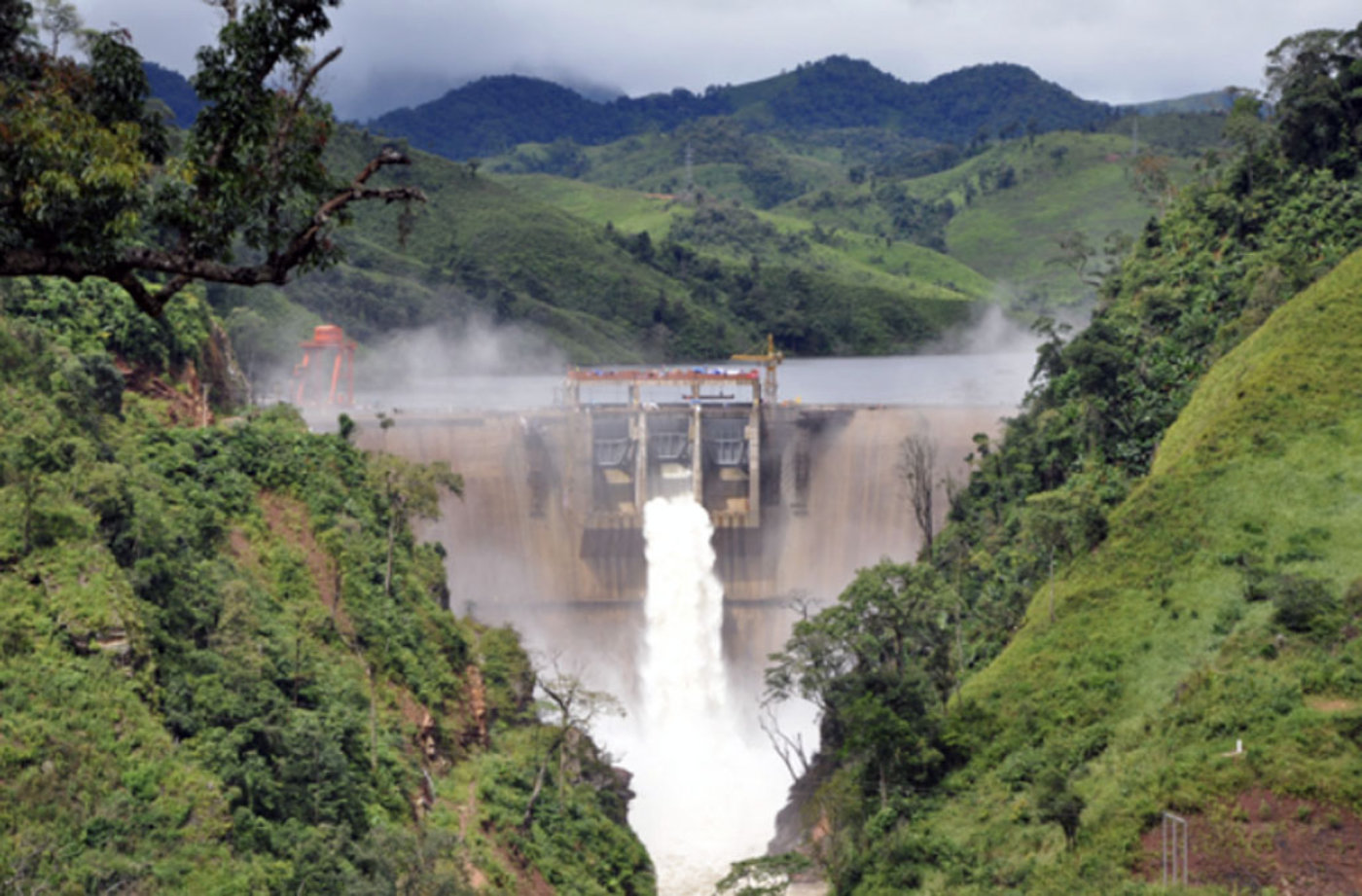

Nam Ngum 5 completed
Nam Ngum 5 completed

Particulars

Owner: Nam Ngum 5 Power Company Ltd. (15% Électricité du Laos - Generation Company Ltd., 85% Power)

Designer: SinoHydro (Bureau Nº14)

Contractor: SinoHydro (Bureau Nº10)

Statistics

Type: Thin Arch

Purpose(s): Hydropower

Reservoir capacity: 314 m3x106

Height: 101 metres

Length: 235 metres

Volume of RCC: 298 m3x103

Total volume: 421 m3x103

Construction Dates

Start of Project: 10/08 (October 2008)

Start of RCC: 11/11 (November 2011)

End of RCC: 12/12 (December 2012)

End of Project: 12/12 (December 2012)

Country: Laos

River: Nam Ting

DMS Co-ordinates: 19˚20'20.12"N, 102˚36'37.5"E

DD Co-ordinates: 19.338923, 102.610420

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
