New Victoria

Download PDF data sheet

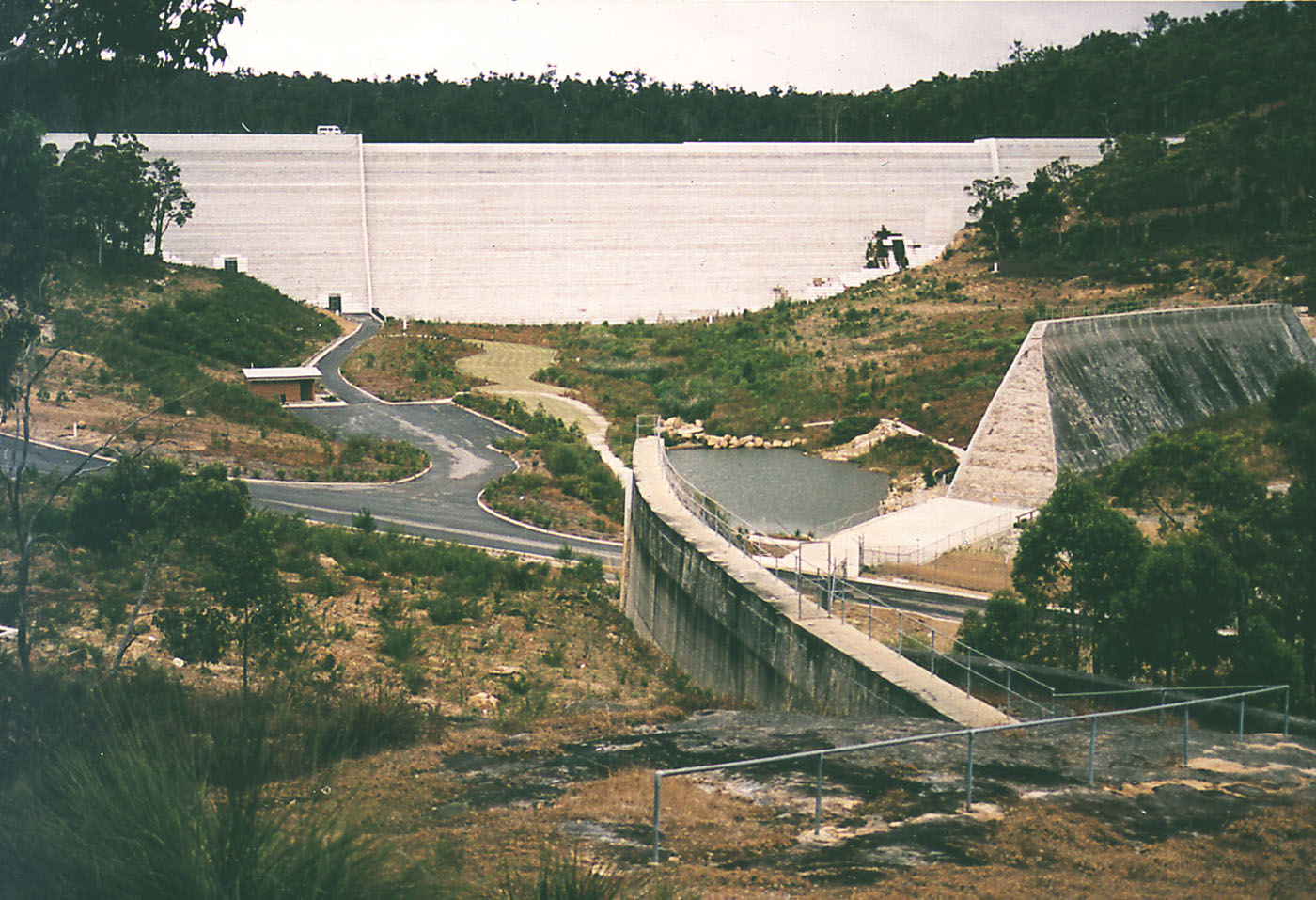

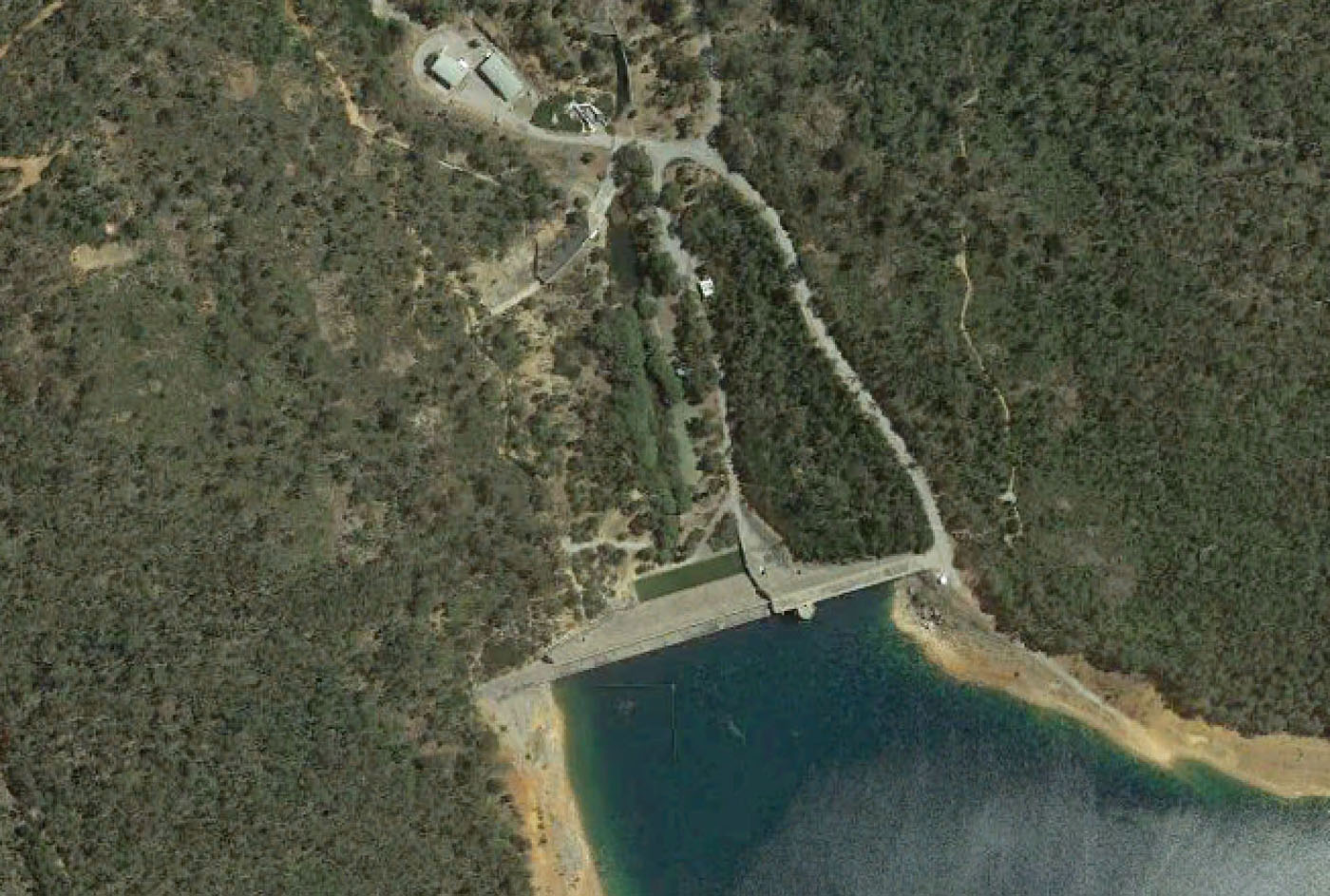

New Victoria completed
New Victoria completed

Particulars

Owner: Water Authority of Western Australia

Designer: Water Authority of Western Australia (WAWA)

Contractor: Baulderstone Hornibrook Engineering Pty Ltd

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 10 m3x106

Height: 52 metres

Length: 285 metres

Volume of RCC: 121 m3x103

Total volume: 135 m3x103

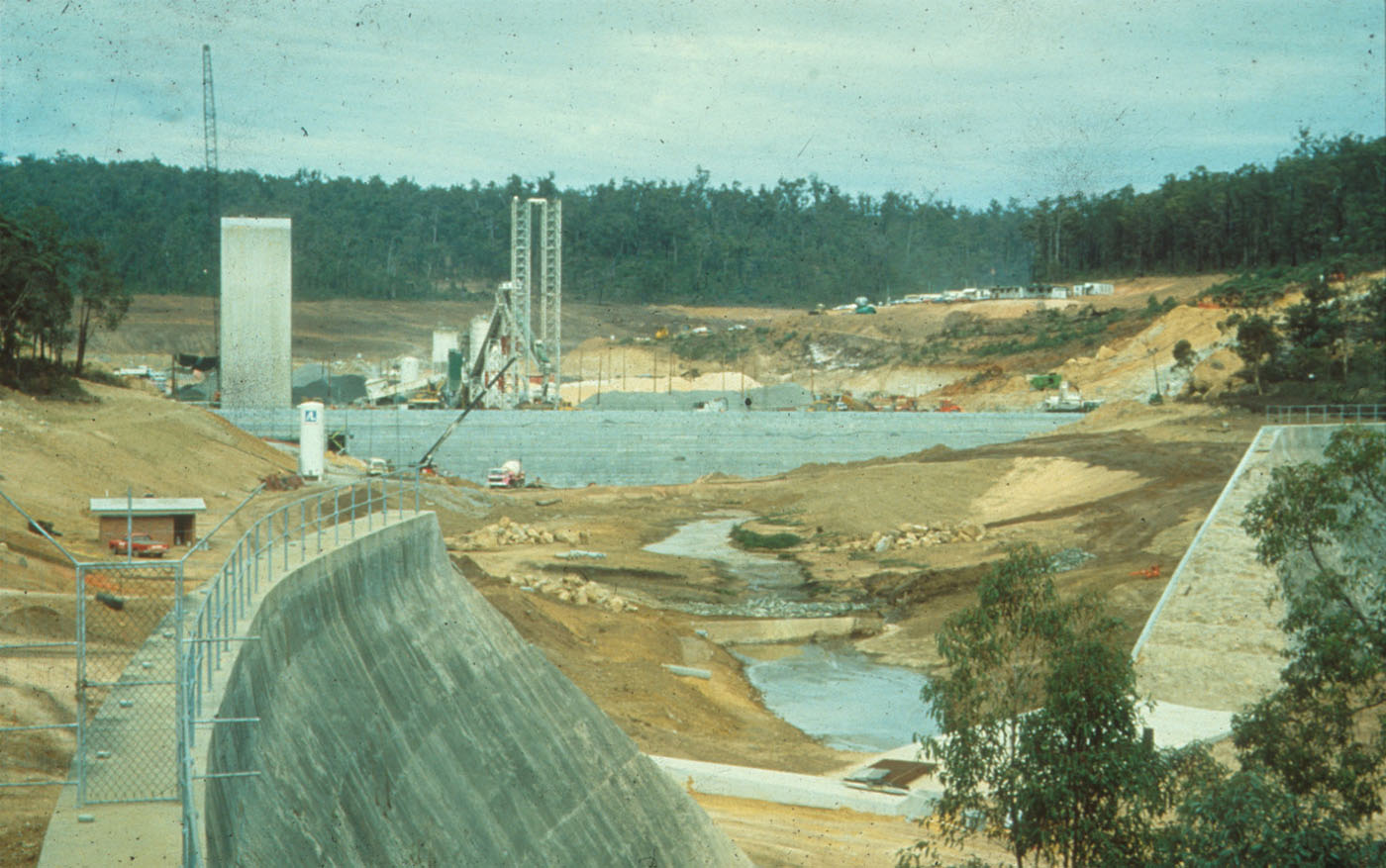

Construction Dates

Start of Project: 08/90 (August 1990)

Start of RCC: 03/91 (March 1991)

End of RCC: 08/91 (August 1991)

End of Project: 11/91 (November 1991)

Country: Australia

River: Munday Brook

DMS Co-ordinates: 32˚02'32.83"S, 116˚04'02.29"E

DD Co-ordinates: -32.042454, 116.067307

Facings

Upstream

SlopeType
VerticalSlip-formed/extruded facing elements

Downstream

SlopeType
0.325Slip-formed/extruded facing elements  [stepped face]
0.80Slip-formed/extruded facing elements  [stepped face]

Spillway

SlopeType
0.325Slip-formed/extruded facing elements  [stepped face]
0.80Slip-formed/extruded facing elements  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
79
Pozzolan (kg/m3)Pozzolan Type
160Low-lime flyash (ASTM Class F)
