North Fork Hughes River

Download PDF data sheet

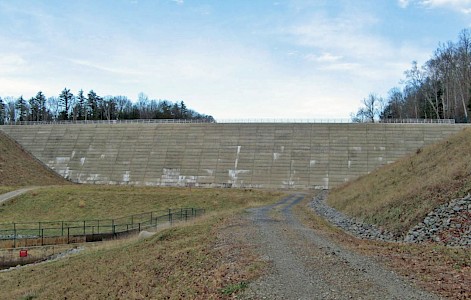

North Fork Hughes River completed

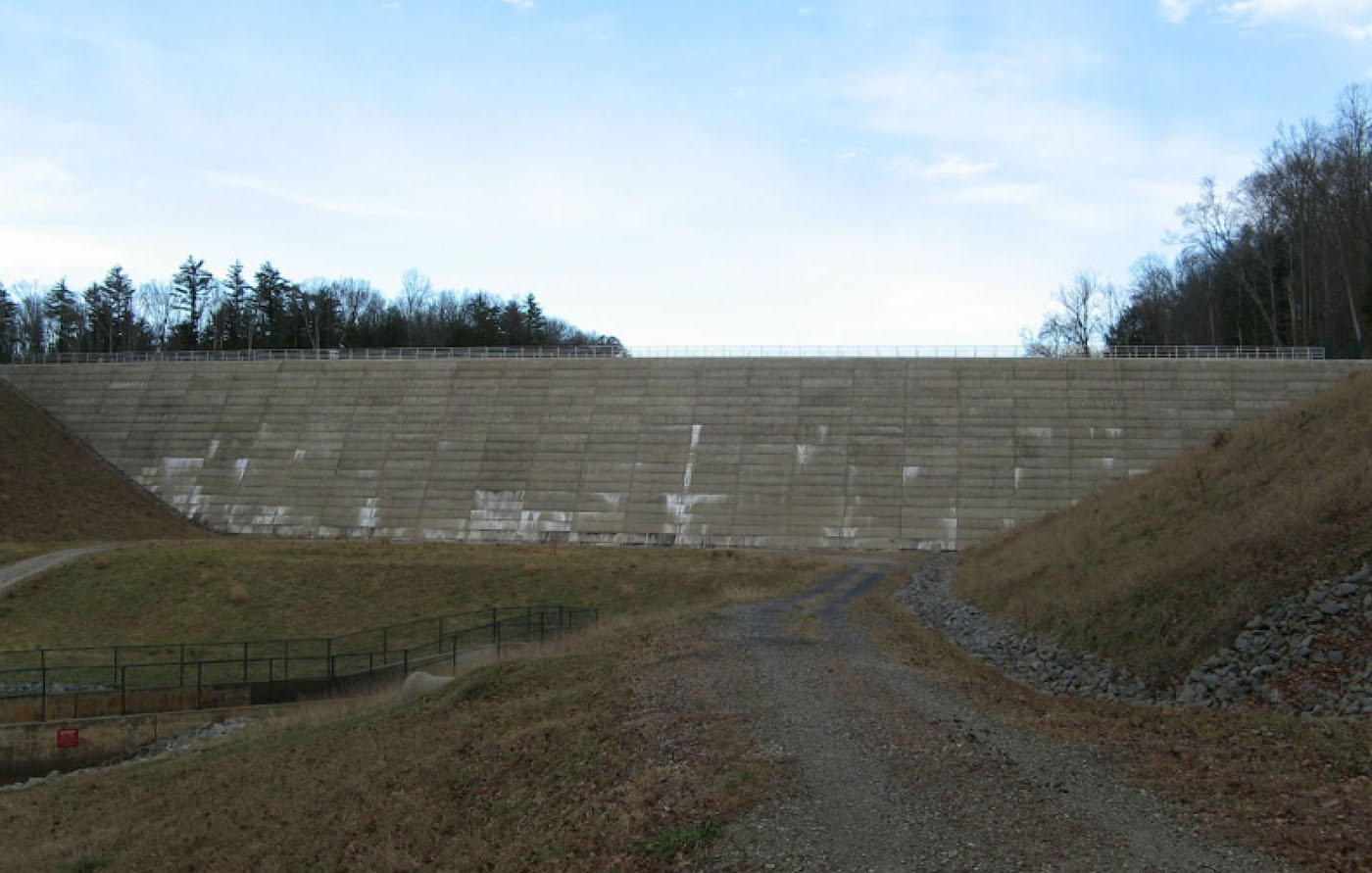

North Fork Hughes River completed

Particulars

Owner: USDA Natural Reseources Conservation Servicw

Designer: Gannett-Fleming, Inc.

Contractor: Barnard Construction Co.

Statistics

Type: Gravity

Purpose(s): Flood Control / Recreation / Water Supply

Reservoir capacity: 1480 m3x106

Height: 26 metres

Length: 200 metres

Volume of RCC: 65 m3x103

Total volume: 65 m3x103

Construction Dates

Start of Project: 07/99 (July 1999)

Start of RCC: 03/01 (March 2001)

End of RCC: 07/01 (July 2001)

End of Project: /01 ( 2001)

Country: USA

River: North Fork Hughes River

DMS Co-ordinates: 39˚13'10.6"N, 81˚5'55.82"W

DD Co-ordinates: 39.219612, -81.098839

Facings

Upstream

SlopeType
VerticalRCC against precast concrete panels with geomembrane

Downstream

SlopeType
0.80RCC against precast concrete blocks

Spillway

SlopeType
0.80Traditional concrete against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
59
107
Pozzolan (kg/m3)Pozzolan Type
59Low-lime flyash (ASTM Class F)
65
