Panelas II
Download PDF data sheet

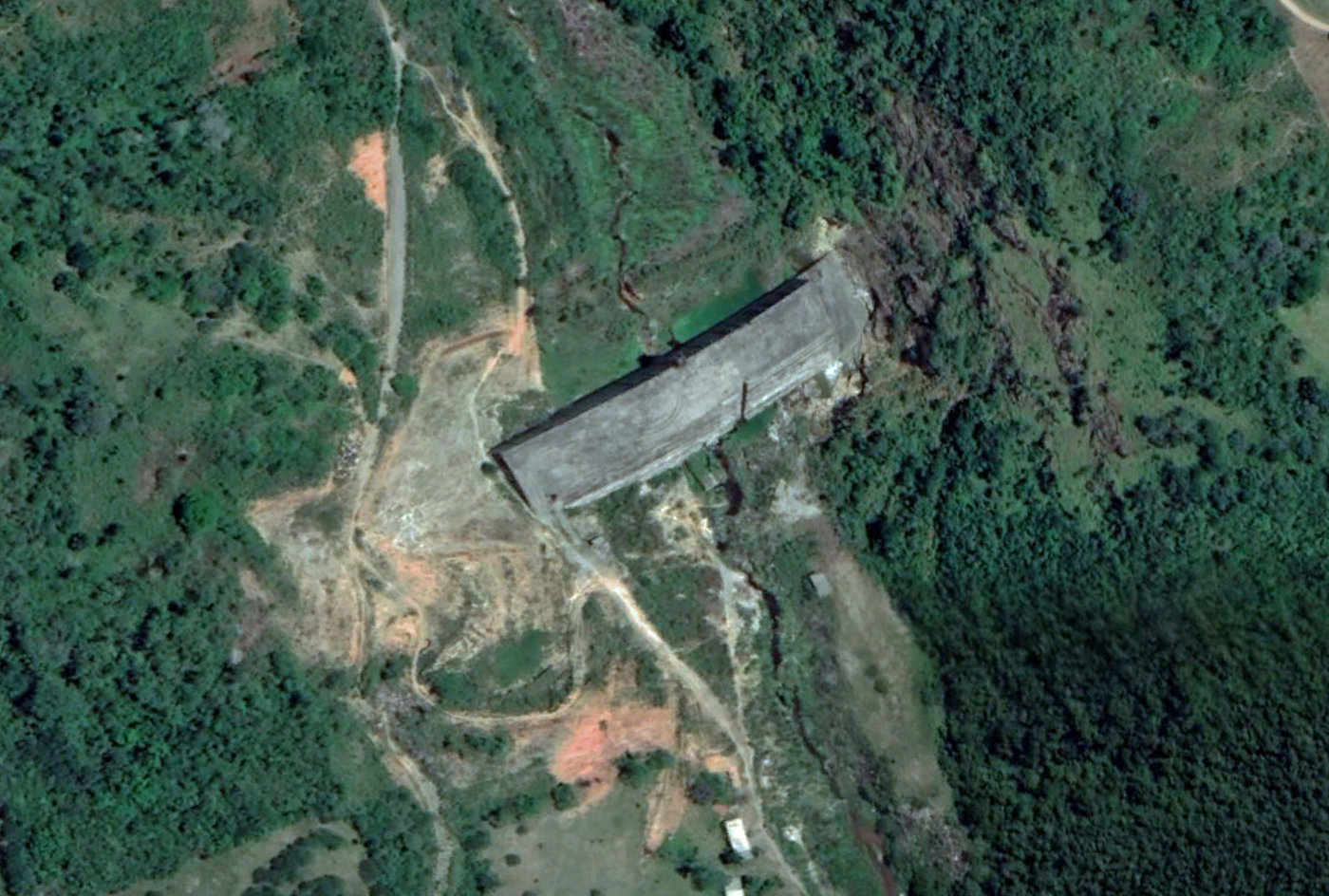

Panelas II on Google Earth
Particulars
Owner: SRHS (Secretaria de Recursos Hídricos e de Saneamento)
Designer: unknown
Contractor: unknown
Statistics
Type: Gravity
Purpose(s): Water Supply
Reservoir capacity: 17 m3x106
Height: 55 metres
Length: 311 metres
Volume of RCC: unknown
Total volume: unknown
Construction Dates
Start of Project: —/16 (— 2016)
Start of RCC: —/17 (— 2017)
End of RCC: 06/26 (June 2026)
End of Project: —/27 (— 2027)
Country: Brazil
River: Una
DMS Co-ordinates: 08˚36'19.76"S, 35˚53'33.29"W
DD Co-ordinates: -8.605489, -35.892582
Facings
Upstream
| Slope | Type |
|---|---|
Downstream
| Slope | Type |
|---|---|
Spillway
| Slope | Type |
|---|---|
Placement
| Layers (mm) | Lifts (mm) |
|---|---|
Cementitious material
| Cement (kg/m3) |
|---|
| Pozzolan (kg/m3) | Pozzolan Type |
|---|---|
