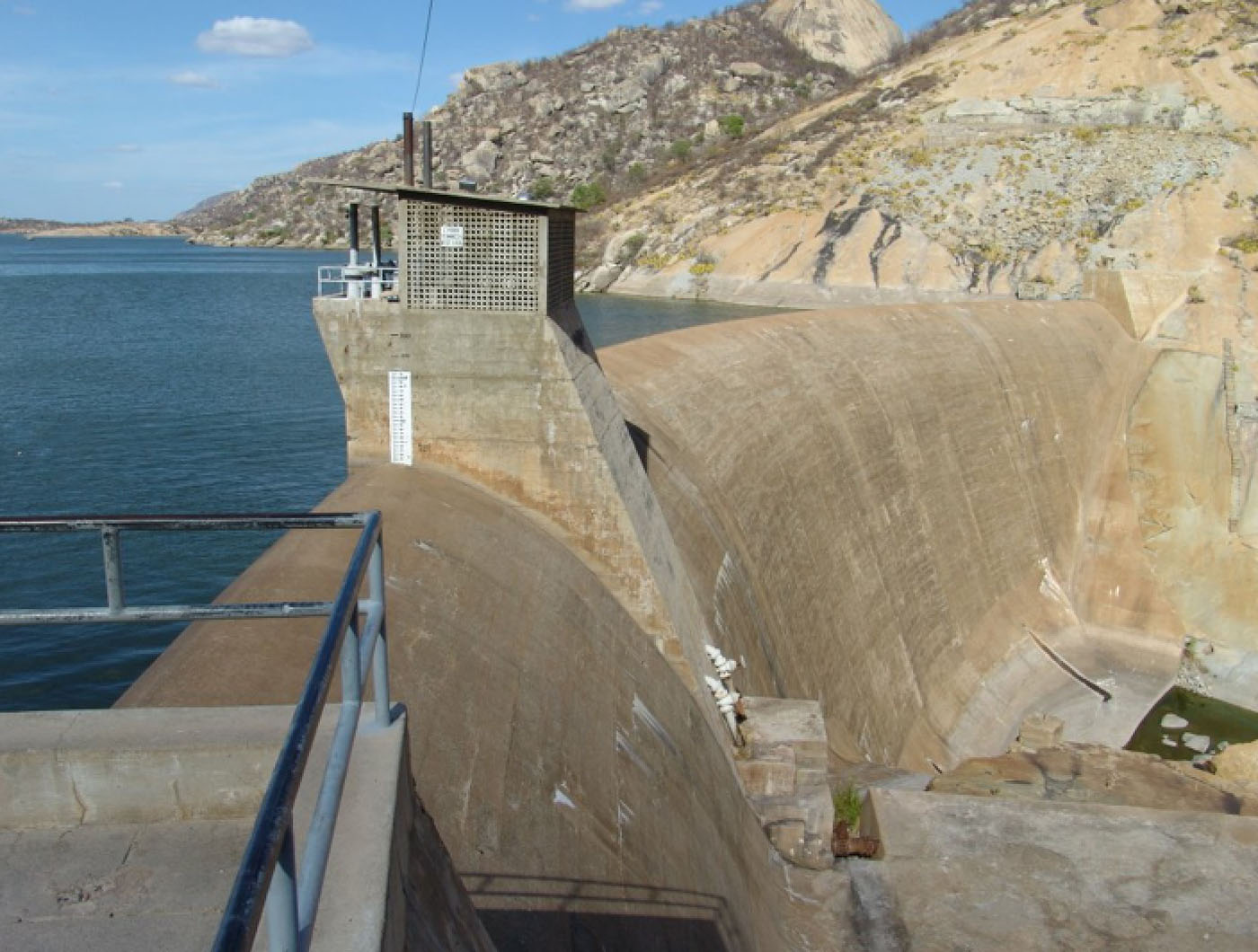

Passagem de Trairas

Download PDF data sheet
Passagem de Trairas completed
Passagem de Trairas completed

Particulars

Owner: Secretaria Estadual do Meio Ambiente e Recursos Hídricos do RN

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 50 m3x106

Height: 26 metres

Length: 440 metres

Volume of RCC: 27 m3x103

Total volume: 28 m3x103

Construction Dates

Start of Project: /93 ( 1993)

Start of RCC: /94 ( 1994)

End of RCC: /95 ( 1995)

End of Project: /96 ( 1996)

Country: Brazil

River: unknown

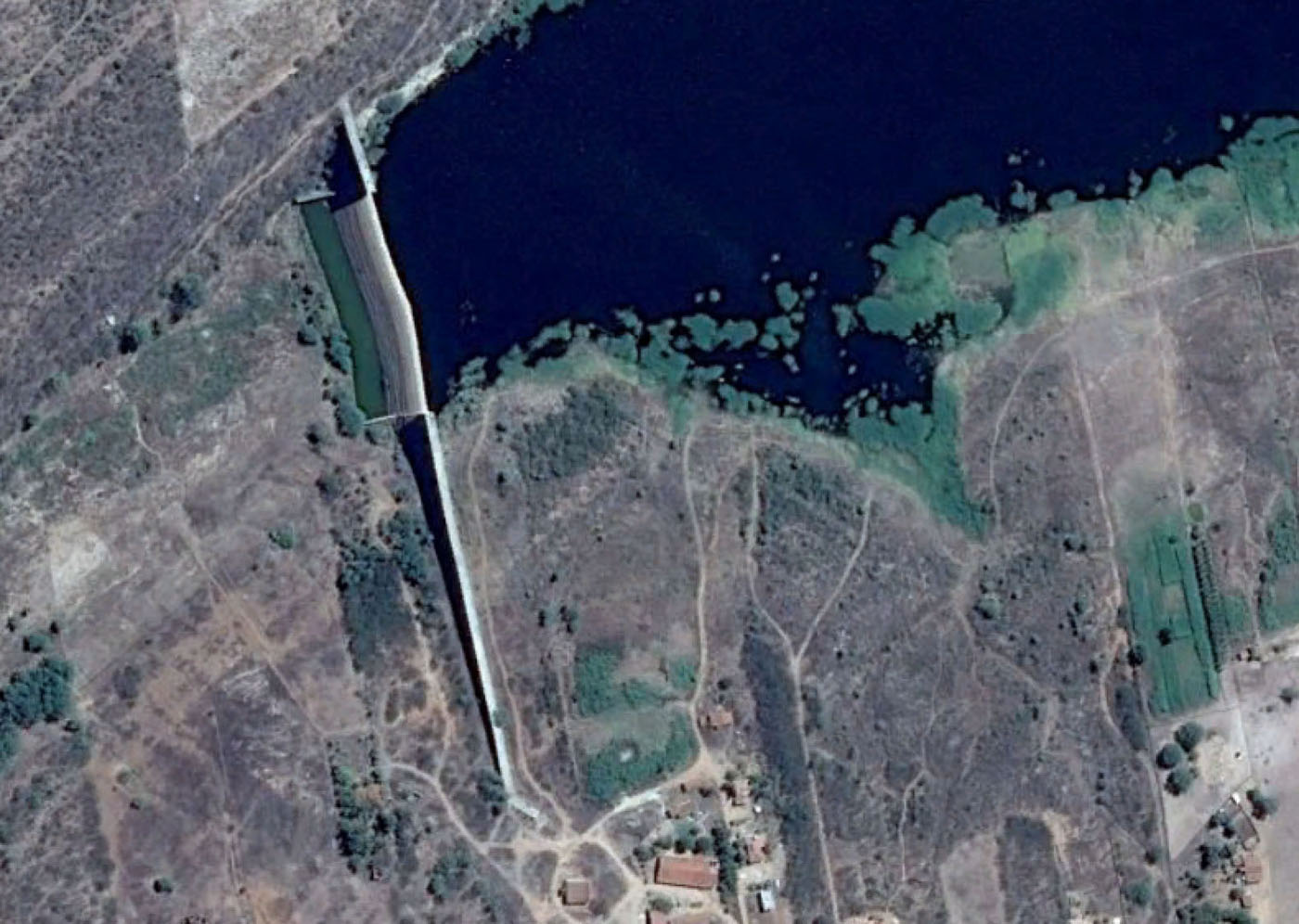

DMS Co-ordinates: 06˚30'52.72"S, 36˚56'32.37"W

DD Co-ordinates: -6.514644, -36.942326

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
64
Pozzolan (kg/m3)Pozzolan Type
16
