Pickle Jar

Download PDF data sheet

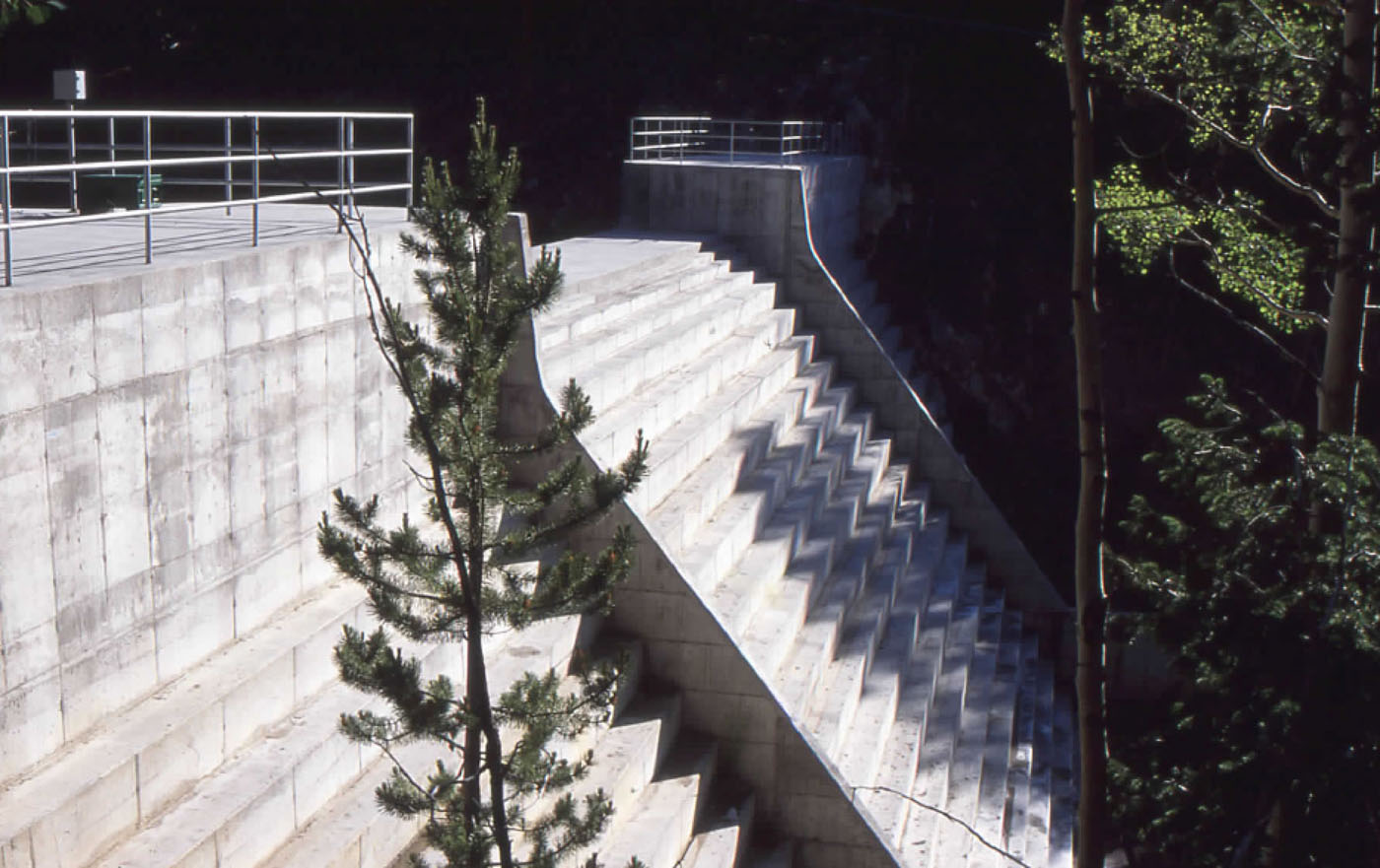

Pickle Jar completed

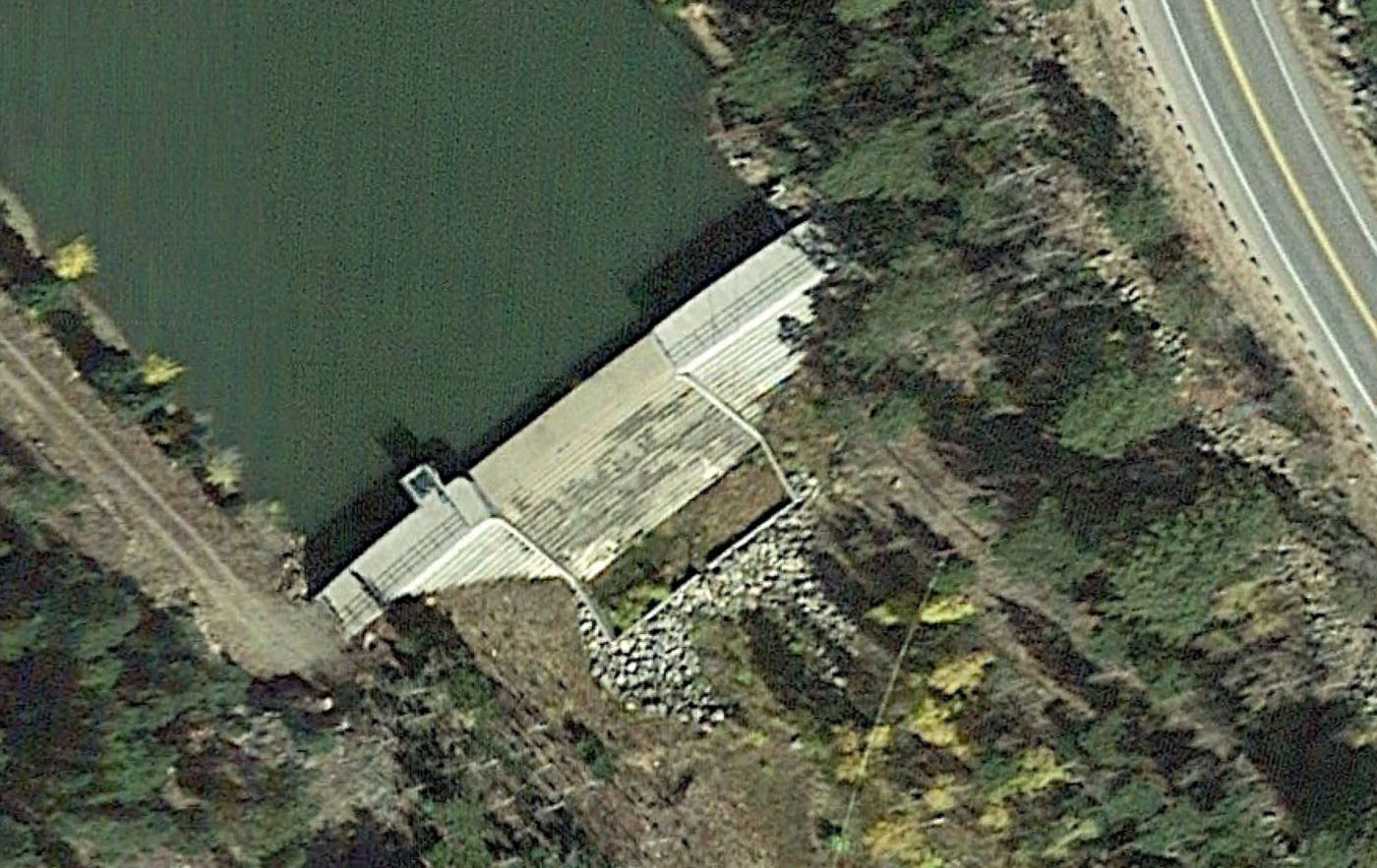

Pickle Jar completed

Particulars

Owner: Paradise Valley Estates

Designer: Applegate Group, Denver

Contractor: ASI RCC Inc.

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 1 m3x106

Height: 16 metres

Length: 57 metres

Volume of RCC: 331 m3x103

Total volume: 331 m3x103

Construction Dates

Start of Project: 10/99 (October 1999)

Start of RCC: 03/00 (March 2000)

End of RCC: 05/00 (May 2000)

End of Project: 08/00 (August 2000)

Country: USA

River: unknown

DMS Co-ordinates: 39˚49'44.61"N, 105˚31'28.21"W

DD Co-ordinates: 39.829060, -105.524506

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

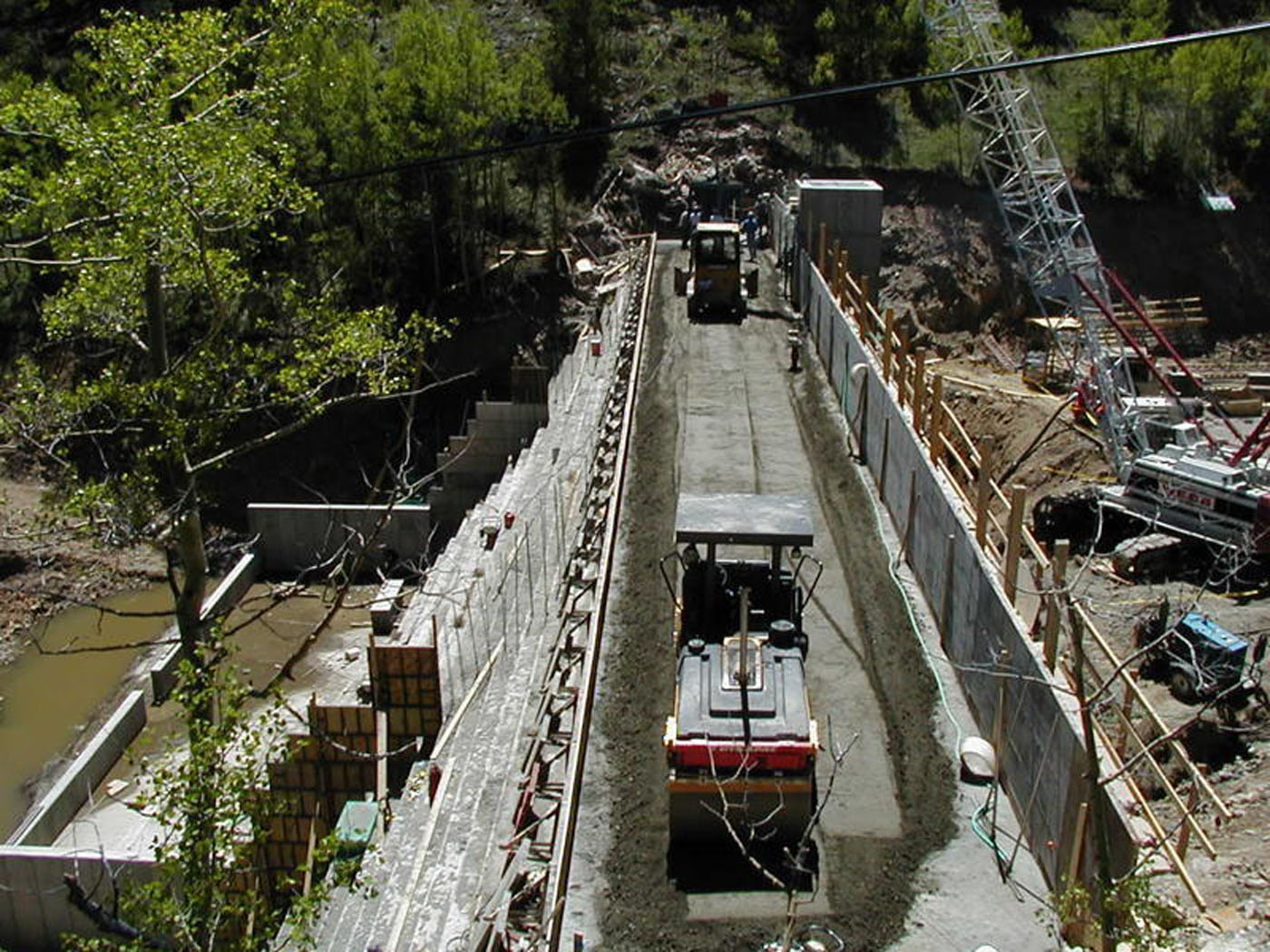

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
90
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
