Pine Brook

Download PDF data sheet

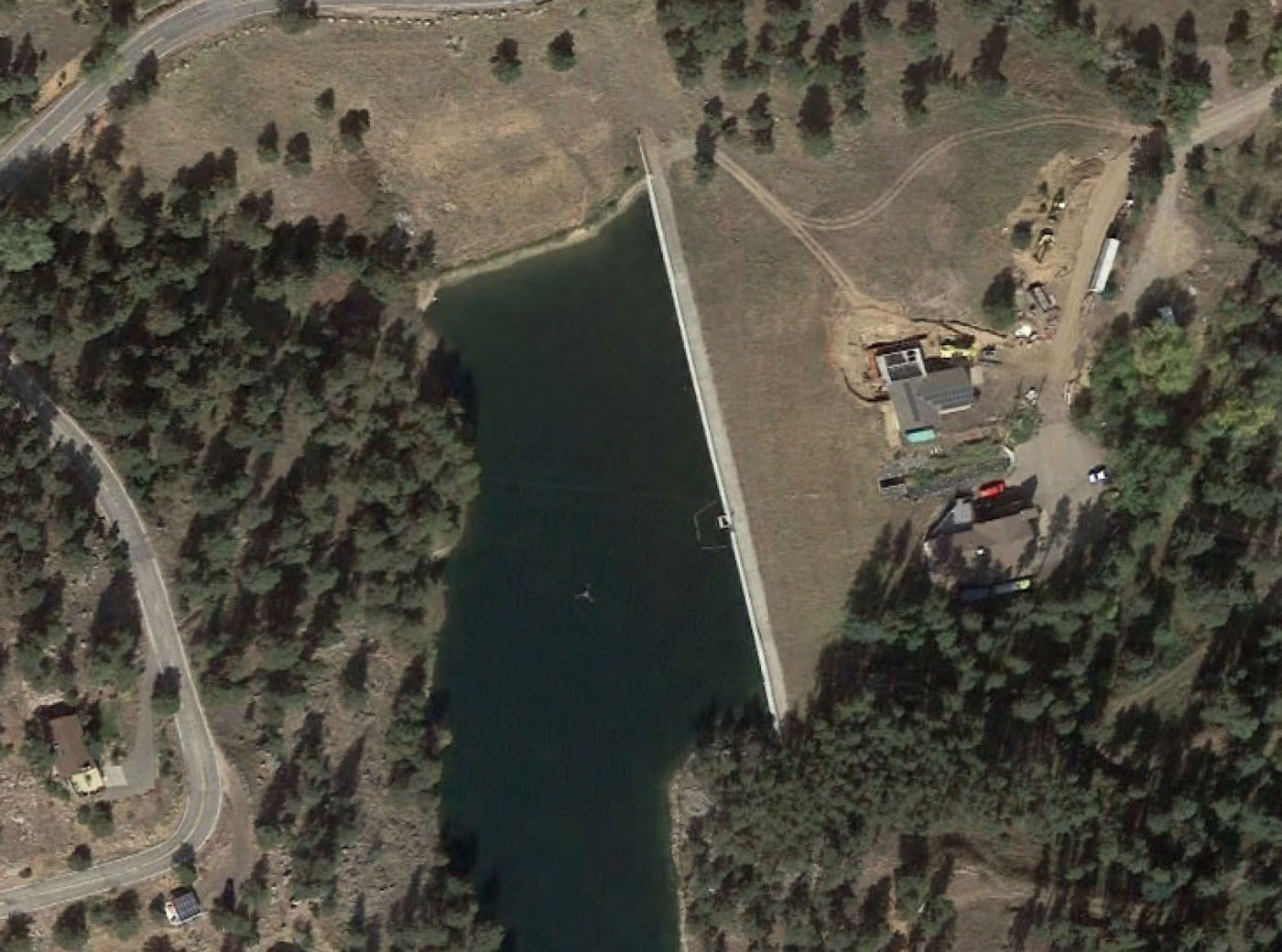

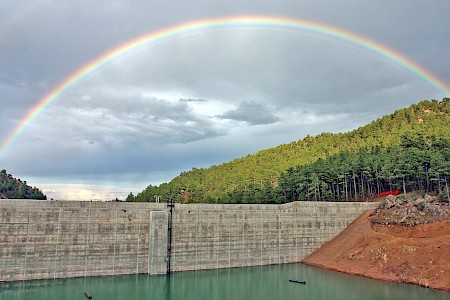

Pine Brook completed

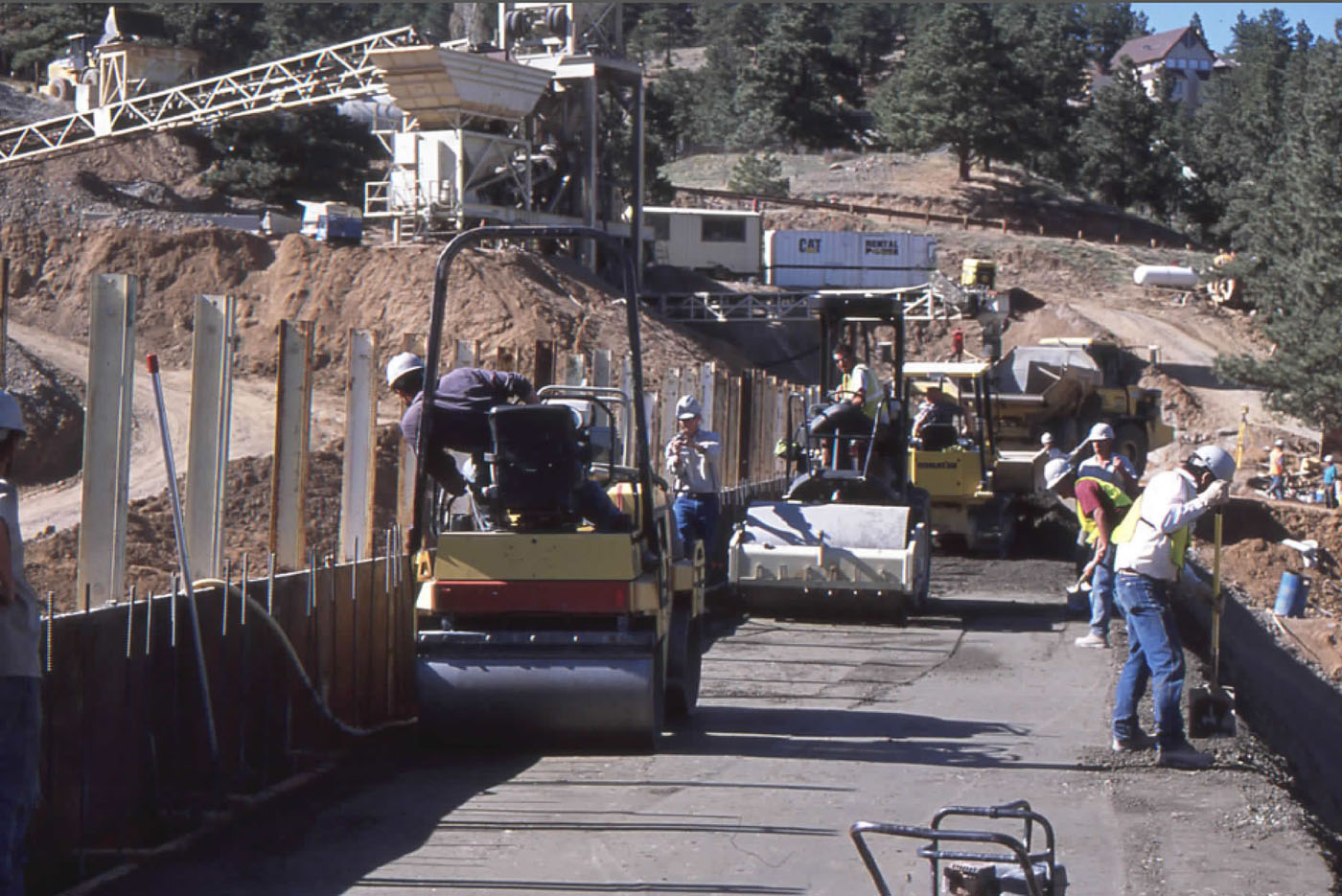

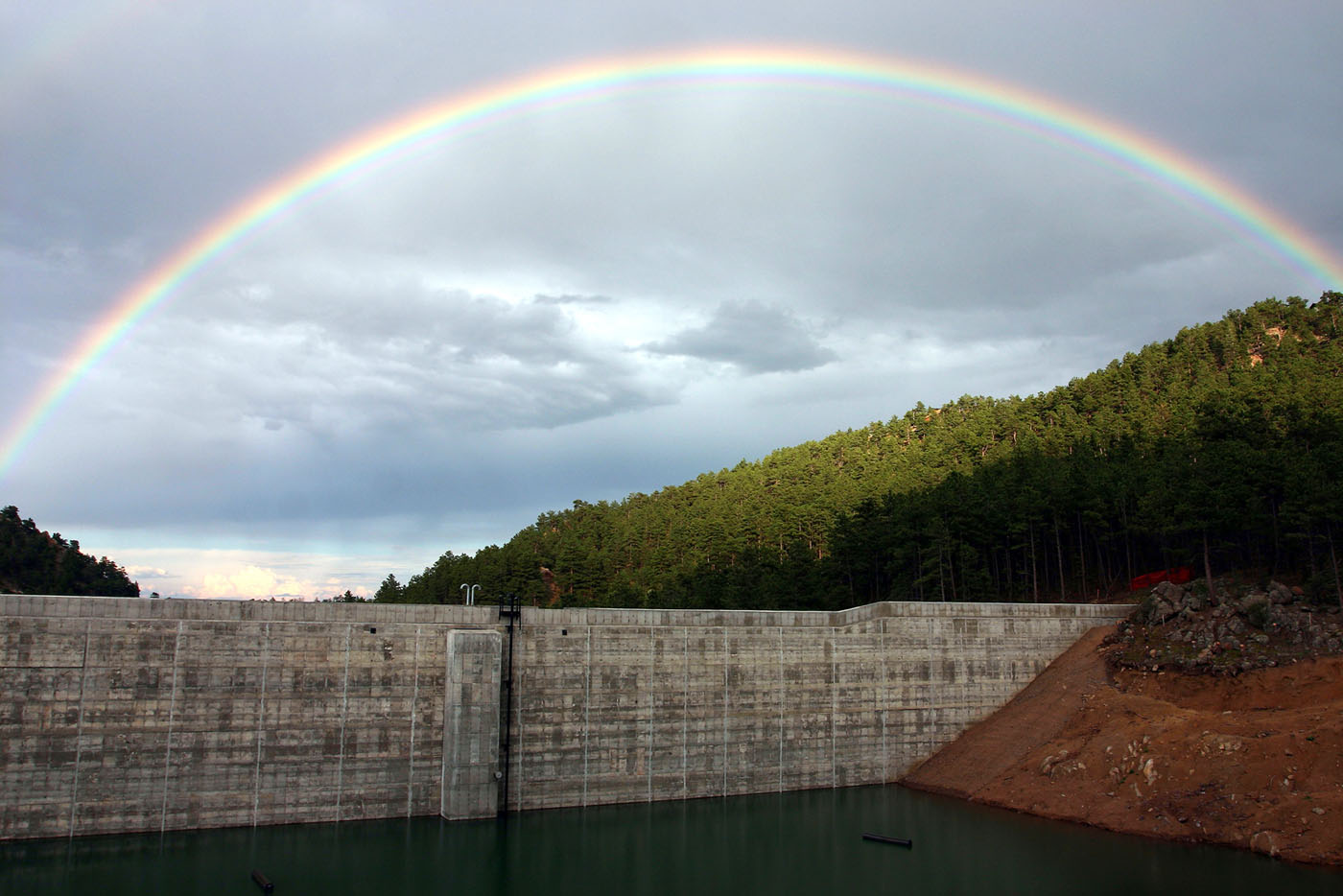

Pine Brook completed

Particulars

Owner: Pine Brook Water District

Designer: TCB Inc

Contractor: AST RCC Inc

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 1 m3x106

Height: 26 metres

Length: 170 metres

Volume of RCC: 27 m3x103

Total volume: 30 m3x103

Construction Dates

Start of Project: 01/05 (January 2005)

Start of RCC: 10/05 (October 2005)

End of RCC: 04/06 (April 2006)

End of Project: /06 ( 2006)

Country: USA

River: unknown

DMS Co-ordinates: 40˚02'57.63"N, 105˚18'44.63"W

DD Co-ordinates: 40.049343, -105.312393

Facings

Upstream

SlopeType
VerticalRCC against precast concrete panels

Downstream

SlopeType
 Unformed face of RCC

Spillway

SlopeType
separate

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
59Low-lime flyash (ASTM Class F)
