Pirapama

Download PDF data sheet

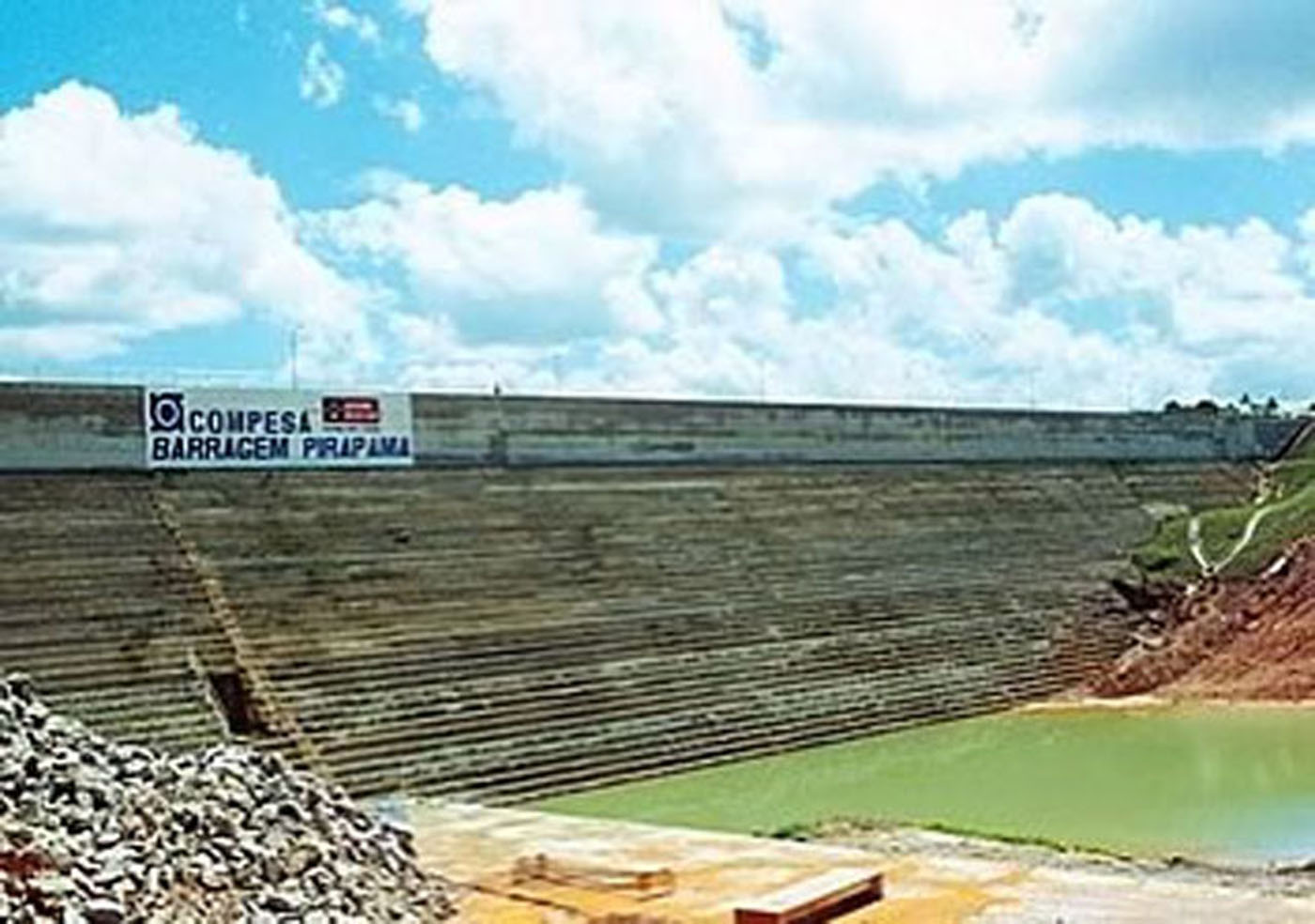

Pirapama completed
Pirapama completed

Particulars

Owner: CAGEPE (Companhia Pernambucana de Saneamento)

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 61 m3x106

Height: 25 metres

Length: 300 metres

Volume of RCC: 87 m3x103

Total volume: 137 m3x103

Construction Dates

Start of Project: /00 ( 2000)

Start of RCC: /00 ( 2000)

End of RCC: /01 ( 2001)

End of Project: /01 ( 2001)

Country: Brazil

River: Pirapama

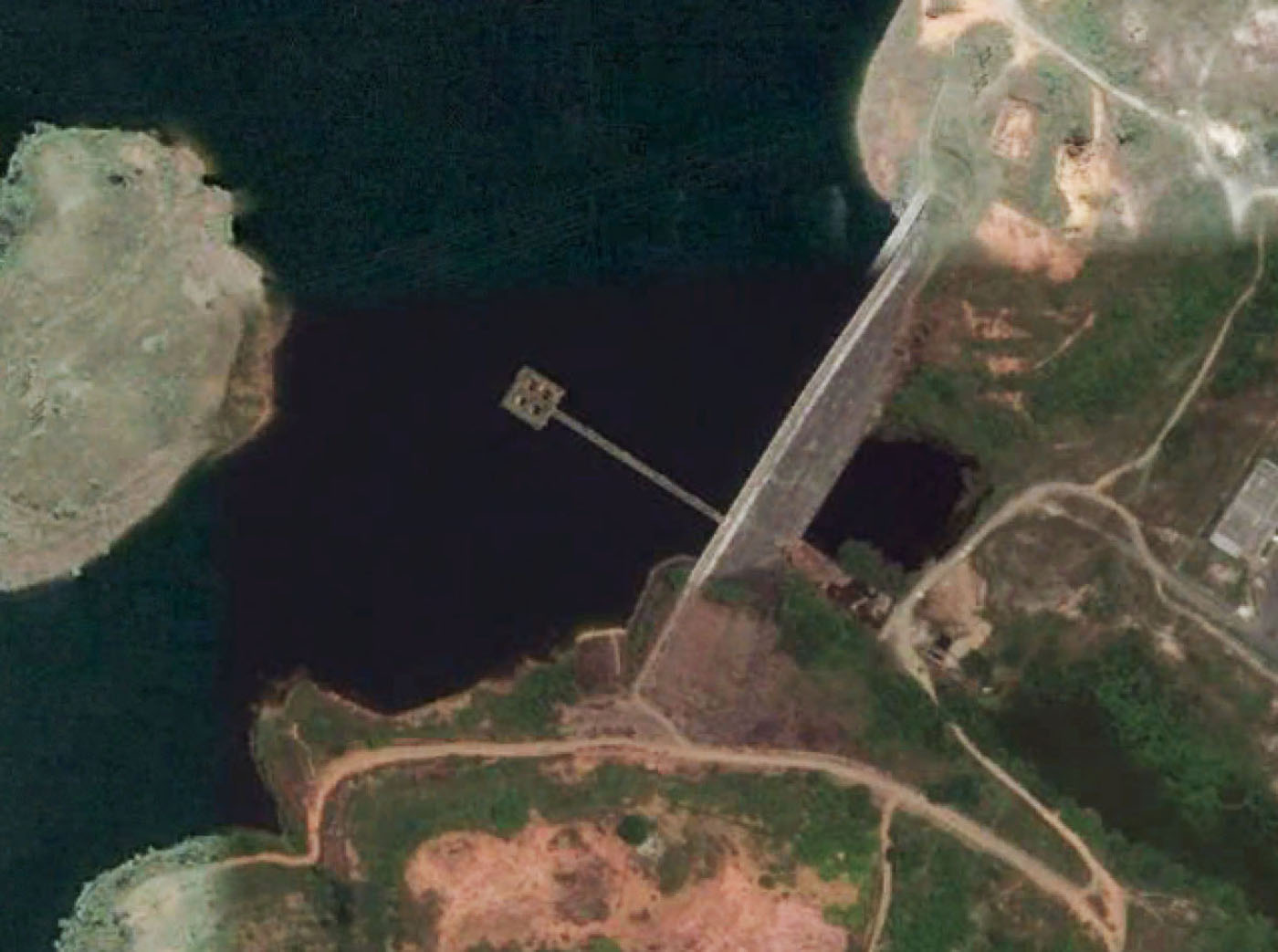

DMS Co-ordinates: 08˚17'15.97"S, 35˚04'18.49"W

DD Co-ordinates: -8.287769, -35.071804

Facings

Upstream

SlopeType
 Traditional concrete against formwork

Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
72
Pozzolan (kg/m3)Pozzolan Type
18No pozzolan used  -
