Poço do Magro

Download PDF data sheet

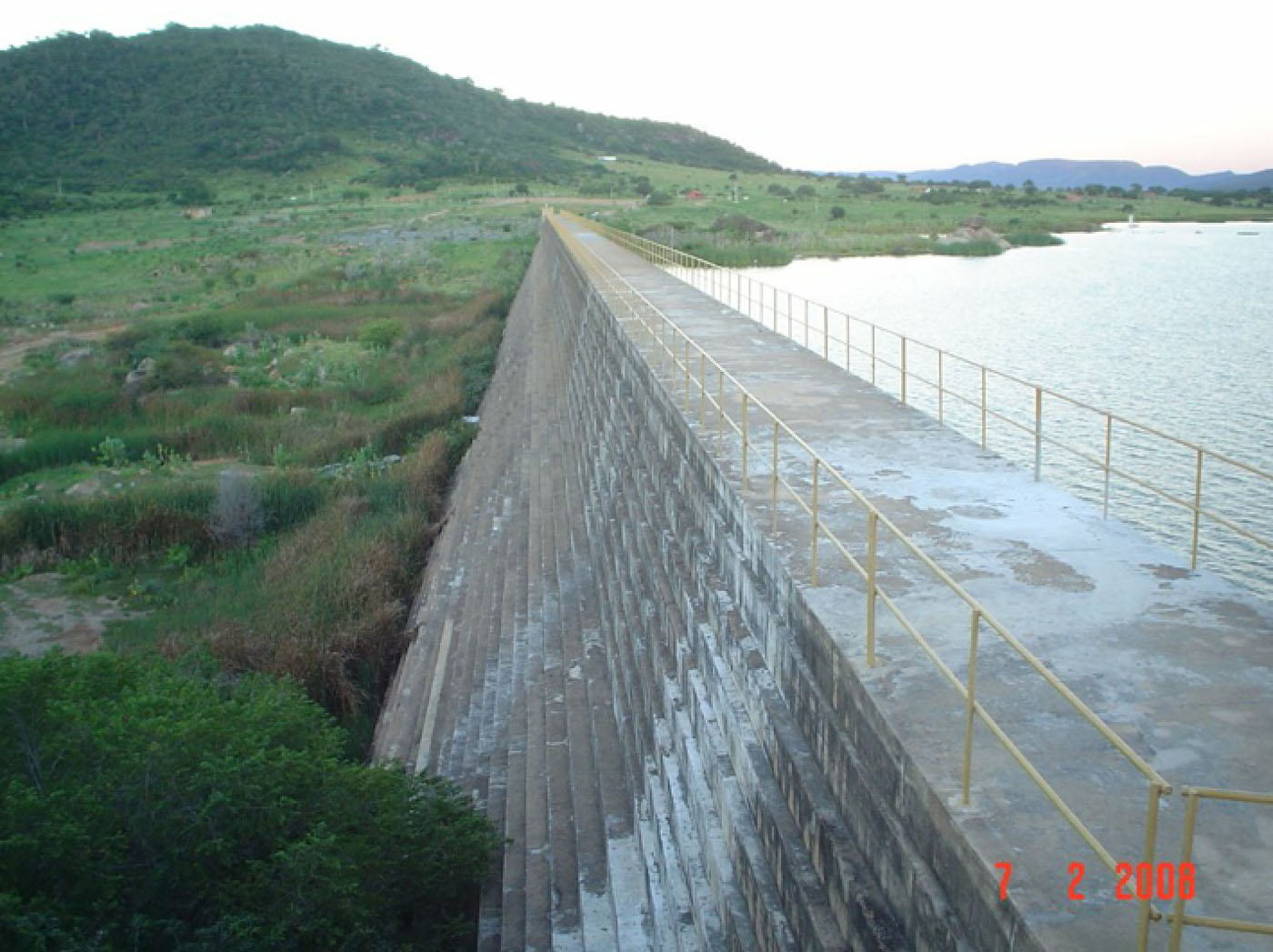

Poço do Magro completed
Poço do Magro completed

Particulars

Owner: Companhia de Desenvolvimento dod Vales do Sao Francisco do Parnaiba

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): unknown

Reservoir capacity: 37 m3x106

Height: 29 metres

Length: 540 metres

Volume of RCC: 54 m3x103

Total volume: 64 m3x103

Construction Dates

Start of Project: /03 ( 2003)

Start of RCC: /04 ( 2004)

End of RCC: /05 ( 2005)

End of Project: /06 ( 2006)

Country: Brazil

River: unknown

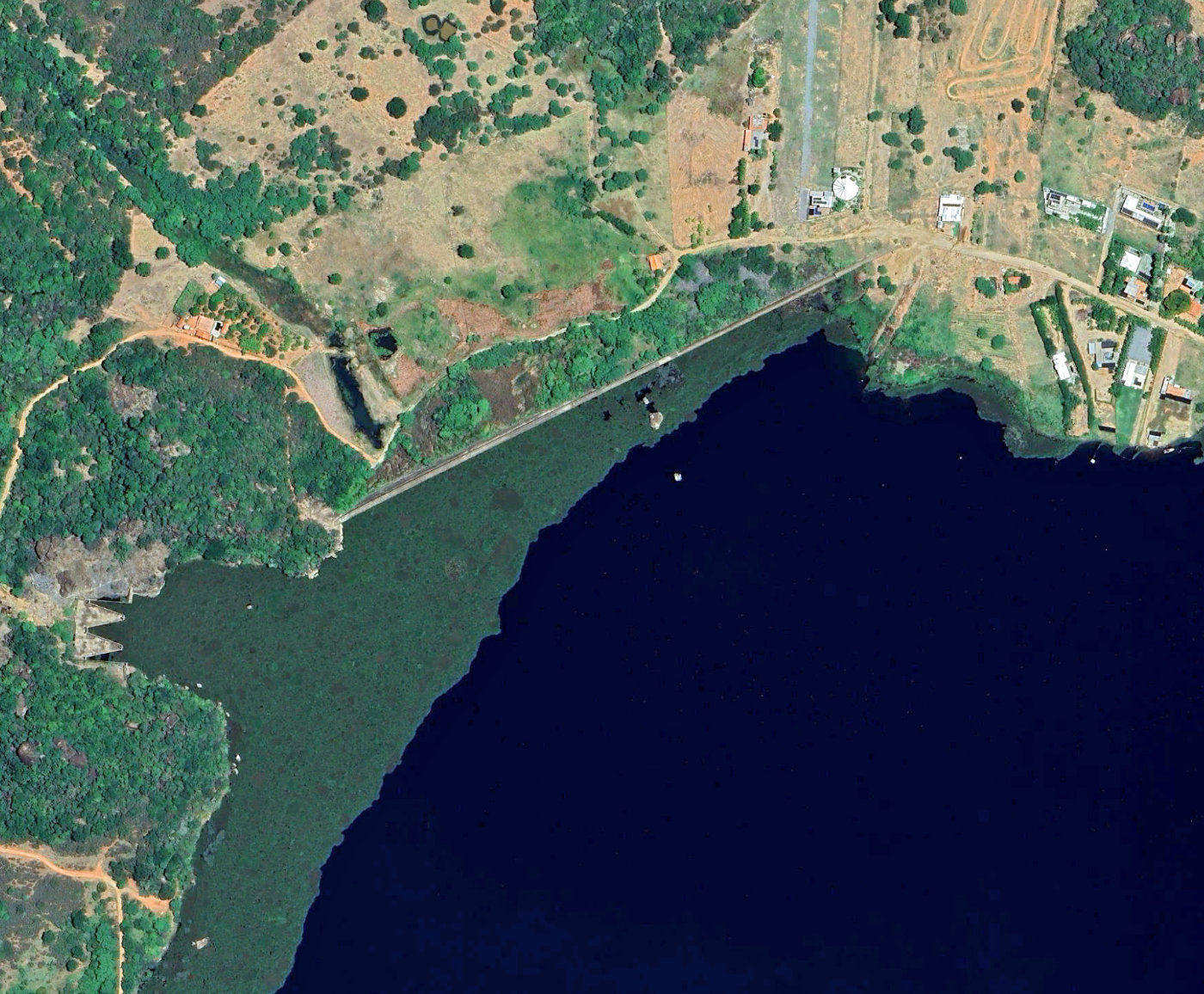

DMS Co-ordinates: 14˚15'25.90"S, 42˚49'1.67"W

DD Co-ordinates: -14.257194, -42.817131

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
64
Pozzolan (kg/m3)Pozzolan Type
16Natural pozzolan (ASTM Class N)
