Randleman Lake

Download PDF data sheet

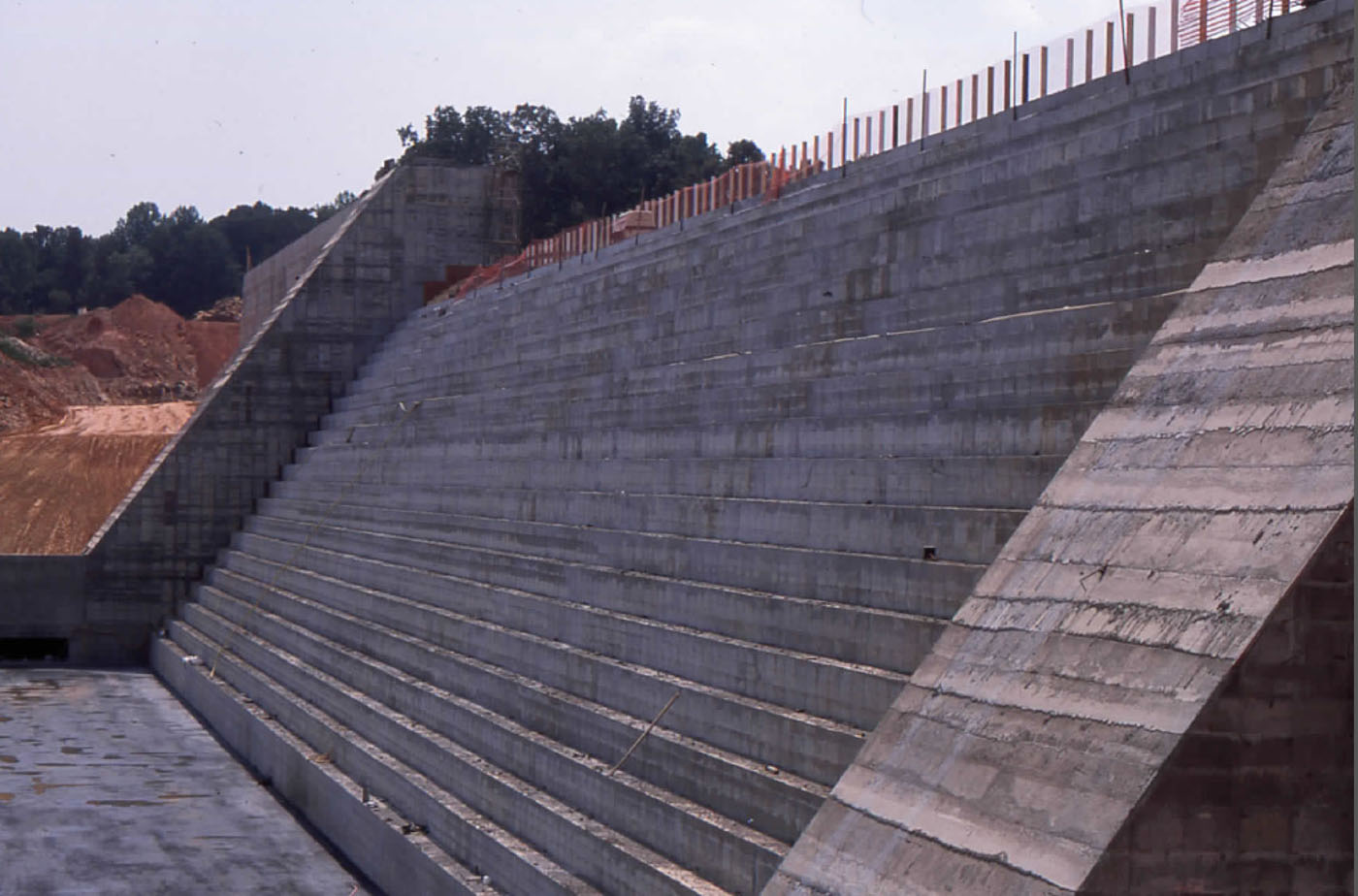

Randleman Lake completed
Randleman Lake completed

Particulars

Owner: Piedmont Triad Regional Water Authority

Designer: GEI Consultants Inc./Hazen and Sawyer

Contractor: ASI-RCC, Inc.

Statistics

Type: Gravity

Purpose(s): Recreation / Water Supply

Reservoir capacity: 84 m3x106

Height: 31 metres

Length: 280 metres

Volume of RCC: 70 m3x103

Total volume: 76 m3x103

Construction Dates

Start of Project: 07/01 (July 2001)

Start of RCC: 04/02 (April 2002)

End of RCC: 07/02 (July 2002)

End of Project: 01/03 (January 2003)

Country: USA

River: Deep

DMS Co-ordinates: 35˚50'4.07"N, 79˚48'46.49"W

DD Co-ordinates: 35.834465, -79.812912

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.75Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
89
Pozzolan (kg/m3)Pozzolan Type
104Low-lime flyash (ASTM Class F)
