Rocky Gulch

Download PDF data sheet

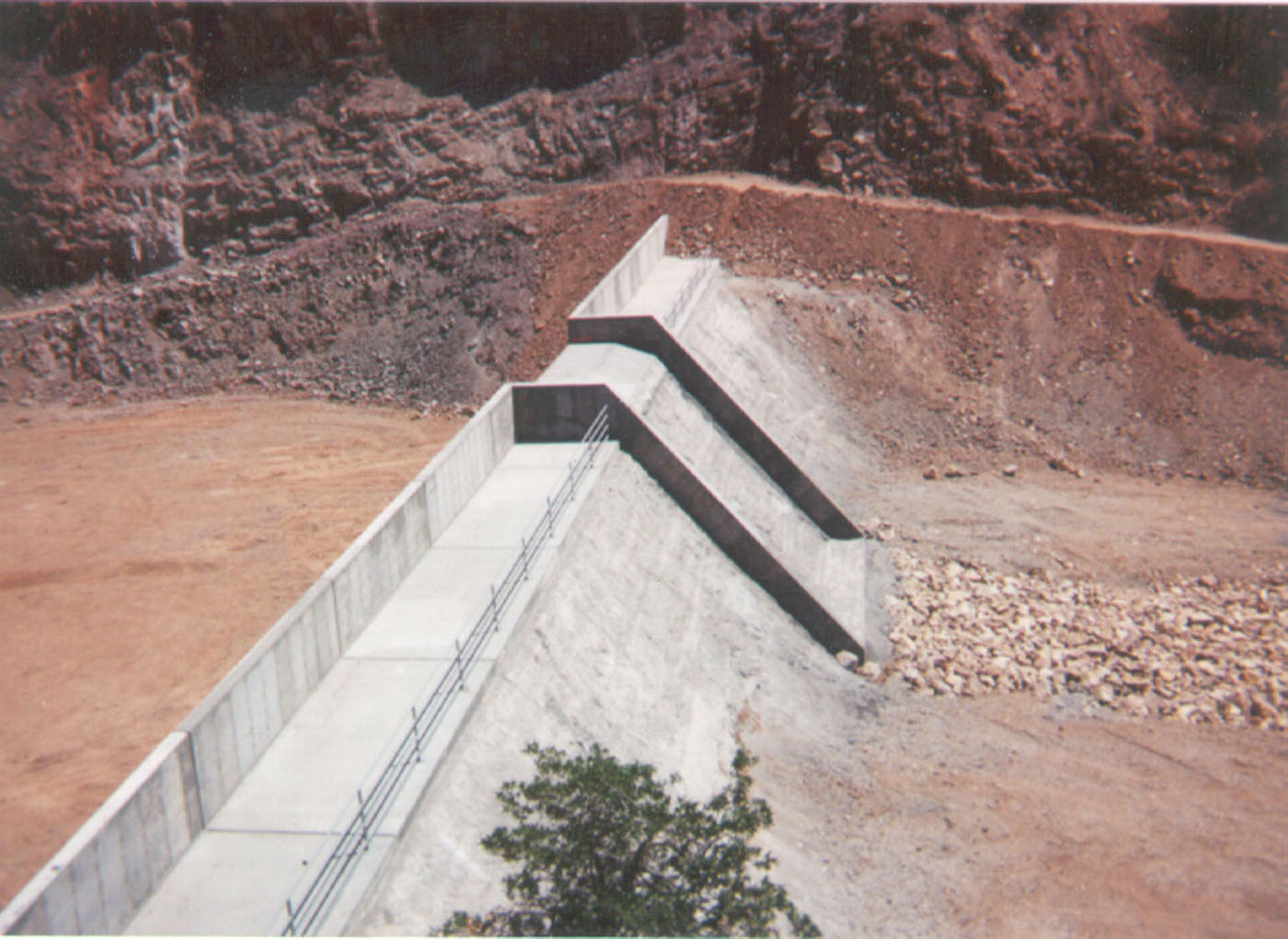

Rocky Gulch completed
Rocky Gulch completed

Particulars

Owner: Phelps Dodge Corporation

Designer: Woodward-Clyde Consultants

Contractor: ASI RCC Inc.

Statistics

Type: Gravity

Purpose(s): Pollution Control

Reservoir capacity: unknown

Height: 18 metres

Length: 55 metres

Volume of RCC: 6 m3x103

Total volume: 7 m3x103

Construction Dates

Start of Project: 05/94 (May 1994)

Start of RCC: 05/94 (May 1994)

End of RCC: 06/94 (June 1994)

End of Project: 07/94 (July 1994)

Country: USA

River: Rocky Gulch

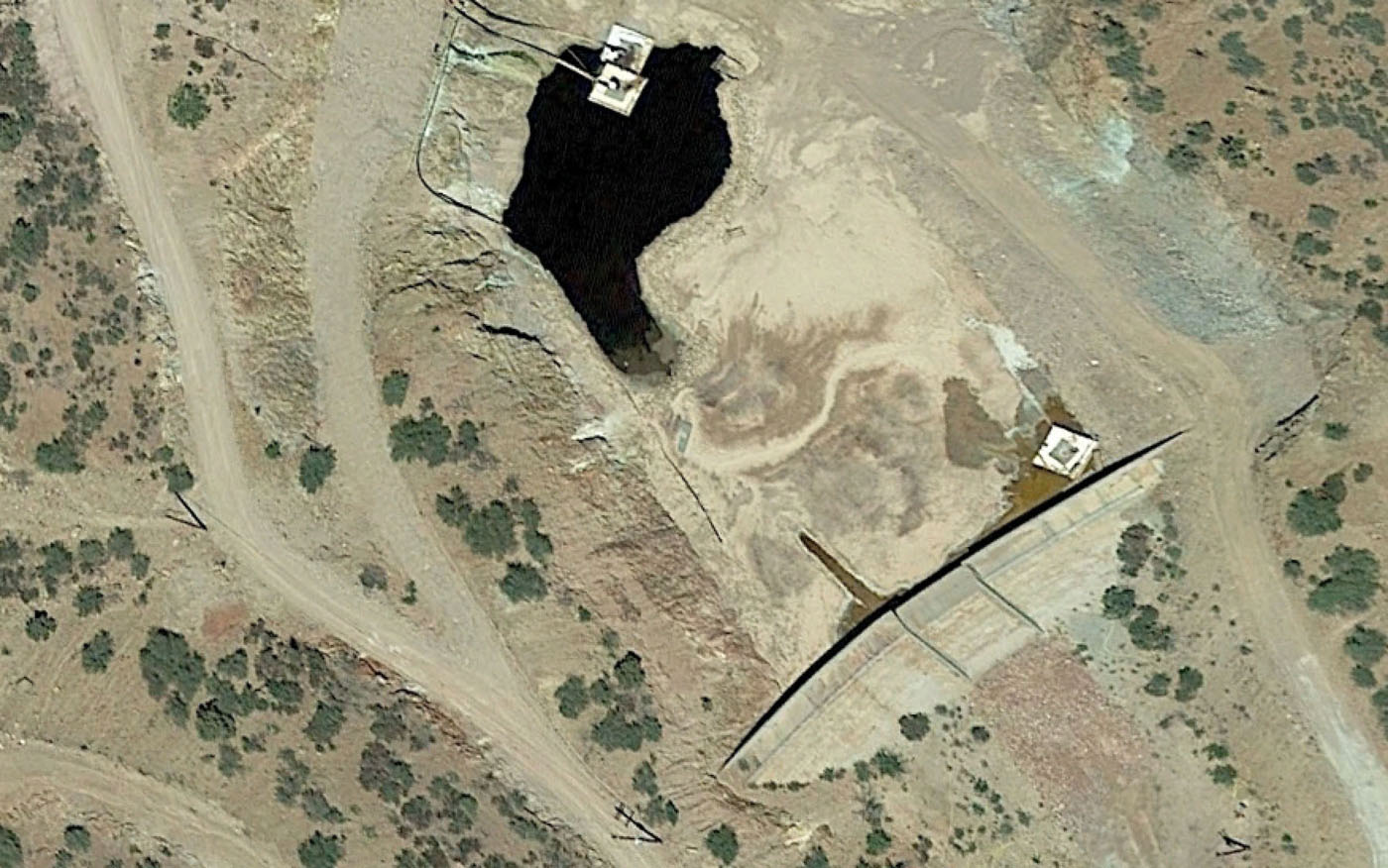

DMS Co-ordinates: 33˚06'31.08"N, 109˚20'08.07"W

DD Co-ordinates: 33.108631, -109.335571

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Unformed face of RCC

Spillway

SlopeType
none

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
184
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
