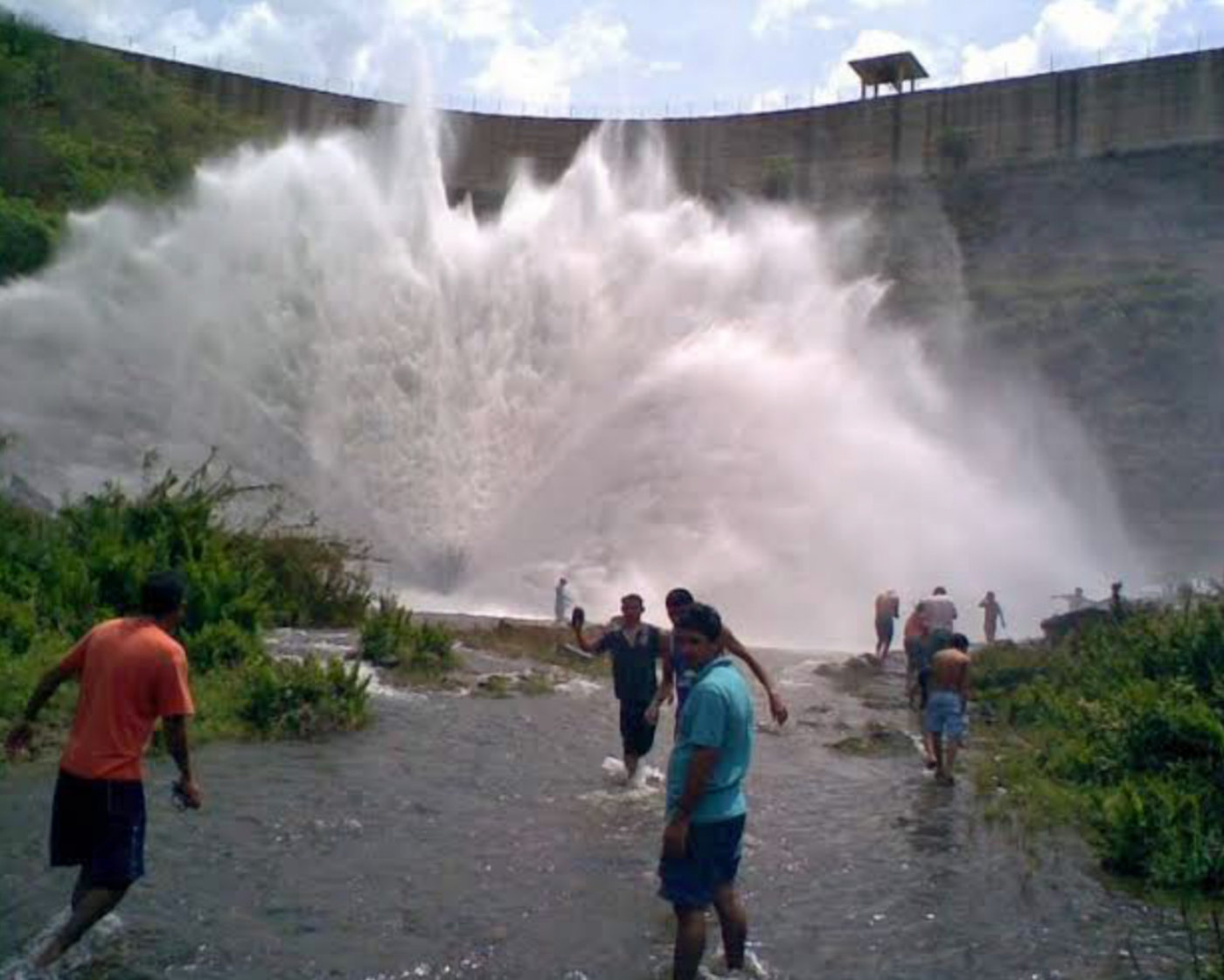

Saco de Nova Olinda

Download PDF data sheet

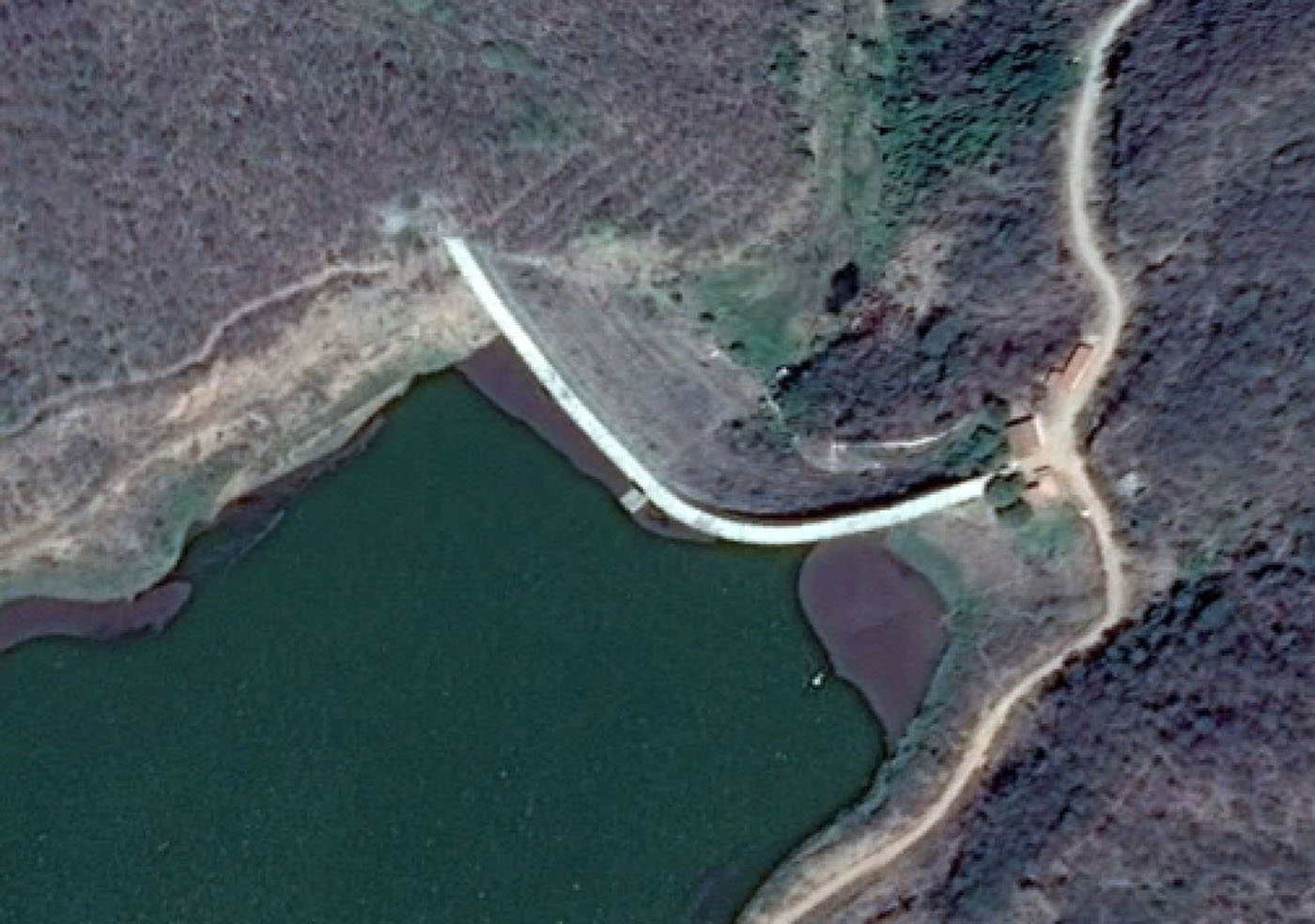

Saco de Nova Olinda on Google Earth
Saco de Nova Olinda on Google Earth

Particulars

Owner: SRH (Secretaria de Recursos Hidricos)

Designer: ICOPLAN S.A.

Contractor: Odebrecht/Servaz Consortium

Statistics

Type: Gravity

Purpose(s): Flood Control / Irrigation / Water Supply

Reservoir capacity: 97 m3x106

Height: 56 metres

Length: 230 metres

Volume of RCC: 132 m3x103

Total volume: 143 m3x103

Construction Dates

Start of Project: 07/85 (July 1985)

Start of RCC: 07/86 (July 1986)

End of RCC: 10/86 (October 1986)

End of Project: 06/87 (June 1987)

Country: Brazil

River: Gravata

DMS Co-ordinates: 07˚30'50.09"S, 38˚02'46.58"W

DD Co-ordinates: -7.513914, -38.046272

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80RCC against formwork  [stepped face]

Spillway

SlopeType
separate

Placement

Layers (mm)Lifts (mm)
400400

Cementitious material

Cement (kg/m3)
55
Pozzolan (kg/m3)Pozzolan Type
15Natural pozzolan (ASTM Class N)
