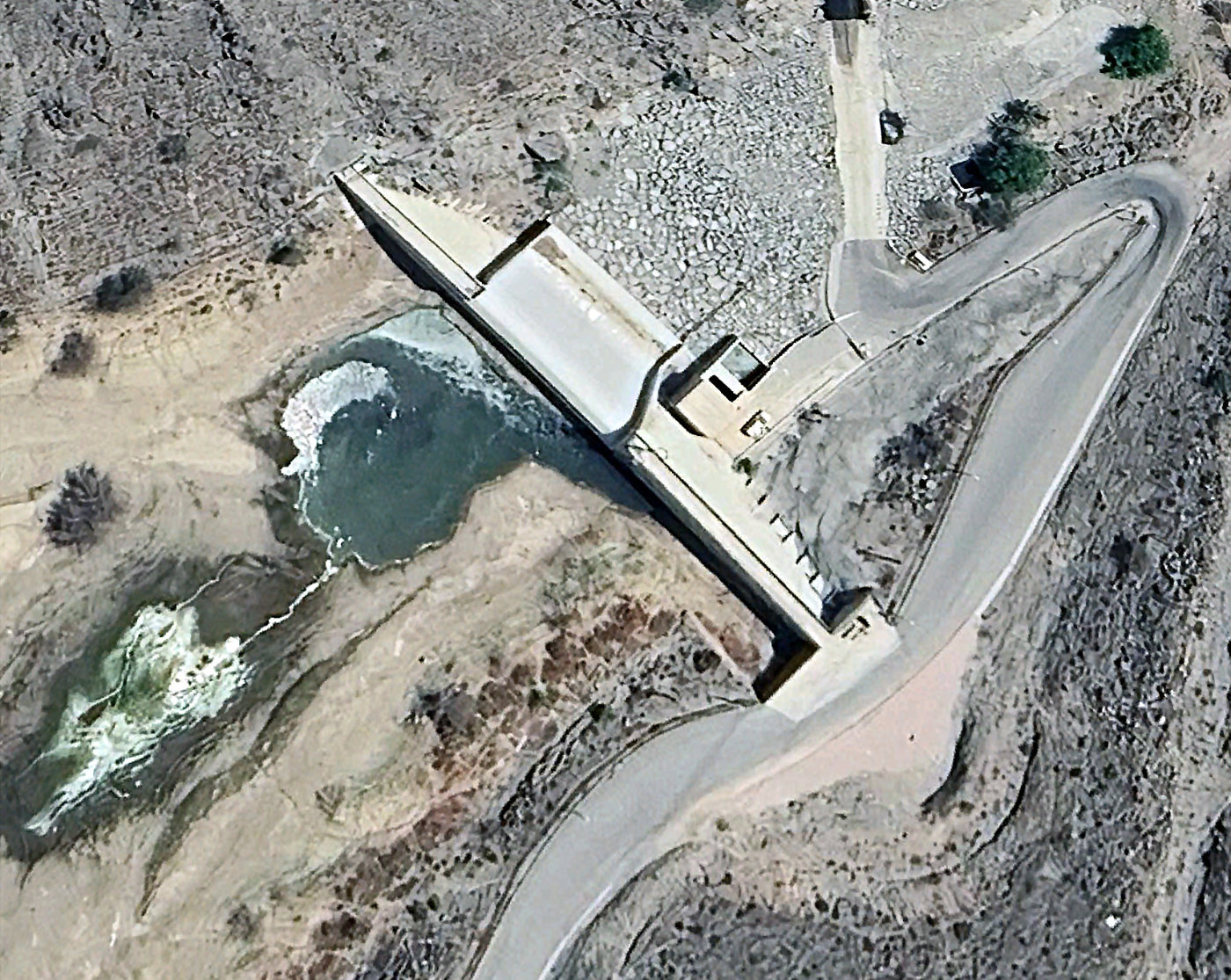

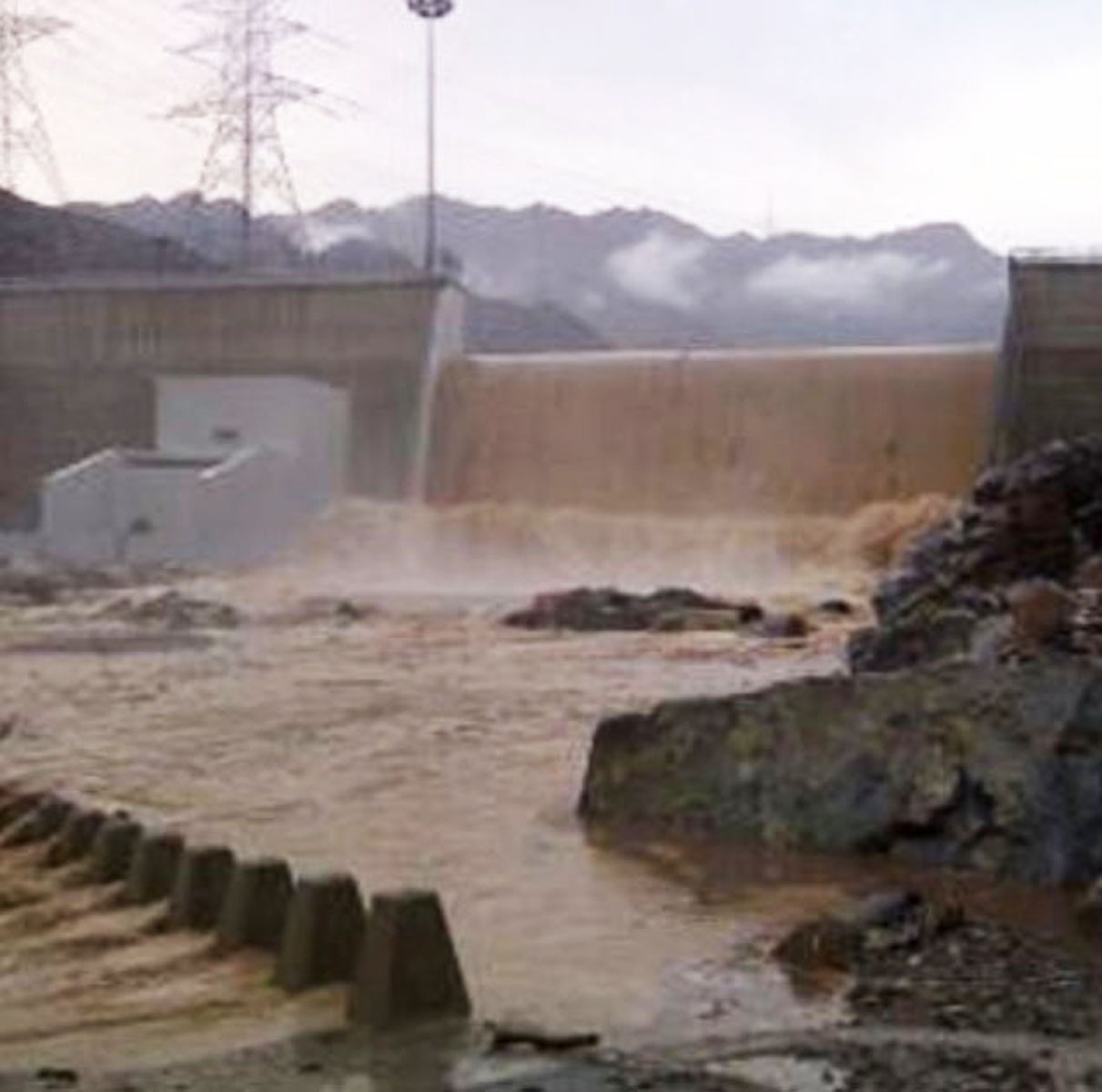

Safad

Download PDF data sheet
Safad completed
Safad completed

Particulars

Owner: Ministry of Agriculture and Fisheries

Designer: Moroccan Hydraulic Administration/INGEMA

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Groundwater Recharge / Irrigation

Reservoir capacity: 1 m3x106

Height: 19 metres

Length: 100 metres

Volume of RCC: 9 m3x103

Total volume: 10 m3x103

Construction Dates

Start of Project: /00 ( 2000)

Start of RCC: 05/01 (May 2001)

End of RCC: 06/01 (June 2001)

End of Project: /01 ( 2001)

Country: UAE

River: unknown

DMS Co-ordinates: 25˚13'15.71"N, 56˚17'53.99"E

DD Co-ordinates: 25.221031, 56.298332

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
90
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
