Serra Preta

Download PDF data sheet

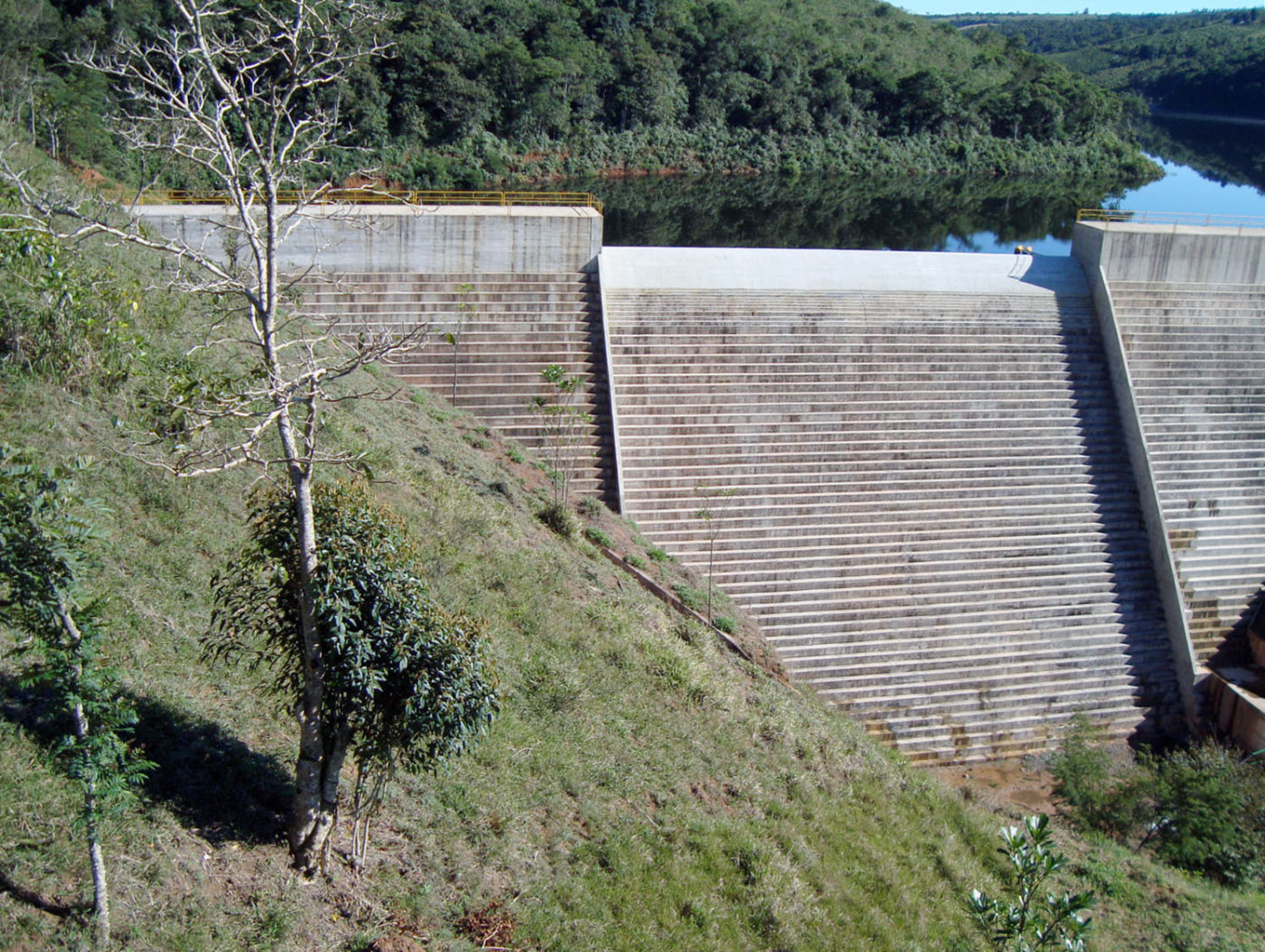

Serra Preta completed
Serra Preta completed

Particulars

Owner: EMBASA (Empresa Baiana de Aguas e Saneamento S/A)

Designer: Uand TectranFC Engenharia

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Water Supply

Reservoir capacity: 4 m3x106

Height: 34 metres

Length: 172 metres

Volume of RCC: 44 m3x103

Total volume: 51 m3x103

Construction Dates

Start of Project: /05 ( 2005)

Start of RCC: /05 ( 2005)

End of RCC: /07 ( 2007)

End of Project: /08 ( 2008)

Country: Brazil

River: unknown

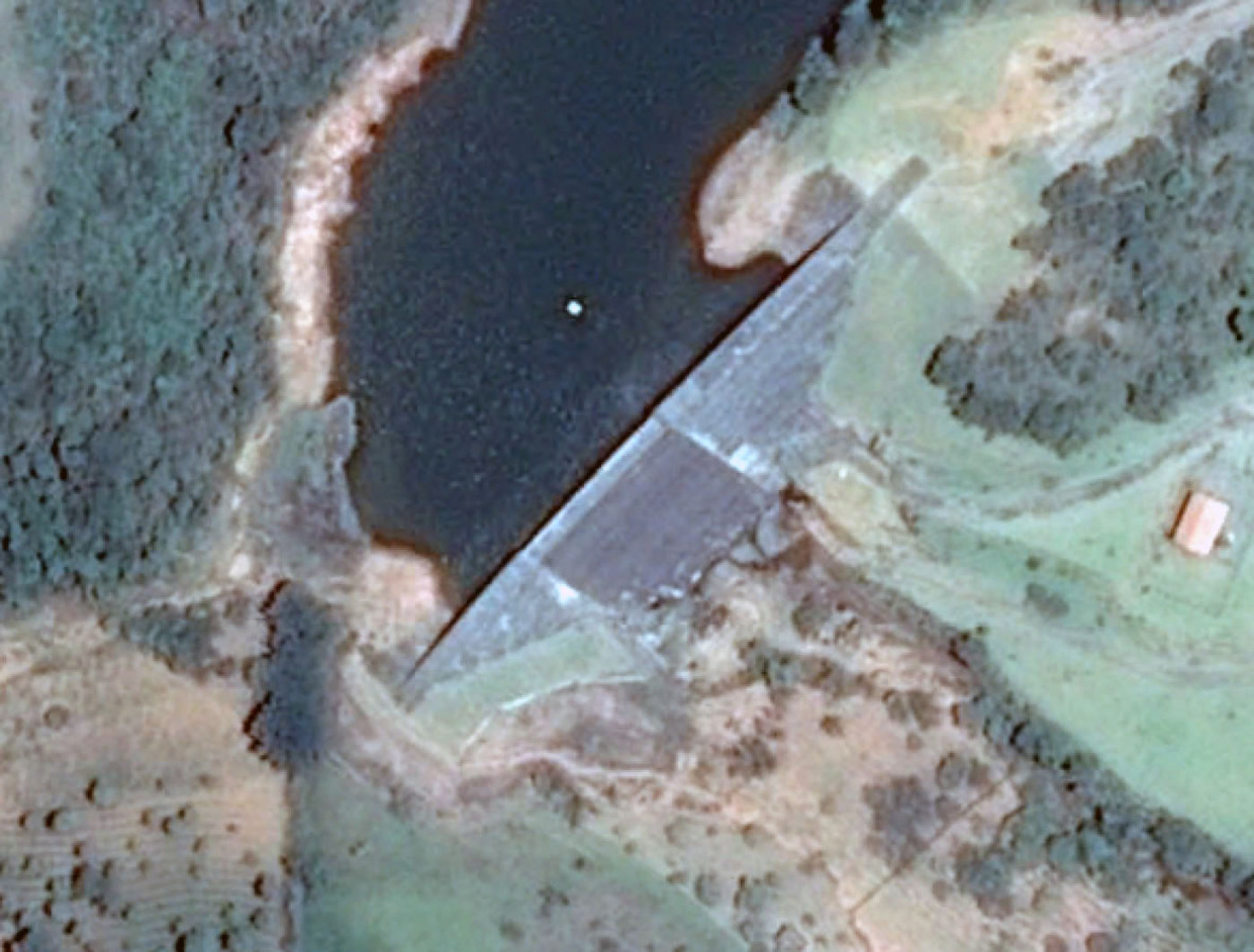

DMS Co-ordinates: 14˚50'39.61"S, 40˚28'33.76"W

DD Co-ordinates: -14.844336, -40.476044

Facings

Upstream

SlopeType
Vertical

Downstream

SlopeType
0.80

Spillway

SlopeType
0.80

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
20Natural pozzolan (ASTM Class N)
