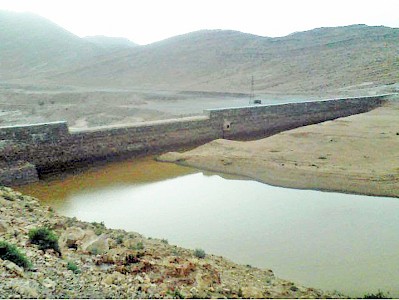

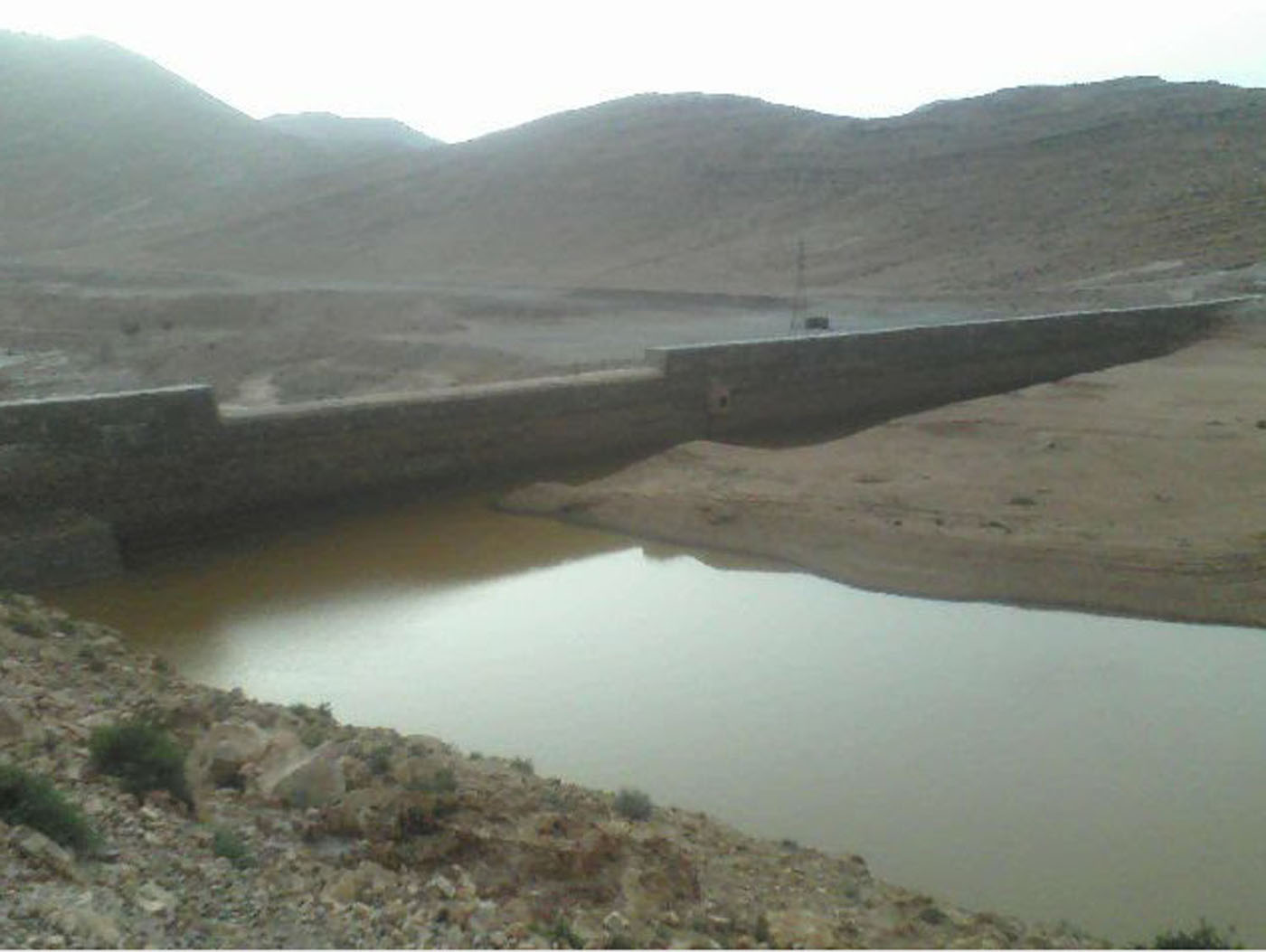

Sidi el Mahjoub

Download PDF data sheet
Sidi el Mahjoub completed
Sidi el Mahjoub completed

Particulars

Owner: unknown

Designer: unknown

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): unknown

Reservoir capacity: 1 m3x106

Height: 22 metres

Length: unknown

Volume of RCC: 15 m3x103

Total volume: 18 m3x103

Construction Dates

Start of Project: /06 ( 2006)

Start of RCC: /07 ( 2007)

End of RCC: /08 ( 2008)

End of Project: /09 ( 2009)

Country: Morocco

River: Ifrane

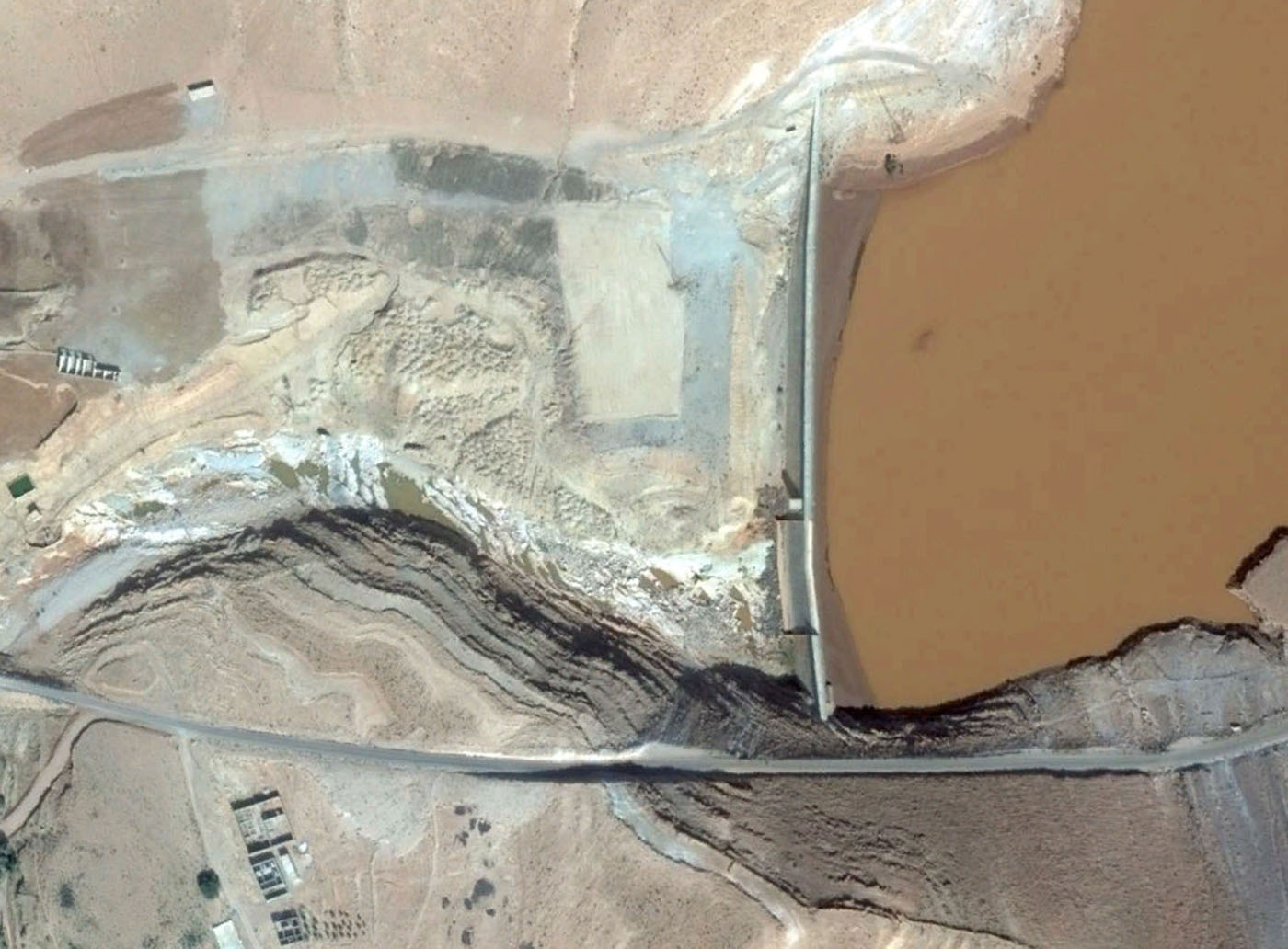

DMS Co-ordinates: 29˚15'18.67"N, 09˚26'43.91"W

DD Co-ordinates: 29.255186, -9.445531

Facings

Upstream

SlopeType
VerticalTraditional concrete against precast concrete panels

Downstream

SlopeType
1.00Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
1.00Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
