Trout Creek

Download PDF data sheet

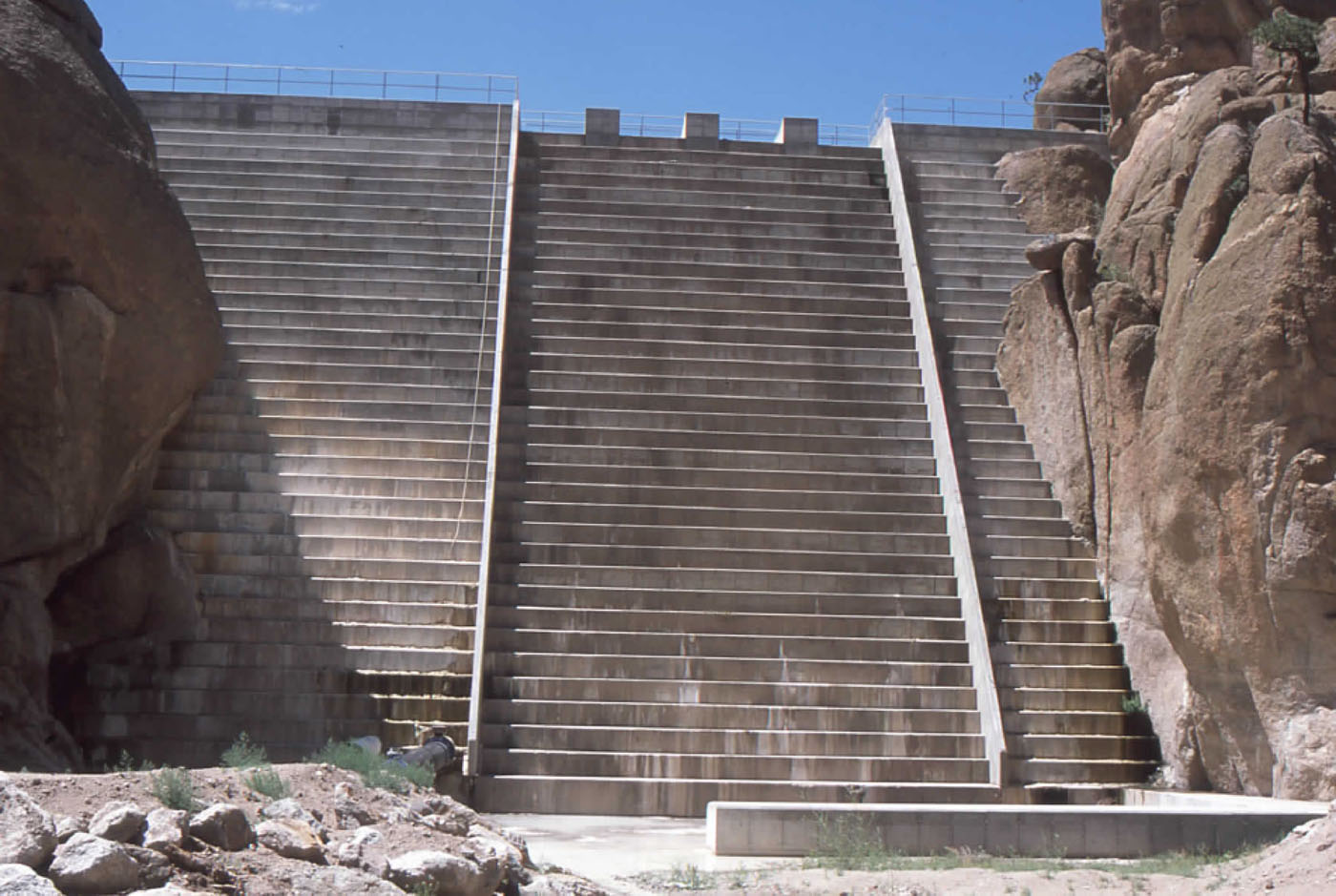

Trout Creek completed
Trout Creek completed

Particulars

Owner: Paul Moltz

Designer: Steve Spann

Contractor: ASI RCC Inc.

Statistics

Type: Gravity

Purpose(s): Irrigation / Recreation

Reservoir capacity: 1 m3x106

Height: 31 metres

Length: 38 metres

Volume of RCC: 9 m3x103

Total volume: 10 m3x103

Construction Dates

Start of Project: 08/99 (August 1999)

Start of RCC: 04/00 (April 2000)

End of RCC: 05/00 (May 2000)

End of Project: 07/00 (July 2000)

Country: USA

River: Trout Creek

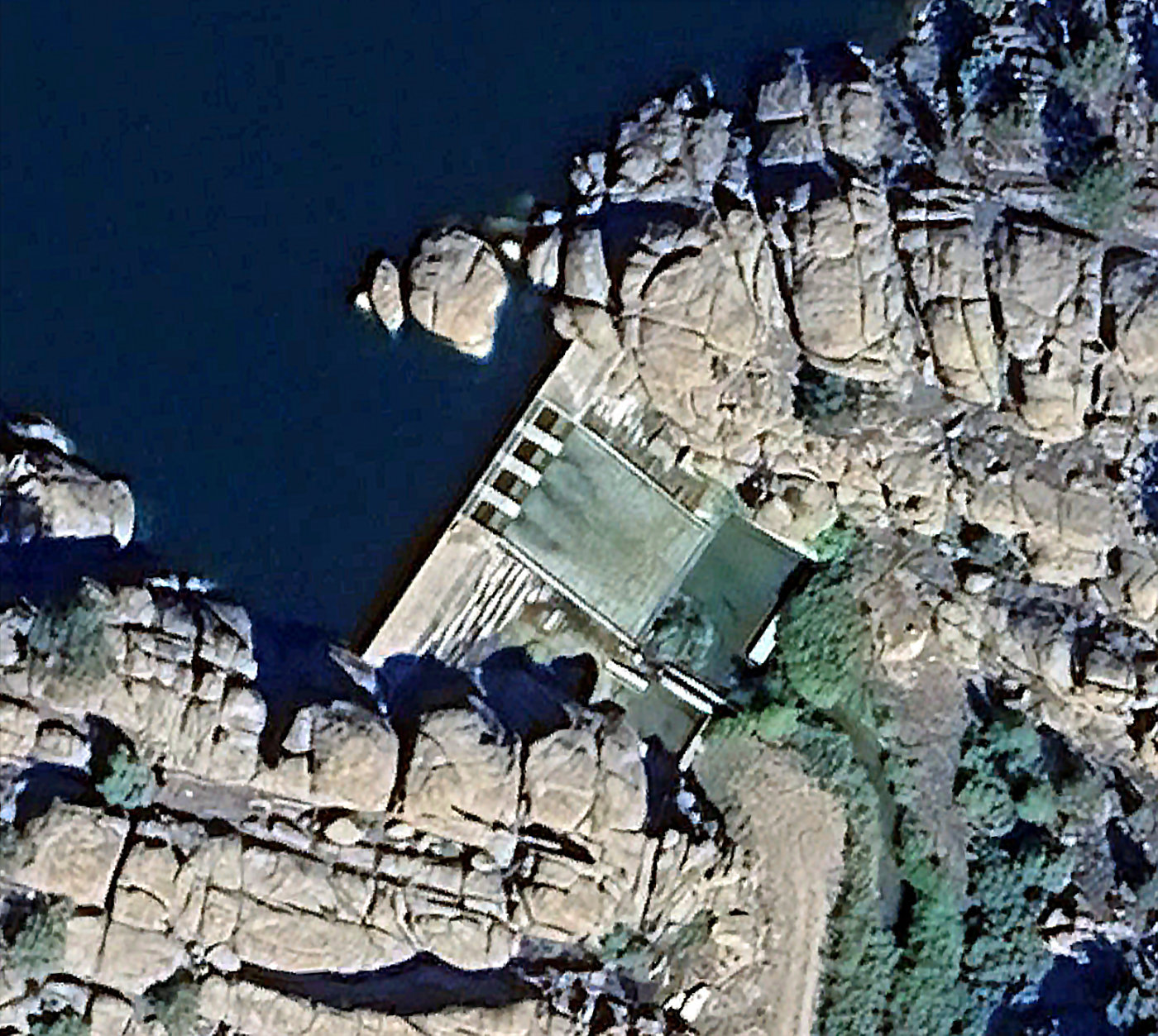

DMS Co-ordinates: 38˚48'21.85"N, 106˚05'15.55"W

DD Co-ordinates: 38.806068, -106.087654

Facings

Upstream

SlopeType
VerticalTraditional concrete against formwork

Downstream

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
163
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
