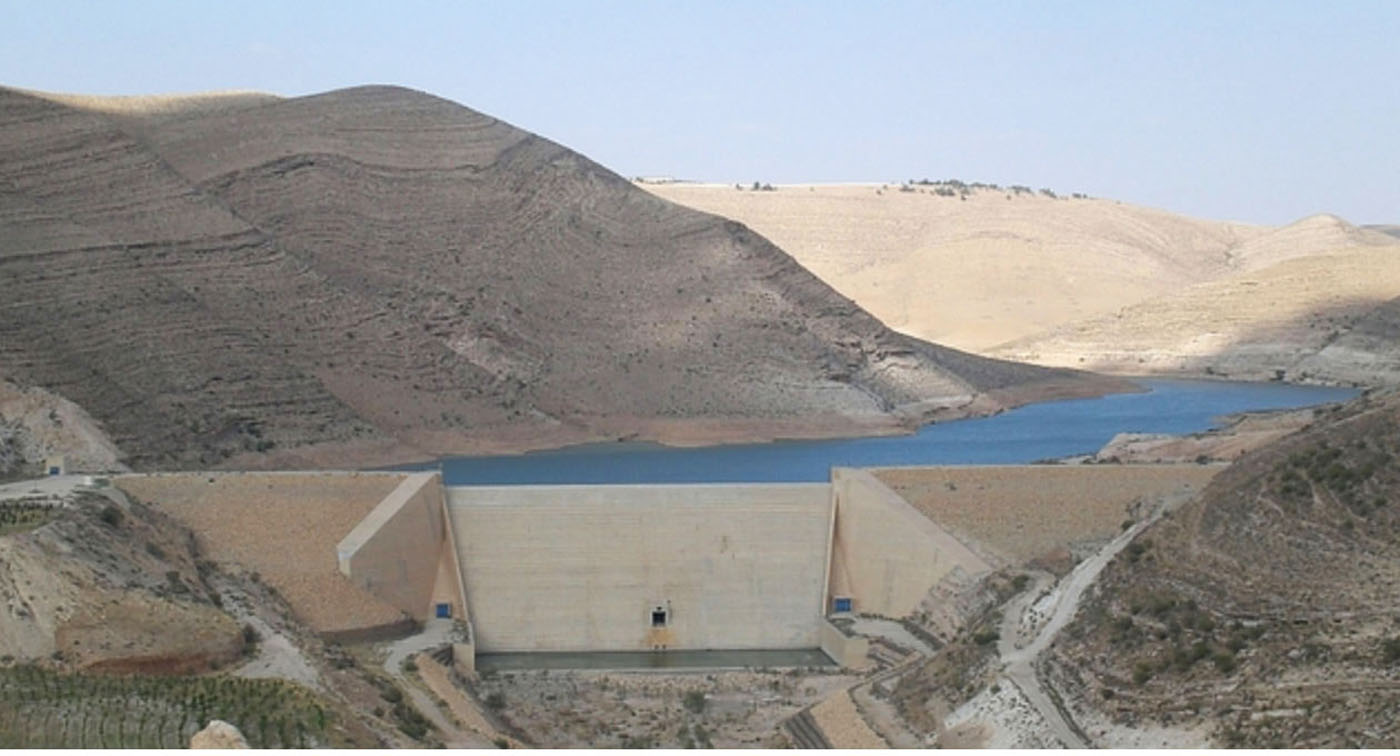

Wala

Download PDF data sheet
Wala completed
Wala completed

Particulars

Owner: Jordan Valley Authority, Ministry of Water and Irrigation

Designer: Howard Humphreys & Coyne et Bellier/ INGEMA/ Montgomery Watson/ ArabTech Jardaneh

Contractor: AEGEK/Hydrogranja JV

Statistics

Type: Gravity

Purpose(s): Groundwater Recharge

Reservoir capacity: 9 m3x106

Height: 52 metres

Length: 300 metres

Volume of RCC: 240 m3x103

Total volume: 260 m3x103

Construction Dates

Start of Project: 01/99 (January 1999)

Start of RCC: 10/00 (October 2000)

End of RCC: 04/02 (April 2002)

End of Project: 04/03 (April 2003)

Country: Jordan

River: Wala

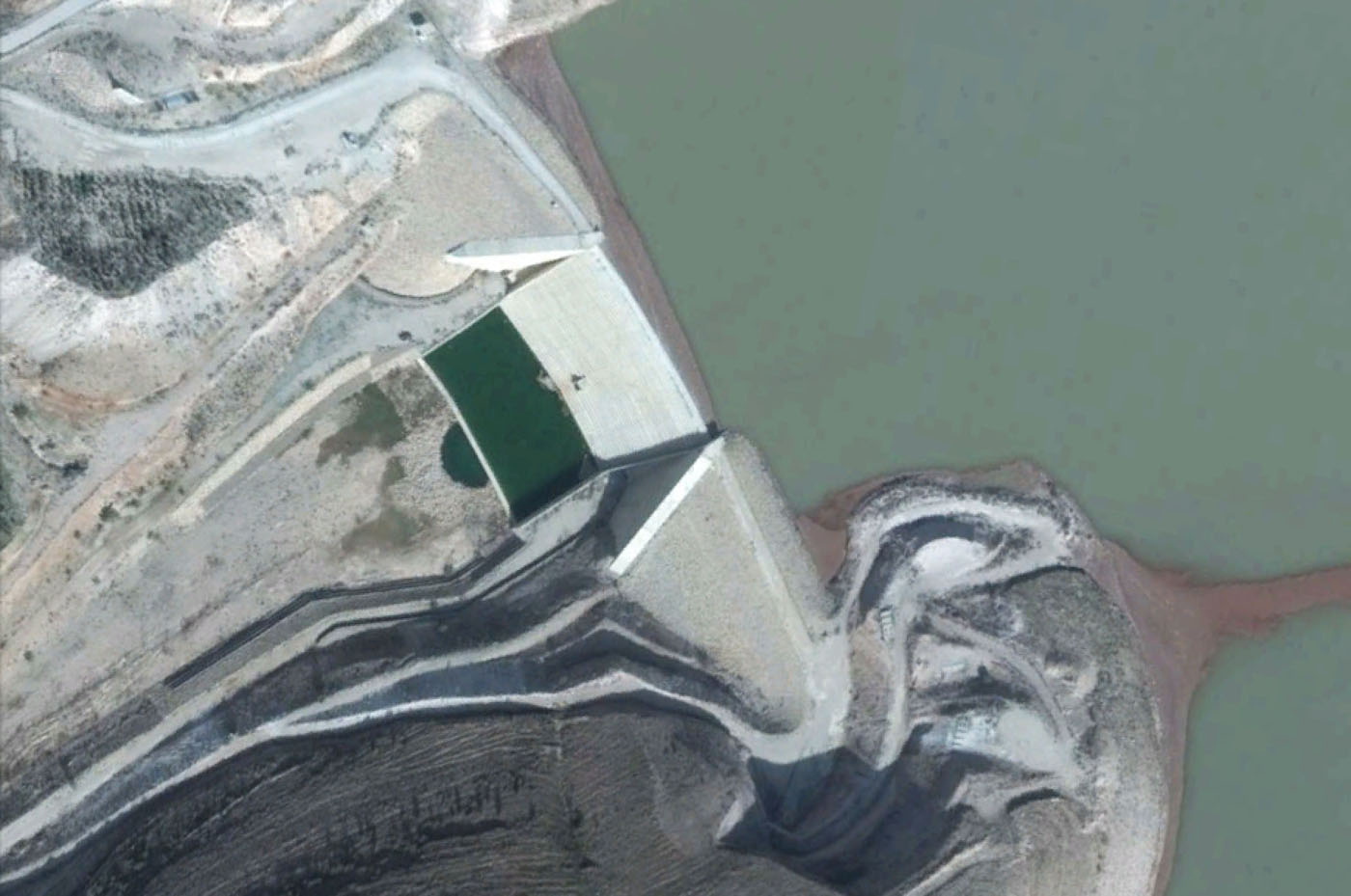

DMS Co-ordinates: 31˚34'5.39"N, 35˚48'16.62"E

DD Co-ordinates: 31.568165, 35.804619

Facings

Upstream

SlopeType
0.30Traditional concrete against formwork

Downstream

SlopeType
0.70Traditional concrete against formwork  [stepped face]

Spillway

SlopeType
0.70Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
120
100
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -
0
