Dam Search Results

Please note: only dams ≥ 15m which have been completed, are under construction, or due to begin RCC placement in the current year are included in the table below.

Results are sorted in the following order: Finish of RCC, Start of RCC, Finish of Project, Start of Project, Height and alphabetical by Dam Name.

← Scroll the table horizontally to view its entire width →

NameCountryOwnerPurposeRiverReservoir capacity (m3x106)Construction datesDimensionsVolumeFacingsPlacementCementitious material
StartFinishHeightLengthRCCTotalUpstreamDownstreamSpillwayLayersLiftsCementPozzolan
ProjectRCCRCCProject(m)(m)(m3x103)(m3x103)SlopeTypeSlopeTypeSlopeType(m)(m)(kg/m3)(kg/m3)
SuçatiTurkeyERE Electricity Co.HGüredin Creek901/9802/9910/9910/99361925560V(7)0.80(7)0.80(12)30030050100(S)
Çindere
[H-F]
TurkeyDSI - State Hydraulic WorksH I WBuyuk Menderes8204/9407/0205/0511/07107280150016850.70(6)0.70(3)0.89(12)3003005020(F)
Akköy ITurkeyAkköy Energy A.S.HHarsit307/0510/0604/0709/0838146871010.10(1)0.80(1)0.80(12)300300100100(N)
Beydag
[H-F]
TurkeyDSI - State Hydraulic WorksI WKucuk Menderes24804/9407/0604/0811/0895800235026500.35(6)0.80(1)*0.80(1)*3003006030(F)
Feke IITurkeyAkkur Energy Production Trade and Industry Co. Inc.HGöksu6312/0712/0802/1008/10702561942270.07(6)0.80(3')*separate 30030060
60
60
50
(F)
Çine (Adnan Mendres) TurkeyDSI - State Hydraulic WorksF H I WÇine35012/9511/0404/1010/11137300156016500.10
0.20
(7')0.85(7')0.85(7')30030085
75
105
95
(F)
ŞirnakTurkeyDSI - State Hydraulic WorksHOrtasui18- /0811/0908/1009/10671981572310.10(1)0.80(1)0.80(12)3006001250(-) -
Çamlica III
[H-F]
TurkeyAkfen EnergyF HZamanti104/0804/1012/1004/11521861601820.70(7)0.70(3)*0.70(12)3003008837(F)
Çaltikoru
[H-F]
TurkeyDSI - State Hydraulic WorksI 42- /06- /08- /10- /1165477 800
GüllübagTurkeySenerji EnerjiHÇoruh2105/0902/1106/1102/127297160175V(3)0.50
0.70
(3)0.70(12)3003007070(F)
MengeTurkeyEnerjisa En. Ut. A.S.HGöksu5105/0908/1010/1112/11683043493840.25(1)0.80(3)0.80(12)3003008040(F)
SefaköyTurkeyPüre Energy Üretim Tic. A.S.HAras21- /08- /10- /1110/1155148120  (3) (3)
SilopiTurkeyDSI - State Hydraulic WorksH WHezil2908/08- /10- /1102/12893567187520.10(7)0.70(3)0.70(3)3003008139(-) -
BalkusanTurkeyKaren EnergyHBalkusan15- /09- /10- /11- /12481896076V(1)0.75(1)*0.75(12)30012007550
KöprüTurkeyEnerjisa En. Ut. A.S.HGöksu9807/0912/1004/12- /131094139751050V
0.60
(1)0.80(1)0.80(12)3003008545(F)
GökkayaTurkeyMEM EnergyHGoksu1802/1007/1005/1207/1269118961220.067(3)0.80(3)0.80(11)3003005555(F)
DevecikonagiTurkeyMCK Elektrik Uretim A.S.H IEmet605/1003/1109/1201/13393131802100.10(2)0.75(3)0.80(12)3003008040(F)
Akköy II (Aladereçam)TurkeyAkköy Energy A.S.HKaraovacik14- /0705/1109/12- /1360260226306V(1)0.80(1)0.80(12)3003008585(N)
Kavsak BendiTurkeyEnerjisa En.Ür. A.S.HSeyhan - /09- /10- /12- /1388   0.20(1)0.80(1)
ÇetintepeTurkeyDSI - State Hydraulic WorksHRobozik1209/08- /11- /12- /133917360640.10(3)0.80(3)0.80(12)3001200950(-) -
Kula BebekliTurkeyDSI - State Hydraulic WorksI 1- /12- /12- /13- /1331 100
NarasTurkeyDSI - State Hydraulic WorksF IManavgat104- /1012/1201/1405/14784486206770.15(3)0.80(3)*0.80(12)30030011090(N)
AstandagTurkeyDSI - State Hydraulic WorksH I WBembo1109/0811/1102/1411/1469210162202V(1)0.80(1)*0.80(12)3001200950(-) -
Beyhan-I
[H-F]
TurkeyKalehan Energy Üretim ve Ticaret A.S.HMurat369- /0903/1203/1403/1597361148016610.70(7)0.70(1)  3003009040(M)
Pembelik
[H-F]
TurkeyDarenhes A.S.HPeriSuyu35811/1003/1310/14- /15885007608380.20(3')0.80(3')0.80(12)30012001200(-) -
YalnızardıçTurkey 109- /09- /11- /14- /15113 490
KayabeyiTurkey 148- /10- /12- /14- /15151 637
MamakTurkeyDSI - State Hydraulic Works 1- /13- /13- /14- /1431 30
Gümüsören
[H-F]
TurkeyDSI - State Hydraulic WorksH I WZamanti195- /11- /13- /1406/1537842189019430.70(3)0.76(3)0.76(12)3001200
GölgeliyamaçTurkeyDSI - State Hydraulic WorksHGuzeldere309/08- /13- /14- /15521508599V(3)0.80(3)0.80(12)3001200950(-) -
OguzlarTurkeyDSI - State Hydraulic WorksHOrtasu2009/08- /13- /14- /15534313924600.10(1)0.80(1)*0.80(12)3006001000(-) -
MusatepeTurkeyDSI - State Hydraulic WorksHRobozik1309/08- /13- /14- /15661651311380.10(3)0.80(3)0.80(12)3001200950(-) -
KarakuzTurkeyDerin Enerji Uretim San. Ve Tic. A.S.H 5- /12- /13- /14- /1545 400 V 0.80
Adigüzel IITurkeyH 15- /12- /13- /14- /1561 150
AyvaliTurkeyOzdogan EnerjiHOltu30804/1102/1302/1510/1517740516501900V(3')0.75(3')*0.75(12)30030050
100
110
120
(F)
Göktas 1
[H-F]
TurkeyBereket EnergyHZamanti10904/1103/1303/15- /161332007499000.30
1.00
(3)
(3)
0.60
1.00
(3)
(3)
0.75(12)3003005050(F)
Kotanli II
[A-G]
TurkeyEBD En. Ür. ve Tic. A.S.HKura2010/1205/1404/1511/15702502482520.15(3)0.70(3')*0.70 30030085130(N)
BurçTurkeyAkkur Energy Production Trade and Industry Co. Inc.HGöksu6301/0701/08- /10- /11702352322600.07(8)0.80(3)separate 3003006050 to  60(F)
KasimlerTurkey 43- /12- /13- /15- /1690 330
Sarıveliler GöktepeTurkeyDSI - State Hydraulic WorksI 1- /13- /14- /15- /1529 69         600
Güneysinir AlanözüTurkeyDSI - State Hydraulic WorksI 3- /13- /14- /15- /1538 71
Bergama ÇamavluTurkeyDSI - State Hydraulic WorksI 1- /14- /14- /15- /1540 69
Yukari (Upper) KaleköyTurkeyKalehan Energy Üretim ve Ticaret A.S.HMurat78406/1206/1409/1604/18150516222424140.25(7)0.80(1)  3003001300(M)
AkçakocaTurkeyDSI - State Hydraulic WorksI WSarma201/1305/1510/16- /1766148851300.10(3)0.80(3)0.80(12)300
ArdilTurkeyDSI - State Hydraulic WorksIArdil1103/1305/1412/1602/1754246108158V(3)0.80(3)0.80(12)3006007550
KargiTurkeyLimak EnergyHSakarya50- /11- /1512/1606/1795270535 0.10 0.80
UludereTurkeyDSI - State Hydraulic WorksH 17- /08- /12- /16- /1877  887
KirazlıköprüTurkeyDSI - State Hydraulic WorksH I 66- /99- /13- /16- /1773 330
BeyyurduTurkeyDSI - State Hydraulic WorksHBembo809/08- /13- /16- /17781761862090.10(3)0.80(3)0.80(12)3001200950(-) -
KelebekTurkeyDSI - State Hydraulic WorksI WKelebek23- /14- /16- /18- /196219374970.10(3)0.80(3)0.80(12)300
Karamürsel Tepeköy
[H-F]
TurkeyDSI - State Hydraulic Works 1- /14- /1516/00- /1619 240
Nazilli İsabeyliTurkeyDSI - State Hydraulic WorksI 1- /14- /15- /16- /1642 70
KarareisTurkeyDSI - State Hydraulic WorksH I WCamibogazi10- /14- /16- /18- /19452981421730.05(3)0.80(3)0.80(12)300
Oltu SivridereTurkeyDSI - State Hydraulic WorksI 1- /14- /15- /16- /1746 269
Güdül KırkkavakTurkeyDSI - State Hydraulic WorksI 1- /14- /15- /16- /1749 114
Karaburun KarareisTurkeyDSI - State Hydraulic WorksW 10- /14- /15- /15- /1650 170
Köroglu Kotanli 1
[A-G]
TurkeyEBD En. Ür. ve Tic. A.S.HKura7303/1506/1502/1704/17100404640680V(3')0.60(3')*0.60 30030085130(N)
BallikayaTurkeyDSI - State Hydraulic WorksHMudurnu609/0806/15- /17- /1898188991130.10(3)0.80(3)0.80(12)3001200
ÜniversiteTurkeyDSI - State Hydraulic WorksW 1- /15- /16- /17- /1736 20
Çamoluk AlısızTurkeyDSI - State Hydraulic WorksI 1- /16- /16- /17- /1723 14
IncirTurkeyEnerji S.A.HBuyuk Cay - /13- /16- /17- /18150
ErganiTurkeyDSI - State Hydraulic WorksIGolkum15- /14- /16- /17- /18542291271610.10(3)0.80(3)0.80(12)300
BalliTurkeyDSI - State Hydraulic WorksH 6- /08- /14- /18- /2051 144
KavsaktepeTurkeyDSI - State Hydraulic WorksIRobozik1609/08- /14- /18- /20762685185400.15(3')0.70(3')*0.70(3)3003008139(N)
YesilkavakTurkeyDSI - State Hydraulic WorksIKisik30- /14- /16- /18- /1988452727809V(3)1.00(3)1.00(12)300
Beyhan-II
[H-F]
TurkeyKalehan Energy Üretim ve Ticaret A.S.HMurat7907/13- /17- /1809/19603631912100.70(7)0.70(1)  3003001300(M)
Taşköprü HasanlıTurkeyDSI - State Hydraulic WorksI W 5- /14- /17- /18- /1943 46
Cudi-CircipTurkeyDSI - State Hydraulic WorksICircip2- /16- /17- /18- /19302134859V(1)0.80(1)0.80(12)3001200
Yeşil Vadi (Beyler Deresi) TurkeyDSI - State Hydraulic WorksI 5- /16- /17- /18- /1939 170
NarliTurkeyAkkur Energy Production Trade and Industry Co. Inc.HGöksu27- /16- /17- /18- /19471534968 (14) (14)  3003006550(F)
MelenTurkeyDSI - State Hydraulic WorksH I WMelen693- /1306/1503/1905/19124944187120960.15(3)0.70(3)*0.70(3)3003009060(F)
Karamürsel IhsaniyeTurkeyDSI - State Hydraulic WorksI W 903/1603/1704/1912/1969 130185        7545(F)
Asagi (Lower) KaleköyTurkeyKalehan Energy Üretim ve Ticaret A.S.HMurat55603/13- /15- /2004/21125346119213420.25(7)0.80(1)  3003001300(M)
BallikayaTurkeyDSI - State Hydraulic WorksW 143- /13- /15- /20- /2398 800
Çetin
[H-F]
TurkeyDSI - State Hydraulic WorksH  - /12- /18- /20- /21157 2400
DereçatiTurkeyDSI - State Hydraulic WorksI 2- /16- /18- /20- /2151 110
Davarlı TurkeyDSI - State Hydraulic WorksI 1- /16- /19- /21- /2339 34
Gürün ÇamlıcaTurkeyDSI - State Hydraulic WorksI 1- /17- /19- /21- /2328 28
KapiçayTurkeyDSI - State Hydraulic WorksH IBasgöz5- /14- /18- /22- /2450 126
ErgenliTurkeyDSI - State Hydraulic WorksIIlica39- /14- /18- /22- /24102540124913400.20(3)0.70(3)0.70(12)300
KağızmanTurkeyDSI - State Hydraulic WorksI W 22- /16- /19- /22- /2469 180
BahçecikTurkeyDSI - State Hydraulic WorksI  - /15- /18- /23- /2470 614
GölecikTurkeyDSI - State Hydraulic WorksI WGölecik36- /16- /18- /23- /2492450 890V(3')0.80(3')*0.80(12)300300
Göle DurançamTurkeyDSI - State Hydraulic WorksI 37- /16- /19- /23- /2422 20
Akçali-2TurkeyDSI - State Hydraulic WorksISagin - /16- /19- /23- /2440148 720.10(3')0.70(3')*0.70(12)300300
Akçali-1TurkeyDSI - State Hydraulic WorksI 3- /16- /19- /23- /2443 120
GündüzlerTurkeyDSI - State Hydraulic WorksI 8- /16- /19- /23- /2465 280
BahçecikTurkeyDSI - State Hydraulic WorksW 3- /16- /19- /23- /2469 204

← Scroll the table horizontally to view its entire width →



Search again

Please note: only dams ≥ 15m which have been completed, are under construction, or due to begin RCC placement in the current year are included in the list below.

Results are sorted in the following order: Finish of RCC, Start of RCC, Finish of Project, Start of Project, Height and alphabetical by Dam Name.

Full Dam Information

Details

Country: Turkey

Owner: ERE Electricity Co.

Type: Gravity

Purpose(s): Hydropower

River: Güredin Creek

Reservoir capacity: 9 m3x106

Construction Dates

Start of Project: 01/98

Start of RCC: 01/98

End of RCC: 10/99

End of Project: 10/99

Specifications

Height: 36 metres

Length: 192 metres

Volume of RCC: 55 m3x103

Total volume: 60 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against precast concrete panels
Downstream
SlopeType
0.80RCC against precast concrete panels
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
50
Pozzolan (kg/m3)Pozzolan Type
100Ground-granulated blast-furnace slag

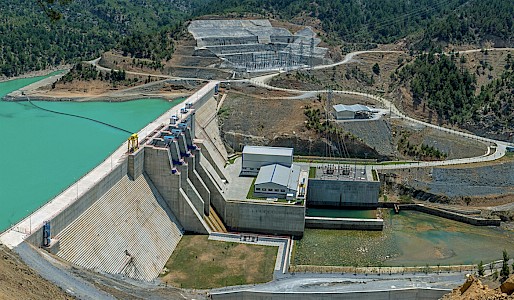

Suçati completed
Suçati completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): Hydropower / Irrigation / Water Supply

River: Buyuk Menderes

Reservoir capacity: 82 m3x106

Construction Dates

Start of Project: 04/94

Start of RCC: 04/94

End of RCC: 05/05

End of Project: 11/07

Specifications

Height: 107 metres

Length: 280 metres

Volume of RCC: 1500 m3x103

Total volume: 1685 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.70Traditional concrete against precast concrete panels with geomembrane
Downstream
SlopeType
0.70RCC against formwork
Spillway
SlopeType
0.89Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
50
Pozzolan (kg/m3)Pozzolan Type
20Low-lime flyash (ASTM Class F)

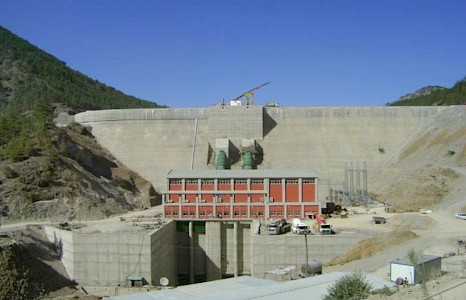

Çindere completed
Çindere completed

Full Dam Information

Details

Country: Turkey

Owner: Akköy Energy A.S.

Type: Gravity

Purpose(s): Hydropower

River: Harsit

Reservoir capacity: 3 m3x106

Construction Dates

Start of Project: 07/05

Start of RCC: 07/05

End of RCC: 04/07

End of Project: 09/08

Specifications

Height: 38 metres

Length: 146 metres

Volume of RCC: 87 m3x103

Total volume: 101 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10Traditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
100
Pozzolan (kg/m3)Pozzolan Type
100Natural pozzolan (ASTM Class N)

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): Irrigation / Water Supply

River: Kucuk Menderes

Reservoir capacity: 248 m3x106

Construction Dates

Start of Project: 04/94

Start of RCC: 04/94

End of RCC: 04/08

End of Project: 11/08

Specifications

Height: 95 metres

Length: 800 metres

Volume of RCC: 2350 m3x103

Total volume: 2650 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.35Traditional concrete against precast concrete panels with geomembrane
Downstream
SlopeType
0.80Traditional concrete against formwork  [stepped face]
Spillway
SlopeType
0.80Traditional concrete against formwork  [stepped face]

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
60
Pozzolan (kg/m3)Pozzolan Type
30Low-lime flyash (ASTM Class F)

Beydag completed
Beydag completed

Full Dam Information

Details

Country: Turkey

Owner: Akkur Energy Production Trade and Industry Co. Inc.

Type: Gravity

Purpose(s): Hydropower

River: Göksu

Reservoir capacity: 63 m3x106

Construction Dates

Start of Project: 12/07

Start of RCC: 12/07

End of RCC: 02/10

End of Project: 08/10

Specifications

Height: 70 metres

Length: 256 metres

Volume of RCC: 194 m3x103

Total volume: 227 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.07Traditional concrete against precast concrete panels with geomembrane
Downstream
SlopeType
0.80RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
separate

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
60
60
Pozzolan (kg/m3)Pozzolan Type
60Low-lime flyash (ASTM Class F)
50
Feke II completed
Feke II completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Flood Control / Hydropower / Irrigation / Water Supply

River: Çine

Reservoir capacity: 350 m3x106

Construction Dates

Start of Project: 12/95

Start of RCC: 12/95

End of RCC: 04/10

End of Project: 10/11

Specifications

Height: 137 metres

Length: 300 metres

Volume of RCC: 1560 m3x103

Total volume: 1650 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against precast concrete panels (GEVR/GE-RCC)
0.20
Downstream
SlopeType
0.85RCC against precast concrete panels (GEVR/GE-RCC)
Spillway
SlopeType
0.85RCC against precast concrete panels (GEVR/GE-RCC)

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
75
Pozzolan (kg/m3)Pozzolan Type
105Low-lime flyash (ASTM Class F)
95
Çine (Adnan Mendres) completed
Çine (Adnan Mendres) completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Ortasui

Reservoir capacity: 18 m3x106

Construction Dates

Start of Project: -/08

Start of RCC: -/08

End of RCC: 08/10

End of Project: 09/10

Specifications

Height: 67 metres

Length: 198 metres

Volume of RCC: 157 m3x103

Total volume: 231 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10Traditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600

Cementitious material

Cement (kg/m3)
125
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Şirnak completed
Şirnak completed

Full Dam Information

Details

Country: Turkey

Owner: Akfen Energy

Type: Hardfill

Purpose(s): Flood Control / Hydropower

River: Zamanti

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: 04/08

Start of RCC: 04/08

End of RCC: 12/10

End of Project: 04/11

Specifications

Height: 52 metres

Length: 186 metres

Volume of RCC: 160 m3x103

Total volume: 182 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.70RCC against precast concrete panels
Downstream
SlopeType
0.70RCC against formwork  [stepped face]
Spillway
SlopeType
0.70Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
88
Pozzolan (kg/m3)Pozzolan Type
37Low-lime flyash (ASTM Class F)

Çamlica III under construction
Çamlica III under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): Irrigation

River: -

Reservoir capacity: 42 m3x106

Construction Dates

Start of Project: -/06

Start of RCC: -/06

End of RCC: -/10

End of Project: -/11

Specifications

Height: 65 metres

Length: 477 metres

Volume of RCC: -

Total volume: 800 m3x103

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Senerji Enerji

Type: Gravity

Purpose(s): Hydropower

River: Çoruh

Reservoir capacity: 21 m3x106

Construction Dates

Start of Project: 05/09

Start of RCC: 05/09

End of RCC: 06/11

End of Project: 02/12

Specifications

Height: 72 metres

Length: 97 metres

Volume of RCC: 160 m3x103

Total volume: 175 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork
Downstream
SlopeType
0.50RCC against formwork
0.70
Spillway
SlopeType
0.70Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
70
Pozzolan (kg/m3)Pozzolan Type
70Low-lime flyash (ASTM Class F)

Güllübag completed
Güllübag completed

Full Dam Information

Details

Country: Turkey

Owner: Enerjisa En. Ut. A.S.

Type: Gravity

Purpose(s): Hydropower

River: Göksu

Reservoir capacity: 51 m3x106

Construction Dates

Start of Project: 05/09

Start of RCC: 05/09

End of RCC: 10/11

End of Project: 12/11

Specifications

Height: 68 metres

Length: 304 metres

Volume of RCC: 349 m3x103

Total volume: 384 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.25Traditional concrete against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
40Low-lime flyash (ASTM Class F)

Menge completed
Menge completed

Full Dam Information

Details

Country: Turkey

Owner: Püre Energy Üretim Tic. A.S.

Type: Gravity

Purpose(s): Hydropower

River: Aras

Reservoir capacity: 21 m3x106

Construction Dates

Start of Project: -/08

Start of RCC: -/08

End of RCC: -/11

End of Project: 10/11

Specifications

Height: 55 metres

Length: 148 metres

Volume of RCC: 120 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType
 RCC against formwork
Downstream
SlopeType
 RCC against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Sefaköy completed
Sefaköy completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Water Supply

River: Hezil

Reservoir capacity: 29 m3x106

Construction Dates

Start of Project: 08/08

Start of RCC: 08/08

End of RCC: -/11

End of Project: 02/12

Specifications

Height: 89 metres

Length: 356 metres

Volume of RCC: 718 m3x103

Total volume: 752 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against precast concrete panels
Downstream
SlopeType
0.70RCC against formwork
Spillway
SlopeType
0.70RCC against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
81
Pozzolan (kg/m3)Pozzolan Type
39No pozzolan used  -

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Karen Energy

Type: Gravity

Purpose(s): Hydropower

River: Balkusan

Reservoir capacity: 15 m3x106

Construction Dates

Start of Project: -/09

Start of RCC: -/09

End of RCC: -/11

End of Project: -/12

Specifications

Height: 48 metres

Length: 189 metres

Volume of RCC: 60 m3x103

Total volume: 76 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalTraditional concrete against formwork
Downstream
SlopeType
0.75Traditional concrete against formwork  [stepped face]
Spillway
SlopeType
0.75Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
50

Balkusan on Google Earth
Balkusan on Google Earth

Full Dam Information

Details

Country: Turkey

Owner: Enerjisa En. Ut. A.S.

Type: Gravity

Purpose(s): Hydropower

River: Göksu

Reservoir capacity: 98 m3x106

Construction Dates

Start of Project: 07/09

Start of RCC: 07/09

End of RCC: 04/12

End of Project: -/13

Specifications

Height: 109 metres

Length: 413 metres

Volume of RCC: 975 m3x103

Total volume: 1050 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalTraditional concrete against formwork
0.60
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
Pozzolan (kg/m3)Pozzolan Type
45Low-lime flyash (ASTM Class F)

Köprü completed
Köprü completed

Full Dam Information

Details

Country: Turkey

Owner: MEM Energy

Type: Gravity

Purpose(s): Hydropower

River: Goksu

Reservoir capacity: 18 m3x106

Construction Dates

Start of Project: 02/10

Start of RCC: 02/10

End of RCC: 05/12

End of Project: 07/12

Specifications

Height: 69 metres

Length: 118 metres

Volume of RCC: 96 m3x103

Total volume: 122 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.067RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast before RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
55
Pozzolan (kg/m3)Pozzolan Type
55Low-lime flyash (ASTM Class F)

Gökkaya under construction
Gökkaya under construction

Full Dam Information

Details

Country: Turkey

Owner: MCK Elektrik Uretim A.S.

Type: Gravity

Purpose(s): Hydropower / Irrigation

River: Emet

Reservoir capacity: 6 m3x106

Construction Dates

Start of Project: 05/10

Start of RCC: 05/10

End of RCC: 09/12

End of Project: 01/13

Specifications

Height: 39 metres

Length: 313 metres

Volume of RCC: 180 m3x103

Total volume: 210 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10Traditional concrete against formwork with external geomembrane
Downstream
SlopeType
0.75RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
80
Pozzolan (kg/m3)Pozzolan Type
40Low-lime flyash (ASTM Class F)

Devecikonagi completed
Devecikonagi completed

Full Dam Information

Details

Country: Turkey

Owner: Akköy Energy A.S.

Type: Gravity

Purpose(s): Hydropower

River: Karaovacik

Reservoir capacity: 14 m3x106

Construction Dates

Start of Project: -/07

Start of RCC: -/07

End of RCC: 09/12

End of Project: -/13

Specifications

Height: 60 metres

Length: 260 metres

Volume of RCC: 226 m3x103

Total volume: 306 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalTraditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
Pozzolan (kg/m3)Pozzolan Type
85Natural pozzolan (ASTM Class N)

Akköy II (Aladereçam) completed
Akköy II (Aladereçam) completed

Full Dam Information

Details

Country: Turkey

Owner: Enerjisa En.Ür. A.S.

Type: Gravity

Purpose(s): Hydropower

River: Seyhan

Reservoir capacity: -

Construction Dates

Start of Project: -/09

Start of RCC: -/09

End of RCC: -/12

End of Project: -/13

Specifications

Height: 88 metres

Length: -

Volume of RCC: -

Total volume: -

Construction Methods

Facings

Upstream
SlopeType
0.20Traditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Kavsak Bendi on Google Earth
Kavsak Bendi on Google Earth

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Robozik

Reservoir capacity: 12 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/12

End of Project: -/13

Specifications

Height: 39 metres

Length: 173 metres

Volume of RCC: 60 m3x103

Total volume: 64 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/12

Start of RCC: -/12

End of RCC: -/13

End of Project: -/13

Specifications

Height: 31 metres

Length: -

Volume of RCC: 100 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Flood Control / Irrigation

River: Manavgat

Reservoir capacity: 104 m3x106

Construction Dates

Start of Project: -/10

Start of RCC: -/10

End of RCC: 01/14

End of Project: 05/14

Specifications

Height: 78 metres

Length: 448 metres

Volume of RCC: 620 m3x103

Total volume: 677 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.15RCC against formwork
Downstream
SlopeType
0.80RCC against formwork  [stepped face]
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
110
Pozzolan (kg/m3)Pozzolan Type
90Natural pozzolan (ASTM Class N)

Naras completed
Naras completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Irrigation / Water Supply

River: Bembo

Reservoir capacity: 11 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: 02/14

End of Project: 11/14

Specifications

Height: 69 metres

Length: 210 metres

Volume of RCC: 162 m3x103

Total volume: 202 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalTraditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork  [stepped face]
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Astandag completed
Astandag completed

Full Dam Information

Details

Country: Turkey

Owner: Kalehan Energy Üretim ve Ticaret A.S.

Type: Hardfill

Purpose(s): Hydropower

River: Murat

Reservoir capacity: 369 m3x106

Construction Dates

Start of Project: -/09

Start of RCC: -/09

End of RCC: 03/14

End of Project: 03/15

Specifications

Height: 97 metres

Length: 361 metres

Volume of RCC: 1480 m3x103

Total volume: 1661 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.70RCC against precast concrete panels
Downstream
SlopeType
0.70Traditional concrete against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
90
Pozzolan (kg/m3)Pozzolan Type
40Milled sand

Beyhan-I completed
Beyhan-I completed

Full Dam Information

Details

Country: Turkey

Owner: Darenhes A.S.

Type: Hardfill

Purpose(s): Hydropower

River: PeriSuyu

Reservoir capacity: 358 m3x106

Construction Dates

Start of Project: 11/10

Start of RCC: 11/10

End of RCC: 10/14

End of Project: -/15

Specifications

Height: 88 metres

Length: 500 metres

Volume of RCC: 760 m3x103

Total volume: 838 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.20RCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.80RCC against formwork (GEVR/GE-RCC)
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
120
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Pembelik completed
Pembelik completed

Full Dam Information

Details

Country: Turkey

Owner: -

Type: Gravity

Purpose(s): unknown

River: -

Reservoir capacity: 109 m3x106

Construction Dates

Start of Project: -/09

Start of RCC: -/09

End of RCC: -/14

End of Project: -/15

Specifications

Height: 113 metres

Length: -

Volume of RCC: 490 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: -

Type: Gravity

Purpose(s): unknown

River: -

Reservoir capacity: 148 m3x106

Construction Dates

Start of Project: -/10

Start of RCC: -/10

End of RCC: -/14

End of Project: -/15

Specifications

Height: 151 metres

Length: -

Volume of RCC: 637 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): unknown

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: -/14

End of Project: -/14

Specifications

Height: 31 metres

Length: -

Volume of RCC: 30 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): Hydropower / Irrigation / Water Supply

River: Zamanti

Reservoir capacity: 195 m3x106

Construction Dates

Start of Project: -/11

Start of RCC: -/11

End of RCC: -/14

End of Project: 06/15

Specifications

Height: 37 metres

Length: 842 metres

Volume of RCC: 1890 m3x103

Total volume: 1943 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.70RCC against formwork
Downstream
SlopeType
0.76RCC against formwork
Spillway
SlopeType
0.76Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Gümüsören completed
Gümüsören completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Guzeldere

Reservoir capacity: 3 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/14

End of Project: -/15

Specifications

Height: 52 metres

Length: 150 metres

Volume of RCC: 85 m3x103

Total volume: 99 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Ortasu

Reservoir capacity: 20 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/14

End of Project: -/15

Specifications

Height: 53 metres

Length: 431 metres

Volume of RCC: 392 m3x103

Total volume: 460 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10Traditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork  [stepped face]
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600

Cementitious material

Cement (kg/m3)
100
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Oguzlar on Google Earth
Oguzlar on Google Earth

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Robozik

Reservoir capacity: 13 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/14

End of Project: -/15

Specifications

Height: 66 metres

Length: 165 metres

Volume of RCC: 131 m3x103

Total volume: 138 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Derin Enerji Uretim San. Ve Tic. A.S.

Type: Gravity

Purpose(s): Hydropower

River: -

Reservoir capacity: 5 m3x106

Construction Dates

Start of Project: -/12

Start of RCC: -/12

End of RCC: -/14

End of Project: -/15

Specifications

Height: 45 metres

Length: -

Volume of RCC: 400 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType
Vertical
Downstream
SlopeType
0.80
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Karakuz completed
Karakuz completed

Full Dam Information

Details

Country: Turkey

Owner: -

Type: Gravity

Purpose(s): Hydropower

River: -

Reservoir capacity: 15 m3x106

Construction Dates

Start of Project: -/12

Start of RCC: -/12

End of RCC: -/14

End of Project: -/15

Specifications

Height: 61 metres

Length: -

Volume of RCC: 150 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Ozdogan Enerji

Type: Gravity

Purpose(s): Hydropower

River: Oltu

Reservoir capacity: 308 m3x106

Construction Dates

Start of Project: 04/11

Start of RCC: 04/11

End of RCC: 02/15

End of Project: 10/15

Specifications

Height: 177 metres

Length: 405 metres

Volume of RCC: 1650 m3x103

Total volume: 1900 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.75RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.75Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
50
100
Pozzolan (kg/m3)Pozzolan Type
110Low-lime flyash (ASTM Class F)
120
Ayvali completed
Ayvali completed

Full Dam Information

Details

Country: Turkey

Owner: Bereket Energy

Type: Hardfill

Purpose(s): Hydropower

River: Zamanti

Reservoir capacity: 109 m3x106

Construction Dates

Start of Project: 04/11

Start of RCC: 04/11

End of RCC: 03/15

End of Project: -/16

Specifications

Height: 133 metres

Length: 200 metres

Volume of RCC: 749 m3x103

Total volume: 900 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.30RCC against formwork
1.00RCC against formwork
Downstream
SlopeType
0.60RCC against formwork
1.00RCC against formwork
Spillway
SlopeType
0.75Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
50
Pozzolan (kg/m3)Pozzolan Type
50Low-lime flyash (ASTM Class F)

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: EBD En. Ür. ve Tic. A.S.

Type: Arch-Gravity

Purpose(s): Hydropower

River: Kura

Reservoir capacity: 20 m3x106

Construction Dates

Start of Project: 10/12

Start of RCC: 10/12

End of RCC: 04/15

End of Project: 11/15

Specifications

Height: 70 metres

Length: 250 metres

Volume of RCC: 248 m3x103

Total volume: 252 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.15RCC against formwork
Downstream
SlopeType
0.70RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.70

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
Pozzolan (kg/m3)Pozzolan Type
130Natural pozzolan (ASTM Class N)

Kotanli II completed
Kotanli II completed

Full Dam Information

Details

Country: Turkey

Owner: Akkur Energy Production Trade and Industry Co. Inc.

Type: Gravity

Purpose(s): Hydropower

River: Göksu

Reservoir capacity: 63 m3x106

Construction Dates

Start of Project: 01/07

Start of RCC: 01/07

End of RCC: -/10

End of Project: -/11

Specifications

Height: 70 metres

Length: 235 metres

Volume of RCC: 232 m3x103

Total volume: 260 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.07RCC against precast concrete panels with geomembrane
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
separate

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
60
Pozzolan (kg/m3)Pozzolan Type
50  toLow-lime flyash (ASTM Class F)

Burç on Google Earth
Burç on Google Earth

Full Dam Information

Details

Country: Turkey

Owner: -

Type: Gravity

Purpose(s): unknown

River: -

Reservoir capacity: 43 m3x106

Construction Dates

Start of Project: -/12

Start of RCC: -/12

End of RCC: -/15

End of Project: -/16

Specifications

Height: 90 metres

Length: -

Volume of RCC: 330 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: -/15

End of Project: -/15

Specifications

Height: 29 metres

Length: -

Volume of RCC: 69 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
60
Pozzolan (kg/m3)Pozzolan Type
0

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 3 m3x106

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: -/15

End of Project: -/15

Specifications

Height: 38 metres

Length: -

Volume of RCC: 71 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/15

End of Project: -/15

Specifications

Height: 40 metres

Length: -

Volume of RCC: 69 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Kalehan Energy Üretim ve Ticaret A.S.

Type: Gravity

Purpose(s): Hydropower

River: Murat

Reservoir capacity: 784 m3x106

Construction Dates

Start of Project: 06/12

Start of RCC: 06/12

End of RCC: 09/16

End of Project: 04/18

Specifications

Height: 150 metres

Length: 516 metres

Volume of RCC: 2224 m3x103

Total volume: 2414 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.25RCC against precast concrete panels
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
130
Pozzolan (kg/m3)Pozzolan Type
0Milled sand

Yukari (Upper) Kaleköy under construction
Yukari (Upper) Kaleköy under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: Sarma

Reservoir capacity: 2 m3x106

Construction Dates

Start of Project: 01/13

Start of RCC: 01/13

End of RCC: 10/16

End of Project: -/17

Specifications

Height: 66 metres

Length: 148 metres

Volume of RCC: 85 m3x103

Total volume: 130 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Akçakoca completed
Akçakoca completed

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Ardil

Reservoir capacity: 11 m3x106

Construction Dates

Start of Project: 03/13

Start of RCC: 03/13

End of RCC: 12/16

End of Project: 02/17

Specifications

Height: 54 metres

Length: 246 metres

Volume of RCC: 108 m3x103

Total volume: 158 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600

Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
50

Ardil under construction
Ardil under construction

Full Dam Information

Details

Country: Turkey

Owner: Limak Energy

Type: Gravity

Purpose(s): Hydropower

River: Sakarya

Reservoir capacity: 50 m3x106

Construction Dates

Start of Project: -/11

Start of RCC: -/11

End of RCC: 12/16

End of Project: 06/17

Specifications

Height: 95 metres

Length: 270 metres

Volume of RCC: 535 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType
0.10
Downstream
SlopeType
0.80
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: -

Reservoir capacity: 17 m3x106

Construction Dates

Start of Project: -/08

Start of RCC: -/08

End of RCC: -/16

End of Project: -/18

Specifications

Height: 77 metres

Length: -

Volume of RCC: -

Total volume: 887 m3x103

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Irrigation

River: -

Reservoir capacity: 66 m3x106

Construction Dates

Start of Project: -/99

Start of RCC: -/99

End of RCC: -/16

End of Project: -/17

Specifications

Height: 73 metres

Length: -

Volume of RCC: 330 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Bembo

Reservoir capacity: 8 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/16

End of Project: -/17

Specifications

Height: 78 metres

Length: 176 metres

Volume of RCC: 186 m3x103

Total volume: 209 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)
95
Pozzolan (kg/m3)Pozzolan Type
0No pozzolan used  -

Beyyurdu under construction
Beyyurdu under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: Kelebek

Reservoir capacity: 23 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/18

End of Project: -/19

Specifications

Height: 62 metres

Length: 193 metres

Volume of RCC: 74 m3x103

Total volume: 97 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): unknown

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: 16/00

End of Project: -/16

Specifications

Height: 19 metres

Length: -

Volume of RCC: 240 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/16

End of Project: -/16

Specifications

Height: 42 metres

Length: -

Volume of RCC: 70 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Irrigation / Water Supply

River: Camibogazi

Reservoir capacity: 10 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/18

End of Project: -/19

Specifications

Height: 45 metres

Length: 298 metres

Volume of RCC: 142 m3x103

Total volume: 173 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.05RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/16

End of Project: -/17

Specifications

Height: 46 metres

Length: -

Volume of RCC: 269 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/16

End of Project: -/17

Specifications

Height: 49 metres

Length: -

Volume of RCC: 114 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Water Supply

River: -

Reservoir capacity: 10 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/15

End of Project: -/16

Specifications

Height: 50 metres

Length: -

Volume of RCC: 170 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: EBD En. Ür. ve Tic. A.S.

Type: Arch-Gravity

Purpose(s): Hydropower

River: Kura

Reservoir capacity: 73 m3x106

Construction Dates

Start of Project: 03/15

Start of RCC: 03/15

End of RCC: 02/17

End of Project: 04/17

Specifications

Height: 100 metres

Length: 404 metres

Volume of RCC: 640 m3x103

Total volume: 680 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.60RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.60

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
85
Pozzolan (kg/m3)Pozzolan Type
130Natural pozzolan (ASTM Class N)

Köroglu Kotanli 1 under construction
Köroglu Kotanli 1 under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: Mudurnu

Reservoir capacity: 6 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/17

End of Project: -/18

Specifications

Height: 98 metres

Length: 188 metres

Volume of RCC: 99 m3x103

Total volume: 113 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Ballikaya under construction
Ballikaya under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Water Supply

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/15

Start of RCC: -/15

End of RCC: -/17

End of Project: -/17

Specifications

Height: 36 metres

Length: -

Volume of RCC: 20 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/17

End of Project: -/17

Specifications

Height: 23 metres

Length: -

Volume of RCC: 14 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Enerji S.A.

Type: Gravity

Purpose(s): Hydropower

River: Buyuk Cay

Reservoir capacity: -

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: -/17

End of Project: -/18

Specifications

Height: 150 metres

Length: -

Volume of RCC: -

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Golkum

Reservoir capacity: 15 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/17

End of Project: -/18

Specifications

Height: 54 metres

Length: 229 metres

Volume of RCC: 127 m3x103

Total volume: 161 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork
Downstream
SlopeType
0.80RCC against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower

River: -

Reservoir capacity: 6 m3x106

Construction Dates

Start of Project: -/08

Start of RCC: -/08

End of RCC: -/18

End of Project: -/20

Specifications

Height: 51 metres

Length: -

Volume of RCC: 144 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Robozik

Reservoir capacity: 16 m3x106

Construction Dates

Start of Project: 09/08

Start of RCC: 09/08

End of RCC: -/18

End of Project: -/20

Specifications

Height: 76 metres

Length: 268 metres

Volume of RCC: 518 m3x103

Total volume: 540 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.15RCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.70RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.70RCC against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
81
Pozzolan (kg/m3)Pozzolan Type
39Natural pozzolan (ASTM Class N)

Kavsaktepe on Google Earth
Kavsaktepe on Google Earth

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Kisik

Reservoir capacity: 30 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/18

End of Project: -/19

Specifications

Height: 88 metres

Length: 452 metres

Volume of RCC: 727 m3x103

Total volume: 809 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork
Downstream
SlopeType
1.00RCC against formwork
Spillway
SlopeType
1.00Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Kalehan Energy Üretim ve Ticaret A.S.

Type: Hardfill

Purpose(s): Hydropower

River: Murat

Reservoir capacity: 79 m3x106

Construction Dates

Start of Project: 07/13

Start of RCC: 07/13

End of RCC: -/18

End of Project: 09/19

Specifications

Height: 60 metres

Length: 363 metres

Volume of RCC: 191 m3x103

Total volume: 210 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.70RCC against precast concrete panels
Downstream
SlopeType
0.70Traditional concrete against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
130
Pozzolan (kg/m3)Pozzolan Type
0Milled sand

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: -

Reservoir capacity: 5 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/18

End of Project: -/19

Specifications

Height: 43 metres

Length: -

Volume of RCC: 46 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Circip

Reservoir capacity: 2 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/18

End of Project: -/19

Specifications

Height: 30 metres

Length: 213 metres

Volume of RCC: 48 m3x103

Total volume: 59 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalTraditional concrete against formwork
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
3001200

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 5 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/18

End of Project: -/19

Specifications

Height: 39 metres

Length: -

Volume of RCC: 170 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: Akkur Energy Production Trade and Industry Co. Inc.

Type: Gravity

Purpose(s): Hydropower

River: Göksu

Reservoir capacity: 27 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/18

End of Project: -/19

Specifications

Height: 47 metres

Length: 153 metres

Volume of RCC: 49 m3x103

Total volume: 68 m3x103

Construction Methods

Facings

Upstream
SlopeType
 Slip-formed/extruded facing elements
Downstream
SlopeType
 Slip-formed/extruded facing elements
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
65
Pozzolan (kg/m3)Pozzolan Type
50Low-lime flyash (ASTM Class F)

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Irrigation / Water Supply

River: Melen

Reservoir capacity: 693 m3x106

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: 03/19

End of Project: 05/19

Specifications

Height: 124 metres

Length: 944 metres

Volume of RCC: 1871 m3x103

Total volume: 2096 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.15RCC against formwork
Downstream
SlopeType
0.70RCC against formwork  [stepped face]
Spillway
SlopeType
0.70RCC against formwork

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
90
Pozzolan (kg/m3)Pozzolan Type
60Low-lime flyash (ASTM Class F)

Melen under construction
Melen under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: -

Reservoir capacity: 9 m3x106

Construction Dates

Start of Project: 03/16

Start of RCC: 03/16

End of RCC: 04/19

End of Project: 12/19

Specifications

Height: 69 metres

Length: -

Volume of RCC: 130 m3x103

Total volume: 185 m3x103

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
45Low-lime flyash (ASTM Class F)

Karamürsel Ihsaniye under construction
Karamürsel Ihsaniye under construction

Full Dam Information

Details

Country: Turkey

Owner: Kalehan Energy Üretim ve Ticaret A.S.

Type: Gravity

Purpose(s): Hydropower

River: Murat

Reservoir capacity: 556 m3x106

Construction Dates

Start of Project: 03/13

Start of RCC: 03/13

End of RCC: -/20

End of Project: 04/21

Specifications

Height: 125 metres

Length: 346 metres

Volume of RCC: 1192 m3x103

Total volume: 1342 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.25RCC against precast concrete panels
Downstream
SlopeType
0.80Traditional concrete against formwork
Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)
130
Pozzolan (kg/m3)Pozzolan Type
0Milled sand

Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Water Supply

River: -

Reservoir capacity: 143 m3x106

Construction Dates

Start of Project: -/13

Start of RCC: -/13

End of RCC: -/20

End of Project: -/23

Specifications

Height: 98 metres

Length: -

Volume of RCC: 800 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Hardfill

Purpose(s): Hydropower

River: -

Reservoir capacity: -

Construction Dates

Start of Project: -/12

Start of RCC: -/12

End of RCC: -/20

End of Project: -/21

Specifications

Height: 157 metres

Length: -

Volume of RCC: 2400 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 2 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/20

End of Project: -/21

Specifications

Height: 51 metres

Length: -

Volume of RCC: 110 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/21

End of Project: -/23

Specifications

Height: 39 metres

Length: -

Volume of RCC: 34 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 1 m3x106

Construction Dates

Start of Project: -/17

Start of RCC: -/17

End of RCC: -/21

End of Project: -/23

Specifications

Height: 28 metres

Length: -

Volume of RCC: 28 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Hydropower / Irrigation

River: Basgöz

Reservoir capacity: 5 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/22

End of Project: -/24

Specifications

Height: 50 metres

Length: -

Volume of RCC: 126 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Ilica

Reservoir capacity: 39 m3x106

Construction Dates

Start of Project: -/14

Start of RCC: -/14

End of RCC: -/22

End of Project: -/24

Specifications

Height: 102 metres

Length: 540 metres

Volume of RCC: 1249 m3x103

Total volume: 1340 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.20RCC against formwork
Downstream
SlopeType
0.70RCC against formwork
Spillway
SlopeType
0.70Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Ergenli under construction
Ergenli under construction

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: -

Reservoir capacity: 22 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/22

End of Project: -/24

Specifications

Height: 69 metres

Length: -

Volume of RCC: 180 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: -

Construction Dates

Start of Project: -/15

Start of RCC: -/15

End of RCC: -/23

End of Project: -/24

Specifications

Height: 70 metres

Length: -

Volume of RCC: 614 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation / Water Supply

River: Gölecik

Reservoir capacity: 36 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 92 metres

Length: 450 metres

Volume of RCC: -

Total volume: 890 m3x103

Construction Methods

Facings

Upstream
SlopeType
VerticalRCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.80RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 37 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 22 metres

Length: -

Volume of RCC: 20 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: Sagin

Reservoir capacity: -

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 40 metres

Length: 148 metres

Volume of RCC: -

Total volume: 72 m3x103

Construction Methods

Facings

Upstream
SlopeType
0.10RCC against formwork (GEVR/GE-RCC)
Downstream
SlopeType
0.70RCC against formwork (GEVR/GE-RCC)  [stepped face]
Spillway
SlopeType
0.70Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 3 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 43 metres

Length: -

Volume of RCC: 120 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Irrigation

River: -

Reservoir capacity: 8 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 65 metres

Length: -

Volume of RCC: 280 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon

Full Dam Information

Details

Country: Turkey

Owner: DSI - State Hydraulic Works

Type: Gravity

Purpose(s): Water Supply

River: -

Reservoir capacity: 3 m3x106

Construction Dates

Start of Project: -/16

Start of RCC: -/16

End of RCC: -/23

End of Project: -/24

Specifications

Height: 69 metres

Length: -

Volume of RCC: 204 m3x103

Total volume: -

Construction Methods

Facings

Upstream
SlopeType

Downstream
SlopeType

Spillway
SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type


Photo coming soon



Search again

Please note: only dams with known co-ordinates will appear on this map.

Your search returned no dams with known co-ordinates
