Akçakoca

Download PDF data sheet

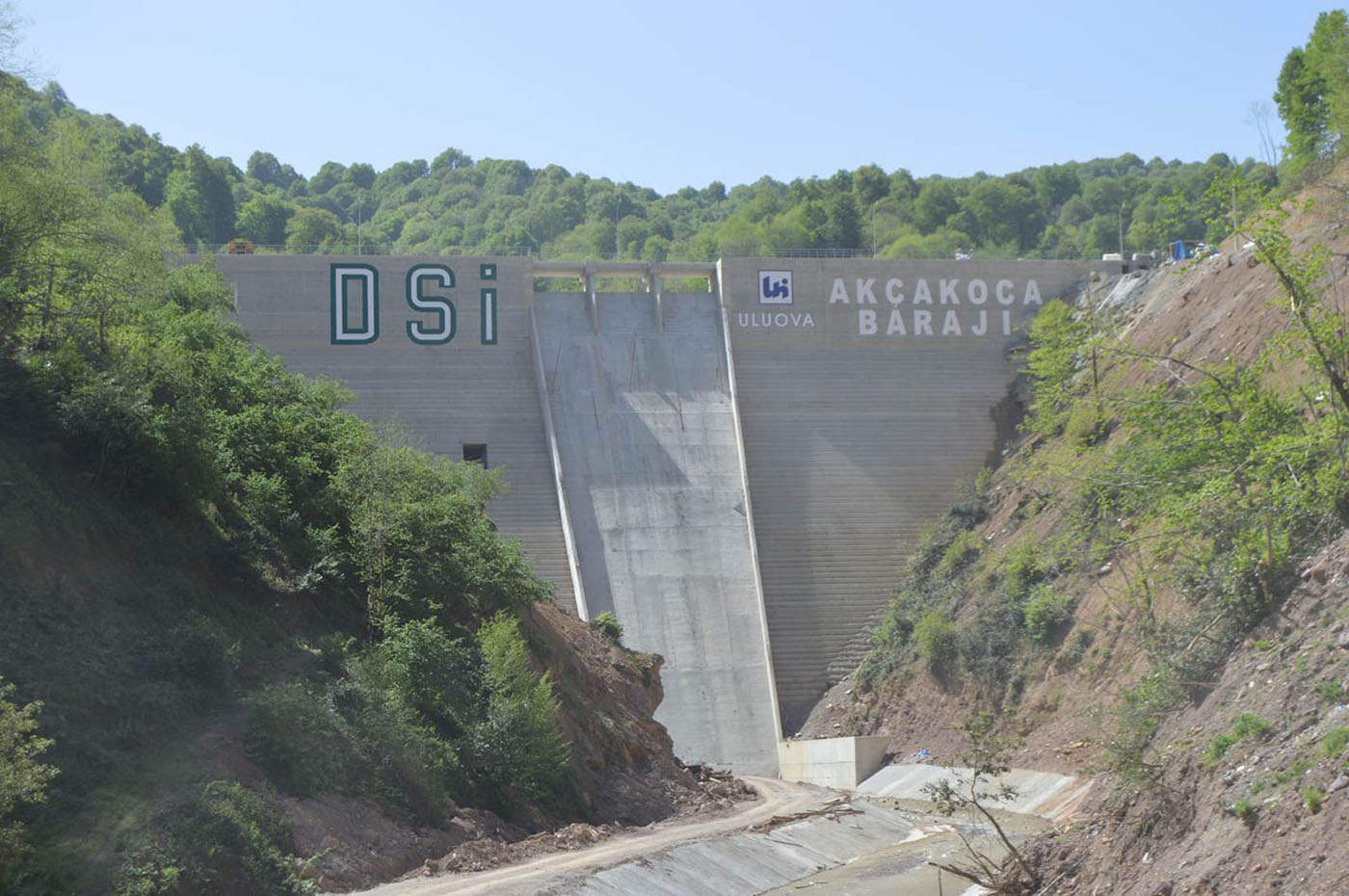

Akçakoca completed
Akçakoca completed

Particulars

Owner: DSI - State Hydraulic Works

Designer: unknown

Contractor: Uluova Construction Co.

Statistics

Type: Gravity

Purpose(s): Irrigation / Water Supply

Reservoir capacity: 2 m3x106

Height: 75 metres

Length: 148 metres

Volume of RCC: 85 m3x103

Total volume: 130 m3x103

Construction Dates

Start of Project: 01/13 (January 2013)

Start of RCC: 05/15 (May 2015)

End of RCC: 10/16 (October 2016)

End of Project: /18 ( 2018)

Country: Turkey

River: Sarma

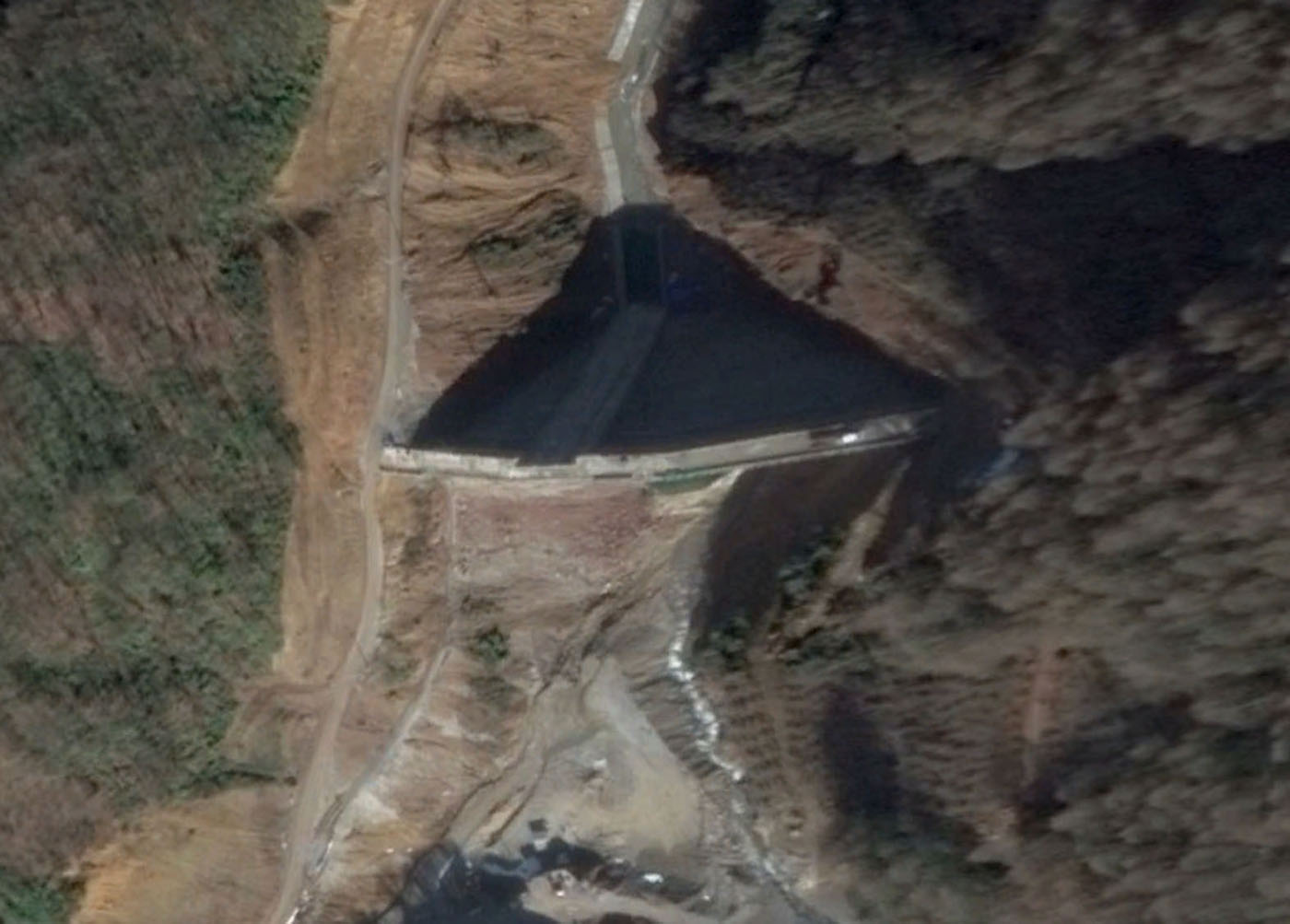

DMS Co-ordinates: 40˚58'53.33"N, 31˚04'37.4"E

DD Co-ordinates: 40.981480, 31.077057

Facings

Upstream

SlopeType
0.10RCC against formwork

Downstream

SlopeType
0.80RCC against formwork

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300

Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
