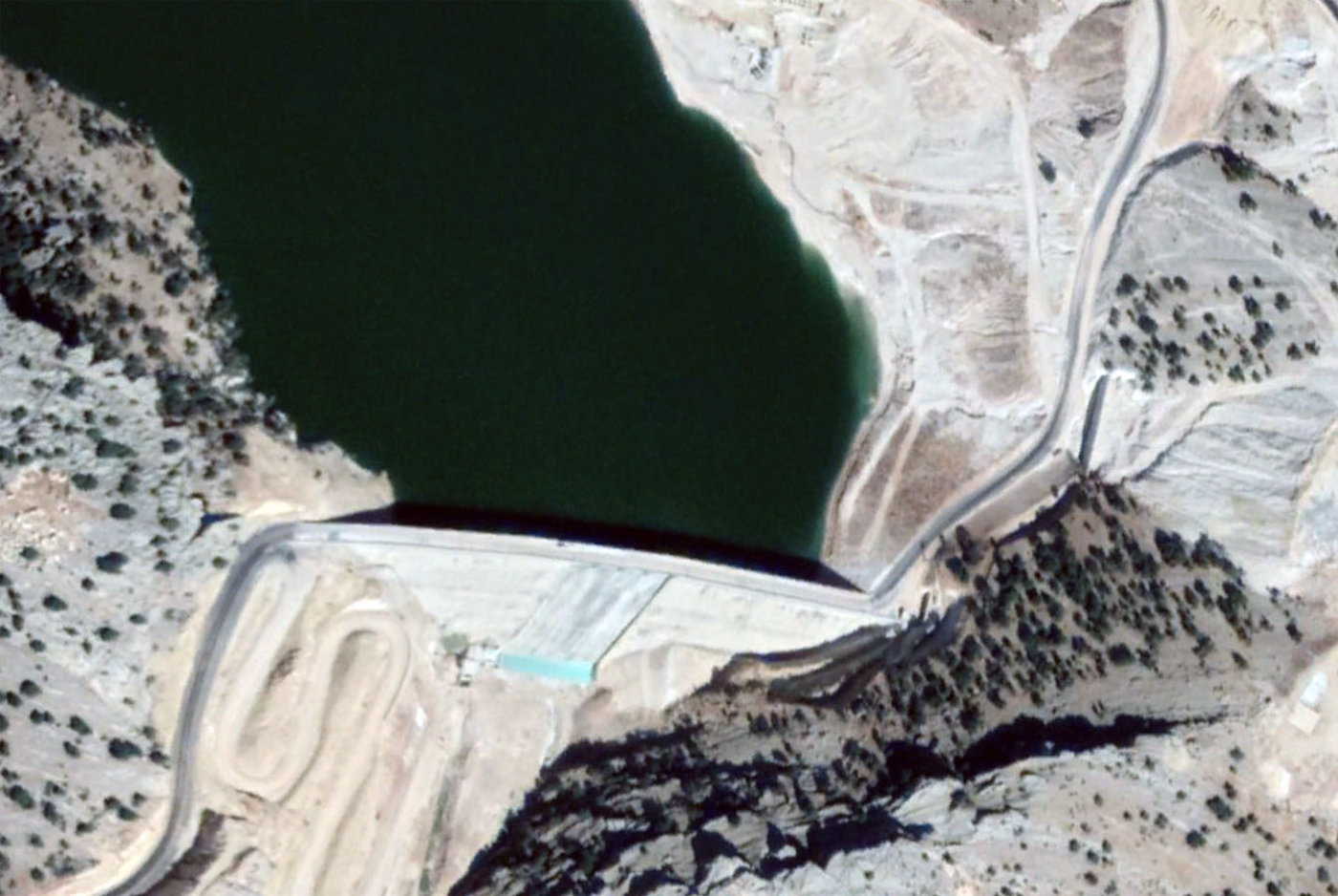

Ardil

Download PDF data sheet

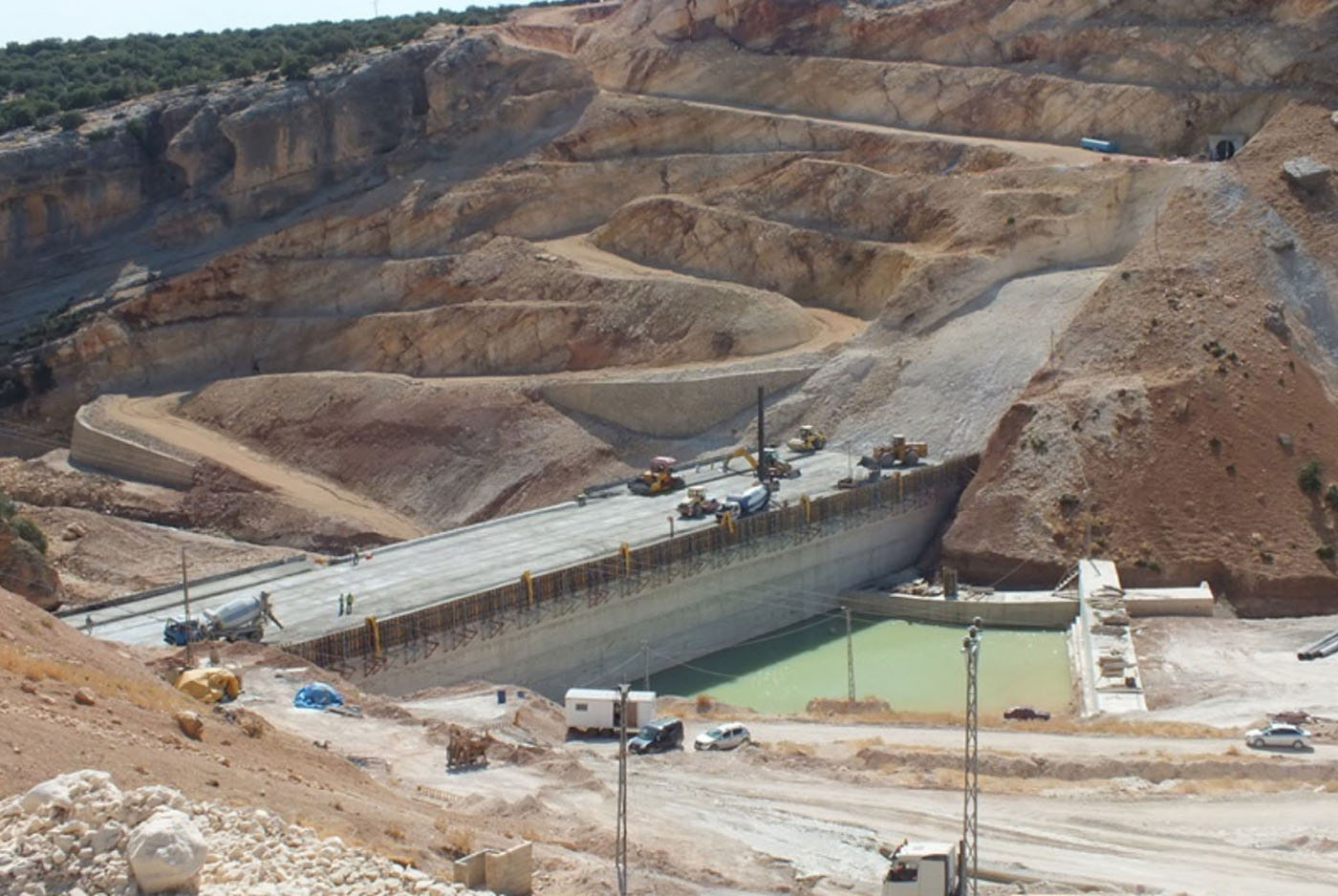

Ardil under construction
Ardil under construction

Particulars

Owner: DSI - State Hydraulic Works

Designer: Hidromark Eng. Cons. Inc.

Contractor: unknown

Statistics

Type: Gravity

Purpose(s): Irrigation

Reservoir capacity: 11 m3x106

Height: 54 metres

Length: 246 metres

Volume of RCC: 108 m3x103

Total volume: 158 m3x103

Construction Dates

Start of Project: 03/13 (March 2013)

Start of RCC: 05/14 (May 2014)

End of RCC: 12/16 (December 2016)

End of Project: 02/17 (February 2017)

Country: Turkey

River: Ardil

DMS Co-ordinates: 37˚29'37"N, 37˚37'19"E

DD Co-ordinates: 37.493610, 37.621944

Facings

Upstream

SlopeType
VerticalRCC against formwork

Downstream

SlopeType
0.80RCC against formwork

Spillway

SlopeType
0.80Reinforced conventional concrete cast after RCC placement

Placement

Layers (mm)Lifts (mm)
300600

Cementitious material

Cement (kg/m3)
75
Pozzolan (kg/m3)Pozzolan Type
50
