Barra Grande

Download PDF data sheet

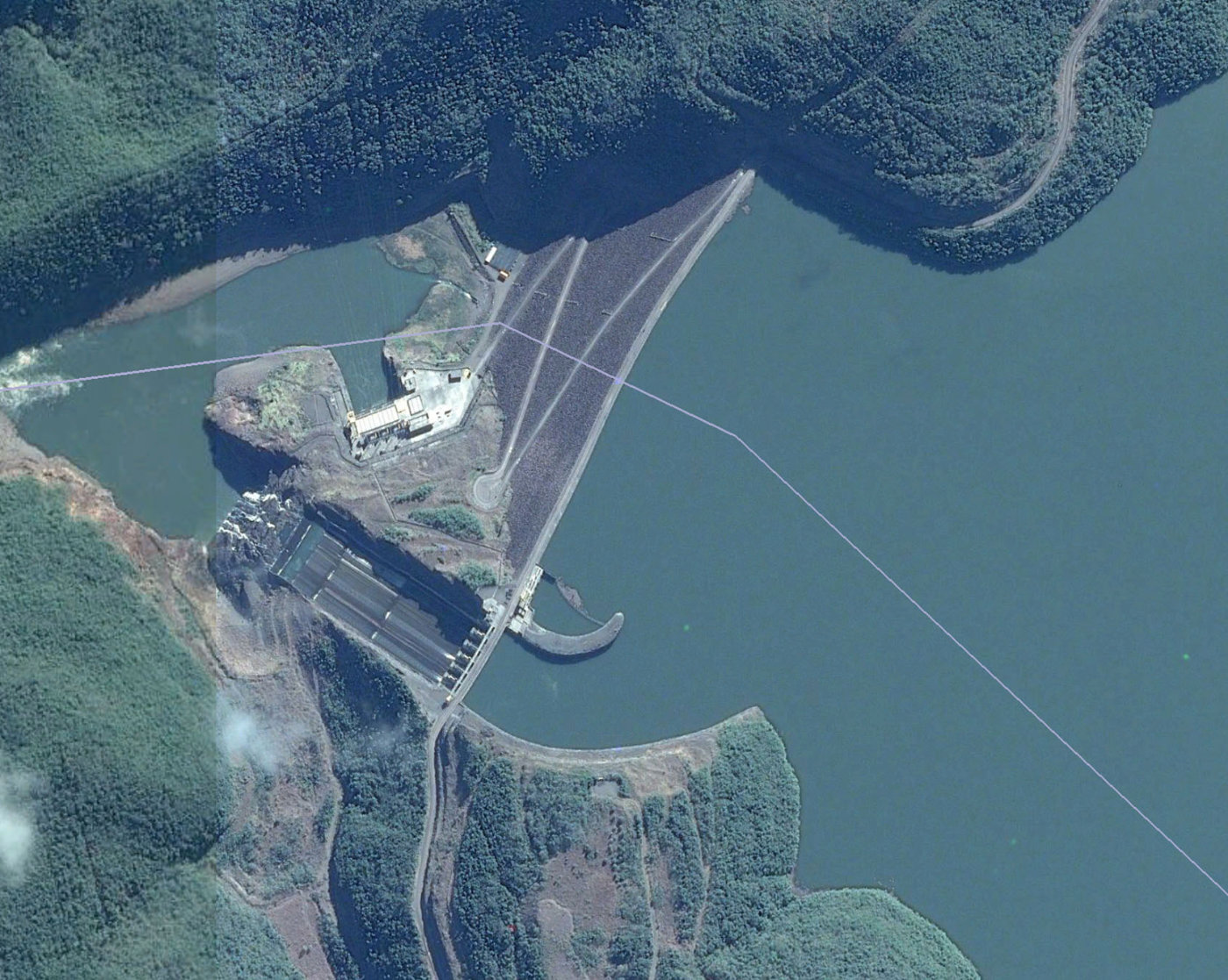

Barra Grande on Google Earth
Barra Grande on Google Earth

Statistics

Type: Gravity

Purpose(s): Hydropower

Reservoir capacity: 50000 m3x106

Height: 85 metres

Length: 665 metres

Volume of RCC: 100 m3x103

Total volume: unknown

Construction Dates

Start of Project: /01 ( 2001)

Start of RCC: /02 ( 2002)

End of RCC: /05 ( 2005)

End of Project: /06 ( 2006)

Country: Brazil

River: Pelotas

DMS Co-ordinates: 27˚46'50.78"S, 51˚11'32.57"W

DD Co-ordinates: -27.780771, -51.192383

Facings

Upstream

SlopeType


Downstream

SlopeType


Spillway

SlopeType


Placement

Layers (mm)Lifts (mm)


Cementitious material

Cement (kg/m3)

Pozzolan (kg/m3)Pozzolan Type
